Waveguide Arc Detector Sensitivity Settings and Response Time Specifications

High-power RF systems face a critical challenge: electrical arcing can destroy expensive equipment within microseconds. When your waveguide arc detector fails to respond fast enough or lacks proper sensitivity settings, you risk catastrophic damage to klystrons, amplifiers, and transmission systems worth hundreds of thousands of dollars. The Waveguide Arc Detector addresses this pain point by combining ultra-fast response times under 10 microseconds with exceptional sensitivity better than -45dBm, ensuring your high-value RF equipment receives immediate protection before destructive energy can accumulate.

Understanding Waveguide Arc Detector Sensitivity Parameters

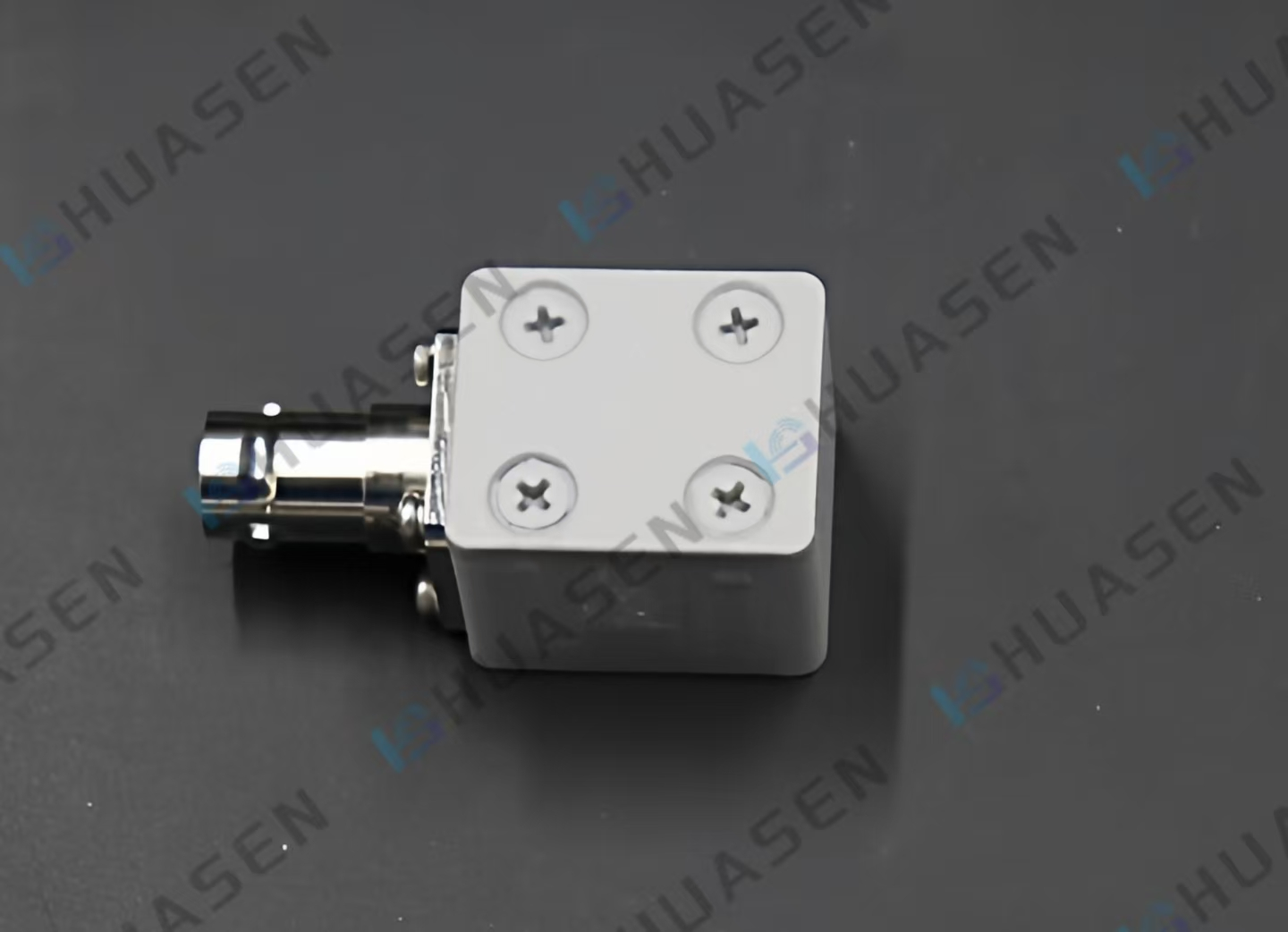

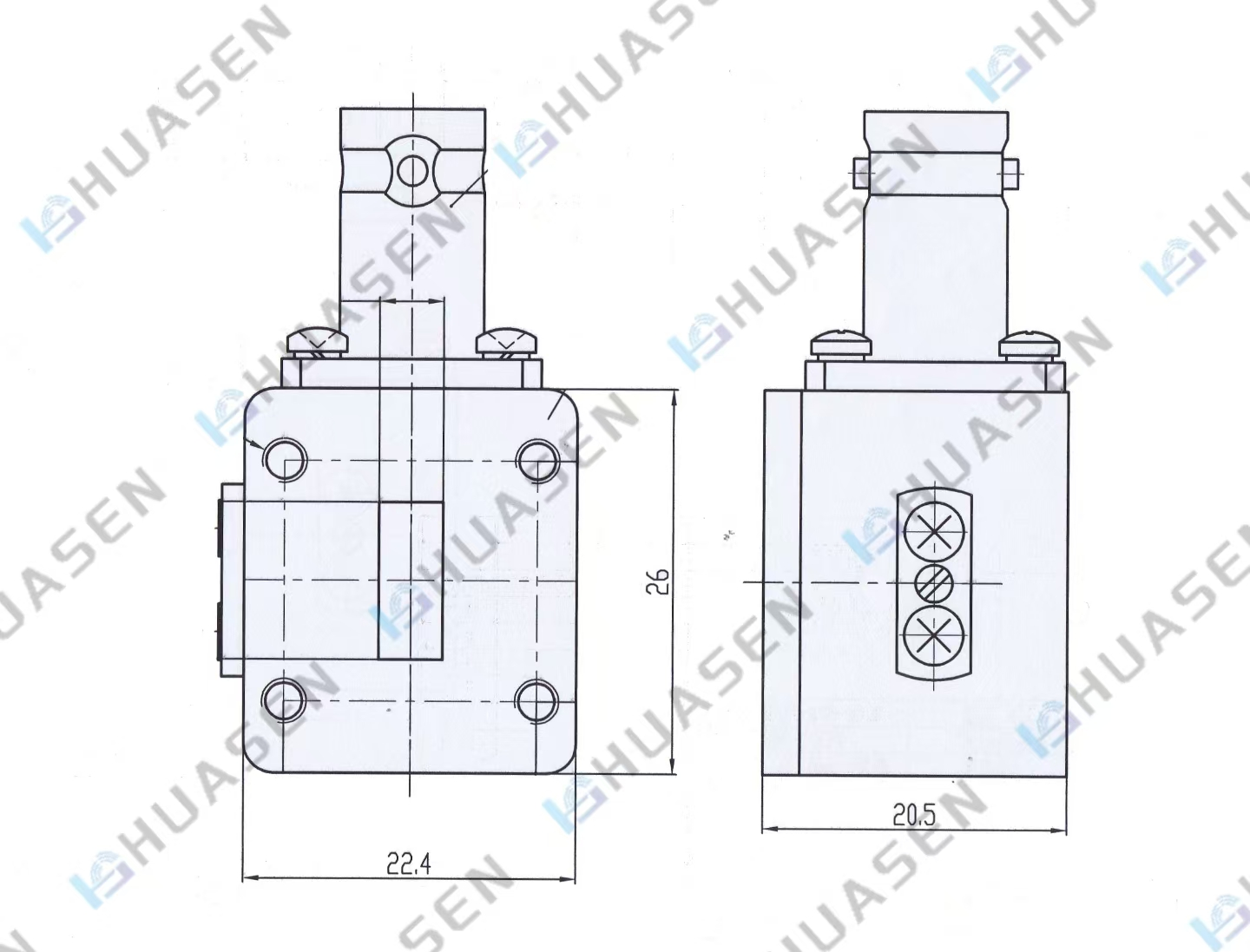

The sensitivity of a Waveguide Arc Detector represents its ability to detect the smallest electrical discharge before it escalates into equipment-damaging catastrophe. Modern arc detection systems utilize sophisticated photodetection technology that monitors the visible and near-infrared spectrum, typically ranging from 250 nanometers to 1100 nanometers. The Waveguide Arc Detector employs a precision low-barrier Schottky diode configuration integrated within a waveguide detection seat, delivering industry-leading sensitivity specifications better than -45dBm. This exceptional sensitivity threshold ensures that even minor arcing events trigger immediate protective responses, preventing progressive breakdown where small initial arcs rapidly intensify as surrounding gases become ionized.

Sensitivity settings directly impact false alarm rates versus protection effectiveness. Systems operating in high-power environments above 50 kilowatts require carefully calibrated sensitivity to distinguish between legitimate arcing and ambient electromagnetic interference. The waveguide detection architecture incorporates advanced signal processing algorithms that filter out noise while maintaining rapid detection of genuine arc events. Engineers must balance sensitivity against environmental factors including background radiation levels, operating frequency bands, and peak power handling requirements. The wide frequency band capability of modern Waveguide Arc Detector systems allows deployment across L-band through W-band applications, with sensitivity parameters remaining consistent across this extensive operational range.

Factors Affecting Detection Sensitivity

Multiple variables influence the practical sensitivity performance of Waveguide Arc Detector installations. Optical coupling efficiency between the detection aperture and the waveguide interior significantly impacts light collection from arcing events. Below-cutoff apertures positioned on E-plane or H-plane bends provide optimal viewing angles while preventing RF leakage. Surface contamination, moisture accumulation, and oxidation on viewport windows can degrade optical transmission, effectively reducing system sensitivity over time. Regular maintenance protocols including viewport cleaning and optical path verification ensure sustained sensitivity performance.

The photodetector element selection determines fundamental sensitivity limits. Avalanche photodiodes offer superior sensitivity compared to standard phototransistors, detecting lower light levels at the expense of increased complexity and cost. Low-barrier Schottky diodes provide an excellent compromise, combining good sensitivity with exceptional bandwidth for microsecond-range response times. Amplifier noise characteristics also influence detection thresholds, with low-noise preamplifier designs enabling detection of weaker optical signals. The Waveguide Arc Detector integrates optimized photodetection components specifically selected to achieve better than -45dBm sensitivity while maintaining the ultra-low noise performance critical for high-reliability operation in particle accelerators, semiconductor processing equipment, and aerospace communication systems.

Response Time Specifications for Critical Protection

Response time defines the interval between arc initiation and system shutdown signal generation, representing perhaps the most critical specification for preventing equipment damage. Industry-standard Waveguide Arc Detector systems achieve response times between 5 and 10 microseconds from initial light detection to interlock signal activation. This ultra-fast performance proves essential because electrical arcs can escalate from milliwatt to kilowatt power levels within tens of microseconds, potentially destroying RF windows, waveguide components, and power amplifiers before slower protection systems can react.

The response time budget encompasses several sequential stages: photon detection, signal amplification, threshold comparison, and output driver activation. Advanced Waveguide Arc Detector designs minimize each delay component through careful circuit optimization. Photodetector selection impacts rise time, with fast Schottky diodes providing sub-nanosecond response to incident light. Preamplifier bandwidth determines signal processing speed, requiring multi-megahertz operation for microsecond-class total response times. Comparator circuits evaluate amplified signals against adjustable threshold references, generating logic-level outputs when arc conditions exist. Modern implementations utilize high-speed comparators with propagation delays under 100 nanoseconds.

Optimizing System Response Performance

Achieving optimal response time requires attention to installation geometry and signal path design. Fiber optic connections between waveguide viewports and detector electronics introduce minimal delay while providing galvanic isolation that eliminates ground loop interference. Low-loss fiber optic cables preserve optical signal strength over multi-meter installation distances without degrading response time. The physical separation between high-power RF components and sensitive detection electronics also enhances noise immunity, allowing the Waveguide Arc Detector to operate reliably even in electrically hostile environments characteristic of megawatt radar transmitters and industrial RF heating systems.

Trigger gate circuits represent another critical response time element, particularly in pulsed RF applications. The Waveguide Arc Detector incorporates balanced trigger gates with typical delays of only 30 nanoseconds, ensuring that arc detection rapidly inhibits subsequent RF pulses. This prevents additional energy from feeding the arc event, limiting total deposited energy and corresponding damage potential. Latching interlock logic maintains system shutdown even after the arc extinguishes, requiring deliberate manual reset procedures that ensure operator awareness and prevent automatic restart into fault conditions. Adjustable auto-reset timing accommodates various operational requirements while maintaining safety margins against recurrent arcing.

Waveguide Arc Detector Configuration and Calibration

Proper configuration and periodic calibration ensure that Waveguide Arc Detector systems maintain specified sensitivity and response time performance throughout operational lifetimes. Initial commissioning involves setting detection thresholds appropriate for specific applications and environmental conditions. Systems monitoring particle accelerator waveguides may employ higher sensitivity settings compared to industrial microwave heating applications where ambient light levels and electromagnetic noise prove more challenging. The adjustable light sensitivity feature enables customization spanning several orders of magnitude, accommodating diverse installation requirements without hardware modifications.

Calibration procedures verify both sensitivity and response time specifications using traceable test equipment. Optical test modules generate controlled light pulses simulating arcing events at known intensities, allowing verification that detection thresholds fall within specified ranges. Response time measurements employ precision pulse generators and oscilloscopes to characterize the complete detection chain from optical input through interlock output. The Waveguide Arc Detector design incorporates built-in test circuits including LED check functionality that enables functional verification without disassembling waveguide components or interrupting normal operations.

Advanced Configuration Options

Modern Waveguide Arc Detector systems offer sophisticated configuration capabilities addressing complex installation requirements. Multi-channel architectures support monitoring multiple waveguide sections or components using independent detection channels with programmable interlock logic. AND/OR combination modes enable coincident detection requirements where multiple sensors must simultaneously detect arcing before triggering system shutdown, reducing false alarm rates in high-noise environments. The logical OR configuration provides redundant protection where any single channel detection initiates protective action, maximizing equipment safety at the expense of potentially increased nuisance trips.

Remote configuration through USB or network interfaces allows sensitivity adjustment, auto-reset timing modification, and interlock logic programming without physical access to installed detector electronics. This proves particularly valuable for detectors installed in radiation areas, high-voltage environments, or other locations where minimizing human presence enhances safety. Web browser interfaces provide intuitive configuration management and real-time status monitoring, enabling operators to track detection events and verify system health from centralized control rooms. Comprehensive diagnostic logging captures arc events with timestamp and intensity data, supporting root cause analysis of recurring arcing problems and facilitating predictive maintenance of waveguide systems.

Applications Across High-Power RF Systems

The versatility and performance of Waveguide Arc Detector technology enables deployment across diverse high-power microwave and millimeter-wave applications. Particle accelerators represent particularly demanding environments where RF cavities operating at megawatt power levels must maintain vacuum integrity and precise field distributions. Even microscopic surface imperfections can initiate multipactor breakdown or field emission that rapidly escalates into destructive arcing. The Waveguide Arc Detector provides essential protection for these multi-million-dollar scientific instruments, detecting breakdown events within microseconds and enabling rapid RF shutdown before accelerator components suffer permanent damage.

Semiconductor manufacturing equipment increasingly employs high-power RF sources for plasma generation and material processing. These industrial systems operate continuously for months, making reliability and uptime critical business factors. Waveguide arc events can contaminate process chambers, damage RF windows, and cause extended downtime for cleaning and component replacement. Integration of Waveguide Arc Detector systems enables early detection of degrading components before catastrophic failure occurs, supporting predictive maintenance strategies that maximize equipment availability while minimizing unplanned outages.

Defense and Aerospace Applications

High-power radar installations for air traffic control, weather monitoring, and military applications depend on robust arc protection to maintain operational readiness. These systems often employ long waveguide transmission runs connecting centralized transmitters to remotely located antennas, increasing arcing vulnerability from mechanical stress, thermal cycling, and environmental exposure. The Waveguide Arc Detector monitors critical locations including rotary joints, pressurization interfaces, and high-power combiners, providing comprehensive protection across complex waveguide networks. The wide frequency band coverage from L-band through Ka-band accommodates various radar frequency assignments without requiring detector replacement during system upgrades.

Satellite communication ground stations transmit kilowatts of continuous-wave power through precision waveguide networks to large dish antennas. Arc events in these systems not only damage expensive RF components but also interrupt critical communication links supporting commercial and government operations. The Waveguide Arc Detector enables unmanned station operation with confidence that arcing events will trigger immediate protective responses even without human supervision. Remote monitoring capabilities alert maintenance personnel to detected events, supporting rapid response for systems requiring high availability. The robust mechanical design withstands environmental extremes including temperature shock, humidity, and vibration, maintaining reliable operation in uncontrolled equipment shelters and outdoor installations.

Conclusion

Waveguide Arc Detector Sensitivity Settings and Response Time Specifications represent critical parameters protecting high-value RF equipment from destructive arcing events through microsecond detection and ultra-sensitive optical monitoring.
