Log Periodic Antenna Construction and Element Spacing Explained

Log periodic antenna architecture uses advanced math to reduce dipole length logarithmically from the boom back to the front. Elements' location and size are regulated by two design constants: tau (τ), the scaling factor, and sigma (σ), the relative spacing ratio. This unusual design allows the antenna to retain consistent impedance and radiation across numerous octaves, making it essential for wideband RF applications where single-antenna solutions simplify system architecture and minimise operational costs.

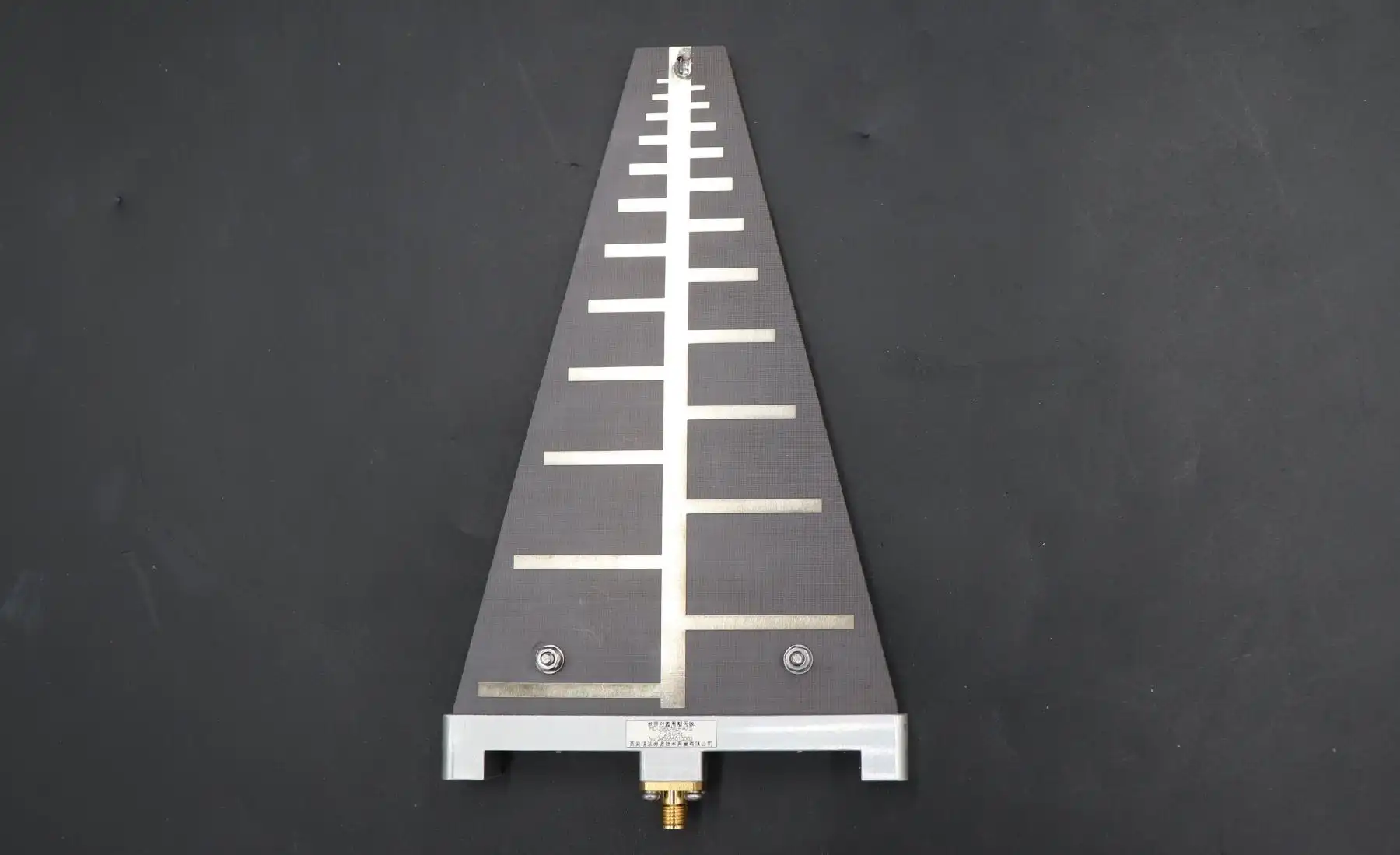

Understanding Log-Periodic Antenna Construction

Defining the Log-Periodic Dipole Array

Log-periodic dipole arrays are frequency-independent antenna architectures that differ from narrowband alternatives. Log-periodic layouts move their active region along the boom structure when the operating frequency varies, unlike Yagi-Uda designs. This is due to the logarithmic connection between element dimensions and placements. Engineers call it the "active zone". Only elements approaching resonance at a given frequency radiate when signals arrive.

Core Structural Components

Most booms include mechanical support and electrical transmission. High-quality dipole arrays balance conductivity and environmental endurance using 6061-T6 aluminium or corrosion-resistant stainless steel elements. The balun arrangement is crucial to pattern symmetry and impedance matching. Professional designs use coaxial feedlines via the boom as an infinite balun to reduce common-mode currents that distort radiation patterns. This manufacturing method maintains 50-ohm input impedance over the operating spectrum and VSWR < 2.0:1.

Material Selection for Industrial Environments

Material choice affects antenna lifespan in difficult circumstances. Passivated hardware and UV-resistant insulation protect marine communication equipment from salt fog. Aviation requires lightweight alloys that fulfil MIL-STD-810 shock and vibration standards. Common failure modes are element-to-boom connection sites; however, stronger mounting brackets with anti-vibration locking mechanisms prevent loosening during high winds or transit. When assessing vendors, industrial procurement teams should check RoHS and ISO 9001 certificates.

Element Spacing Design Principles and Their Impact on Performance

Mathematical Foundation of Spacing Ratios

Define element spacing as d = σ × l, where d is the spacing distance, and l is the element length. The bandwidth and gain are affected by the spacing constant sigma, which is usually 0.10–0.25. Larger sigma values concentrate energy for better directivity but reduce bandwidth. The length ratio between neighbouring parts depends on the scaling factor tau, generally 0.70–0.95. To determine the number of elements needed, engineers use the formula N = 1 + log(f_max/f_min)/log(1/τ), where the frequency range determines antenna length.

Performance Implications Across Frequency Bands

How smoothly the active area of a log periodic antenna transitions between frequencies depends on spacing precision. Insufficient spacing produces impedance discontinuities, gain curve ripples, and high VSWR at certain frequencies. Lower frequencies widen patterns, whereas higher frequencies constrict the main lobe. Spectrum monitoring applications that balance coverage area and directional resolution benefit from this feature. Side lobe suppression beyond 20 dB requires constant spacing tolerances throughout manufacture, especially in EMC testing conditions where stray radiation must be reduced.

Comparative Analysis with Yagi Antenna Designs

Parasitic elements tailored for certain frequencies boost Yagi-Uda antenna gain, making them good narrowband options. But their operating bandwidth seldom surpasses 10-15% of the centre frequency. Log-periodic arrays provide 6-8 dBi over bandwidths above 10:1 ratios, sacrificing peak gain for octave-spanning coverage. In Yagi-Uda designs, element spacing optimises director element coupling, whereas log-periodic spacing promotes impedance uniformity. Procurement choices should include whether communications testing and electronic warfare systems require maximal gain at fixed frequencies or moderate gain over changeable frequencies.

Optimising Log Periodic Antenna Construction for Targeted Applications

Adjusting Parameters for Specific Frequency Requirements

Recalculating element size and placements for desired frequency ranges is required for custom designs. Tactical communication systems from 30-512 MHz require different scaling factors than spectrum analyser antennas from 1-18 GHz. Engineers tune the longest element length to resonate slightly below the minimum frequency to cover band edges. To preserve pattern stability, the shortest element extends around 10% beyond the maximum frequency. Before actual fabrication, computer models confirm these calculations and forecast radiation patterns and impedance curves.

Structural Integrity in Industrial Deployments

The mounting hardware you choose greatly impacts dependability. Engineered mounting solutions spread wind loading over the boom structure to reduce stress at isolated spots at base stations. Rotating assemblies for direction-finding applications need precise bearings for operational temperatures and maintenance intervals. Radomes protect outdoor radar installations, but their materials must reduce dielectric loss at operational frequencies. IP67 environmental sealing is needed at cable entrance locations to prevent moisture from degrading electrical performance.

Maintenance Best Practices

Routine inspections should examine element alignment, connection point corrosion, and mounting hardware torque values. Cleaners without abrasives and gentle brushes maintain protective coatings. Annual VSWR measurements over the operating spectrum reveal problems before failure. Trending analysis, maintenance predictions, and replacement choices based on quantifiable degradation rather than timetables are possible using baseline performance criteria.

Procurement Insights: Choosing the Right Log-Periodic Antenna

Evaluation Criteria for B2B Procurement

Construction quality is seen in numerous ways. Welded element-to-boom couplings are stronger than compression fittings, but quality compression designs are field serviceable. Detailed mechanical drawings with dimensional tolerances, material specifications with mill certificates, and approved test facility electrical performance data should be provided by suppliers. Check VSWR parameters for tolerances and measurement circumstances; "less than 1.5:1 VSWR" means little without frequency range context and test process documentation.

Technical Specifications and Supplier Comparison

Customisation and technical support distinguish manufacturers, including LPA. Standard catalogue items work for most applications, but unusual needs require engineering. Off-the-shelf vs 8-12 week custom configuration delivery dates vary greatly. The warranty should cover mechanical failures and electrical performance deterioration with specified remedial methods. Engineering expenditure and stricter production tolerances justify higher prices for antennas with broader bandwidths and tighter specs.

Here are the core advantages when selecting the right supplier partner:

• Customisation Flexibility: Flexibility to customise element spacing, material grades, and connector types to meet system needs without large minimum orders
• Calibration Data Support: For compliance testing, calibration data support must include national standard antenna factor measurements traceable to national standards.
• Responsive Technical Assistance: Access to RF engineers who understand application issues and can offer ideal settings and configurations during the specification phase

Logistics and After-Sales Considerations

Physical damage and customs paperwork are dangers of global delivery. Packaging quality impacts whether antennas are ready to install or need return permission. Established vendors have regional distribution arrangements that speed delivery and simplify warranty servicing. Time zone-compatible technical support teams reduce project delays when configuration concerns emerge during installation. The capacity to repair antennas throughout their service life protects capital equipment investments.

Enhancing Performance Post-Installation Through Proper Element Spacing and Configuration

Installation Best Practices

Input impedance and radiation patterns below 100 MHz are affected by placement height and ground reflections. Minimum clearances from metallic structures avoid pattern distortion and detuning. Compass accuracy must account for magnetic declination for azimuth alignment; mismatched installations reduce coverage gain. Cable routing should avoid severe bends above minimum radius limits, and outdoor lines need UV-resistant jackets with grounding to minimise static and lightning surges.

Troubleshooting Common Issues

Elevated VSWR throughout the band indicates feedline or balun damage, not element damage. Frequency-selective VSWR rises imply loosened or corroded parts altering the electrical length. Unintended reflectors from surrounding metallic objects generate pattern distortions, including a diminished front-to-back ratio or unexpected side lobes. Systematic testing isolates root causes; antenna range measurements differentiate antenna and system concerns. Recording baseline performance immediately after installation aids troubleshooting.

Professional Service Advice

Complex repairs, including LPA, need antenna theoretical expertise and test equipment. Field repairs without electrical knowledge can worsen issues, and replacing broken items with wrong dimensions permanently lowers performance. Vector network analysers and antenna ranges allow qualified service providers to verify repairs and restore standards. Preventive maintenance contracts save mission-critical installations money when downtime costs exceed service agreement prices. Establishing vendor ties before breakdowns speeds emergency response when operational requirements necessitate speedy restoration.

Conclusion

Log-periodic antenna construction concepts and element spacing relationships help procurement and engineering teams match antenna capabilities to application needs. Logarithmic element size enables unique wideband properties unreachable with narrowband designs, thereby addressing the current RF systems' spectrum fragmentation problem. Construction quality, spacing precision, and supplier capabilities are carefully assessed to assure long-term dependability and best performance in demanding industrial, telecommunications, and defence applications.

FAQ

1. What determines the bandwidth of a log-periodic antenna?

Bandwidth relies on the ratio of longest to shortest elements and the scaling factor tau, which controls element size reduction. Designs with tau values around 0.85 achieve bandwidths above 10:1 while preserving respectable dimensions. More elements give smoother frequency transitions, affecting bandwidth coverage.

2. How does element spacing affect antenna gain?

Wider element spacing increases bandwidth but lowers peak gain as compared to closer spacing. For most applications, sigma values between 0.15 and 0.20 balance these opposing needs. Manufacturing tolerances on spacing accuracy affect operating band gain consistency.

3. Can log-periodic antennas handle high-power applications?

Element diameter, material conductivity, and connection point current density affect power handling. Industry designs with larger-diameter elements and sturdy mounting hardware manage kilowatt power levels in radar and broadcast applications. Peak power is limited by element tip voltage breakdown in high-altitude or low-pressure situations. Specifications should include average and peak power ratings.

Partner with Huasen Microwave for Superior Wideband Antenna Solutions

Technical competence, production consistency, and post-delivery assistance must be considered while choosing a Log Periodic Antenna provider. Huasen Microwave Technology, founded in 1993, specializes in high-frequency microwave and millimetre-wave component design and manufacture. Our engineering team works with procurement to provide element spacing and construction characteristics that meet your frequency coverage, gain, and environmental conditions. To meet EMC testing and spectrum monitoring requirements, we perform MIL-STD compliance testing and give national-standard calibration data. Our rapid technical assistance and flexible production ensure project timeframes and performance goals are reached for catalogue antennas or custom-engineered systems with customised spacing parameters. Email sales@huasenmicrowave.com to discuss your needs with experienced RF engineers who understand system integrator and testing laboratory procurement problems.

References

1. Stutzman, W. L., & Thiele, G. A. (2012). Antenna Theory and Design, Third Edition. John Wiley & Sons, Hoboken, New Jersey.

2. Balanis, C. A. (2016). Antenna Theory: Analysis and Design, Fourth Edition. John Wiley & Sons, Hoboken, New Jersey.

3. Carrel, R. (1961). "The Design of Log-Periodic Dipole Antennas." IRE International Convention Record, Volume 9, pp. 61-75.

4. DuHamel, R. H., & Isbell, D. E. (1957). "Broadband Logarithmically Periodic Antenna Structures." IRE National Convention Record, Part 1, pp. 119-128.

5. IEEE Standards Association (2013). IEEE Standard 145-2013: Definitions of Terms for Antennas. Institute of Electrical and Electronics Engineers, New York.

6. Milligan, T. A. (2005). Modern Antenna Design, Second Edition. John Wiley & Sons, Hoboken, New Jersey.
