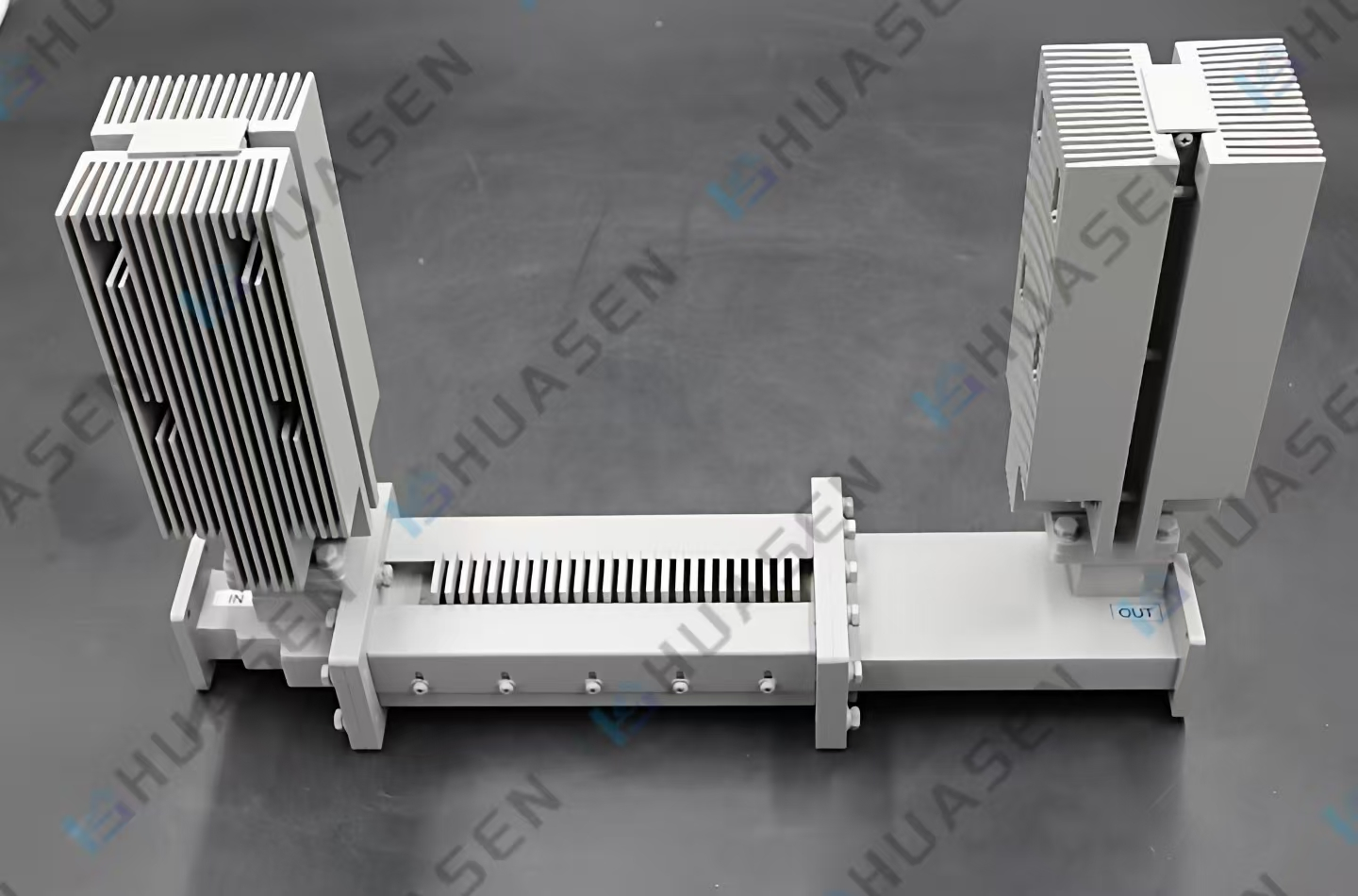

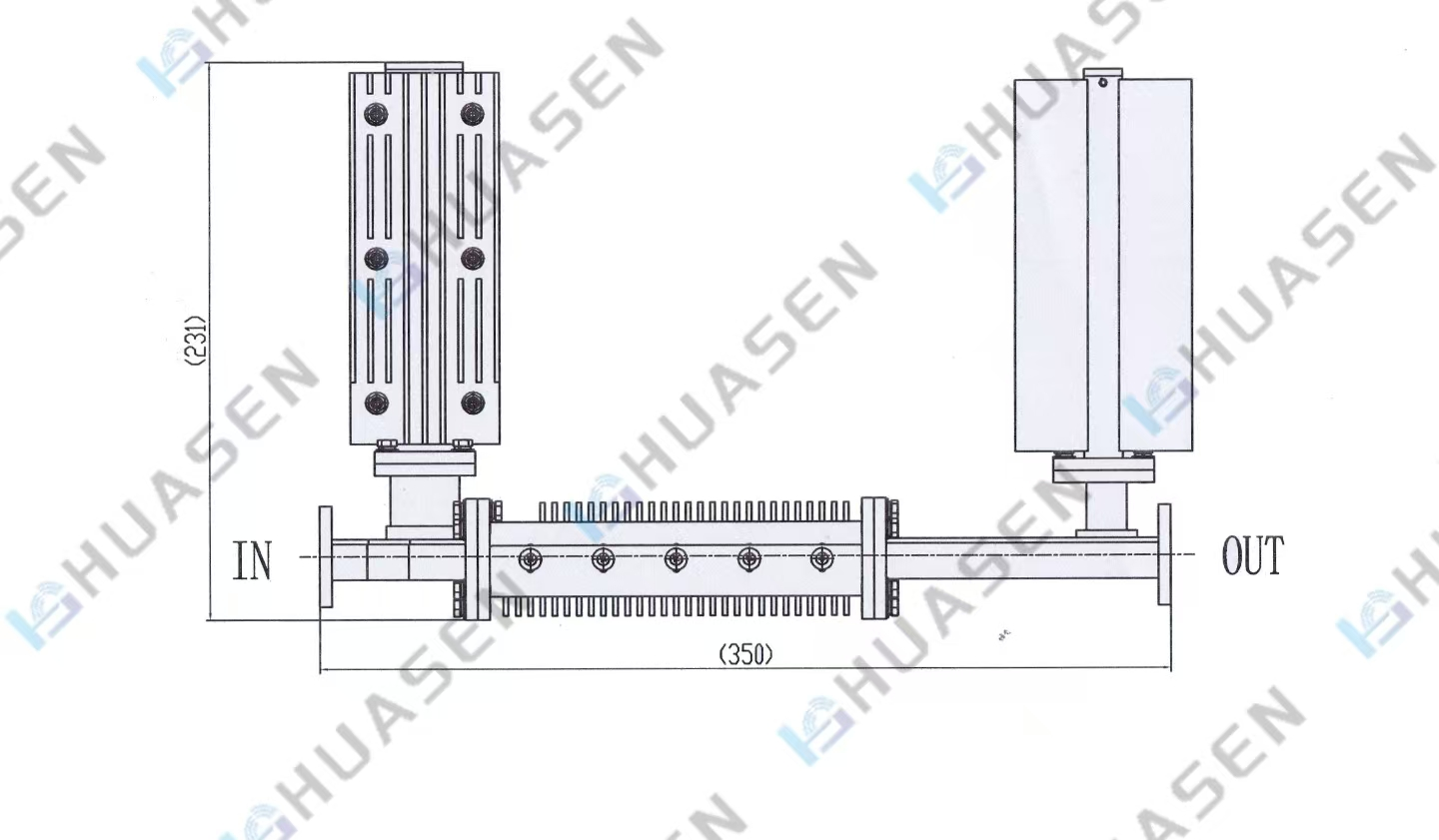

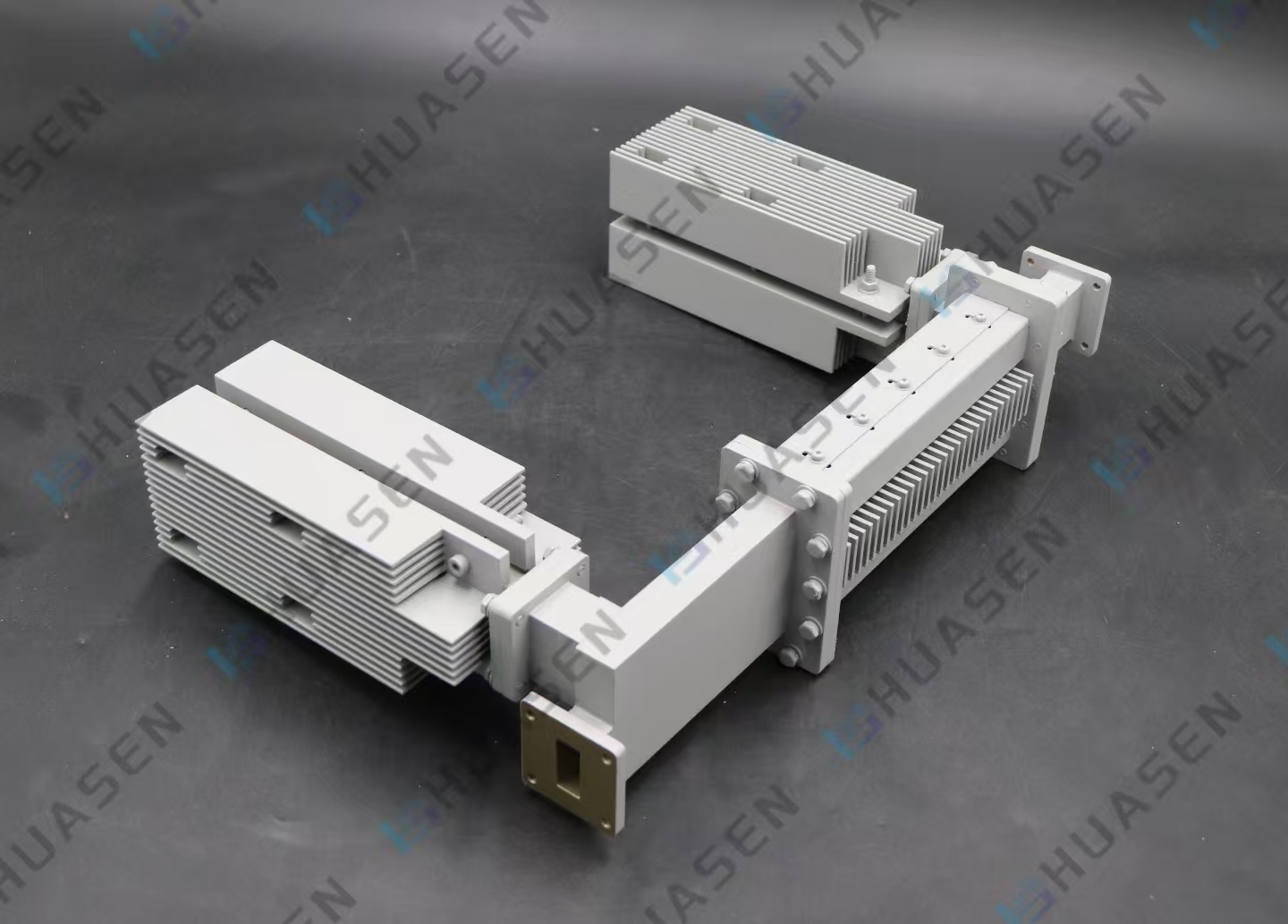

High Power Differential Phase Shift Waveguide Isolator Features

When your high-power RF system experiences signal reflections, power loss, or equipment damage due to impedance mismatches, you need a solution that guarantees unidirectional transmission without compromising performance. The High Power Differential Phase Shift Waveguide Isolator addresses these critical challenges by utilizing advanced ferrite materials and precision magnetic field control to protect your valuable microwave equipment while maintaining exceptional signal integrity across demanding telecommunications, radar, and aerospace applications.

Understanding High Power Differential Phase Shift Waveguide Isolator Technology

The high-power waveguide differential phase shift isolator represents a sophisticated approach to managing electromagnetic wave propagation in critical RF systems. This device achieves unidirectional transmission through the strategic application of ferrite materials combined with an external constant magnetic field within the waveguide structure. The fundamental operating principle relies on the non-reciprocal properties of magnetized ferrite, which exhibits different phase shifts for forward and reverse traveling waves. When properly configured, the High Power Differential Phase Shift Waveguide Isolator creates a differential phase shift that allows signals to pass freely in the forward direction while attenuating reverse signals by more than 20dB, effectively protecting sensitive transmitters and amplifiers from reflected power that could cause performance degradation or permanent damage.

Core Performance Specifications

The technical specifications of modern High Power Differential Phase Shift Waveguide Isolator devices directly address the most demanding requirements of high-power microwave systems. Power handling capability stands as the primary consideration, with advanced isolators supporting continuous wave operation up to 20kW average power, making them suitable for high-power radar transmitters, satellite ground stations, and industrial heating applications. Insertion loss remains minimal at 0.4dB or less, ensuring that precious transmitted power reaches its intended destination rather than being dissipated within the isolator itself. The isolation performance of 20dB or greater provides robust protection against reflected signals, preventing oscillations in amplifier chains and protecting solid-state power amplifiers from damage. Frequency coverage spans from 1.13GHz to 40GHz with operating bandwidths precisely controlled to 5% or 7%, allowing system designers to select the optimal balance between bandwidth and performance for their specific applications.

Advanced Ferrite Material Engineering

The heart of any High Power Differential Phase Shift Waveguide Isolator lies in its ferrite material composition and magnetic circuit design. High-quality ferrites must exhibit low loss tangent at operating frequencies, high saturation magnetization for strong non-reciprocal effects, and excellent temperature stability to maintain performance across environmental extremes. The magnetic biasing system requires careful engineering to establish uniform magnetic field distribution throughout the ferrite elements, ensuring consistent phase shift characteristics across the entire waveguide aperture. Premium manufacturers employ specialized ferrite formulations optimized for specific frequency bands, with careful attention to crystal structure, grain size, and composition to achieve the lowest possible insertion loss while maintaining high isolation. The thermal management of ferrite materials becomes particularly critical in high-power applications, where even low insertion losses translate to significant heat generation that must be efficiently dissipated to prevent thermal runaway and permanent magnetization changes.

Key Advantages of High Power Differential Phase Shift Waveguide Isolators

Superior Power Handling and Environmental Reliability

Modern High Power Differential Phase Shift Waveguide Isolator designs incorporate multiple features that enable reliable operation in challenging environments. The robust mechanical construction using precision-machined aluminum and copper alloys provides excellent thermal conductivity while maintaining structural integrity under vibration and shock loads typical of mobile radar systems and aerospace applications. Gold plating on all RF surfaces minimizes insertion loss and prevents oxidation that could degrade performance over time. The compact footprint enables integration into space-constrained systems such as 5G base stations and phased array antennas where every cubic centimeter matters. Environmental sealing protects internal components from moisture, dust, and corrosive atmospheres, extending operational life in harsh industrial and maritime environments. Temperature compensation techniques maintain stable performance across operating temperature ranges from -40°C to +85°C, ensuring that isolation and insertion loss specifications remain within acceptable limits regardless of ambient conditions.

Customization Capabilities and System Integration

The ability to customize High Power Differential Phase Shift Waveguide Isolator parameters represents a significant advantage for system integrators facing unique requirements. Frequency customization allows precise matching to specific operating bands, whether for commercial wireless infrastructure, military communications, or scientific research applications. Power handling can be scaled to match transmitter output levels, from moderate power systems requiring a few kilowatts to the most demanding applications approaching 20kW continuous operation. Flange configurations adapt to various waveguide standards including WR-series dimensions and international equivalents, ensuring compatibility with existing infrastructure. Bandwidth optimization balances the competing demands of broad frequency coverage against peak performance at specific frequencies, with options for narrow-band designs achieving superior isolation and insertion loss figures. The engineering team works closely with customers to understand their system architecture, environmental constraints, and performance requirements, then develops optimized isolator solutions that integrate seamlessly into the larger RF chain.

Phase Stability and Signal Integrity

Maintaining excellent phase stability across varying load conditions and temperature extremes distinguishes premium High Power Differential Phase Shift Waveguide Isolator products from basic alternatives. Phase stability directly impacts system performance in coherent radar applications, phased array beamforming networks, and precision test instrumentation where phase errors translate to degraded beam patterns, measurement uncertainties, and system malfunctions. Advanced isolator designs employ temperature-compensated magnetic circuits that counteract the natural temperature dependence of ferrite materials, maintaining constant differential phase shift as ambient temperature varies. Load-pull immunity ensures that changing antenna VSWR or filter characteristics do not significantly alter isolator phase response, preventing beam squint in phased arrays and maintaining calibration accuracy in measurement systems. Low-distortion characteristics preserve signal quality for modern digital modulation formats, with third-order intercept points exceeding +60dBm ensuring that intermodulation products remain well below system noise floors even when handling multiple high-power carriers simultaneously.

Critical Applications Demanding High Power Differential Phase Shift Waveguide Isolators

Telecommunications Infrastructure and 5G Networks

The explosive growth of 5G wireless networks creates unprecedented demand for high-performance waveguide isolators that protect expensive power amplifiers while maintaining signal quality for advanced modulation schemes. Base station transmitters operating in millimeter-wave bands above 24GHz require High Power Differential Phase Shift Waveguide Isolator protection against antenna mismatch caused by ice accumulation, radome damage, or environmental changes that alter VSWR. Massive MIMO systems incorporating dozens or hundreds of transmit chains benefit from the compact footprint and reliable performance of precision isolators that prevent cross-coupling between adjacent elements. Satellite communication ground stations handling multiple high-power uplink carriers depend on isolator protection to prevent reflected signals from destabilizing traveling-wave tube amplifiers and klystron power sources. The demanding reliability requirements of telecommunications infrastructure, where maintenance windows are measured in minutes per year, necessitate isolator designs proven through extensive environmental testing and backed by comprehensive quality assurance documentation.

Radar and Defense Electronics Systems

Military and civilian radar systems represent some of the most demanding applications for High Power Differential Phase Shift Waveguide Isolator technology, combining high average power, wide instantaneous bandwidth, and extreme environmental conditions. Weather surveillance radars transmitting hundreds of kilowatts peak power require isolators capable of handling high peak-to-average power ratios while maintaining low insertion loss to maximize detection range. Fire control radars for missile guidance systems demand exceptional phase stability to maintain accurate target tracking even as antenna patterns scan rapidly across wide angular sectors. Phased array radars incorporating thousands of transmit-receive modules rely on isolator consistency, with tight specifications on unit-to-unit phase and amplitude matching to prevent beam distortion and sidelobe degradation. Electronic warfare systems operating across multi-octave frequency ranges benefit from customized wideband isolator designs that provide adequate isolation even at band edges where conventional designs struggle. The harsh vibration environment of airborne radar installations and the temperature extremes of space-based sensors push isolator mechanical and thermal design to their limits, requiring extensive qualification testing to verify compliance with stringent military specifications.

Aerospace and Satellite Communication

Spacecraft communication systems present unique challenges that High Power Differential Phase Shift Waveguide Isolator designs must address through specialized engineering approaches. The vacuum environment of space eliminates convective cooling, forcing reliance on conductive and radiative heat transfer to manage the thermal load from insertion loss. Radiation exposure from cosmic rays and solar events can alter ferrite magnetic properties over mission lifetimes measured in years or decades, requiring careful material selection and derating to ensure end-of-life performance remains acceptable. Launch vibration and shock loads impose severe mechanical stresses that demand robust construction and thorough qualification testing. Mass and volume constraints drive optimization of every component, with advanced composite materials and additive manufacturing techniques enabling weight reduction without compromising RF performance. The impossibility of repair or replacement after launch necessitates extreme reliability, with redundant units often specified to provide graceful degradation paths if primary isolators fail.

Manufacturing Excellence and Quality Assurance

Huasen Microwave Technology Co., Ltd. brings over 30 years of specialized expertise in high-frequency microwave and millimeter-wave component manufacturing to every High Power Differential Phase Shift Waveguide Isolator produced. The company's state-of-the-art 3,000-square-meter production facility houses advanced CNC machining centers, precision assembly operations, and comprehensive testing capabilities that ensure every unit meets or exceeds published specifications. The technical office develops optimized production processes based on decades of accumulated knowledge, while the machining workshop executes complex waveguide geometries to micron-level tolerances using EDM, wire cutting, and multi-axis milling equipment. Specialized fitting teams with expertise in silver brazing, aluminum brazing, and vacuum furnace operations create hermetic RF seals and precision mechanical assemblies. Over 40 dedicated waveguide specialists apply proprietary techniques developed through years of experience to achieve the superior RF performance that distinguishes Huasen products in the marketplace.

The company's testing infrastructure rivals that of national laboratories, with three calibrated microwave anechoic chambers spanning 5, 9, and 21 meters providing far-field pattern measurements from 0.5GHz to 220GHz. Planar near-field scanning systems, spherical near-field probes, and multiple outdoor test ranges enable comprehensive characterization of antenna-integrated isolator assemblies. More than 60 precision instruments including 40 vector network analyzers, spectrum analyzers to 320GHz, and signal generators covering millimeter-wave bands provide the measurement capability to verify every performance parameter. Environmental test chambers subject production units to temperature shock, humidity cycling, and vibration profiles that exceed typical application requirements, identifying potential failure modes before products reach customers. Quality certifications including ISO9001, environmental management systems, and occupational health standards demonstrate organizational commitment to excellence that extends beyond individual product specifications.

Conclusion

High Power Differential Phase Shift Waveguide Isolator technology provides essential protection and performance optimization for demanding RF systems across telecommunications, radar, aerospace, and defense applications through superior power handling, exceptional isolation, minimal insertion loss, and robust environmental reliability.

Cooperate with Huasen Microwave Technology Co., Ltd.

Partner with a trusted China High Power Differential Phase Shift Waveguide Isolator manufacturer that combines three decades of innovation with world-class manufacturing capabilities. As a leading China High Power Differential Phase Shift Waveguide Isolator supplier and China High Power Differential Phase Shift Waveguide Isolator factory, we offer High Quality High Power Differential Phase Shift Waveguide Isolator solutions at competitive High Power Differential Phase Shift Waveguide Isolator price points with extensive China High Power Differential Phase Shift Waveguide Isolator wholesale options and High Power Differential Phase Shift Waveguide Isolator for sale worldwide. Contact us at sales@huasenmicrowave.com today to discuss your specific requirements and discover how our customized isolator solutions can elevate your system performance. Bookmark this page for future reference when challenges arise.
