How Flex Waveguide Improves Microwave System Flexibility

Modern communication networks, radar systems, and satellite links rely on microwave transmission, but rigid components struggle with movement, thermal expansion, and space constraints. Flexible waveguides solve this by enabling signal transmission through bends and twists without loss of quality. Their metal cores—typically silver-plated brass or phosphor bronze—are encased in protective jackets to prevent physical damage while maintaining low insertion loss and high VSWR. By isolating vibrations, accommodating thermal changes, and correcting alignment issues, flexible waveguide assemblies help designers build more robust microwave infrastructures, meeting the reliability demands of telecom, aerospace, and defense sectors.

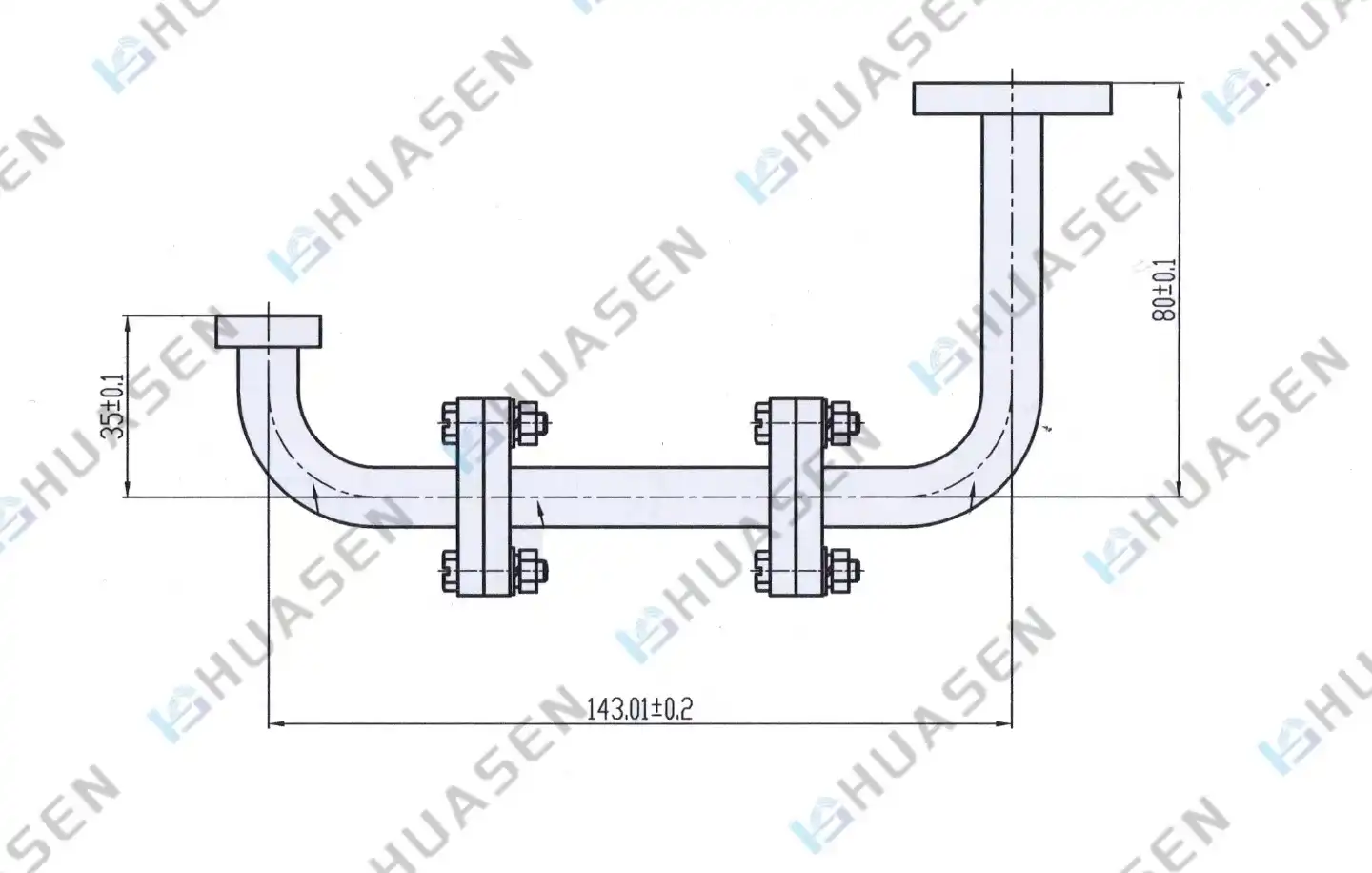

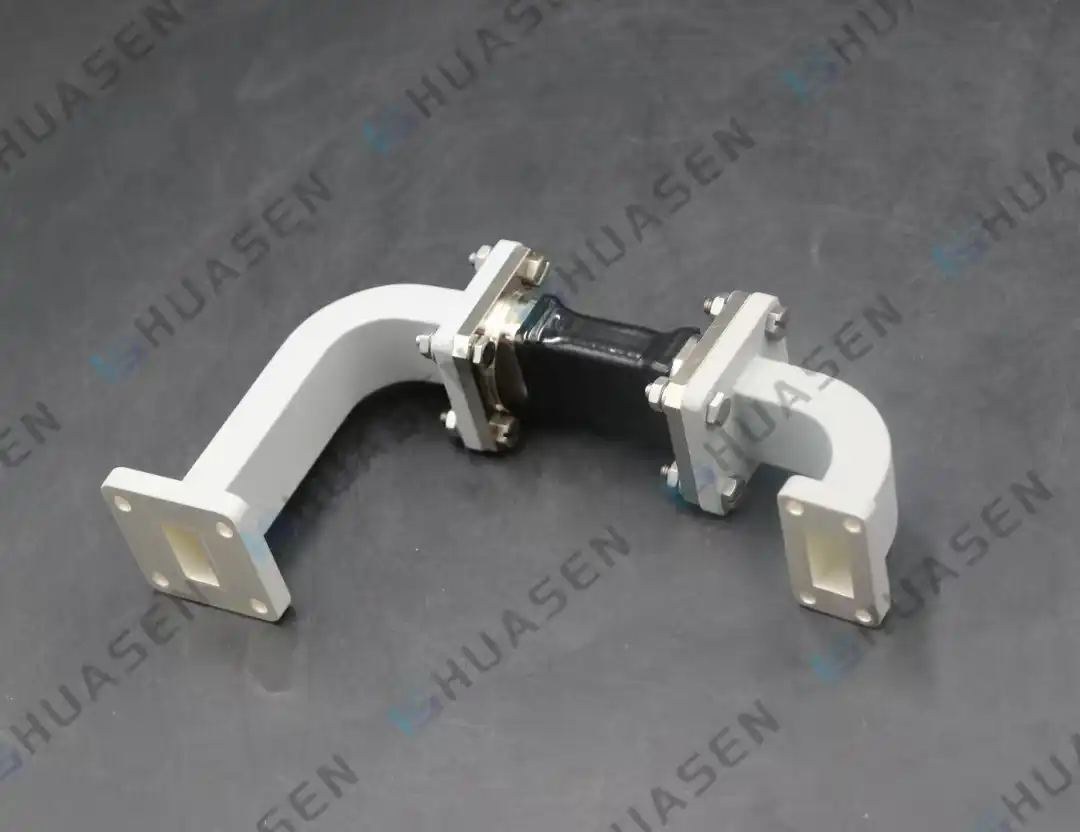

Understanding Flex Waveguide and Its Role in Microwave Systems

Core Construction and Material Science

The core structure of a flex waveguide is made using either spiral winding of high-conductivity metal strips or hydroforming of seamless tubes. Silver-plated brass is standard for most commercial uses due to its conductivity and corrosion resistance, while beryllium copper is preferred in military and aerospace applications for its superior spring properties and durability. The helical winding method creates interlocking convolutions that allow bending in both E- and H-planes without compromising electromagnetic integrity, preventing micro-cracks that could degrade RF performance over years of use.

Protective Jacketing Systems

Industrial-grade flex waveguide assemblies are different from laboratory components because they can withstand harsh environments. To keep the metal core from getting wet, damaged by UV light, ozone, and wear and tear, it needs to be protected. Neoprene jacketing is useful for most business telecommunications needs because it can handle temperatures from -40°C to +100°C and doesn't react strongly with chemicals. Silicone jackets raise the operating temperature limit to +200°C when systems are used in hotter places, like near high-power amplifiers or in deserts. Polysulfide jacketing is often required by military specifications because it is very resistant to radiation and ozone, which is important for aerospace platforms that work at high altitudes. The choice of jacket material has a direct effect on the assembly's flex-life specification. This specifies how many times the part can be bent before it starts to lose its performance.

Electrical Performance Characteristics

Even though these assemblies are mechanically flexible, when properly specified, they keep electrical properties similar to rigid waveguides. Depending on the length and frequency, good flex waveguide assemblies have VSWR values that range from 1.05 to 1.15 across their operational bandwidth. Insertion loss is still very low—adding only 0.1 to 0.3 dB per meter on top of rigid equivalents is normal. When the flexible assembly is pressurized with dry nitrogen, it can handle the same amount of power as rigid waveguides. This stops arcing at the flange interfaces and inside the waveguide channel. It's very important for phased array radar systems and precision test setups, where signal timing directly affects measurement accuracy, that the part can keep its phase stability even when it's bent over and over again.

Limitations of Traditional Waveguides and How Flex Waveguide Addresses Them

Routing Challenges in Constrained Spaces

In a traditional rigid waveguide, the transmission paths must be carefully planned out with exact measurements and bends that are made just for the job. Any mistakes made during installation have to be fixed, which adds time and cost to the schedule for deployment. Sometimes it's not possible or even practical to use rigid plumbing in places like airplanes, naval ships, and small telecommunications cabinets. The flexible option lets technicians run signal paths through small spaces and around obstacles without having to make special bend sections. Installing things takes a lot less time because technicians don't have to rely on theoretical CAD models that might not take into account how tolerances stack up in real life. Instead, they can change the path of the assembly while it's being put together. This ability to adapt is especially useful when upgrading equipment and adding new parts that don't work with older systems that weren't made to handle them.

Vibration Isolation in Dynamic Platforms

In military radar systems on ships, planes, and vehicles on the ground, work in places with a lot of vibration because rigid connections send mechanical energy directly to sensitive RF parts. Rough terrain, engine vibration, and artillery recoil can all cause stress to build up at the points where two flanges meet, which can cause fasteners to crack or come loose. Flex waveguide assemblies separate the antenna assembly from the electronics that are mounted on the chassis and act as mechanical shock absorbers. The complex structure of the core takes in vibrational energy by controlled bending, instead of sending it out as stress waves. This separation makes parts last longer and keeps the signal strong even in situations that would damage rigid installations. Testing according to MIL-STD-810 guidelines shows that properly designed flex waveguide assemblies can handle being shaken for thousands of hours without losing their electrical or mechanical integrity.

Thermal Expansion Compensation

Outdoor telecommunications equipment is subject to big changes in temperature between day and night, as well as changes in the seasons and weather events. When the temperature changes, metal parts expand and contract, which causes changes in size that put stress on rigid waveguide connections. Between winter lows and summer highs, a 10-meter vertical tower section can expand by a few millimeters. This puts shear forces on rigid flanges that cause leaks or mechanical failure over time. These changes in temperature can be handled by flexible assemblies, which bend a little when connected parts move. In a flexible system, the stress that would build up at the flanges is spread out along the length of the assembly, which keeps it from breaking. This feature lets you make up for lost time, which cuts down on maintenance needs and increases system uptime in key communication links where service interruptions hurt network performance and customer satisfaction.

Technical and Performance Benefits of Flex Waveguide in Microwave Systems

Enhanced System Layout Efficiency

By getting rid of the need for rigid bend sections and alignment fixtures, flex waveguide assemblies make it possible to set up equipment in smaller spaces. Instead of being limited by the shape of the transmission line, system designers can place components based on how well they handle heat, how easy they are to reach, and how well they work electrically. In base stations for telecommunications, this flexibility lets cabinet layouts be more efficient, which cuts down on the size and weight of the enclosure. The flexible feed assembly lets the antenna move without having to use complicated rotary joints, which makes the pointing mechanisms for satellite ground terminals easier to use. Being able to send signals along non-linear paths allows for design options that would be too expensive or not possible with rigid waveguides. This speeds up product development and makes it possible for new system architectures.

Signal Integrity Across Wide Frequency Bands

Modern communication systems often use more than one frequency band to get the most out of the spectrum and support a wide range of services. You can ask for flex waveguide assemblies to work consistently across a wide range of frequencies, from L-band to Ka-band. The wavy core keeps the electromagnetic boundary conditions even when it is bent within certain radii. This keeps the waveguide's cutoff frequency and mode purity. Low insertion loss across the operational bandwidth keeps system link budgets the same no matter what the physical routing path is. This consistent performance gets rid of the need for multiple specialized assemblies. This makes it easier for system integrators in charge of large installations to keep track of their inventory and make purchases.

Operational Durability and Lifecycle Value

When procurement teams look at the costs of a component, they shouldn't just look at the initial purchase price. They should also look at the total costs over the product's life. Flexible twist waveguide assemblies usually cost more than rigid ones, but the extra money spent pays off in the long run because they require less installation work, less maintenance, and last longer. Because they separate mechanically, they keep expensive active parts like power amplifiers and low-noise receivers from breaking down because of vibrations. Sealing off the environment stops water from getting in, which would corrode internal surfaces and lower electrical performance. When maintenance is hard to get to or costs a lot, like with tower-mounted equipment or installations on ships, the higher reliability directly leads to a lower total cost of ownership. Testing over a long period of time shows that good flexible assemblies keep their shape over thousands of bending cycles, giving years of reliable service instead of years.

Practical Purchasing Guide for Flex Waveguide: What B2B Buyers Should Know

Critical Selection Parameters

The frequency range is the main specification that determines the size and performance of a waveguide. Different standard waveguide names, like WR-90, WR-75, WR-28, and others, correspond to different frequency bands with clear electrical properties. The procurement teams need to make sure that the chosen assembly covers the whole operational bandwidth and leaves enough room for error. The length of the assembly should be taken into account in insertion loss specifications, since attenuation builds up over distance. When a lot of power needs to be handled, the assemblies need to be rated for both the highest and lowest power levels that will be used. The minimum bend radius, flex-life rating, and connector type must all match the installation requirements and the conditions that the system is expected to work in. The right jacketing materials and sealing methods are chosen based on things like the temperature range, the amount of humidity, and the UV radiation levels.

Supplier Evaluation Criteria

There are both new companies offering competitive prices and well-known companies that have been making flex waveguides for decades. Amphenol Microwave Products is known for making military-grade assemblies that meet strict MIL-DTL-63460 standards. Pasternack has a large selection of products and can deliver them quickly for business use. TE Connectivity makes parts for telecommunications infrastructure that are best for mounting on towers and being outside. Rosenberger makes high-frequency millimeter-wave assemblies that are used in test equipment and spacecraft. Procurement professionals should look at a supplier's manufacturing skills, quality certifications, and technical support resources when they are evaluating them. When assemblies need to meet regulatory requirements or customer specifications, being able to provide calibration data, material certifications, and compliance documentation is very important. Stable suppliers and a strong supply chain are especially important for long-term programs that need to make sure products are always available across deployment schedules that last years.

Customization and Volume Considerations

Standard catalog assemblies can be used for many things, but complex systems often need to be set up in a way that is unique to them. Some of the best suppliers have engineering teams that can make assemblies with custom lengths, flanges, or hybrid connector interfaces. Customization times range from a few weeks to a few months, depending on how complicated the design is and how many tests need to be done. When you buy in bulk, you can get better prices and maybe even justify the cost of buying tools for specific configurations. System integrators that are planning big deployments should talk to suppliers early on in the design process to find out what customization options are available and to make framework agreements that lock in prices and delivery dates. Sample evaluation programs let you test assemblies in real-world settings before committing to large-scale production. This lowers technical risk and makes sure that the chosen parts perform as expected.

Future Outlook: Flex Waveguide Advancements Shaping Microwave System Design

Material Science Innovations

The goal of research into advanced conductor materials is to make things lighter while also making them work better electrically. Graphene-enhanced coatings promise better conductivity and smoother surfaces, which will lower insertion loss at millimeter-wave frequencies. Polymer-based dielectric supports inside the waveguide channel might let the bend radius get smaller without changing the mode. Researchers are looking into how to use additive manufacturing to make core geometries that are too complicated to make with traditional winding or hydroforming methods. These new materials will make it possible for flexible assemblies to match or beat the electrical performance of rigid waveguides while still being mechanically flexible. This will allow them to be used in areas where rigid alternatives are currently used.

5G and Beyond: Millimeter-Wave Challenges

As we move toward 5G networks that use millimeter-wave frequencies (24 GHz and above), we need new types of flexible interconnect solutions, such as flex-twist waveguide. Higher frequencies make it more sensitive to differences in size and the quality of the surface finish. Tighter manufacturing tolerances and advanced metrology are needed to check the electrical performance of these flexible assemblies for bands. Because millimeter-wave components are so small, they need to use space efficiently. This has led to the creation of flexible assemblies with smaller bend radii and smaller flange interfaces. As research into 6G moves toward terahertz frequencies, flex waveguide technology needs to change to support these new bands while keeping the mechanical adaptability that makes them useful in real-world applications.

Modular System Architectures

More and more, next-generation radar and communication systems use modular architectures that make upgrades and maintenance easier. Plug-and-play connectivity between modules is made possible by flex waveguide assemblies. This lets technicians change the configuration of systems without having to make new ones. Standardized interfaces and flexible routing make integration easier and speed up the time it takes to deploy. This flexibility is especially useful in software-defined radio systems, where hardware needs to be able to adapt to changing mission needs or spectrum allocations. Being able to quickly change the configuration of RF paths without the need for special tools or a lot of downtime increases operational flexibility and increases the service life of platforms by upgrading their capabilities instead of replacing them completely.

Conclusion

Flex waveguide technology changes the way engineers design and set up microwave systems in a fundamental way. These assemblies solve long-lasting problems that plagued earlier generations of equipment by allowing flexible signal routing that works with mechanical stress, thermal expansion, and space limitations. The technical benefits, such as vibration isolation, alignment tolerance, and environmental durability, directly translate into operational benefits, such as shorter installation times, fewer maintenance needs, and longer system lifespans. When purchasing flexible assemblies, teams have to weigh the initial costs against the long-term value, making sure that the specifications are exactly what the application needs. As communication networks move toward higher frequencies and more complex architectures, flex waveguide assemblies will continue to make it possible to design new systems that balance performance with how easily they can be deployed.

FAQ

1. What frequency ranges can flexible waveguide assemblies support?

There are flex waveguide assemblies for most standard waveguide bands, from L-band (1-2 GHz) to W-band (75-110 GHz). The waveguide size designation tells you the exact range. Each standard size works best within a certain frequency range, but assemblies can work a little outside of their official ranges with lower performance margins.

2. How does insertion loss compare between flexible and rigid waveguides?

Most of the time, good flexible assemblies add 0.1 to 0.3 dB per meter more than rigid waveguides of the same size. The real insertion loss is based on frequency, assembly length, and the quality of the manufacturing. Given the mechanical benefits that flexible assemblies offer, this small amount of extra loss works out to be within most system link budgets.

3. Can flexible waveguide assemblies be customized for specific applications?

Manufacturers with a lot of experience often make assemblies that aren't the standard length, have special flange types, environmental protection ratings, or hybrid connector interfaces. Customization takes anywhere from a few weeks to a few months, depending on how complicated the design is, how many are being made, and how many tests need to be done. Getting suppliers involved early on in the design of a system improves results and lowers the risk of development.

Partner with Huasen Microwave for Superior Flex Waveguide Solutions

To get the best performance from a microwave system, you need more than just high-quality parts. You also need a manufacturing partner with a lot of technical knowledge and a dedication to customer success. Since 1993, Huasen Microwave has been working with the RF industry around the world to make flex waveguide assemblies that meet the strict needs of research, defense, aerospace, and telecommunications. Our engineering team helps with everything, from the initial specification to production delivery, making sure that the assemblies exactly meet the needs of your system. During the whole manufacturing process, we keep a close eye on quality and offer customization options that solve specific technical problems. Our experienced sales team is ready to help you whether you need standard catalog assemblies that can be used right away or custom solutions for unique uses. Contact Huasen Microwave at sales@huasenmicrowave.com right away to talk about your flex waveguide needs with technical experts who know how important these parts are to the performance of the system. As a reliable flex waveguide manufacturer, we offer low prices, on-time deliveries, and helpful customer service after the sale to keep your projects on track.
