Choosing the Right Materials for Waveguide Short Plates: What You Need to Know

When you choose the materials for a waveguide short plate, it has a direct effect on how well the system works, how accurate the calibration is, and how long it lasts in both RF and microwave applications. A waveguide short plate is a precise termination part that reflects all electromagnetic energy that comes in. It does this by creating a defined reference plane that is important for calibrating a vector network analyzer, terminating a high-power radar port, and tuning a resonant cavity. The choice of material affects how well it conducts electricity, how stable it is at high temperatures under reflected power loads, how well it holds up under thermal cycling, and how well it resists damage from the environment. Aluminum alloys are often used as base materials for aerospace applications that need to be light, and oxygen-free copper is often used for laboratory-grade metrology. Silver or gold plating on the surface can reduce resistive losses at the skin depth. When procurement teams understand these material trade-offs, they can make sure that the specifications of parts meet operational needs while also keeping an eye on costs and the reliability of the supply chain.

Understanding Waveguide Short Plates and Their Material Requirements

The Fundamental Role of Waveguide Short Plates in RF Systems

There's more to a waveguide short plate than just a metal end. By reflecting signals with a 180-degree phase shift, it sets up a voltage standing wave ratio that gets closer and closer to infinity. Because of this, it is necessary for calibration protocols like Thru-Reflect-Line methods, where the flatness and conductivity of the shorting surface determine how accurate the measurements are. These parts keep electromagnetic interference from leaking out of ports that aren't being used, which is important for engineers working with 5G base station filters or satellite communication payloads. For the level of accuracy needed, materials must be able to keep their shape at all temperatures and provide excellent electrical performance.

Essential Material Attributes That Define Performance

Choosing a material depends on four properties that affect each other. How well a part reflects microwave energy without resistive losses that mess up the signal is based on its electrical conductivity. When dealing with high reflected power densities, which are common in radar transmitters, thermal stability ensures that the shorting plate keeps its shape and electrical properties. Mechanical strength keeps the part from warping when torque is applied during flange installation, which could damage the contact interface. Corrosion resistance makes things last longer in maritime communication systems or outdoor base stations, where salt and water damage metal more quickly.

Common Base Metals and Their Operational Trade-Offs

Aluminum alloys, especially 6061-T6, are strong for their weight, which makes them a good choice for airborne radar systems and communication modules for drones. Anodized finishes make the surface harder and more resistant to oxidation, but they are still not as good at conducting electricity as copper alternatives. Oxygen-Free High Conductivity copper has the lowest resistive losses, which is why it is the best choice for high-precision test equipment and laboratory standards. Brass has some uses where its moderate conductivity is enough, and its ability to be machined makes it easier to make custom shapes. Even though stainless steel is strong mechanically, it doesn't work well with electricity and is usually only used in certain high-temperature situations.

Surface Plating Options That Enhance Electrical Performance

Surface treatments deal with the skin effect, which happens when microwave currents gather close to the metal surface, about a few micrometers away. Silver plating has the best conductivity, which lowers insertion loss in standards for calibration, where measurement error must stay below 0.02 dB. Gold plating makes parts that are exposed to humid coastal areas or temperature changes between cryogenic and room temperature very resistant to corrosion. Nickel underlayers stop silver from moving into copper substrates, but they also add a thin resistive barrier that makes the electrical performance a little worse. Which one to use depends on whether the application needs absolute conductivity or long-term stability in the environment.

Critical Criteria for Choosing the Best Material for Your Waveguide Short Plate

Matching Material Properties to Operating Frequency Bands

Through skin depth physics, the frequency range tells us what kind of material we need. At lower frequencies, like the 0.32 GHz band, the current penetration depth is greater than 10 micrometers. This means that anodized aluminum can work well for backhaul links for mobile communications. As frequencies rise toward the 112 GHz millimeter-wave spectrum used in 6G research, the skin's depth drops below 0.2 micrometers. This makes the quality of the surface finish and the conductivity of the plating very important. To keep voltage standing wave ratios above 50:1, copper substrates that have been plated with silver or gold become necessary. When buying parts for multi-band systems, procurement teams often need different material specifications for each product using a waveguide short plate.

Power Handling and Thermal Management Considerations

When power is reflected, it concentrates currents on the surface of the shorting plate. This causes localized heating that can reach over 150°C in high-power radar applications. How fast this heat moves into the waveguide housing depends on how well the material conducts heat. Copper's 400 W/m·K thermal conductivity is better than aluminum's 205 W/m·K, which means there are fewer hot spots that could lead to solder reflow or flange warping. The ability to handle peak power also depends on the quality of the surface finish. Even tiny flaws can cause voltage differences that cause arcing at power levels below what is theoretically possible. Industrial heating system parts rated for 10 kW of power need to be machined to a mirror finish and made from base materials that have been stress-relieved.

Balancing Cost Efficiency Against Long-Term Reliability

Budget limits have a big effect on the materials that are chosen for large-scale deployments. Aluminum short plates are about 40% cheaper than copper versions of the same size, which makes procurement managers who are in charge of rolling out hundreds of base stations more interested. But if oxidation breaks down the electrical contact over three to five years, these initial savings could be lost through more maintenance cycles. A total cost of ownership analysis should look at how often the system needs to be recalibrated, how to replace it in the field, and how long it takes to do so. Laboratory users who need calibration stability for ten years always choose premium copper-silver constructions, even though they cost more up front.

Environmental Stresses and Material Durability Requirements

Different operating environments present unique material problems. Salt spray corrosion in maritime communication systems eats through anodized aluminum in 18 months, so gold-plated copper is needed even though it makes the systems heavier. Radar on airplanes is subject to vibrations that can fatigue-crack brass alloys, suggesting that aluminum or copper with the right strain relief design be used instead. For spacecraft uses, you need materials that don't release a lot of gas and have thermal expansion coefficients that match the adjacent waveguide sections to keep the vacuum weld from failing. Careful matching of materials is needed for each environment to keep them from breaking down too quickly and affecting mission-critical performance.

Advantages of Advanced Material Technologies and Their Role in Waveguide Short Plate Innovation

Silver Plating Technology for Maximum Conductivity

Electrodeposition is no longer the only way to plate silver; diffusion barriers and controlled grain structures are now also used. In modern multi-layer processes, a nickel undercoat of 3 micrometers is used to stop copper from diffusing. This is followed by 5–10 micrometers of fine-grained silver, which smooths out the surface. This design makes the conductivity within 2% of pure bulk silver and keeps the adhesion even when the temperature changes from -40°C to +85°C. When tested at millimeter-wave frequencies, the insertion loss is 0.08 dB lower than with bare copper. This means that sensitive receiver front-ends can improve their signal-to-noise ratio. The technology helps Vector Network Analyzer calibration standards using a Waveguide Short Plate the most, since phase uncertainty is directly related to plating quality.

Gold Plating for Harsh Environmental Protection

Gold plating does two things: it protects against corrosion and keeps contacts stable over time. A common specification calls for 2.5 micrometers of 99.9% pure gold on top of a nickel barrier layer. This makes a noble metal surface that doesn't oxidize in sulfurous or chlorine-filled industrial atmospheres. Silver tarnishes into silver sulfide, which is not a good conductor of electricity. Gold, on the other hand, keeps its electrical properties for decades without any maintenance. This dependability is very important for communication systems on offshore oil platforms or for remote weather radar installations that need to be serviced more than once every five years. The material choice gives up 15% of its conductivity in exchange for almost no maintenance needs in a waveguide short.

Composite Materials and Future Innovations

New material systems look into copper-diamond composites and graphene-enhanced coatings that are very good at conducting electricity and managing heat. Prototypes made in the lab show that they can conduct heat at a rate close to 600 W/m·K while still having electrical properties similar to pure copper. These high-tech materials are made for next-generation uses, like phased array radar systems that put out 50 W/cm² or cryogenic receiver parts that work at 20 Kelvin. Costs make it so that only certain aerospace programs can use them right now, but new research shows that more people will be able to use them in three to five years as semiconductor fabrication techniques get better at making parts.

Procurement Considerations: Finding the Right Waveguide Short Plate Supplier and Material Options

Evaluating Supplier Capabilities and Quality Systems

To find reliable suppliers, you need to look at both their manufacturing skills and their quality management systems. Manufacturers should show that they can do precise machining and keep the flatness tolerances within 0.013 mm across the shorting surface. This can be checked with inspection reports from a coordinate measuring machine. ISO 9001 certification is a basic way to make sure of quality, while AS9100 aerospace certification shows that you know how to meet strict requirements for traceability. Ask for material certificates that show the purity levels of the copper, the thickness of the plating, and the surface roughness values. Suppliers that work with military and space programs usually have stricter process controls than manufacturers that only make things for sale for a waveguide short plate.

Customization Capabilities and Technical Support

Most of the time, standard catalog items don't meet the specific needs of advanced radar systems or satellite payloads. Check to see if the potential suppliers offer customization services, such as non-standard flange patterns like FDP, FBP, or FUGP interfaces, frequency-optimized geometries for certain waveguide bands, and upgrades for environmental protection. The quality of their technical support is also important. For example, can their engineering team help you with thermal modeling or suggest plating options that won't break your budget for insertion loss? This method is shown by Huasen Microwave, which covers frequencies from 0.32 GHz to 112 GHz in fixed, sliding, and bias configurations and offers design help that makes it easier to add parts to complicated system designs.

Pricing Dynamics and Negotiation Strategies

Material costs make up 30–45% of the price of a finished component, which opens the door to discussions about value engineering. Depending on the frequency band, aluminum short plates with anodized finishes cost between $45 and $120. Copper-silver versions cost between $180 and $350. Most of the time, discounts of 12 to 18% are available for orders over 50 units, but the minimum order quantities may put a strain on prototype budgets. Talk about payment terms that work with your project's cash flow. For example, instead of paying the full amount up front, you could ask for a 50% deposit and the rest to be paid when the incoming inspection is passed. For standard WR-90 band units, lead times are two weeks. For custom millimeter-wave designs that need special tools, they take eight weeks.

Certification Requirements and Supply Chain Reliability

Certain rules must be followed when using applications in defense communication systems or aerospace platforms, such as Waveguide Short. MIL-STD-202 testing uses thermal shock, vibration, and humidity exposure sequences to make sure that the product can withstand the environment. RoHS certification makes sure that plating processes don't use any dangerous materials like lead or cadmium. Ask for Certificate of Conformance paperwork that shows how material lot numbers have been used in the supply chain. Check to see how your suppliers handle their inventory. Do they keep extra supplies of common materials on hand in case production delays happen? Multi-sourcing strategies lower risk but raise the cost of qualification. This is why it's important to look for suppliers that are financially stable and have a wide range of locations.

Conclusion

When choosing a material for waveguide short plate circuits, it's important to carefully weigh electrical performance, environmental durability, and the total cost of ownership. Aluminum bases with anodized finishes are good for low-frequency uses that need to be light, while copper bases with silver or gold plating give precision metrology and millimeter-wave systems the stability and conductivity they need. Knowing how operating frequency, power levels, and environmental stresses affect the properties of a material helps people make smart buying decisions that keep things from breaking down too soon. Working with suppliers that offer full customization options and technical support makes sure that parts fit perfectly into complicated RF architectures, allowing for reliable use in radar, aerospace, and telecommunications applications.

FAQ

1. What material works best for high-frequency millimeter-wave applications?

Copper that doesn't contain oxygen and is plated with silver works best above 40 GHz for a waveguide short plate. The copper substrate keeps the structure stable and controls the temperature, and the silver plating reduces resistive losses at skin depths below 0.3 micrometers. If the slight loss of conductivity is worth it because of exposure to the environment, gold plating can be used instead. Aluminum doesn't work well at these frequencies because its surface resistance is higher.

2. Can I order custom materials for extreme environmental conditions?

Manufacturers with a good reputation can meet specific needs, such as using gold-plated copper in marine settings or nickel-plated stainless steel for uses above 200°C. For custom orders, it's common for engineers to be consulted to make sure that the proposed combinations of materials meet both electrical and mechanical requirements. Lead times will be 6–10 weeks longer than for standard products.

3. How does plating thickness affect long-term performance?

To keep copper substrate resistance from hurting performance, plating must be more than three times the skin depth at operating frequency. At 10 GHz, this means that the silver is at least 2 micrometers thick. When you specify 5–7 micrometers, the performance will stay stable for five years in controlled environments or three years in harsh outdoor deployments. Thicker coatings leave room for wear and oxidation.

Partner With Huasen Microwave for Your Waveguide Short Plate Requirements

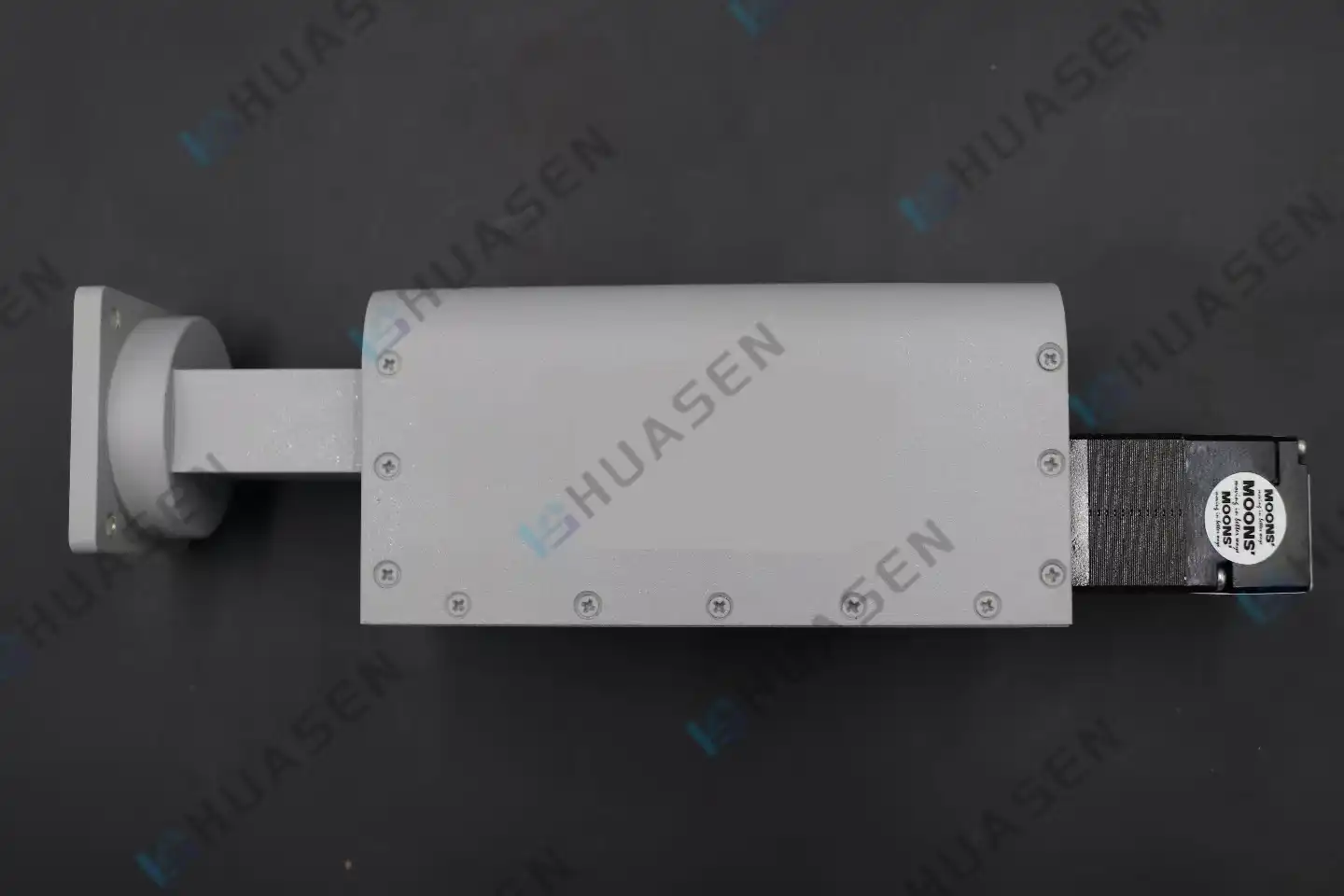

To choose the correct Waveguide Short Plate termination component, you need to know more than just what is written in the catalog. Huasen Microwave Technology has been making RF components for 30 years and can help you with any procurement problem. They offer fixed, sliding, and bias short plate configurations from 0.32 GHz to 112 GHz with VSWR performance that is better than industry standards. Our advice on choosing the right material helps you find the right aluminum or copper-based constructions with silver, gold, or other plating options for your needs. Our engineering team works together during the whole design process, whether you need FDP flange interfaces for lab calibration systems or custom FUGP patterns for radar modules that are built in. As a reliable waveguide short plate supplier, we keep strict quality systems that are certified to meet international standards. We also offer low prices and on-time delivery. Get in touch with our purchasing experts at sales@huasenmicrowave.com to talk about how our knowledge of materials and manufacturing skills can help you develop your next-generation radar or communication system.

References

1. Pozar, D. M. (2011). Microwave Engineering, 4th Edition. Hoboken: John Wiley & Sons, Chapter 3: Transmission Lines and Waveguides.

2. Collin, R. E. (2001). Foundations for Microwave Engineering, 2nd Edition. New York: IEEE Press, Section 5.4: Waveguide Discontinuities and Matching.

3. Saad, T. S. (1985). Microwave Engineers' Handbook, Volume 1: Components and Mechanisms. Dedham: Artech House, Chapter 7: Waveguide Components.

4. IEEE Standard 149-2021. IEEE Standard for Test Procedures for Antennas. New York: Institute of Electrical and Electronics Engineers.

5. Montgomery, C. G., Dicke, R. H., and Purcell, E. M. (1948). Principles of Microwave Circuits, MIT Radiation Laboratory Series Volume 8. New York: McGraw-Hill, Chapter 6: Waveguide Junctions.

6. Balanis, C. A. (2016). Advanced Engineering Electromagnetics, 2nd Edition. Hoboken: Wiley, Section 9.7: Waveguide Terminations and Calibration Standards.
