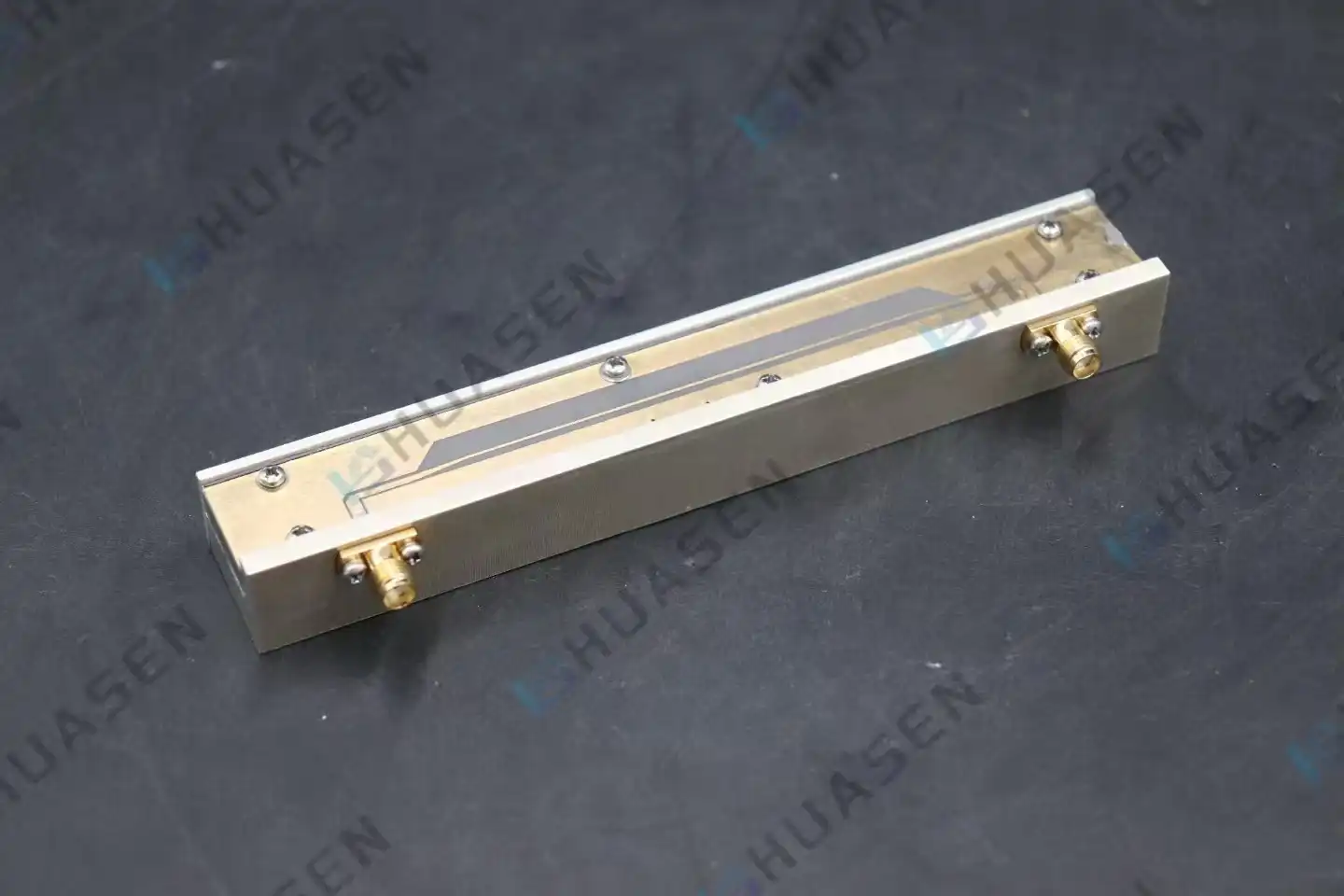

Coplanar Waveguide for mmWave Applications

Coplanar Waveguide (CPW) technology is used in millimeter-wave (mmWave) systems. It is a type of transmission line design that puts all conductors, including the center signal line and ground planes, on the same substrate surface. Engineers can make very small, high-frequency circuits for 5G infrastructure, satellite terminals, radar modules, and precise test equipment with a lot of freedom using this planar configuration. CPW structures have low radiation loss, good impedance control, and easy merging with active and passive parts. This makes them necessary for next-generation wireless systems that work beyond 24 GHz.

Understanding the Fundamentals of Coplanar Waveguide for mmWave

The physics governing CPW performance at mmWave frequencies revolves around how electromagnetic fields distribute between the center conductor and adjacent ground planes. Unlike microstrip lines, where fields concentrate between the conductor and the backside ground, CPW confines energy primarily within the gaps separating the signal and ground traces on the top surface. This quasi-TEM mode propagation enables predictable impedance behavior and lower dispersion across wide bandwidths.

Electromagnetic Theory and Design Parameters

The characteristic resistance of CPW structures is based on the substrate's permittivity, the thickness of the metalization, and the ratio of the signal trace width to the gap spacing. Standard RF connectors and test tools have an impedance of 50 ohms, which is what most designs aim for. The relationship is based on complicated equations that use elliptic integrals, but current electromagnetic simulators make this process easier. Materials used as substrates, such as Rogers RO3003, alumina ceramics, or low-temperature co-fired ceramic (LTCC), keep their dielectric constants stable across a wide range of temperature and frequency. This is very important when your base station is working in the Arctic or the desert. Having ground planes close to each other on the same surface lowers electromagnetic interference and makes via-free designs easier. This is very important when you're putting together multilayer printed circuit boards (PCBs) with CPW feeds and antenna arrays, because drilling through-hole vias could mess up signal routes or add extra inductance that you don't want. The coplanar design also makes it easier to directly bond surface-mount components without having to access the backside, which is useful for both making prototypes and mass production.

Conductor Geometry and Substrate Effects

Signal integrity at mmWave frequencies demands precise control over conductor dimensions. Fabrication tolerances tighter than ±5 micrometers ensure consistent impedance along the transmission path. Surface roughness of copper traces directly impacts skin-effect losses; smoother metallization achieved through electroplating or reverse-treated foils reduces attenuation by measurable decibels per centimeter. Substrate thickness influences field confinement—thinner substrates concentrate energy closer to conductors, reducing radiation loss but increasing sensitivity to fabrication variations.

Comparative Advantages Over Conventional Transmission Lines

When you look at mmWave uses side by side, CPW and microstrip have clear advantages. Microstrip needs acoplanar waveguide designto be able to connect to the ground from the bottom, and it loses more radiation above 30 GHz because of field fringing. While stripline offers better shielding, it requires multilayer building, which raises costs and makes it harder to control temperature. Coaxial cables are good at shielding, but they have gaps in the connectors and a lot of extra weight that makes them unsuitable for small transceiver modules. CPW strikes a balance by offering low-loss transmission in a flat shape that works with MMIC technology and hybrid assemblies. When you're making phased-array antennas for satellite ground stations or adding power amplifiers to 5G small-cell gear, this architectural freedom speeds up the development process. It is easier to set up impedance-matching networks and filters when shunt components can be placed straight across the CPW gap without having to use via connections.

Real-World Applications Across Industries

CPW lines connect antenna elements in huge MIMO arrays that work at 26 GHz and 39 GHz bands in 5G infrastructure. The flat shape allows for the close spacing of elements needed for beamforming while keeping crosstalk levels at a good level. CPW transitions between waveguide and planar circuits are used by satellite communication terminals to make lightweight phased-array designs for Ka-band and Q-band links possible. Military radar systems use CPW in transmit/receive modules because they are more reliable than other interconnect methods when it comes to vibration and temperature cycles. Testing labs use CPW probe stations to characterise semiconductor devices on the wafer up to 110 GHz and beyond. The ground-signal-ground (GSG) pad configuration fits easily with CPW geometry. This makes measurements more accurate when looking at noise figures for amplifiers or conversion loss for mixers. These uses show why procurement teams at aerospace primes, telecom equipment makers, and research institutions choose critical signal paths based on CPW solutions.

Performance Optimization and Modeling Techniques for mmWave CPW

Achieving target specifications in production CPW components requires rigorous electromagnetic modeling combined with disciplined fabrication processes. Engineers employ full-wave simulation tools to predict insertion loss, return loss, and group delay across operational bandwidths before committing to prototypes.

Impedance Calculation and Electromagnetic Simulation

Some software programs, like ANSYS HFSS or CST Microwave Studio, use the finite element method (FEM) to analyse three-dimensional field patterns. These programs take into account things like conductor thickness, metal conductivity, substrate anisotropy, and enclosure effects. Solvers that use the finite integration method (FIT) can do parametric sweeps faster while the design is being optimised. To make sure that simulation results match up with real-world hardware performance, accurate material characterisation data is needed. This includes frequency-dependent dielectric loss tangent and metal conductivity from DC to mmWave. Time-domain reflectometry (TDR) on fabricated samples is used to find discontinuities caused by solder joints, component pads, or connector launches. To keep the VSWR below 1.5:1 in the 24–44 GHz range, designers must pay close attention to how the CPW connects to coaxial links or rectangular waveguides. Over lengths greater than a quarter wavelength, tapered transformations reduce reflections while keeping footprints small.

Loss Mechanisms and Mitigation Strategies

There are three main ways that CPW performance is lowered: conductor loss due to metal's limited conductivity and rough surface, dielectric loss due to substrate absorption, and radiation loss due to field confinement problems. Conductor loss goes up with frequency because the skin depth goes down. Putting gold or silver plating over copper traces lowers the surface resistance, but this is usually only done for high-value uses because it costs a lot. When you electropolish copper surfaces, the loss caused by roughness is cut by up to 30% compared to standard electrodeposited foils. Dielectric loss depends on the substrate loss tangent; Rogers RO3003 (tan ε = 0.0010 at 10 GHz) or fused quartz (tan ε < 0.0001) are much better at reducing loss than standard FR-4 epoxy laminates by many orders of magnitude. When the ground plane spacing is about the same as the base thickness, radiation loss goes up. To keep spurious radiation below -40 dB, gap-to-thickness ratios should stay above 3:1. In dense circuit layouts, shielded CPW versions with top-side ground links reduce radiation even more.

Bandwidth Optimization Techniques

Broadband CPW designs accommodate multiple frequency bands within single assemblies, reducing system complexity and inventory costs. Smooth impedance transitions between coplanar waveguide designs with different CPW sections, achieved through exponential tapers or Klopfenstein tapers, extend usable bandwidth beyond octave ratios. Slot resonances within the ground plane gaps can be suppressed using periodic via stitching along the transmission path, though this partially compromises the via-free advantage. Dispersion management becomes critical when transmitting wideband signals; maintaining group delay variation below 100 picoseconds across 10 GHz spans preserves signal fidelity in pulsed radar and high-data-rate communication links. These optimization strategies translate directly into system reliability metrics that procurement managers track—mean time between failures (MTBF) exceeding 100,000 hours under specified environmental conditions.

Choosing the Right Transmission Line for Your mmWave Project

Selecting optimal interconnect technology involves balancing electrical requirements against mechanical constraints, production scalability, and budget limitations. Each transmission line architecture presents distinct trade-offs that influence total system performance and lifecycle costs.

Electrical Performance Comparison

CPW typically exhibits insertion loss between 0.5 and 2.0 dB per centimeter at 40 GHz, depending on substrate and metallization quality. Microstrip on identical substrates shows comparable loss but requires backside processing. Substrate-integrated waveguide (SIW) achieves lower loss—often below 0.3 dB/cm—but occupies greater board area due to via-wall construction and cutoff frequency limitations. Coaxial assemblies introduce connector losses around 0.2–0.5 dB per mated pair, accumulating quickly in systems with multiple interconnections. Power handling in CPW structures reaches several watts in continuous-wave operation before thermal effects degrade solder joints or substrate adhesion. Peak power capability exceeds 100 watts in pulsed radar applications with duty cycles below 10%, provided proper thermal management dissipates average power. Microstrip handles similar power levels but suffers greater radiative coupling to adjacent circuits. SIW excels in high-power scenarios, tolerating kilowatt-level pulses when integrated with appropriate heat sinking.

Mechanical Adaptability and Integration

CPW's single-sided metallization simplifies integration with flip-chip components and wire-bonded die, accelerating assembly processes in high-volume manufacturing. The planar layout accommodates flexible substrate materials for conformal antenna installations on curved aircraft surfaces or deployable satellite structures. Microstrip requires access to both board sides, complicating assembly sequences when components populate both faces. Coaxial cables offer mechanical flexibility but add weight and connector maintenance requirements unacceptable in airborne or space applications. Vibration and shock resistance vary significantly among transmission line types. Rigid CPW on ceramic substrates withstands environments exceeding MIL-STD-810 specifications, suitable for missile seekers and UAV payloads. Flexible CPW on polyimide films endures repeated bending cycles in phased-array antenna gimbal systems. Coaxial cables experience fatigue failures at connectors after thousands of flexure cycles unless specialized designs incorporate strain relief.

Cost Implications and Manufacturability

Fabrication costs for CPW circuits align closely with standard PCB processes when using organic substrates, scaling favorably for production volumes exceeding 1,000 units annually. Ceramic substrates increase material costs but deliver superior performance and long-term stability—lifecycle analyses often justify this premium in defense and aerospace programs. SIW implementations add complexity through drilling and plating, raising per-unit costs by 20–40% compared to CPW on equivalent substrates. Tooling investments for CPW production remain modest; photolithography equipment and precision etching systems suffice for features down to 25-micrometer linewidths. Advanced mmWave designs requiring sub-10-micrometer geometries necessitate laser direct imaging or electron-beam lithography, concentrating capability at specialized manufacturers. Lead times for prototype CPW assemblies typically span two to four weeks, while production runs deliver within six to twelve weeks, depending on substrate availability and customization requirements.

Practical Guide to Procuring High-Quality Coplanar Waveguide Components

Navigating the supply chain for mmWave CPW components demands an understanding of fabrication capabilities, quality standards, and supplier qualifications. Strategic sourcing decisions impact not only component performance but also program schedules and long-term support availability.

Evaluating Fabrication Capabilities and Quality Controls

Reputable CPW manufacturers maintain process controls documented through statistical process control (SPC) charts tracking dimensional tolerances, plating thickness, and dielectric properties across production lots. ISO 9001 certification provides baseline quality management assurance, while AS9100 certification indicates aerospace-specific process rigor. Request process capability indices (Cpk) exceeding 1.67 for critical dimensions—this ensures 99.99% of production meets Coplanar Waveguidespecifications without requiring 100% inspection. Metrology capabilities matter significantly at mmWave frequencies, where micron-level variations affect performance. Suppliers equipped with automated optical inspection (AOI), scanning electron microscopy (SEM), and vector network analyzers calibrated through 110 GHz demonstrate commitment to quality. Third-party material certifications from substrate suppliers confirm dielectric constant tolerances (typically ±0.05) and loss tangent consistency batch-to-batch.

Custom Manufacturing and Substrate Selection

Customization flexibility determines how well CPW solutions align with unique system architectures. Manufacturers offering design-for-manufacturability (DFM) reviews during quotation identify potential yield issues before prototype investment. Parametric customization—adjusting impedance, frequency range, connector types, or mechanical dimensions—should not trigger non-recurring engineering (NRE) charges for straightforward modifications within established process windows. Substrate material selection balances electrical performance, thermal management, and environmental durability. Rogers RO3003 and RO4003C dominate commercial applications due to cost-effectiveness and proven reliability. Alumina (96% or 99.6% purity) suits military and space programs requiring hermeticity and radiation hardness. Liquid crystal polymer (LCP) substrates enable ultra-thin, flexible designs for wearable and IoT devices. Discuss substrate availability and lead times early—specialty materials may extend delivery schedules by eight to sixteen weeks during supply chain disruptions.

Pricing Structures and Lead Time Management

Component pricing reflects material costs, fabrication complexity, and order volume. Expect prototype quantities (1–10 pieces) to incur per-unit costs three to five times production pricing due to setup amortization. Volume tiers typically break at 100, 500, and 1,000 units annually, with each threshold reducing unit costs by 15–25%. Blanket purchase orders with scheduled releases help suppliers optimize production planning, potentially securing additional discounts. Lead times compress when designs utilize standard substrate thicknesses and readily available connector types. Rush charges (often 30–50% premium) can reduce delivery to one to two weeks for urgent prototype needs, though this option exhausts supplier capacity during peak demand periods. Establishing vendor-managed inventory (VMI) programs for high-volume production stabilizes lead times and buffers against substrate allocation challenges that periodically affect the industry.

Conclusion

CPW technology delivers proven performance for mmWave systems across telecommunications, aerospace, defense, and testing sectors. The planar architecture simplifies integration, reduces radiation loss, and accommodates compact designs essential for next-generation wireless infrastructure. Strategic sourcing from qualified manufacturers ensures component reliability, while collaborative relationships with suppliers accelerate innovation and mitigate supply chain risks. As mmWave applications expand into automotive radar, satellite constellations, and IoT networks, CPW solutions will remain foundational to enabling these technologies.

FAQ

1. What frequency ranges can CPW designs cover effectively?

CPW structures perform reliably from several gigahertz through millimeter-wave frequencies exceeding 100 GHz. Practical bandwidth depends on substrate properties, fabrication precision, and transition designs to connectors or other transmission line types. Typical commercial implementations span 24–44 GHz for 5G applications, 76–81 GHz for automotive radar, and various satellite communication bands, including Ka-band (26.5–40 GHz) and Q-band (33–50 GHz). Research prototypes demonstrate functionality in sub-terahertz ranges using advanced nanofabrication techniques.

2. How does CPW compare to microstrip for high-volume manufacturing?

Both technologies suit high-volume production using standard PCB processes. CPW offers advantages in component integration and reduced electromagnetic interference due to coplanar ground placement, while microstrip may achieve slightly lower fabrication costs on conventional FR-4 substrates. The choice often depends on system architecture—CPW excels when via-free designs simplify assembly or when direct-chip attachment is required. Cost differences narrow when using low-loss substrates necessary for optimal mmWave performance, making electrical requirements the primary selection criterion.

3. What customization options are available for CPW components?

Reputable manufacturers customize impedance (typically 50 or 75 ohms), operational bandwidth, connector types (SMA, 2.92mm, 2.4mm, K-connector), substrate materials, and mechanical dimensions, including bend configurations or mounting features. Custom metallization thickness, plating options (gold, silver), and environmental sealing adapt designs to specific application requirements. Discuss customization early in procurement cycles—straightforward parametric changes may not incur NRE charges, while substantial redesigns require engineering investment and prototype validation.

4. What certifications should I expect from qualified suppliers?

ISO 9001 quality management certification provides baseline assurance, while AS9100 indicates aerospace-specific process controls. MIL-STD-202 or MIL-DTL-55342 compliance demonstrates military-grade reliability testing. RoHS and REACH certifications confirm environmental compliance for European markets. Request material certifications from substrate suppliers documenting dielectric properties and traceability. Third-party calibration certificates for test equipment used in final inspection verify measurement accuracy critical to mmWave component qualification.

Partner with Huasen Microwave for Superior Coplanar Waveguide Solutions

Huasen Microwave Technology has delivered precision-engineered microwave and millimeter-wave components since 1993, supporting global leaders in telecommunications, aerospace,anddefense industries. Our design Coplanar Waveguideand manufacturing capabilities extend to custom CPW configurations optimized for your specific mmWave applications, whether you're developing 5G infrastructure, satellite terminals, or high-frequency test equipment. We maintain rigorous quality controls compliant with MIL-STD and ISO standards, ensuring consistent performance across production volumes from prototype through mass deployment.

As an experienced Coplanar Waveguide manufacturer, we provide comprehensive technical support throughout your project lifecycle—from initial design consultation through post-delivery calibration data. Our engineering team collaborates closely with your specialists to address unique requirements for bandwidth, power handling, environmental durability, and mechanical integration. Contact us at sales@huasenmicrowave.com to discuss your mmWave transmission line requirements and discover how our decades of RF expertise can accelerate your program success while optimizing total cost of ownership.

References

1. Simons, R. N. (2001). Coplanar Waveguide Circuits, Components, and Systems. New York: John Wiley & Sons.

2. Ponchak, G. E., Tentzeris, E. M., and Papapolymerou, J. (2005). "Coupling Between Microstrip Lines and Coplanar Waveguide." IEEE Transactions on Microwave Theory and Techniques, 53(4), 1369-1377.

3. Williams, D. F., and Marks, R. B. (1993). "Transmission Line Capacitance Measurement." IEEE Microwave and Guided Wave Letters, 3(7), 243-245.

4. Ghione, G., and Naldi, C. (1987). "Analytical Formulas for Coplanar Lines in Hybrid and Monolithic MICs." Electronics Letters, 20(4), 179-181.

5. Heinrich, W. (1993). "Quasi-TEM Description of MMIC Coplanar Lines Including Conductor-Loss Effects." IEEE Transactions on Microwave Theory and Techniques, 41(1), 45-52.

6. Riaziat, M., Majidi-Ahy, R., and Feng, I. J. (1990). "Propagation Modes and Dispersion Characteristics of Coplanar Waveguides." IEEE Transactions on Microwave Theory and Techniques, 38(3), 245-251.
