2-Way vs 4-Way Waveguide Power Divider Differences Explained

Choosing between a 2-way and 4-way waveguide power divider (also referred to as a waveguide power splitter) has a direct effect on the cost, signal integrity, and speed of RF distribution systems for radar, satellite communication, or 5G infrastructure. A 2-way waveguide power divider takes in one signal and sends it to two outputs that can be equal or not equal. A 4-way unit, on the other hand, sends the signal to all four ports. Insertion loss, physical complexity, separation performance, and application breadth are the main things that make them different. Knowing these differences helps procurement managers and RF engineers choose the right part for mission-critical installations, making sure that performance needs are met while also taking price and installation room into account.

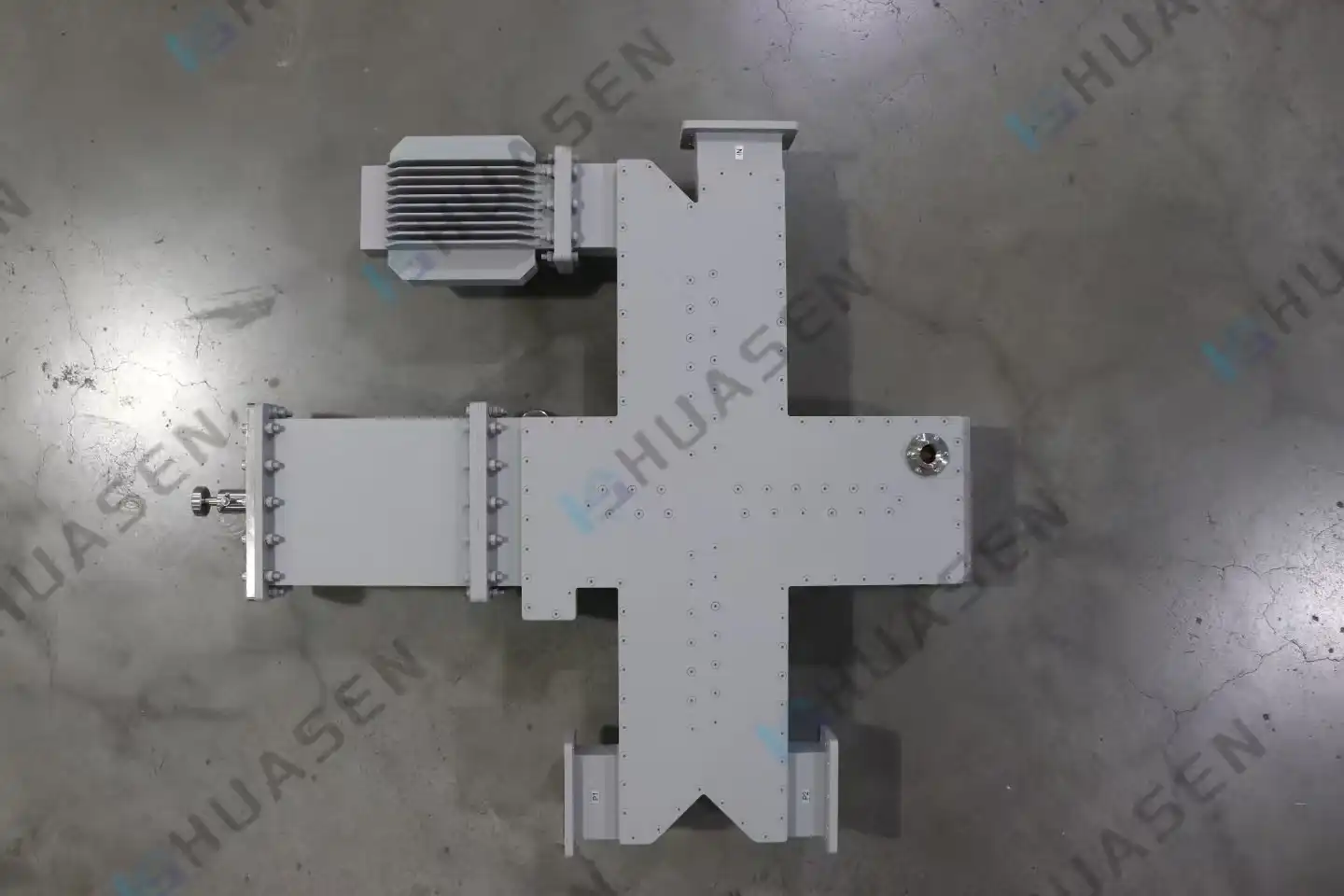

Understanding Waveguide Power Dividers: Basics and Key Concepts

Waveguide power divider units are the most important part of distributing high-frequency signals, especially in systems that work above 10 GHz and have trouble with loss and power dealing with coaxial lines. It is the job of these inactive parts to send electromagnetic energy through hollow metal structures, usually in the TE10 mode, so that there is little loss and better temperature management.

How Do 2-Way Power Dividers Function?

The signal coming in is split into two lines by a single junction, which is usually an E-plane or H-plane tee. Because the signal doesn't have to go through as many changes, this setup keeps insertion loss low, usually around 3.5 dB in equal-split designs. Engineers like this design for high-power radar transmitters or point-to-point microwave backhaul lines that need to use the least amount of power possible. The two-way design is simple, and it also makes it easier to match the phases of the outputs, which is important for continuous beamforming in phased array antennas.

How Do 4-Way Power Dividers Operate?

A 4-way divider adds to the splitting design by using a more complicated branching network or cascading multiple connections. Signals can be sent through sequential steps, which are like two layers of two-way splits, or through a single multi-port structure. Because the line is longer and there are more impedance changes, this design adds more insertion loss, which is usually between 6.5 and 7 dB. But the 4-way setup is a small way to connect multiple antennas or test ports at the same time. This means you don't need any extra combiners, and it's easier to put the system together in places with limited room, like satellite payloads or airborne radar modules.

Key Design Parameters That Matter

Matching the impedance is still very important for both types of dividers. Any mismatch leads to standing waves, mirrored power, and higher VSWR, which lowers the performance of the whole system. Different dividers have different bandwidth limits. Two-way dividers usually have wider operating ranges because their matching networks are easier, while four-way units may have smaller bandwidths if they aren't made with stepped transformers or tapered transitions. Signal leaks that could cause problems in multi-channel systems can be stopped by isolating the output ports. Base stations and military radar sites that are outside and subject to extreme weather must have stable temperatures and the ability to handle a lot of power. This includes being able to handle peak power levels above 2 kW.

2-Way vs 4-Way Waveguide Power Dividers: Technical Comparison

To compare these two divider setups, you need to look at performance measures that have a direct effect on signal quality, system efficiency, and the ability to reliably operate in harsh RF environments.

Insertion Loss and Signal Efficiency

Insertion loss measures how much power is lost from the input to each output port. A two-way equal-split waveguide power divider has a theoretical loss of 3 dB, plus an extra 0.3 to 0.5 dB due to joint discontinuities and wire resistance. Total insertion loss stays below 3.8 dB for good designs in real-world waveguide systems that work in the X-band or Ku-band. On the other hand, a 4-way separator has two splitting steps that add up to 6.5 to 7 dB in losses. This extra 3 dB penalty is caused by the extra signal line and higher junction count. This is important for power-sensitive uses like satellite uplinks, where every decibel affects link budget and transmission efficiency.

Isolation and Crosstalk Performance

How well each output port stays separate from the others is measured by isolation. Strong isolation, usually greater than 20 dB, keeps signals from getting mixed up between channels. This is very important in phased array systems, where each channel needs to have its own phase control. Because it only has one junction, a 2-way divider has better separation, often exceeding 25 dB across the working band. It's harder for four-way dividers to keep all port pairs isolated, especially when it comes to outlets that aren't next to each other. To improve separation, more complex designs use resistive loads or compensation structures, but they rarely work as well as simpler 2-way setups.

Physical Size and Mechanical Integration

Size limits affect the choice of components, especially in systems that will be used in space or the air, where volume and weight directly affect the payload capability. A two-way splitter takes up very little space—usually just one waveguide section with one junction—so it's perfect for putting inline in RF arrays that are already full. Four-way units need more complicated internal design, which makes the housings bigger and requires more careful planning for the mechanics. However, switching from two cascaded 2-way dividers to a single 4-way unit can actually lower the total system size and connector count. This makes assembly easier and improves mechanical stability in places where vibration is common, such as with unmanned aerial vehicles or military radar systems.

Frequency Band Compatibility

Depending on the size of the waveguide, both types of dividers can handle a wide range of frequencies, from 0.32 GHz to 112 GHz. Standard waveguides like WR-90 (X-band) or WR-28 (Ka-band) can handle both types of setups, but they have different frequency limits. Because their matching networks are easier, two-way dividers can handle larger changes in impedance, so they can work over bigger fractional bandwidths—sometimes more than 30% of the centre frequency. Four-way dividers usually have a smaller operating bandwidth, usually around 10%, unless they are used with multi-step matched transformers. This limitation on bandwidth doesn't matter as much for fixed-frequency uses like weather radar, but it's a big deal for broadband transmission systems that need to work on multiple bands at the same time.

Procurement Considerations for Waveguide Power Dividers

Finding the right waveguide power divider means combining technical specs with business concerns like the ability to make changes, shipping times, and the history of the provider. When making choices about what to buy, you should think about both the needs of the current job and the needs for long-term system maintenance.

Custom vs Standard Solutions

Off-the-shelf dividers from well-known manufacturers work reliably and have short wait times—usually two to four weeks for normal X-band or Ku-band units, including RF power divider options. Standardisation makes suitability testing and future purchases easier, which is why these catalogue items are good for development and low-volume production. Custom-engineered solutions, on the other hand, can solve problems that normal goods can't. For unique uses, like dual-polarisation radar feeds, non-standard frequency bands, or taking very high power (more than 200W on average), custom designs are needed. Custom waveguide power dividers, including RF power divider types, can have certain flange types, like UG or CPR connections, to match settings with unusual impedances or can be built directly into bigger systems, which lowers the amount of interconnect losses and mechanical complexity.

Huasen Microwave lets you make a lot of changes to all of their products, like in-phase power dividers, one-to-many splitter setups, and double-ridge waveguide magic tees. Their engineering team works with non-standard power splitting ratios, connector types, and structure forms, such as I-type, U-type, X-type, Y-type, and YU-type. This lets system designers make the best solutions for specific installation shapes and performance goals. This flexibility is very helpful when making changes to current systems or creating next-generation platforms that have unique needs.

Cost Analysis and Pricing Dynamics

Component prices are based on how complicated the plan is, how much the materials cost, and how many are made. Depending on the specs and the number of units ordered, a normal 2-way divider in WR-90 waveguide can cost anywhere from $150 to $400. Four-way dividers are more expensive—often $500 to $1,200—because they are harder to machine and need to be within tighter tolerances. When you buy 50 or more units at once, you can often get 20–30% off. This makes buying in bulk appealing for big system integrators who are building multiple installs.

In addition to the unit price, the total cost of ownership includes the work needed to install the product, the need for tests, and its dependability over time. One 4-way divider replaces two 2-way units and a connected waveguide section, which cuts down on the number of parts, the time it takes to put them together, and the places where they could fail. This view of system-level costs often makes the bigger original investment for 4-way configurations worth it, especially in big phased array systems with hundreds of dividers set up. Before placing large orders, procurement managers should ask for thorough datasheets that show insertion loss across frequency, port-to-port isolation, and power handling limits. This will help them correctly model how the system will work.

Supplier Evaluation and Quality Assurance

When it comes to important RF systems, where a failed component could stop operations or threaten mission success, choosing a dependable provider lowers the risk. Certification compliance (MIL-STD-461 for military applications or ISO 9001 for business systems), warranty terms, and access to expert help during integration should all be part of the evaluation process. Suppliers with a good reputation give full test results that include S-parameter measurements, power handling proof, and environmental approval results.

By asking for samples, you can test them out before making a full purchase. Testing samples should make sure that the entry loss is the same across the working band, that they fit mechanically with the hardware that is already in place, and that they can handle power in real-world situations. Suppliers with fast technology teams can help with integration, make custom test setups, or change designs to fix problems that came up during prototyping that were not expected. Long-term relationships with manufacturers that can keep up production over multi-year projects ensure a steady supply of parts, which is important for phased deployments or providing spares for upkeep.

Practical Use Cases: Solving Common Challenges with 2-Way and 4-Way Dividers

High-Power Radar Systems

Military fire-control systems and radars that monitor the weather from the ground need power dividers that can handle kilowatts of high power while keeping the signal integrity. In these situations, a 2-way divider works great because it can feed two parallel amplifier chains or antenna lines with very little loss and great separation. The lower insertion loss keeps the transmitting power, which increases the range of sensing and makes the target clearer. In an X-band AESA radar upgrade, a major defence contractor used 2-way waveguide dividers with a peak power rating of 3 kW. This achieved 25 dB port isolation, which stopped amplifiers from interacting and kept the array's phase coherence. The strong mechanical design passed MIL-STD-810 shock and vibration tests, making sure that naval systems work properly.

Phased Array Communication Systems

Next-generation 5G and 6G backup networks use staggered array antennas to set up point-to-multipoint links with a lot of bandwidth. For these systems to work, signals must be sent to dozens of radiating parts while keeping an exact track of their intensity and phase. Four-way dividers make this distribution easier by sending multiple antenna rows from a single feed point. This cuts down on the number of parts and possible sources of phase error. To handle millimetre-wave backhaul nodes, a phone company set up special 4-way dividers that worked at E-band (70–80 GHz). The integrated design split the signal and matched the phases of the outputs. This allowed beamforming to be accurate to within ±2 degrees while taking up 40% less space than similar cascaded 2-way setups.

RF Testing and Measurement Labs

In calibration labs and component test facilities, RF power dividers send messages to multiple measuring tools at the same time. Two-way units split test signals to spectrum analysers and power metres so that they can be used at the same time without having to re-wire. Four-way dividers can be used to set up a multi-port network analyser or a feed array of load terminations for testing a high-power amplifier. One military test centre made all of its Ka-band test ranges use 4-way dividers. This made setting up test stations easier and cut the time it took by 35%. The dividers' low VSWR—below 1.3:1 across the whole waveguide band—ensured accurate measurements without the need for a lot of calibration correction.

Conclusion

When choosing between 2-way and 4-way Waveguide Power Divider units, you have to think about insertion loss, physical size, cost, and the performance needs of your particular application. Two-way setups are best for high-power transmitters and situations where minimising loss has a direct effect on the system's ability to do its job because they provide better power economy and isolation. Even though they have a higher insertion loss, four-way dividers make complicated distribution networks easier to understand by lowering the number of parts and technical complexity in multi-port systems. When buying something, you should think about how much the whole system will cost, how reliable it will be in the long term, and whether the seller can handle both standard and custom setups. When engineers and procurement managers understand these technical and business trade-offs, they can choose parts that meet budget and schedule needs while also providing the best performance for difficult RF applications.

FAQ

1. What factors most significantly affect insertion loss in waveguide power dividers?

Insertion loss in a waveguide power divider is mostly caused by conductor resistance inside the waveguide walls, junction irregularities at the split point, and impedance mismatches at input/output transitions. When the frequency goes up, the skin effect makes the conductor lose more, and manufacturing errors that change the internal measurements cause reflections that add to the total loss. These effects are lessened by using the right surface finish (often silver plating) and precise cutting.

2. Can a single 4-way divider replace two cascaded 2-way units in existing systems?

Yes, electrically, and with the same level of speed if the specs are the same. But for mechanical integration to work, the types of flanges, mounting arrangements, and physical envelopes must all be checked to make sure they are compatible. One 4-way unit gets rid of one middle link, which could make it more reliable and lower the insertion loss caused by flanges that are taken off. When adding new parts to old systems, the sizes need to be checked carefully, and you might need special mounting brackets or waveguide adapters to connect to old equipment.

3. How should I verify divider performance before committing to volume procurement?

Ask for sample units that have full S-parameter values for all of the frequencies that you need to work. Measure the insertion loss on each port, make sure that all port pairs are isolated, and make sure that the VSWR stays below 1.5:1. Verification of power handling needs high-power test facilities. You can also count on test records from suppliers that are certified to traceable standards. Environmental testing, such as changing temperatures, vibrations, and humidity levels based on your application needs, confirms the mechanical strength before it is scaled up to production levels.

Partner with Huasen Microwave for Superior RF Distribution Solutions

Finding the right waveguide power divider provider who knows your technical challenges and delivery constraints is the first step to getting the best signal distribution in your radar, satellite, or communication system. The company Huasen Microwave was founded in 1993 and has more than 30 years of experience making high-frequency microwave and millimetre-wave parts. Our wide range of products includes in-phase power dividers, one-to-many splitter setups, and double-ridge waveguide magic tees that work with standard waveguides from BJ22 to BJ320. These products cover frequencies from 0.32 GHz to 112 GHz.

We can handle normal power levels above 200W and peak power levels above 2 kW. We can also customise power splitting ratios, connector types, and structural forms to fit the needs of your system. Our engineering team can help with design, give you thorough datasheets, and give you sample units to test out before you order a lot of them. We have the dependability and technical support that procurement managers look for in a waveguide power divider maker, whether you need standard catalogue parts or fully bespoke solutions for tough aerospace and military applications.

Contact our team at sales@huasenmicrowave.com to talk about your particular needs, get technical specs, or set up a trial sample. Find out how working with Huasen Microwave can speed up your project and make sure that the quality of the parts meets the strict requirements of mission-critical RF systems.
