Parabolic Antenna Beamwidth and Directivity Characteristics

When designing high-performance wireless communication systems, it is very important to know about the beamwidth and directivity of parabolic antennas. The angle coverage of a radiated energy is set by its beamwidth, which is measured at the half-power points where signal strength drops by 3 dB. When compared to an isotropic radiator, directivity measures how well the antenna focuses electromagnetic energy in a certain direction. In places where accuracy is very important, like telecommunications backhaul, satellite ground stations, and radar installations, these parameters determine how well the link works, how well it blocks interference, and how efficiently it uses spectrum.

Introduction

Satellite communication networks, radar installations, and point-to-point microwave backhaul systems all depend on parabolic antennas as key parts. Because they can focus electromagnetic energy with amazing accuracy, they are necessary for operations that depend on signal integrity and long-distance transmission. RF engineers, purchasing managers, and system integrators have told us that knowing beamwidth and directivity parameters has a direct effect on network reliability, spectral efficiency, and the best use of capital expenditures.

More and more pressure is being put on global B2B procurement professionals to use antennas that balance technical performance with environmental durability and total cost of ownership. The connection between beamwidth and directivity isn't just theoretical; it affects things like whether a 5G backhaul link stays 99.999% available in bad weather, whether a satellite earth station gets the signal-to-noise ratios it needs, and whether microwave links next to it interfere in a bad way. This guide takes complicated electromagnetic principles and turns them into useful buying criteria. It does this by helping you match antenna specs to real-world operational needs in broadcast, defense communications, and telecommunications infrastructure.

Understanding Parabolic Antenna Beamwidth and Directivity

Defining Half-Power Beamwidth

Half Power Beamwidth is the angle between two points where the power being sent out drops to 50% (-3 dB) of its highest level. This measurement can be made in both the elevation and azimuth planes, but the values may be slightly different depending on how symmetrical the reflector is and how the light is fed. HPBW values in real life range from less than 1 degree for large-aperture satellite earth stations that work at Ka-band frequencies to about 8 to 12 degrees for small microwave backhaul antennas used in E-band applications.

Directivity and Gain Relationship

When compared to an isotropic reference source, an antenna's directivity shows how well it can focus its radiated power in a certain direction. The mathematical expression for directivity is the ratio of the maximum radiation intensity to the average radiation intensity. The diameter of the reflector and the operating wavelength are directly related to directivity. Realized gain is usually 0.5 to 1.5 dB less than theoretical directivity when resistive losses and surface flaws are taken into account. When there are a lot of signals in the spectrum, high-directivity antennas are very helpful because they cut down on interference from other channels and send more power to the receivers that need it.

The Inverse Beamwidth-Directivity Relationship

Because electromagnetic energy concentrates in a smaller solid angle, a narrower beamwidth naturally leads to higher directivity. For a parabolic antenna, this inverse relationship means buying things involves making trade-offs: ultra-narrow beamwidth antennas need to be mechanically aligned very precisely, and even small structural shifts caused by wind loading or thermal expansion can hurt their performance. On the other hand, a wider beamwidth takes away from the link budget margin but can handle installation flaws and gives you more coverage options. Knowing this balance helps you choose antennas that work with the installation and maintenance tools that are available at deployment sites.

Core Design Principles Influencing Beamwidth and Directivity

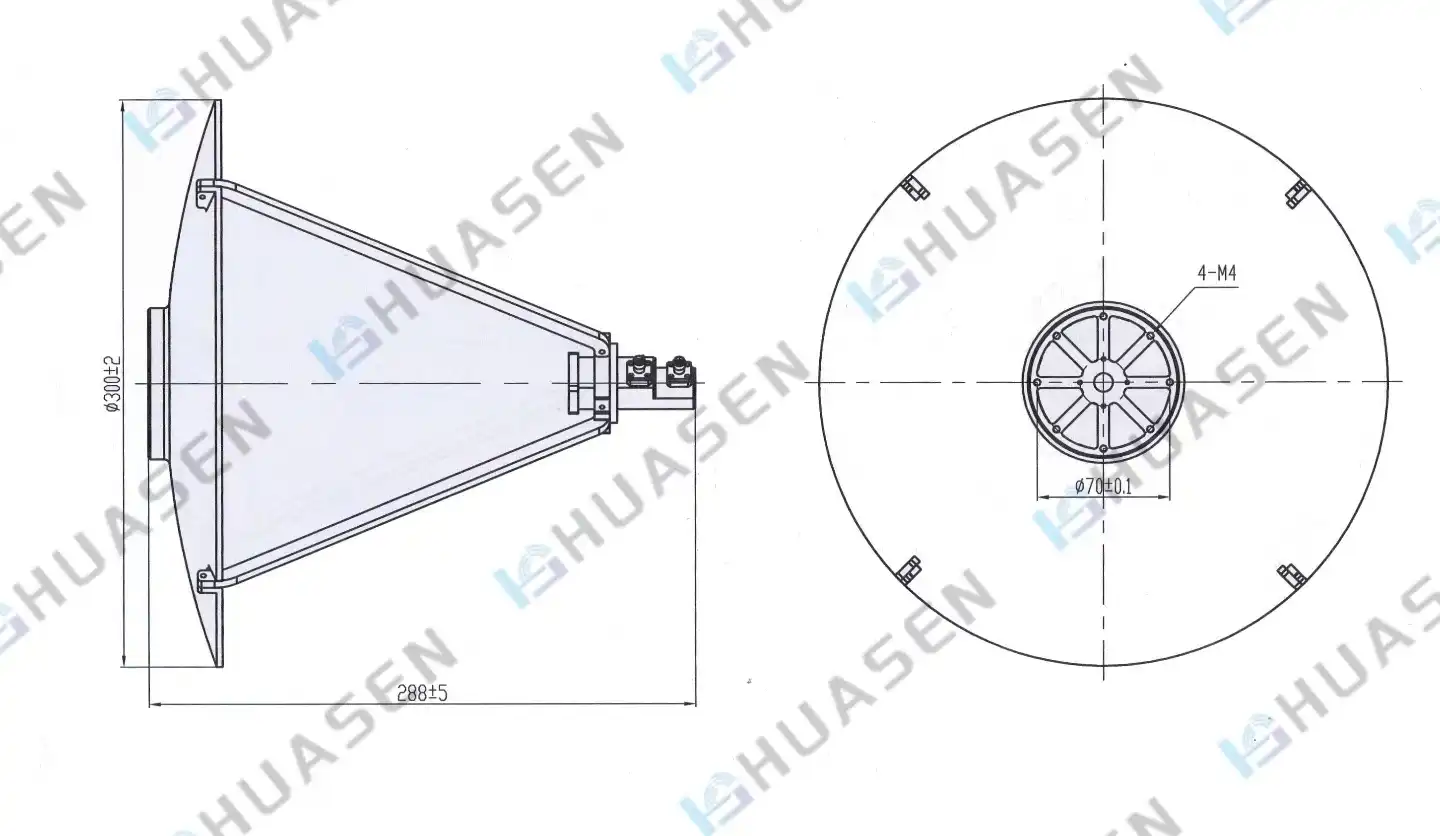

Reflector Geometry and Surface Accuracy

The diameter of a parabolic antenna reflector controls both beamwidth and directivity. Using the beamwidth formula θ = 70λ/D (where λ is the wavelength and D is the diameter in standard units), we can see that when the diameter of a reflector is doubled, the beamwidth is cut in half and directivity goes up by 6 dB. At higher frequencies, where wavelengths get shorter, surface accuracy is very important. For example, Ka-band satellite antennas need surface tolerances within 0.5 mm RMS to avoid phase errors that lower directivity and raise sidelobe levels.

Higher focal length-to-diameter deep-dish reflectors spread light more evenly across the aperture, which lowers spillover loss and boosts efficiency. Shallow reflectors have mechanical benefits, such as lower wind loads and smaller shipping sizes, but they may have slightly higher sidelobe levels. The choice of material affects thermal stability. For example, precision-machined aluminum and carbon fiber composites keep their shape even in extreme temperatures that are common in outdoor installations.

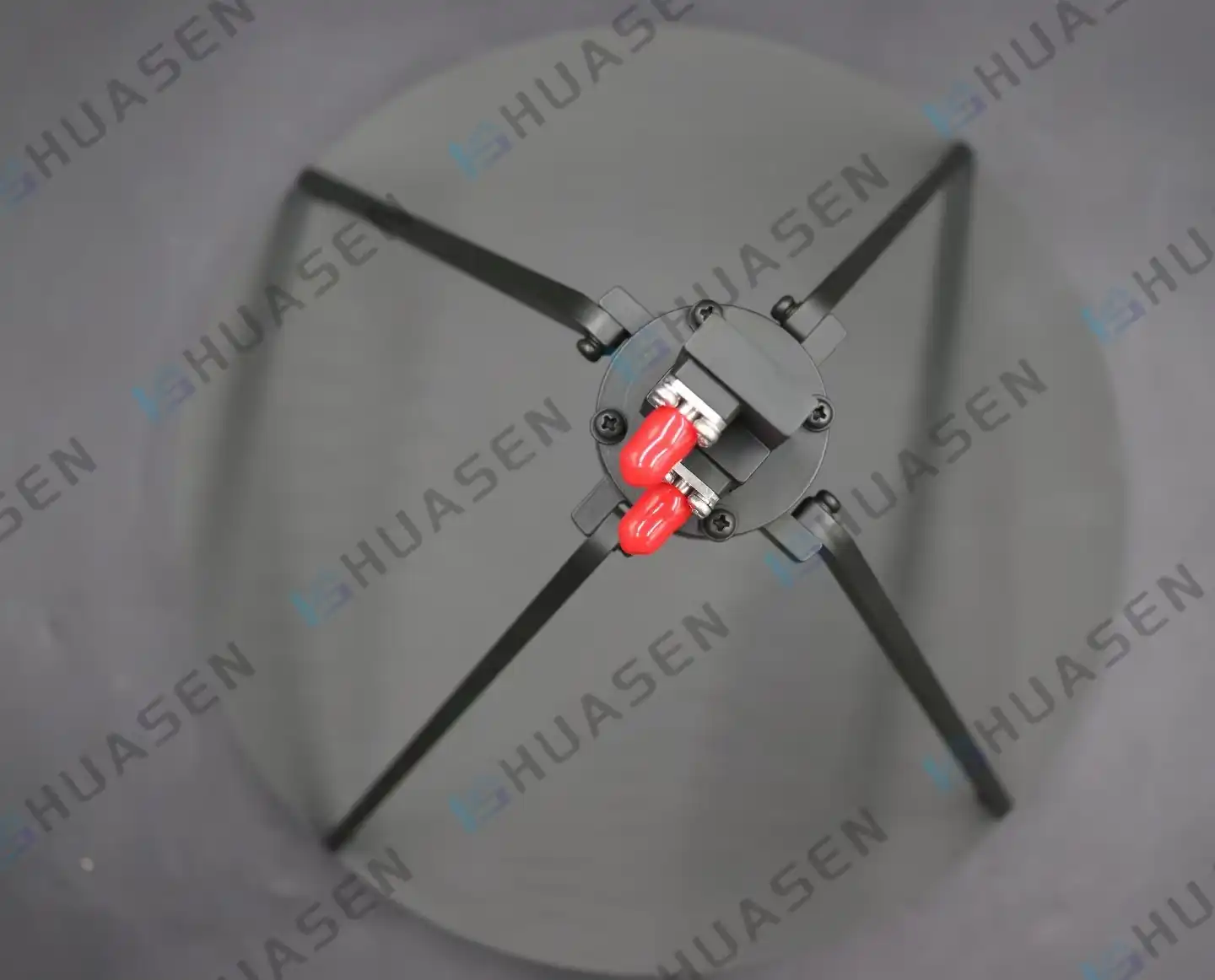

Feed Horn Design and Placement

The characteristics of the feed horn have a big effect on the cross-polarization and beamwidth symmetry. For dual-polarized systems using XPIC technology to double spectral efficiency, corrugated feed horns are necessary to make symmetric radiation patterns with high polarization purity. Putting the feed at the exact focal point makes sure that the spherical waves that come from it change into collimated plane waves in the best way possible. At Ka-band frequencies, even a small focal displacement of 2 to 3 mm weakens directivity and causes beam squint, which is when the radiation maximum moves away from the mechanical axis.

The feed illumination taper, which shows how the power density changes across the reflector surface, is a basic trade-off. While over-illumination lowers spillover loss and raises aperture efficiency, it also raises sidelobe levels and adjacent channel interference. Under-illumination gets rid of sidelobes but makes the beam less efficient and a little wider. This balance is improved in high-end antenna designs using computer models of electromagnetic waves that are backed up by measurements taken in an anechoic chamber.

Frequency Band Considerations

The operating frequency has a big effect on the size and beamwidth of an antenna. At 4-8 GHz, C-band antennas with 3.7-meter reflectors have beamwidths of about 1.5 degrees. At 26-40 GHz, Ka-band antennas with 0.8-meter apertures need the same beamwidth. Because of this scaling relationship, higher frequencies allow for smaller antenna shapes, which is helpful when installation options are limited by things like rooftop space, tower weight, or aesthetic concerns.

Different frequency bands pose different problems for propagation. Ku-band and Ka-band satellite links experience rain fade, which needs more link margin and, in practice, higher-gain (narrower beamwidth) antennas such as a parabolic reflector antenna to stay online during rainstorms. Millimeter-wave bands above 70 GHz support very narrow beamwidths, which makes ultra-dense point-to-point networks possible, but they need mechanical stability that is beyond what most mounting hardware can provide.

Comparing Parabolic Antenna Beamwidth and Directivity with Other Antenna Types

Performance Benchmarking

When it comes to microwave and millimeter-wave frequencies, parabolic reflector antennas always provide better directivity than other options. A 1.2-meter parabolic reflector antenna working at 18 GHz has a beamwidth of 2 degrees and a gain of about 42 dBi. A similar-sized array antenna, on the other hand, only gets 35 to 38 dBi. This 4–7 dB advantage directly leads to longer link distances or lower transmit power needs, which are important factors when spectrum licensing limits the amount of power that can be sent or when energy efficiency affects the cost of doing business.

Yagi-Uda antennas work best for point-to-multipoint distribution rather than point-to-point backhaul because they can handle beamwidths of 30 to 60 degrees and moderate gain levels (12 to 18 dBi). Horn antennas work well over a wide range of frequencies and have predictable patterns, but they can't be used above 20 dBi gain because they are too bulky. Panel antennas work best in base station areas that serve multiple users at the same time and have coverage from 65 to 90 degrees in azimuth. However, their maximum gain rarely goes over 21 dBi.

Application Alignment

When choosing between antenna types, you need to make sure that the beamwidth characteristics match your coverage goals. Parabolic reflectors are most often used in situations where maximum range and minimal interference are needed. Examples include satellite earth stations that track geostationary spacecraft 36,000 km away, microwave backhaul that goes 50 km or more between towers, and precision radar systems that tell the difference between targets that are close together. Their narrow beamwidth only becomes a problem when the coverage area is more important than the link budget. In these cases, sector antennas or omnidirectional radiators would be better.

Costs are different depending on the size. At microwave frequencies, where stamped metal reflectors and injection-molded feed components are cheaper to make, antennas offer a better cost-per-dB-of-gain. Other technologies, like phased arrays, let you steer the beam electronically, but they have much higher unit costs that are only worth it when you need to quickly change the direction of the beam or use multiple beams at the same time.

Procurement Guide: Selecting Parabolic Antennas Based on Beamwidth and Directivity

Matching Specifications to Application Requirements

To buy an antenna successfully, you must first turn system-level needs into specific beamwidth and directivity parameters. Long-distance microwave backhaul links longer than 40 km usually need gain levels of 38 to 42 dBi, which means beamwidths of less than 2 degrees at common licensed frequencies. When satellite earth stations work in crowded orbital slots, they need to have enough directivity to meet ITU off-axis EIRP density limits that keep them from interfering with other spacecraft. This usually means they need antennas that are bigger than 2.4 meters in diameter and have a beamwidth of less than 1 degree.

Critical Evaluation Criteria

These basic needs can be changed by environmental factors. When there is a lot of wind, installations need to have their structures strengthened, which may limit the biggest antenna that can be used. This means that the desired directivity has to be weighed against the need for mechanical feasibility. Extreme temperatures can weaken structures and make radomes less effective because ice or rain can block signals and change the frequencies at which they resonate. To account for alignment tolerances, sites with limited azimuth or elevation adjustment range need a slightly wider beamwidth.

When we help system integrators choose antenna suppliers, we look at more than just the headline gain specifications to see how well the antennas actually work in the field. In dual-polarized configurations, port-to-port isolation must be higher than 30 dB for XPIC to work; lower isolation hurts the orthogonal channel and lowers the effective throughput. Cross-polarization discrimination across the main beam should be greater than 25 dB to keep the signal pure when the antenna isn't lined up right or the reflector surface is warped.

In dense microwave networks, where many links share the same towers, sidelobe envelopes that meet ETSI Class 3 or Class 4 standards protect against interference. If the front-to-back ratio is more than 60 dB, signals that bounce off of things behind the antenna don't get into the receive path as unwanted echoes. VSWR below 1.3:1 across the operating bandwidth makes sure that the most power is transferred and that there are few reflections that could hurt solid-state power amplifiers in transmit systems.

Supplier Assessment and Customization

Reliable parabolic antenna suppliers show that they can make things that go beyond what is listed in the catalog. Objective proof of reflector accuracy comes from surface measurement records made with coordinate measuring machines or laser scanning systems. Environmental tests, such as IEC 60068 salt spray, thermal cycling, and vibration resistance, prove that the mechanical strength is good enough for long-lasting outdoor installations.

Customization options allow for different deployment situations, such as using a parabolic reflector antenna. Motorized positioners let you keep an eye on non-geostationary satellite constellations or change the solar path for terrestrial links based on the seasons. Custom radome materials find the right balance between RF transparency, impact resistance, and UV degradation in harsh environments. Mounting brackets have been changed to work with non-standard tower configurations or requirements for architectural integration. For large deployments, suppliers that offer rapid prototyping and sample validation lower the risk of buying.

Conclusion

The fundamental properties of a parabolic antenna's beamwidth and directivity determine how well a wireless communication system works for satellite, terrestrial backhaul, and radar applications. Narrow beamwidth focuses energy for maximum range and minimal interference, but it needs to be installed precisely and be stable mechanically. Directivity is directly related to the diameter of the reflector and the frequency at which it operates. This makes it possible for small, high-gain solutions to work at millimeter-wave bands. To make a good purchase, these factors need to be matched to the needs of the application, such as the link distance, interference environment, and installation limitations. Long-term investment value is protected by strict supplier evaluation that focuses on manufacturing precision, environmental certification, and the ability to customize. Optimizing antennas after installation through careful alignment and ongoing maintenance makes sure that they work as designed for 15 to 20 years in harsh outdoor environments.

FAQ

1. How does beamwidth affect coverage area in point-to-multipoint networks?

The angle coverage zone that an antenna lights up is directly related to its beamwidth. A wider beamwidth (8–15 degrees) works better for point-to-multipoint applications that connect multiple remote stations spread out across a sector, but it lowers the maximum gain that can be achieved. Point-to-point links, on the other hand, benefit from narrow beamwidth (1-3 degrees), which focuses energy on a single remote site and maximizes the link budget while minimizing interference from sources off-axis.

2. Can parabolic antennas operate effectively across multiple frequency bands?

Can parabolic antennas work well in more than one frequency band? Since geometric optics rules are the same no matter the wavelength, reflectors should work over a wide frequency range. Feedhorn bandwidth and radome transmission characteristics make it hard to use in real life. Dual-band antennas that use dichroic subreflectors or coaxial feed assemblies can work at different frequencies at the same time, like C-band and Ku-band. However, they may not perform as well as single-band optimized designs because they may have a wider beamwidth or higher cross-polarization levels.

3. What key factors should guide parabolic antenna manufacturer selection?

You should judge manufacturers by the accuracy of their measurements of the surface, their certifications for environmental tests like salt spray, temperature cycling, and wind loading, and their electromagnetic performance data, such as sidelobe envelopes and cross-polarization characteristics. Precision forming equipment and quality control processes used in manufacturing have a direct effect on how consistent units are with each other, which is very important for large deployments. Premium suppliers are different from commodity vendors because they offer quick technical support, reasonable lead times, and a supply chain that has been shown to be reliable.

Partner with Huasen Microwave for Superior Parabolic Antenna Solutions

Huasen Microwave can help you with even the most difficult RF communication infrastructure projects. They have precision-engineered parabolic antenna systems that are perfect for controlling beamwidth and directing signals. We've been making high-frequency parts for telecommunications backhaul, satellite earth stations, radar installations, and defense communication networks around the world since 1993. Our engineering team uses decades of experience in electromagnetic design and advanced manufacturing skills to make antennas that meet strict ETSI compliance standards and can withstand harsh environmental conditions.

Whether you need a single custom antenna for a specific use or hundreds of units for a network-wide rollout, we offer full technical support from reviewing the initial specifications to putting the antennas into service in the field. Our line of antennas covers frequencies from 1 GHz to millimeter-wave bands. The reflector diameters range from 0.3 to 4.8 meters, and the gain values are higher than 50 dBi. XPIC can work with dual-polarized configurations that provide better port isolation, which doubles the spectral efficiency for links with limited capacity.

Email our application engineering team at sales@huasenmicrowave.com to talk about your specific needs for beamwidth and directivity. We will give you detailed technical advice, competitive quotes, and sample units to test for quality assurance. As a reputable company that makes antennas, Huasen Microwave gives demanding B2B procurement professionals the performance, dependability, and support they need.
