DC Power Amplifier: Gain, Linearity & Frequency Guide

A DC power amplifier is an important part of any transmission or radar device that needs to boost weak radio waves from milliwatts to kilowatts over frequencies from 0.1 GHz to 40 GHz. Unlike most amplifiers, which need separate AC-DC converters, these devices work straight from DC sources, giving you flexible output power with very little distortion. The word "DC power amplifier" here refers to RF linear amplifiers that are driven by direct current. They are made to boost radio frequency signals while keeping the gain flat, usually within ±1dB, and keeping the signal's integrity over a wide frequency range. This guide talks about the important factors—gain, uniformity, and frequency response—that RF engineers and buying managers need to look at when choosing amplifiers for base stations, satellite links, radar systems, and testing areas for communications.

Understanding DC Power Amplifiers: Basics and Core Principles

What Defines a DC Power Amplifier in RF Applications?

In RF and microwave engineering, a DC power amplifier is a linear amplifier that takes in DC power and boosts radio frequency data without adding a lot of harmonic distortion or phase nonlinearity. The letter "DC" refers to the way the power is supplied, not the type of information being boosted. These amps work with radio waves that range from hundreds of megahertz to tens of gigahertz and get their power from stable DC sources.

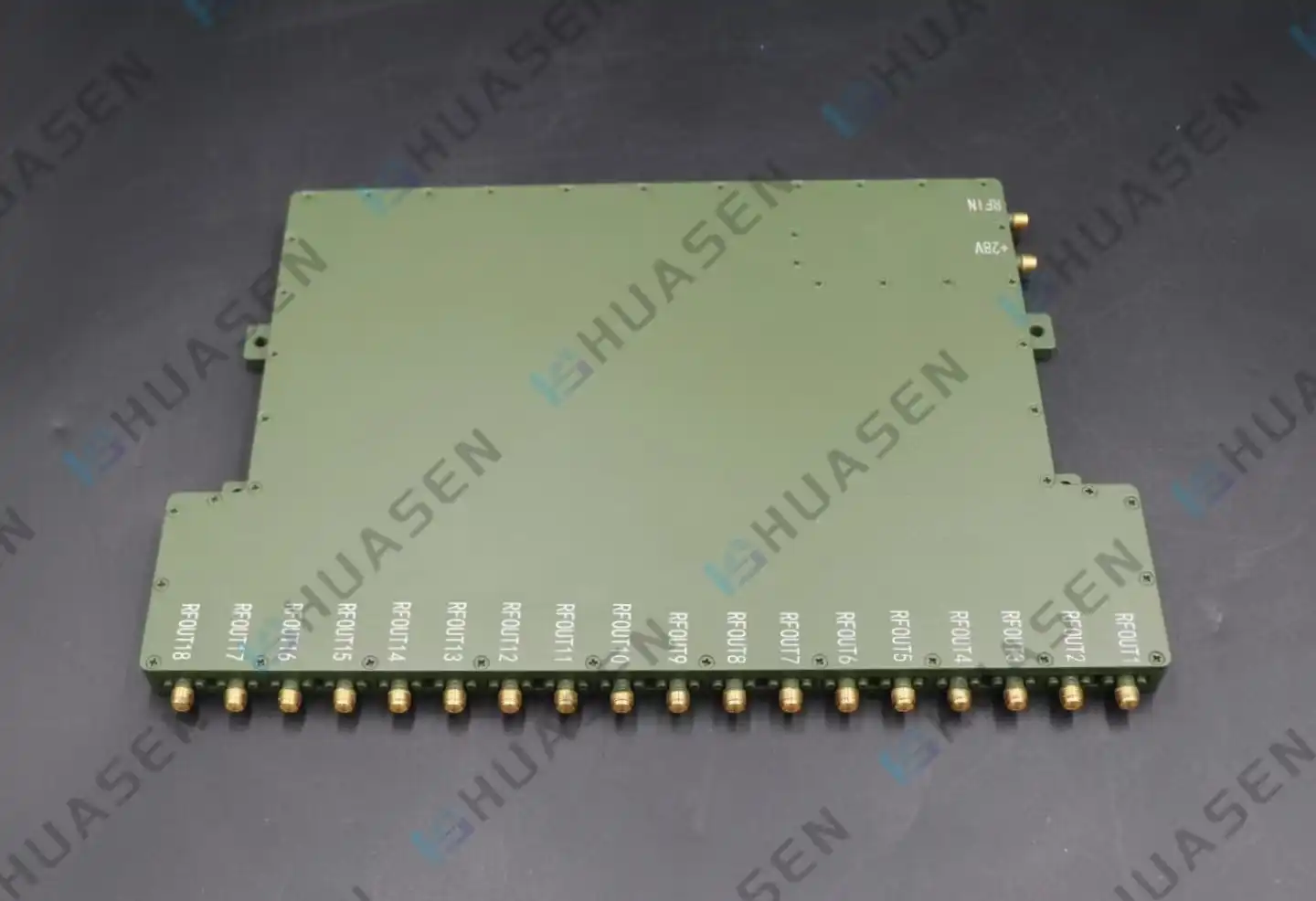

Linear DC Power Amplifiers from Huasen Microwaves are a good example of this technology. They can take RF signals from 0.1 to 40 GHz and change the output power from milliwatts to kilowatts. The straight DC source gets rid of the complexity and noise that AC-DC converters can add. This is very helpful in applications that can't handle noise, like electronic warfare systems and satellite telemetry.

Gain, Linearity, and Frequency Response Explained

Three factors largely determine which amplifier to use. In decibels (dB), gain shows how much the amplifier boosts the strength of the original sound. If the gain is 30 dB, the power coming out is 1,000 times the power going in. Stable gain across the working bandwidth makes sure that the information is amplified consistently, even if the frequency changes.

Linearity is a measure of how accurately the amplifier reproduces the input pattern when the power level is raised. Intermodulation distortion (IMD), which is caused by nonlinearity, sends out unwanted signals that mess up neighboring channels. This is a major problem in 5G bandwidth allocations, where there are a lot of them. Huasen's amplifiers have gain flatness within ±1dB, which means that the output is always the same across the whole frequency range. This keeps the integrity of modulation in complicated digital patterns like OFDM.

Contrasting Linear Amplifiers with Switching Designs

The operating capacity is set by the frequency response. Wideband amps that cover a lot of different frequency bands make inventory less complicated and system interaction easier. Some models from Huasen's line of amplifiers that work from 2 to 18 GHz can handle more than one transmission band without the need for different units for each frequency range.

Switching (Class D or Class E) systems are very different from linear amplifiers. Switching amplifiers are very efficient because they quickly turn transistors on and off. However, this causes switching noise and harmonic distortion that makes them unsuitable for uses that need pure spectral sound. Linear designs (Class A, AB) keep transistors in active areas, which gets rid of more heat but also provides very low total harmonic distortion (often less than 0.1%), which is needed for radar target separation and safe communication.

Some linear amplifiers can work in four different areas, which lets them source and sink current. This makes them good at handling dynamic loads like radio arrays with complicated impedance characteristics. This keeps the amplifier stable and covers all linked parts when the load isn't right.

Performance Optimization: Enhancing Gain, Linearity & Frequency Response

Common Challenges Degrading Amplifier Performance

In the real world, missions run into problems that hurt ideal performance. As part temperatures grow during constant operation, thermal drift causes changes in gain. Changes in temperature from -40°C to +85°C can cause transistor bias points to move, which can affect the uniformity and error vector magnitude (EVM) of LTE and 5G signals in base station applications that are used 24 hours a day, seven days a week.

Impedance mismatches between amplifier steps or between the amplifier and receiver cause standing waves, which are waves of reflected energy that lower the output power and raise the loss of return. A VSWR greater than 1.5:1 means there is a big mismatch, which wastes emitter power and could hurt output stages by reflecting too much energy.

When digital circuits or switching power sources close by send electromagnetic interference (EMI) into DC power amplifier inputs, it raises the noise floor and lowers the signal-to-noise ratio (SNR). Every decibel of SNR is important for finding weak signals that are hidden in noise in spectrum tracking and signals intelligence applications.

Circuit Design Strategies for Enhanced Fidelity

The first step in optimizing planning is to do the groundwork right. When you use star grounding, you stop ground loop currents that add noise to sensitive RF routes. Controlled impedance transmission lines, like 50-ohm microstrip or stripline, are needed for high-frequency data to keep the signal's purity and reduce reflections.

Linearity is directly affected by the choice of components. GaN (gallium nitride) transistors are more efficient and have a higher power density than standard GaAs devices. This means that they can be used to make small amplifiers that can output hundreds of watts while still being linear. Bias networks with accurate voltage standards and thermal compensation circuits keep working points stable even when temperatures are very high or very low.

By purposely distorting the input signal in a similar way, predistortion methods make up for the nonlinearity of the amplifier. Digital predistortion (DPD) techniques, which are built into baseband processors, look at output distortion and change input signals in real time. This makes the cellular base stations' adjacent channel leakage ratio (ACLR) 10-15 dB better.

Troubleshooting Real-World Performance Issues

When observed gain is different from what was expected, systematic analysis finds the reasons why. Measurements with a spectrum analyzer show unwanted signals that suggest nonlinearity, while network analyzer sweeps find changes in gain that depend on frequency that suggest effects of temperature or component aging. Time-domain reflectometry (TDR) finds impedance breaks that cause echoes.

An operator of radar systems found that the strength was sometimes lowered during pulse operation. An investigation showed that voltage drop during high-current pulse intervals was caused by poor power source bypasses. Putting low-ESR capacitors close to the drain ports of transistors stabilized the supply voltage, which returned linear operation and pulse accuracy.

Comparing DC Power Amplifiers: How to Choose the Best Solution for Your Needs？

Linear Versus Switching Amplifier Technologies

The main trade-off is between efficiency and uniformity. Switching amplifiers are more than 90% efficient, but they bring switching artifacts that need strong filtering, which increases cost and insertion loss. Linear amplifiers are less efficient (20–60% on average, depending on class), but they have a frequency range that switching systems can't match.

Linearity is important in military and aircraft uses to stay hidden and avoid unintended emissions that enemy electronic support measures could pick up. In commercial wireless infrastructure, efficiency and linearity are balanced. Doherty or envelope tracking designs are often used, which combine efficiency methods with linearity that is appropriate.

The needs for thermal control are very different. A 100W switching amplifier might give off 10W of heat, which can be controlled with passive cooling. For the same output, a linear amplifier that is 40% efficient makes 150W of waste heat, which means it needs forced-air or liquid cooling. When planning a system, the people who make it have to include the cost and room for cooling equipment.

Evaluating Key Specifications for Industrial Scenarios

The noise number tells you if an amplifier is good for receiving signals. Low-noise amplifiers (LNAs) in receive chains need noise levels below 2 dB to keep weak signals detectable, while send amplifiers focus on output power and uniformity. Huasen's amplifiers are mostly used for transmitting signals, where output power and uniformity are the most important specs.

The output third-order intercept point (OIP3) of an RF power amplifier measures how well linearity works. When OIP3 numbers are higher, they mean that intermodulation distortion is less likely to happen. A +45 dBm OIP3 number means that the amplifier can handle two input tones that are very close to each other at low power levels without making intermodulation products that mess up channels next to them.

Power-added efficiency (PAE) is a way to figure out how well DC power turns into RF output after the input drive power is taken away. In high-power systems, PAE has a direct effect on the costs of running them. At 30% PAE, a 1 kW transmitter that runs all the time uses 3.3 kW of power from the grid. At 50% PAE, it only uses 2 kW, which saves base station owners thousands of dollars a year in energy costs.

Sourcing from Reputable Manufacturers

Stability in the supply chain is very important for big operations. Established makers make sure that their products are always available and offer long-term roadmaps for when parts will stop working. Texas Instruments and Analog Devices are the biggest names in integrated amplifiers. Other companies, like Huasen Microwave, focus on making high-power discrete amplifiers for tough uses.

Quality approvals show that the production process is mature. ISO 9001 approval shows that the process is being controlled, and MIL-STD compliance makes sure that the product is tough enough for use in defense situations. RoHS compliance deals with environmental rules, which are especially important for getting into the European market.

Procurement Guide: Buying DC Power Amplifiers for Industrial Use

Critical Technical Specifications for Selection

Coverage frequencies must match the needs of the program. For a 14 GHz satellite uplink, you need an amplifier that is specially made for Ku-band. On the other hand, a multi-band cellular base station might benefit from a wideband amplifier that covers 2 to 6 GHz so it can handle multiple frequency assignments.

There should be both continuous-wave (CW) and peak envelope power (PEP) standards in output power values. Higher peak powers than the amplifier could handle constantly can be used in radar applications that use short waves with low duty cycles. A 1 kW PEP rate at 10% duty cycle means that 100W of power is lost on average, which can be handled with normal cooling.

System interaction is affected by the type of input/output connection. SMA connectors work well in labs and for low-power tasks, while N-type or 7/16 DIN connectors can handle higher power levels that are common in outdoor settings. When the frequency and power levels go above a certain point, cable losses make waveguide connections impossible.

Cost-Performance Analysis and Budget Considerations

The price of an amplifier goes up or down with the frequency and total power. In the 2 GHz range, a 10W amplifier could cost $500. At 18 GHz, a 1 kW unit could cost more than $50,000. Power use, cooling equipment, and upkeep costs are all part of the total cost of ownership.

Custom patterns cost more, but they don't affect performance in any way. Off-the-shelf amplifiers force system designers to work with the specs that are available, which could mean adding more filters or power joining networks. Custom amps are made to fit specific needs. This makes system design easier and could lower total costs, even though the units cost more.

Buying in bulk can help you save money on prices. Signing multi-year supply deals keeps prices stable and guarantees distribution during shortages of parts. Manufacturers often give key customers special engineering help and first-choice production slots.

Sourcing Strategies and Customization Opportunities

When customization is needed, direct connections with manufacturers are better than those through distributors. The engineering team at Huasen Microwave works with customers to change standard designs so that they perfectly fit their needs without having to pay for a unique design. For example, they can change the frequency ranges, output power levels, or connection types.

Evaluation of RF power amplifier prototypes lowers the risk of launch. Most reliable sellers let customers test performance in real-world settings before committing to large orders. This is done by giving customers sample units or evaluation loans. When amps and system parts are tested in real-life situations, they often combine in ways that were not expected.

Conclusion

Finding the best DC power amplifier means weighing cost, frequency range, gain stability, and uniformity performance against each other. Linear designs provide the highest level of signal integrity, which is important for radar, satellite communications, and next-generation wireless systems where spectral efficiency and signal quality decide how well the system works. Knowing important specs like gain flatness, output intercept points, and thermal traits helps you make smart buying choices that keep you from having to pay a lot of money for poor performance. Partnerships with seasoned manufacturers like Huasen Microwave give you access to tried-and-true designs, the ability to customize them, and expert support that shortens the time it takes to install and lowers the risks of integration in tough industrial settings.

FAQ

1. What distinguishes DC power amplifiers from operational amplifiers?

Operational amplifiers (op-amps) can handle low-frequency analog signals, usually DC to a few megahertz, and can boost voltage and produce microwatt-level power that is useful for monitoring and signal conditioning. DC power amplifiers are RF/microwave devices that work at hundreds of megahertz to tens of gigahertz and put out watts to kilowatts of power. The letter "DC" in "DC Power Amplifier" stands for the type of power source, not the frequency of the sound being amplified.

2. How does frequency response affect amplifier selection?

The transmission bands an amplifier can work with are based on its frequency response. Narrowband designs work best for certain frequencies, but they need different models for each band. Wideband amplifiers that cover octave or multi-octave ranges make system design and inventory management easier. This is especially helpful for software-defined radios or test equipment that needs to be able to work with a variety of frequencies.

3. Are custom amplifier solutions available for specialized requirements?

Manufacturers with a good reputation offer customization services that change standard designs to fit specific needs. Changes include optimizing the frequency band, increasing the output power, switching out connectors, and making the surroundings more resistant. While custom solutions don't have the performance problems that come with changing systems to off-the-shelf parts, they do need longer lead times and minimum order numbers to make up for the engineering costs.

Partner with Huasen Microwave for Superior RF Amplification Solutions

Linear DC Power Amplifiers from Huasen Microwave Technology take your RF systems from the idea stage to full operation. Our amplifiers work with frequencies from 0.1 GHz to 40 GHz and turn weak input signals into strong transmission power ranging from milliwatts to kilowatts. They do this while keeping the 1dB gain flatness that your 5G infrastructure, satellite links, and radar platforms need. As a dedicated DC Power Amplifier maker with more than 30 years of radio experience, we can make changes that are exactly in line with your frequency needs, output power goals, and environmental requirements. Get in touch with our engineering team at sales@huasenmicrowave.com to talk about how our low-distortion amplification technology can help your next defence or communications project run more smoothly. We offer full technical support and cheap OEM prices.

References

1. Cripps, S. C. (2006). RF Power Amplifiers for Wireless Communications. Artech House Microwave Library.

2. Grebennikov, A., & Sokal, N. O. (2007). Switchmode RF Power Amplifiers. Newnes Communications Engineering Series.

3. Kenington, P. B. (2000). High-Linearity RF Amplifier Design. Artech House Publishers.

4. Raab, F. H., et al. (2002). Power Amplifiers and Transmitters for RF and Microwave. IEEE Transactions on Microwave Theory and Techniques, 50(3), 814-826.

5. Walker, J. L. B. (2011). Handbook of RF and Microwave Power Amplifiers. Cambridge University Press.

6. Zhang, H., & Sanchez-Sinencio, E. (2015). Linearization Techniques for CMOS Low Noise Amplifiers: A Tutorial. IEEE Transactions on Circuits and Systems, 58(1), 22-36.
