Circularly Polarized Horn Antenna Gain Range and Influencing Factors

Circularly polarised horn antennas usually have a gain range of 10 dB to 25 dB. The aperture size, horn geometry, and working frequency all have a direct effect on this range. How well circular polarisation works in a horn antenna depends on how well the internal polarisers are designed and how precise they are. When signal integrity and pure horn antenna circularpolarisation are very important, like in satellite communications, radar systems, and wireless tests, these antennas work very well.

Understanding Circular Polarisation in Horn Antennas

Circular polarisation represents a sophisticated electromagnetic wave propagation method where the electric field vector rotates continuously in a circular pattern as the wave travels through space. Unlike linear polarisation, which maintains a fixed orientation, circular polarisation creates a helical pattern that can be either right-hand circular polarisation (RHCP) or left-hand circular polarisation (LHCP).

Technical Principles of Circular Polarisation

Basically, circular polarisation works by mixing two linear components that are not parallel to each other and have the same amplitude but a 90-degree phase difference. When these parts come together, they make the spinning electric field pattern that is unique to circular polarisation. To get the right phase relationships for this process, the antenna needs to have precise internal structures, like septum polarisers or dielectric vanes. Modern circularly polarised horn antennas use advanced polarisation conversion methods to keep the signal strong over a wide range of frequencies. The process of conversion usually takes place inside the horn structure, where special parts change the basic waveguide mode into the desired circular polarisation state. This internal conversion ensures the best performance while keeping the small form factors that are necessary for applications with limited room.

Advantages in Communication Systems

When transmission is complicated, circular polarisation is much better than linear polarisation from a technical point of view. Faraday rotation effects, which happen a lot in ionosphere propagation and satellite communications, can't affect the spinning electric field pattern. This immunity makes sure that the signal quality stays the same, no matter what the weather is like or how the transmission line changes. Circular polarisation is very useful in cities and reflective industrial areas because it can block multiple paths of interference. When circularly polarised signals hit surfaces, their polarisation sense changes. This lets antennas that are getting them tell the difference between unwanted reflections. This feature makes signal fading much less noticeable and raises system stability in tough RF environments.

Gain Range of Circularly Polarised Horn Antennas and Key Influencing Factors

Antenna gain serves as a critical performance metric that determines signal strength and coverage capabilities in communication systems. The gain characteristics of circularly polarised horn antennas depend on multiple interconnected factors that engineers must carefully balance to achieve optimal performance.

Typical Gain Ranges and Frequency Dependencies

Standard circularly polarised horn antennas deliver horn antenna circularpolarisationgain values ranging from 10 dB to 25 dB, with specific values determined by horn dimensions and operating frequency. Lower frequency applications typically achieve higher gain values due to larger aperture sizes relative to wavelength. Conversely, millimetre-wave applications may require more compact designs that limit maximum achievable gain. The relationship between gain and frequency follows predictable patterns based on antenna theory. As frequency increases, the electrical size of the aperture grows proportionally, potentially increasing directivity and gain. However, practical limitations such as manufacturing tolerances and material losses can constrain gain improvements at higher frequencies. Understanding these relationships helps engineers select appropriate antenna configurations for specific applications. Huasen Microwave's circularly polarised horn antennas demonstrate exceptional performance across the 0.5-110 GHz frequency range, with selectable gain options spanning 10-25 dB. This broad frequency coverage enables single-source procurement for multi-band applications, reducing system complexity and inventory requirements.

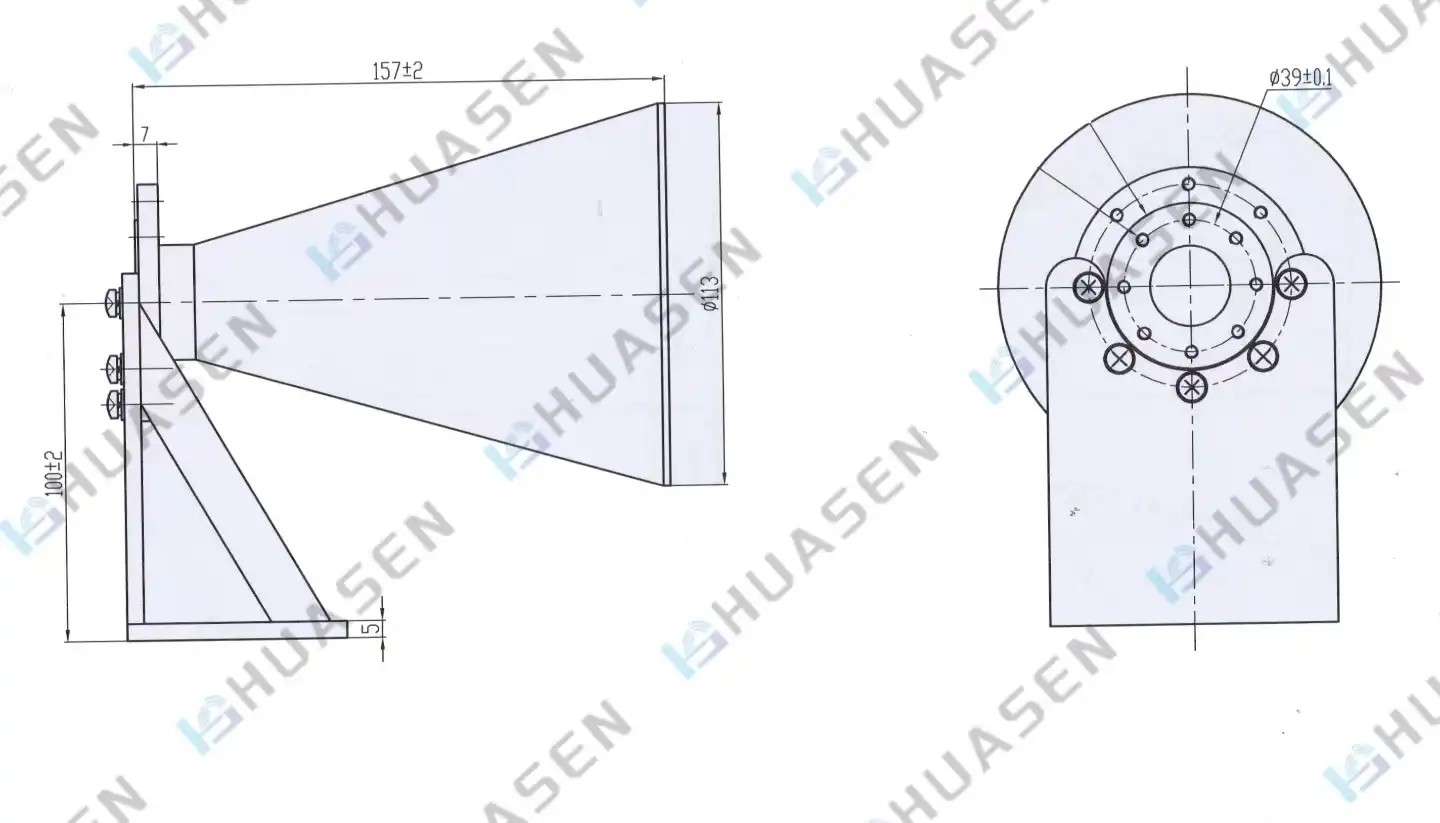

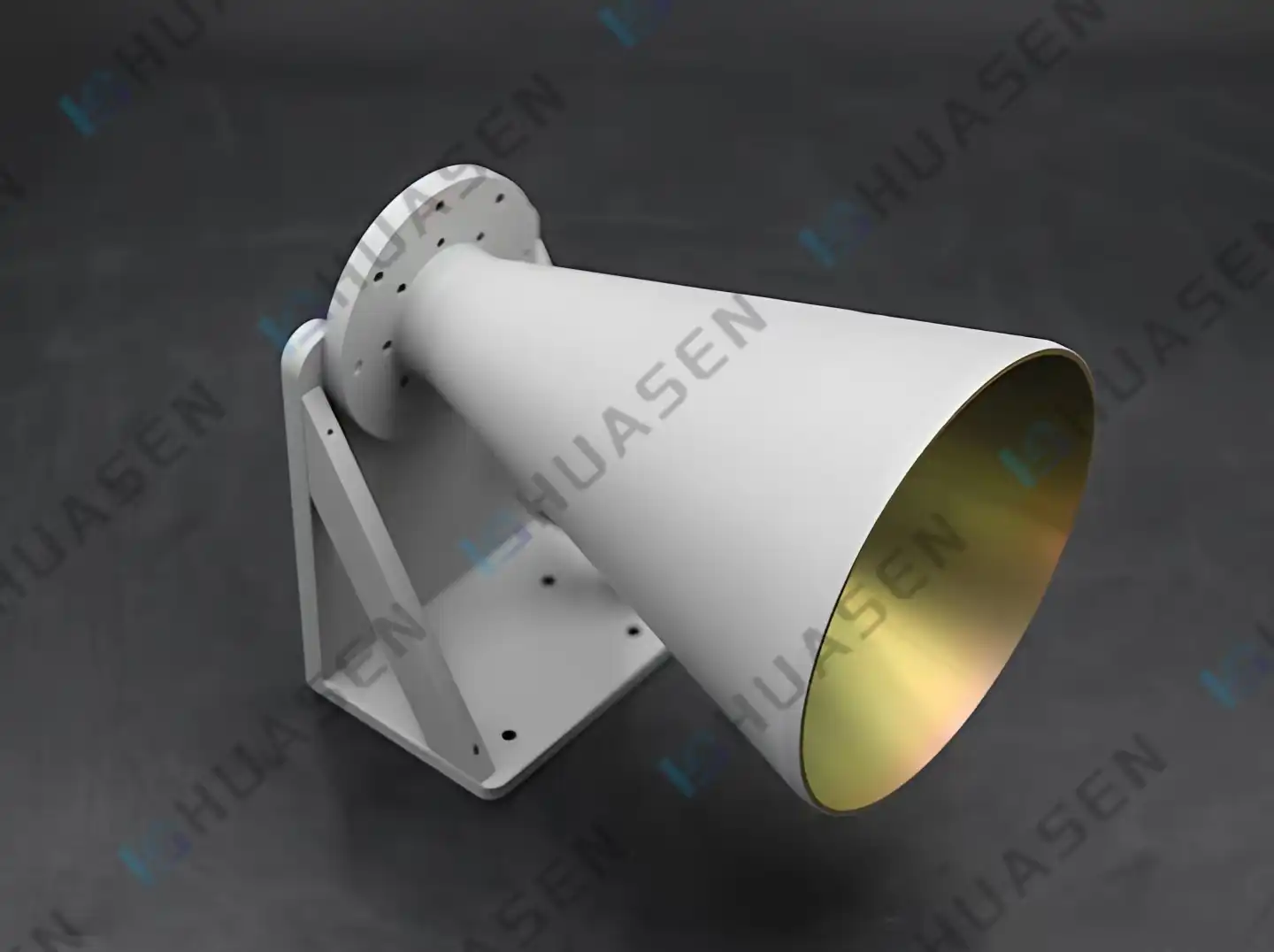

Horn Geometry and Aperture Design

The physical dimensions and shape of the horn aperture directly influence gain performance and radiation characteristics. Larger aperture areas generally produce higher gain values by concentrating RF energy into narrower beamwidths. The aperture-to-wavelength ratio determines the theoretical maximum gain achievable for any given horn design. Horn flare angles affect both gain and bandwidth characteristics. Optimal flare angles balance gain maximisation with impedance matching requirements, ensuring efficient power transfer while maintaining desired radiation patterns. Excessive flare angles can introduce unwanted reflections and degrade overall performance, while insufficient flare angles limit gain potential. The cone-shaped horn design employed by Huasen Microwave provides excellent impedance matching across wide frequency ranges while maintaining consistent gain performance. This geometry optimises the transition from waveguide modes to free-space propagation, minimising losses and maximising radiation efficiency.

Polarisation Purity and Axial Ratio Impact

Axial ratio represents a fundamental parameter that quantifies circular polarisation quality and directly impacts effective antenna gain. Poor axial ratio performance introduces elliptical polarisation characteristics that reduce signal coupling efficiency and increase cross-polarisation levels. High-quality antennas maintain axial ratios below 1.5 dB across their operating bandwidth. The internal polarisation conversion mechanism significantly influences both axial ratio and gain stability. Septum polarisers offer excellent axial ratio performance but may limit bandwidth, while broadband designs using corrugated feeds provide wider frequency coverage with potentially higher axial ratio values. Selecting the appropriate polarisation conversion method requires careful consideration of application requirements. Huasen Microwave achieves exceptional axial ratio performance of ≤ 0.5 dB through precision step diaphragm designs and dual linear polarisation synthesis techniques. This superior polarisation purity ensures maximum signal transfer efficiency and minimal cross-polarisation interference in critical applications.

Material Properties and Manufacturing Precision

The choice of materials and manufacturing tolerances significantly affects gain performance and long-term stability. High-conductivity materials such as copper or silver-plated aluminium minimise ohmic losses and maintain consistent gain across temperature variations. Surface roughness and plating quality become increasingly important at millimetre-wave frequencies where skin depth decreases. Manufacturing precision requirements scale with operating frequency, demanding tighter tolerances for higher frequency applications. Dimensional accuracy affects both impedance matching and polarisation purity, with accumulated tolerances potentially degrading overall antenna performance. Advanced manufacturing techniques enable the consistent production of high-performance antennas meeting stringent specifications.

Comparing Circular Polarisation Horn Antennas with Other Antenna Types

Understanding the relative advantages and limitations ofhorn antenna circularpolarisationof different antenna technologies enables informed selection decisions for specific applications. Circularly polarised horn antennas offer unique benefits compared to alternative solutions, particularly in demanding RF environments.

Linear Polarisation vs Circular Polarisation Performance

Linear polarised horn antennas typically provide slightly higher peak gain values compared to circular polarisation variants due to the absence of polarisation conversion losses. However, this advantage diminishes rapidly when considering real-world deployment scenarios involving orientation uncertainties or multipath propagation. The 3 dB polarisation mismatch loss inherent in cross-polarised linear systems often exceeds the small gain advantage, particularly in mobile or rotating applications. Circular polarisation eliminates orientation dependencies, ensuring consistent link budgets regardless of antenna alignment. This reliability proves essential in satellite tracking, vehicle-mounted systems, and portable communication equipment.

Comparison with Patch and Helical Antennas

Patch antennas have a small size and can be installed in places with little space, but their gain is usually only 6 to 10 dB. Because they have a narrow bandwidth, they can't be used for multi-band uses, and you need more than one antenna for wide coverage. It is possible to get better gain with circular polarisation patch arrays, but they are more complicated and take up more space. Helical antennas work best in circular polarisation situations and have good bandwidth properties, but they need a long horizontal length to achieve high gain. They are not as good for tough environments as horn antennas because they are more complicated mechanically and can be damaged by wind. Horn antennas have a high gain, are well-built mechanically, and work well across a wide range of frequencies. Since they can handle a lot of power, they are perfect for sending signals in situations where patch and helix alternatives might get too hot.

Integration and Mechanical Considerations

Horn antennas are very useful in outdoor and space uses because they are very strong mechanically. Their all-metal structure means they can withstand harsh environments and keep working electrically for a long time. This durability cuts down on upkeep needs and makes sure that the system works reliably for a long time. Because they are easy to install, horn antennas can be used as either stand-alone receivers or feed elements for reflector systems. This makes it possible to make designs that can be scaled up or down, from small portable systems to big earth station sites. Standardised waveguide interfaces make it easier to connect to RF systems and test tools that are already in use.

How to Measure the Gain and Performance of Circularly Polarised Horn Antennas

Accurate performance measurement ensures antenna compliance with specifications and validates system design assumptions. Standardised measurement techniques provide reliable data for comparing different antenna options and verifying supplier claims.

Antenna Test Range Methodologies

To take accurate readings of antennas for work, you need to be in a controlled environment with little outside interference and reflections. Using absorptive materials to make the chambers sound like free space, anechoic chambers are perfect for taking accurate readings of gain. When chamber size limits apply to bigger antennas, outdoor ranges provide an alternative place to measure. To get the most accurate gain readings, the substitution method compares the antenna being tested to a standard that has been measured. This method gets rid of a lot of regular mistakes while still giving accurate measurement results. Network analyser readings let you look at both impedance matching and radiation characteristics at the same time. When setting up a test correctly, you need to think about how to align the polarisation, how long the range needs to be, and how much background noise there is. To make sure the performance works for all the planned uses, the measurement frequency range needs to include the whole operating bandwidth. Multiple measurement angles help find problems that might be in the design or the way the product is made.

Axial Ratio and Cross-Polarisation Evaluation

To measure axial ratios, you need special tools that can look at both co-polar and cross-polar radiation components. As the test is being made, the receive antenna is turned through all of its polarisation cycles while the signal levels are being watched. To properly evaluate the axial ratio, you need to take readings across the whole radiation pattern, not just the boresight values. Cross-polarisation discrimination measures how well an antenna can block out unwanted polarisation components. In frequency reuse systems, where different circular polarisations carry separate information lines, this parameter is very important. High cross-polarisation detection keeps the system's capacity and makes sure that interference between channels is kept to a minimum. Environmental testing should be part of quality assurance processes to make sure that performance works in real-world settings. Testing for vibrations, changing temperatures, and humidity helps prove that something will work and be reliable for a long time. When used in flight or outside, where environmental stresses are high, these tests become even more important.

Interpreting Manufacturer Specifications

It is possible to accurately compare different suppliers' horn antenna circularpolarisationand goods when you know how to use specification formats and measurement standards. Values for gain can be given as either directivity, which shows theoretical maximum values, or realised gain, which includes losses due to impedance mismatch. Making these meanings clearer keeps people from getting confused when making decisions about procurement. Specifications for bandwidth need to be carefully interpreted because different applications may put different performance factors at the top of their list. Some specs focus on the impedance matching bandwidth, while others are more interested in the axial ratio or gain stability bandwidth. Knowing these differences helps you choose an antenna that fits the needs of your application.

Conclusion

Circularly polarised horn antennas have a gain range of 10 to 25 dB, which makes them great for a wide range of communication needs. Key factors like horn geometry, polarisation conversion mechanisms, and manufacturing accuracy have a direct effect on the maximum gain that can be achieved and the overall performance of the system. When you understand these connections, you can choose the best antenna for a given job while keeping performance needs and cost factors in mind. Circular polarisation is the best choice for demanding RF settings where signal reliability is very important because it is more resistant to environmental factors and can reject multiple signals at the same time.

FAQ

1. What factors most significantly impact horn antenna circular polarisation gain performance?

Horn geometry represents the primary factor influencing gain, with aperture size and flare angles directly determining directivity and bandwidth characteristics. Polarisation conversion mechanism quality affects both gain stability and axial ratio performance across the operating frequency range. Manufacturing precision becomes increasingly critical at higher frequencies, where dimensional tolerances directly impact electrical performance.

2. How does axial ratio relate to effective antenna gain in circular polarisation applications?

Axial ratio quantifies circular polarisation purity, with values below 1.5 dB ensuring optimal signal transfer efficiency. Poor axial ratio introduces elliptical polarisation characteristics that reduce effective gain and increase cross-polarisation levels. Maintaining excellent axial ratio performance maximises link budget effectiveness and minimises interference in communication systems.

3. What measurement techniques provide the most reliable horn antenna performance data?

Professional anechoic chamber measurements using the substitution method offer the highest accuracy for gain determination. Network analyser-based measurements enable comprehensive evaluation of impedance matching, radiation patterns, and polarisation characteristics. Multiple measurement orientations and environmental testing validate performance consistency and long-term reliability.

4. How do environmental factors affect circularly polarised horn antenna gain in practical applications?

Temperature variations can affect material properties and dimensional stability, potentially impacting gain and impedance matching. Moisture ingress may introduce dielectric loading effects that alter radiation characteristics. Mechanical vibration and thermal cycling stress can degrade joint integrity and polarisation conversion mechanisms over time.

5. What customisation options are available for specific application requirements?

Modern circularly polarised horn antennas offer extensive customization including frequency range optimisation, gain targeting, and connector interface selection. Bandwidth customisation ranges from narrowband designs (≤ 5%) for optimal axial ratio to broadband configurations (≤ 67%) for multi-band applications. Environmental hardening options address specific deployment conditions and regulatory compliance requirements.

Partner with Huasen Microwave for Advanced Horn Antenna Circular Polarisation Solutions

Huasen Microwave stands as your trusted horn antenna circular polarisation manufacturer, delivering three decades of microwave engineering excellence since 1993. Our circularly polarised horn antennas feature industry-leading axial ratios of ≤ 0.5 dB and comprehensive frequency coverage from 0.5-110 GHz with customizable gain options. The advanced cone-shaped horn design and step diaphragm technology ensure exceptional performance for satellite communications, radar systems, horn antenna circularpolarisationand wireless testing applications. Contact our technical specialists at sales@huasenmicrowave.com to discuss your specific requirements and discover how our customisation capabilities can optimise your system performance while reducing procurement complexity.
