Broadband Horn Antenna vs Narrowband Horn: Technical Differences

It is important to know the difference between broadband and narrowband horn antennas when choosing RF parts for demanding purposes. Broadband Horn Antennas, especially those with two ridges, can cover a wide range of frequencies, from 1 GHz to 18 GHz or even 18 GHz to 40 GHz. This means that engineers can test and keep an eye on things across multiple octaves without having to switch antennas. Narrowband horns, on the other hand, are designed to work best with certain frequency ranges. They have higher gain and narrower beamwidths within these ranges. Everything from EMC compliance testing to satellite communications is affected by this basic difference. It affects buying choices in the defense, aerospace, and telecommunications sectors.

Technical Overview of Broadband and Narrowband Horn Antennas

Defining Broadband Horn Antennas

There are special parts inside Broadband Horn Antennas, like double ridges on the E-plane walls, that make the cutoff frequencies much lower while keeping the impedance the same. This design solves a long-standing problem: testing for wideband electromagnetic compatibility without having to worry about calibration drift that happens when antennas are changed all the time. The ridged design changes a 50-ohm coaxial input to a 377-ohm free-space impedance. It keeps the VSWR below 2.0:1 for most of the operating bands and allows it to reach 2.5:1 at the band edges. Usually, gain curves go up in a straight line from 6 dBi at lower frequencies to 15 dBi at higher frequencies.

Understanding Narrowband Horn Characteristics

When it comes to frequency bands, narrowband horns work best when they can cover octave ratios of 1.5:1 or less. It is common for these antennas to have gains of 20 dBi or more, and their radiation patterns are very steady with few side lobes. The pyramidal or conical flare shape effectively focuses energy within the target band, which makes them perfect for uses that need the most directivity with the least amount of disturbance. In contrast to their wider peers, narrowband designs give up frequency flexibility in exchange for peak performance at specific frequencies. This works well in situations where the spectrum needs to stay the same, and gain maximization is the most important thing.

Operating Principles and Frequency Ranges

The practical difference comes from the way waveguides work. Standard pyramidal horns have a bandwidth limit because of the dominant mode cutoff. Frequencies that are too far below the cutoff cannot travel well. Ridge-loaded broadband designs get around this problem by changing the waveguide's useful sizes, which lets waves travel through many octaves. Instead, narrowband horns make the opening sizes and flare angles work best for certain wavelengths, causing resonance conditions that make directivity as high as possible. It is this trade-off between bandwidth and specialized performance that determines their roles in system design and helps engineers make the right choices based on whether application flexibility or focused intensity is more important.

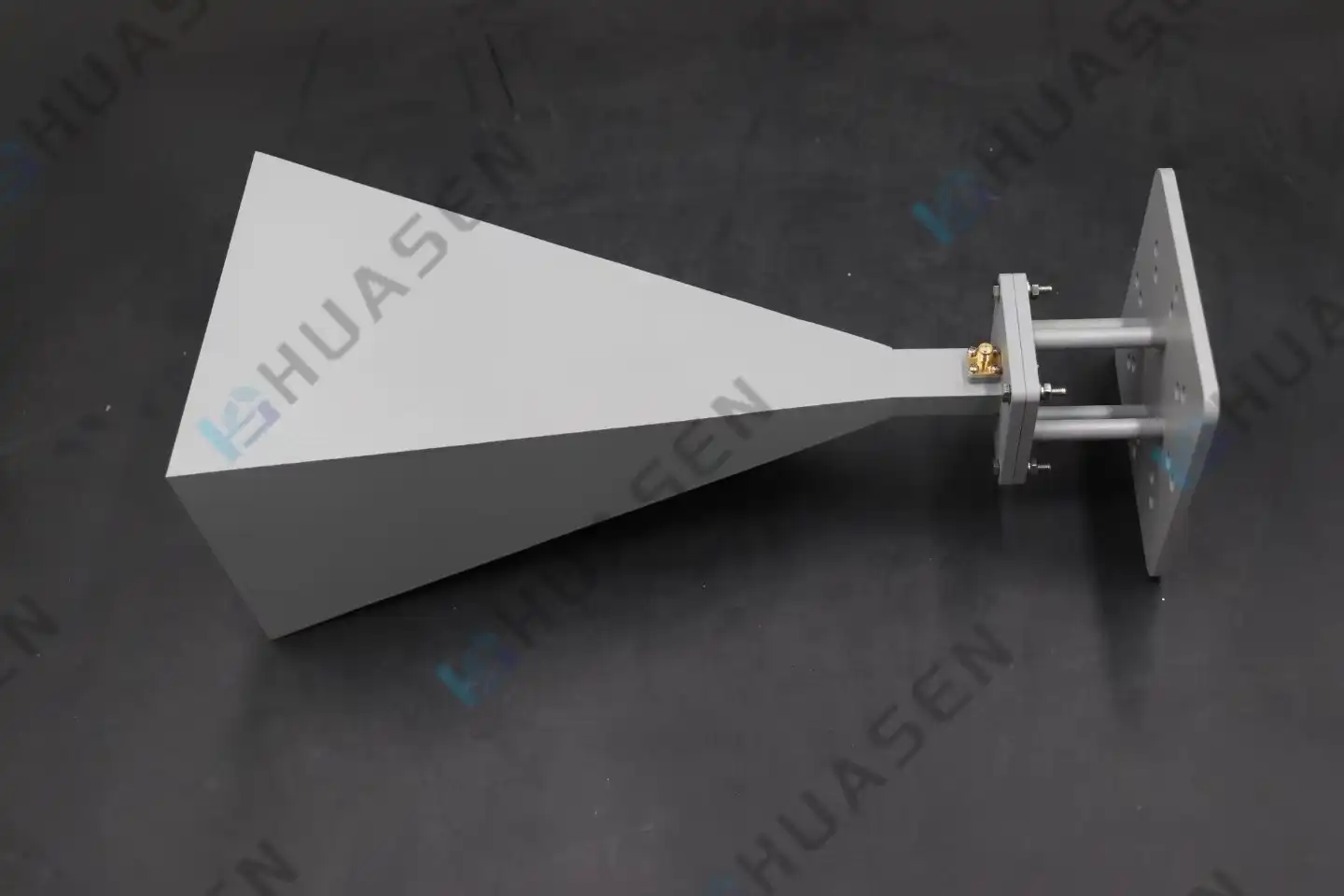

Broadband Double Ridged Horn Antenna-q

Key Technical Differences and Design Considerations

Structural Design Variations

The main difference between these antenna types is how they are built. Broadband Horn Antennas have carefully made aluminum bodies with ridge structures inside that need to be very precise—usually within 0.05 mm—so that they can match impedance across a wide range of frequencies. The ridges are carefully made to reduce echoes so that they make tapered transmission lines. Narrowband horns have simpler shapes, with pyramidal or conical holes with smooth walls and flare angles that are estimated to get the best frequency response. This simplicity makes production easier, but it limits the freedom of operations. Both types are protected in tough settings by coatings that don't corrode, but broadband versions usually need stronger weatherproofing because they are used for longer periods of time outside.

Performance Metrics Comparison

Important changes can be seen in VSWR traits. Broadband horns keep an acceptable VSWR (less than 2.5:1) over a very wide range of frequencies, giving up very low reflection in exchange for frequency flexibility. Within their operating windows, narrowband designs often get VSWR below 1.5:1, which makes sure that the most power is transferred at target frequencies. Gain behavior is also different: broadband antennas have gain curves that change with frequency and get steeper as frequency goes up, while narrowband antennas have constant, high gain across their small range. Different designs also have different levels of radiation pattern stability. Broadband horns can have beam splitting or pattern distortion at high frequencies if higher-order modes aren't properly suppressed, but narrowband designs keep the same main lobe traits across their entire range.

Cost and Complexity Trade-offs

Manufacturing economics favor forms that are easier to make. Narrowband horns usually cost less per unit because they are easier to make and don't need to be as precise with the materials. Broadband double-ridged versions need complex machining, specialized tools, and strict testing methods to make sure they work well over wide bandwidths, which drives up the cost of production. In reality, though, system-level economics often work the other way around: using a single broadband antenna instead of multiple narrowband units saves money on supplies, tuning, and testing time. When deciding whether to buy an antenna, procurement managers need to compare the unit price to the total cost of ownership, taking into account things like test throughput, lab room limitations, and upkeep needs.

Real-World Specification Examples

Broadband double-ridged horns from top brands like Keysight can work from 700 MHz to 18 GHz, have a gain range of 5 dBi to 17 dBi, and can handle up to 300W of average power. Pasternack sells narrowband standard gain horns, like types that work at 10 GHz to 15 GHz and have 20 dBi to 25 dBi gain and power levels of more than 500W CW. These specs help us understand how the units can be used in real life. For example, the broadband unit works well in EMC test labs that do sweeps according to CISPR 16 standards, and the narrowband version is best for point-to-point microwave links that need the most path gain. By understanding these real-world cases, engineers can better match the antenna's powers to the needs of the project, avoiding over-specification or poor performance.

Application Scenarios: Choosing Between Broadband and Narrowband Horn Antennas

Broadband Applications in Testing and Compliance

EMC/EMI compliance testing is where Broadband Horn Antennas do most of their work. To test radiated protection and emissions according to MIL-STD-461 or CISPR standards, anechoic rooms need to be able to sweep frequencies from less than 1 GHz to 18 GHz or higher. Using a single broadband antenna cuts down on downtime for equipment swaps, stops calibration drift between swaps, and makes sure that the measurement shape stays the same. Broadband service is also helpful for radar cross-section characterization because it lets engineers light up objects across multiple bands during short-range tests. These antennas are used by defense spectrum tracking systems to keep an eye on a huge range of frequencies for signals intelligence. They can pick up on enemy messages without any blind spots caused by breaks in narrowband coverage.

Narrowband Superiority in Focused Communications

Narrowband horns are needed for point-to-point microwave transfer links that connect 5G base stations so that they get the most signal and the least amount of disturbance. These links put link price over bandwidth flexibility because they use fixed bands like 28 GHz or 39 GHz. Narrowband designs have better directivity—often 6 to 10 dB higher than similar broadband units—which directly leads to longer range or lower broadcast power needs. High-precision tracking radar systems also use narrowband properties, using specially designed horns at certain bands (X-band, Ka-band) to get the narrow beamwidths needed for target resolution. Another great narrowband use is for satellite ground station feeds that work at specific uplink and downlink frequencies. In these cases, it's important to get the most gain within the allocated bandwidth.

Industry Success Stories

Aerospace companies test MIMO antenna arrays for 5G devices over-the-air using Double Ridged Horn Antennas with broadband circular polarization that cover frequencies from 2 GHz to 6 GHz. This lets them measure polarization variety without having to change the test settings. Defense engineers who make electronic warfare systems use narrowband horns that are set to the frequencies of threats to focus jamming energy exactly where it is needed. Companies that use millimeter-wave backhaul networks rely on narrowband horn feeds to keep links open 99.999% of the time, even when propagation conditions are bad. These real-life examples show how choosing the right antennas, such as Double Ridged Horn Antennas, can have a big effect on the success of a project, its dependability, and how efficiently it runs in tough technical settings.

Procurement Considerations for B2B Clients

Supplier Landscape and Product Availability

There are well-known companies with track records in the world antenna market. Keysight Technologies sells standardized test antennas that come with all the paperwork that recognized labs need. ARA and Comet are experts in making high-power broadband horns for EMC uses. Their designs are tough and meet IP65 standards for water protection. Narrowband precision horns for communications equipment are what MTI and other companies like it make. Understanding what each seller specializes in helps procurement teams find the best partners. For example, test equipment providers offer tracking and calibration certificates that are necessary for compliance work, and communications experts offer antennas that are optimized for link budget and environmental resilience. Making sourcing choices is easier when you compare seller portfolios to project needs.

Pricing Structures and Lead Times

Standard catalog Broadband Horn Antennas from big brands usually cost between $2,000 and $8,000, based on how many frequencies they cover and how much power they can handle. Narrowband versions are about the same size and quality and cost $800 to $3,500. Prices go up by 30% to 100% for custom setups, depending on how complicated the specifications are. There are big differences in lead times. Stock items ship in one to two weeks, but customized antennas need six to twelve weeks for planning, manufacturing, and testing. You might have to pay 20% to 50% more for expedited orders. When purchasing, professionals are trying to balance tight budgets with tight project timelines; they need to take these factors into account. For example, they might order long-lead custom items early and use catalog items for testing phases.

Customization Impact on Procurement

OEMs often need antenna solutions that are specifically made for them, such as antennas with changed polarization, certain types of connectors, weather hardening, or special mounting interfaces. Customization adds hours to the engineering schedule for validating the design, making prototypes, and checking the performance. But custom solutions make system integration better. For example, using WR-28 waveguide connections instead of coaxial links stops lossy transitions in millimeter-wave systems, and custom radomes make them more weatherproof than standard options. Customization risks can be reduced by working together with providers to create specifications. By giving makers specific information about the application, like frequency ranges, power levels, environmental conditions, and technical limitations, they can come up with the best solutions that balance performance, cost, and delivery dates that are in line with project goals.

Comparison with Other Antenna Types and Performance Factors

Broadband Horns versus Log Periodic Antennas

It is common for log periodic dipole arrays to cover very wide frequency ranges, from 200 MHz to 2 GHz, with a gain of 6 dBi to 10 dBi across the range. Log periodics are better for checking EMC at lower frequencies than double-ridged Broadband Horn Antennas that work at higher frequencies. However, they don't have the power handling and gain needed for millimeter-wave uses. Broadband horns work best at frequencies above 1 GHz because they can direct signals more accurately and hold more power. Full-spectrum EMC compliance engineers may use log periodics for lower frequencies and broadband horns for higher frequencies, making antenna sets that work well together and cover many decades of frequency range. This multi-antenna method finds the best mix between bandwidth range, gain, and size.

Directional Patch versus Horn Antennas

For narrowband uses, microstrip patch antennas are small and low-profile options, especially in mobile devices and phased arrays. Patch antennas, on the other hand, usually have lower gain (5 dBi to 9 dBi) than horn antennas and can handle much less power—often only milliwatts compared to hundreds of watts for horns. Horn antennas are most common in lab equipment and high-power transmission situations where size restrictions are less of an issue, but performance requirements are higher. Patch arrays can get close to horn gain by multiplying elements, but it takes more work and costs more. Knowing these trade-offs helps choose the right technology: patches work best for embedded applications that have strict size limits, while horns work best for test equipment and infrastructure that needs strong performance.

High-Gain Broadband Horns versus Standard Models

In the Broadband Horn Antenna group, high-gain versions have bigger apertures and better ridge patterns to improve directivity while keeping the wide bandwidth. Standard broadband horns have a range of 5 dBi to 15 dBi. High-gain types have a range of 8 dBi to 18 dBi because they are bigger. This improvement raises the accuracy of measurements in EMC tests and increases the range for monitoring uses. The trade-off is size and weight: normal units are 25 cm to 40 cm long, while high-gain broadband horns can be 50 cm to 80 cm long. When buying something, people have to weigh the benefits of better performance against how easy it is to handle. This is especially true for field-deployed systems where antenna size is limited by the need to be portable.

Conclusion

To choose between broadband and narrowband horn antennas, you need to carefully look at your application needs, performance goals, and budget. Broadband designs let you change frequencies, which is important for EMC testing, spectrum monitoring, and flexible lab settings. Narrowband horns, on the other hand, make the most of gain and pattern stability within fixed frequency ranges, which is important for communications links and precision radar. Engineers can make sure that antenna standards are in line with system goals by understanding the technical differences between VSWR, gain profiles, and structure design. To find the best options for performance, budget, and delivery needs in tough RF environments, procurement pros have to look at the total cost of ownership, customization timelines, and suppliers' abilities.

Frequently Asked Questions About Horn Antenna Selection

1. How do I choose between broadband and narrowband horn antennas?

Look at your timing needs and how detailed your application is. Broadband Horn Antennas keep the same tuning and don't need to be changed if your job includes sweeping across multiple octaves, like EMC compliance testing per MIL-STD-461 that covers 1 GHz to 18 GHz. Narrowband horns work best in fixed-frequency situations where getting the most gain is important, like point-to-point microwave relay at 28 GHz. You should think about whether covering versatility or peak directivity within a specific band is more important to you.

2. Can broadband horns reliably test specialized frequency bands?

Broadband double-ridged horn antennas work the same way across their entire frequency range, usually with VSWR below 2.5:1 and steady gain curves. They give accurate readings at any frequency in their range, but their gain might be smaller than that of narrowband options that are made for specific bands. For compliance testing, accredited test labs often use calibrated broadband horns. Tough licensing processes prove that they are reliable.

3. How does customization affect pricing and lead times?

Custom antenna requirements, like special connectors, unique polarization, or weather hardening, usually make goods 30% to 100% more expensive than catalog items and take six to twelve weeks longer to ship. Custom designs improve speed and system integration, but they need to be approved by engineers and tested on prototypes before they can be made in large quantities.
