Bend Waveguide Radius Selection Guide

Choosing the right bend radius for waveguide parts has a direct effect on how well the system works, how easily it can be installed, and how reliable it will be in the long run. RF experts can use a Bend Waveguide to send electromagnetic energy through small areas without messing up the signal. The important balance is between how small something is and how well it works electrically. Tight radii save space but risk higher insertion loss and VSWR degradation, while wide radii keep the best gearbox properties but require bigger installation areas. In this guide, the technical trade-offs and useful selection factors for E-plane and H-plane bends in radar, satellite, and telecommunications are made clear.

Understanding the Physics Behind Waveguide Curvature

Understanding the Physics Behind the Curve of a Waveguide
When electromagnetic waves move along a bent path inside a waveguide, the field distribution changes from its ideal straight-line mode of transmission. Two main problems are caused by this distortion: impedance mismatch and photon leaks.

How badly the bend affects the spreading mode is controlled by the radius-to-wavelength ratio. Industry study shows that radii greater than 1.5 waves usually don't have any effect on performance. On the other hand, sharp turns below this level make reactive gaps that send energy back to the source. Because the field direction changes in relation to the metal borders, an E-bend waveguide (which curves along the broad wall) is less sensitive than an H-bend waveguide (which curves along the narrow wall).

Material conductivity is also important because it has an effect. When millimetre waves hit, the depth of the skin thins out a lot, focusing the current intensity at the inner surface. Resistive losses in bent parts happen faster when the surface finish isn't good enough or the metal is not thick enough. These losses are cut down a lot by silver and gold plating, especially in Ka-band and W-band systems, where even tenths of a decibel count.

Adding mechanical force adds another layer. When cold-forming waveguides, the manufacturing process can cause internal forces that could change the limits for size. These problems can't happen with precision-machined bends from solid billets, but the cost of the tools is higher. When system designers make decisions, they have to weigh the need for consistent performance against output numbers and budgets.

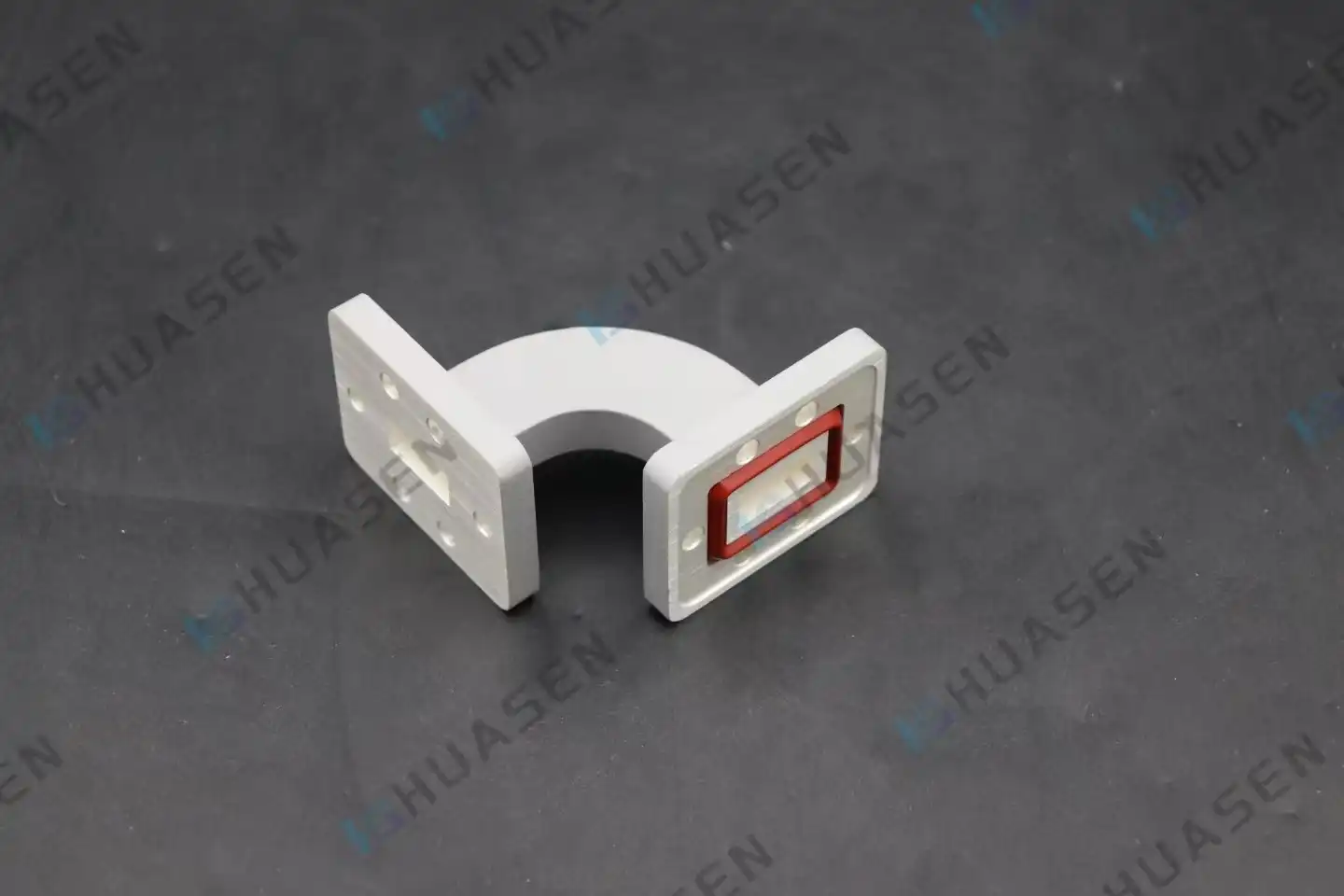

Bend-p1

Critical Parameters Driving Radius Selection

When choosing an E-Bend Waveguide radius, three scientific factors are most important: insertion loss, voltage standing wave ratio, and power handling capacity. Because each element reacts to changes in geometry in its own way, the whole thing needs to be looked at.

Insertion loss is a way to measure how much energy is lost as signals go around the bend. Because current concentrations get higher at the inner wall, resistive losses go up as radii get smaller. When the bend radius gets close to the waveguide width, radiation losses happen. This lets higher-order modes move for a short time before they break down. Measurements show that rolling turns with radii above 2º have losses of less than 0.05 dB, which is not a big deal for most link costs.

The strength of impedance matching can be measured by VSWR performance. When waves enter a bend, abrupt breaks cause reflections that stack on top of the incoming wave, making standing wave patterns. Telecommunications standards usually require a VSWR of less than 1.15:1. To meet this requirement, computer modelling is needed to find the best transition shape. Sharp turns can be hidden by mitred corners with carefully calculated cut angles. This lets designers make smaller designs without losing return loss.

In radar emitters and high-power base stations, how the power is handled is very important. There are a lot of voltage differences at the inner bend surface, which could cause arcing or multipactor breakdown. When arcs get bigger, electric fields are spread out more evenly, which raises the peak power barrier. Adding dry nitrogen to the air pressure makes the voltage gap even better. This makes inflatable waveguide bends useful for marine and outdoor applications where humidity changes.

Environmental flexibility and radius selection are linked. Aerospace bases go through temperature changes of -55°C to +125°C, which makes waveguide materials and support frames expand and contract at different rates. Large bend angles allow for these moves without putting too much mechanical stress on any one spot, which could break solder joints or crack metal. Specifications for shock and vibration often call for ruggedised bend designs with lips that are stronger.

Application-Specific Selection Strategies

Different businesses put more weight on different performance factors, which changes how radius selection methods are used.

Mobile communications infrastructure needs answers for 5G and the new 6G networks that don't cost a lot of money. Base station front-end units combine several waveguide runs into small antenna housings. E-bend waveguides with radii between 1.8º and 2.5» are the best compromise because they are small enough to fit into small spaces but keep the VSWR below 1.20:1 across all operating bandwidths. System engineers like standard bend modules because they make managing inventory easier and cut down on the time it takes to install.

Satellite transmission systems have very strict limits on their size and weight. When the cost of flight is more than $10,000 per kilogram, every gram counts. Double-bend waveguide systems with optimised curves allow a route in three dimensions around structural elements, which reduces the total volume of the payload. When ports are lined up orthogonally, twisted designs can handle them without using heavy right-angle transitions. Electroforming and additive manufacturing are two low-loss waveguide production methods that can make turns that are light and have wall thicknesses below 0.5 mm while still keeping the structure intact.

Radar and electronic warfare systems need phase steadiness that doesn't change. For phased array antennas to work, the emitting parts must be in exact phase with each other. Any phase shift caused by waveguide bends makes beam-pointing less accurate. When the sweeping radius is above 3», there is almost no phase change across scanning directions. As part of military requirements, testing is often done under shaking patterns that mimic the movements of an aeroplane or operations on a ship. This makes sure that both the mechanical and electrical performance are good.

When it comes to lab equipment, testing accuracy is very important. Fine waveguide connectors let vector network analysers and signal producers connect to antennas or supports for testing devices. During rearrangement, accidental impedance discontinuities can't happen because the bend pieces are removable and have lips that match the radius. Calibration methods take bend-induced phase changes into account, but large circles make these effects less noticeable, which makes measurement error estimates easier to understand.

Design Trade-Offs and Optimisation Approaches

When engineering teams finish defining E-Bend Waveguide bends, they have to deal with competing goals. A complex design area is made up of size, weight, power economy, ease of manufacture, and cost.

Simulation tools make it easy to quickly test different shapes. Full-wave electromagnetic models figure out how fields will be distributed in suggested bend structures and estimate how much insertion loss and return loss there will be before making a prototype. Parametric sweeps across radius values show performance turning points where small size drops cause electrical degradation that isn't proportional to the size loss. Mode coupling analysis finds higher-order mode activity that wasn't meant to be there and could mess up channels next to it in frequency-division systems.

Tolerance analysis measures how sensitive a production process is. Precision in machining affects both the correctness of the dimensions and the hardness of the surface. A 0.05 mm change in radius might not have much of an effect on X-band performance, but it would have a huge effect on Q-band systems. Tolerance standards are based on statistical process control data from production runs. These data balance checking costs against return rates.

Material choice affects decisions about radius. Aluminium metals have good strength-to-weight ratios and can be machined easily, but they need protective coatings to keep them from rusting. Copper is a better conductor of electricity, but it weighs a lot more. Combining different methods, like using aluminium bodies with copper-plated innards, makes the electrical and mechanical qualities better. Electroforming and other waveguide manufacturing methods make it possible to make complicated shapes that aren't possible with traditional cutting, which could loosen radius restrictions.

When there is a lot of job cycling, thermal control issues come up. It's necessary for resistive warmth inside bends to escape through conduction to the mounting frames or convection to the air around them. Localised hot spots are made by tight circles with high current levels. When thermal studies are combined with electromagnetic models, they can predict temperature increases that keep operations within the limits of the material. For very high power levels, heat sinks or forced air cooling may be needed.

Practical Implementation Guidelines

Translating theoretical knowledge into procurement specifications requires attention to standardisation, customisation capabilities, and supplier qualifications.

Industry-standard waveguide designations (WR-90, WR-42, etc.) define cross-sectional dimensions and frequency ranges. Bend products conforming to these standards ensure compatibility with existing system architectures. Custom frequency requirements may necessitate non-standard sizes, demanding close collaboration with specialised manufacturers. Photonic integrated circuits in optical domains employ analogous principles, though at vastly different scales—silicon photonics waveguide bend radii measured in micrometres rather than centimetres.

Flange interfaces deserve careful specification. MIL-DTL-3922 and related standards govern flange dimensions, bolt patterns, and gasket grooves. Mismatched flanges introduce gap discontinuities that radiate energy and degrade return loss. Cover plates and pressurisation ports enable hermetic sealing for environmental protection. Connector compatibility across manufacturer ecosystems simplifies system integration and reduces qualification burdens.

Testing and validation protocols should align with application criticisms. Swept-frequency VSWR measurements across operational bands verify impedance matching. Insertion loss measurements at room temperature and temperature extremes confirm thermal stability. High-power conditioning gradually raises power levels while monitoring for arcing or passive intermodulation products. Accelerated life testing under thermal cycling, vibration, and humidity exposure validates long-term reliability.

Supply chain considerations influence Bend Waveguide radius selection indirectly. Components with complex geometries or tight tolerances require longer lead times and specialised tooling. Standard-radius Bend Waveguide bends from established product lines ship within weeks, while fully custom designs may span months from order to delivery. Inventory strategies balancing cost, obsolescence risk, and project timelines often favour semi-custom approaches—selecting from a manufacturer's parametric options rather than truly bespoke designs.

Certification requirements vary by industry. Aerospace applications demand compliance with AS9100 quality management systems and traceability to raw material certifications. Defence contracts invoke MIL-STD-461 electromagnetic compatibility testing and MIL-STD-810 environmental qualification. Commercial telecommunications products pursue ISO 9001 registration and RoHS material compliance. Supplier selection should account for these regulatory landscapes alongside technical capabilities.

Emerging Trends Shaping Future Designs

Technological evolution continuously reshapes waveguide design paradigms, introducing both opportunities and challenges.

Additive manufacturing revolutionises bend fabrication by enabling geometries impossible through traditional machining. Selective laser melting produces monolithic assemblies combining waveguide runs, bends, and flanges in single build operations. Optimised internal structures reduce weight while maintaining electromagnetic performance. However, surface roughness from powder-based processes requires post-processing to achieve Ka-band and higher performance levels. Ongoing research explores hybrid approaches pairing additive manufacturing for complex geometries with precision machining for critical surfaces.

Millimetre-wave spectrum expansion drives frequency agility requirements. Multi-band systems covering 24 GHz through 86 GHz challenge traditional waveguide approaches, where separate components handle discrete bands. Ridged waveguides extend operational bandwidths but complicate bend design due to asymmetric field distributions. Nanophotonics research investigates ultra-compact waveguide bending through metamaterial claddings, though practical implementations remain nascent.

Integration density pressures intensify across platforms. Software-defined radio architectures consolidate multiple frequency bands within unified hardware, demanding compact interconnect solutions. Optical interconnect technologies may eventually supplant microwave frequencies for intra-system links, relegating traditional waveguides to antenna feeds and final amplification stages. Until then, waveguide design optimisation continues advancing through computational methods and advanced materials.

Sustainability concerns influence material and process choices. Life cycle assessments compare manufacturing energy consumption, material recyclability, and end-of-life disposal impacts. Aluminium's recyclability advantages compete against copper's lower resistive losses. Water-based cleaning processes replace ozone-depleting solvents. These considerations increasingly inform procurement decisions alongside traditional technical and cost factors.

Conclusion

Bend radius selection synthesises electromagnetic theory, material science, and practical engineering constraints into actionable design decisions. Understanding the interplay between radius dimensions, electrical performance, mechanical robustness, and manufacturing feasibility empowers system architects to optimise waveguide routing strategies. Whether deploying next-generation telecommunications infrastructure, satellite payloads, or precision test instrumentation, matching bend characteristics to application requirements ensures reliable signal transmission. Collaboration with experienced component suppliers accelerates development timelines while accessing proven designs validated across demanding operational environments. Strategic radius selection ultimately translates technical specifications into deployable hardware, delivering sustained performance throughout product lifecycles.
