Why Is a Helical Antenna Popular in Satellite Communication?

In satellite communication, helical antennas have a good name because they are technically better than other types of antennas and can send signals into space more efficiently. One of the best things about these antennas for satellites is that they can switch between circular and linear polarisation on their own. This means that the signal doesn't lose 3 dB when the ship turns. They can maintain the same gain patterns over a large frequency range (usually 200–5000 MHz) and have axial ratios less than 3 dB. This makes sure that link budgets work even when platforms or satellites move. When signal integrity can't be compromised, helical designs are the best for mission-critical satellite data, GPS receiving, and deep-space communications. This is because they are more reliable, require less system complexity, and cost less to run.

Understanding the Fundamentals of Helical Antennas

Operating Principles and Mode Selection

A loop of wire is wrapped around a cylinder-shaped core to make the helical antenna work. This turns the metal into a travelling-wave device that sends out electromagnetic waves. When the width of each turn is close to one wavelength, the antenna is in axial mode. This makes a beam that is very focused along the axis of the spiral. Engineers use circular polarisation a lot in satellite links, and this mode makes it happen naturally. Left-hand circular polarisation (LHCP) is produced by structures that are wound in the opposite direction from the helix. Right-hand circular polarisation (RHCP) is produced by structures that are wound in the same direction.

The gadget works normally when the spiral diameter is much smaller than the working frequency. It sends radiation in all directions perpendicular to the axis. For ground sites that need to cover the whole hemisphere, this mode can be useful, even though it's not used very often from space. When system designers work with different communication structures, helix designs are very useful because they are very flexible. By making small changes to the measurements, they can switch between modes.

Key Design Parameters and Performance Metrics

A number of physical factors affect how well a helical antenna works. It is best for the axial mode to work when the pitch angle is between 12° and 15°. Pitch angle is the angle between the helix wire and a line that runs straight across the axis. It depends on how many turns there are, how thick the wire is, and how much room there is between them.

Table 1: Core Performance Specifications of Huasen Microwave Helical Antennas

Parameter	Specification	Industry Significance
Frequency Range	200-5000 MHz	Covers UHF through C-band satellite allocations
Typical Gain	3-12 dB	Sufficient for most LEO/MEO satellite links
Bandwidth (VSWR ≤ 1.5)	~20%	Accommodates frequency drift and Doppler shifts
Axial Ratio	< 3 dB (typical: 2 dB)	Ensures pure circular polarization
Polarization	RHCP/LHCP selectable	Eliminates orientation-dependent signal loss

These specifications directly address concerns about procurement that have to do with signal quality and how efficiently signals are sent. When VSWR stays below 1.5 across the working band, very little power is returned, which protects the transmission stages and increases the amount of energy that is sent out into space. Even at beam edge angles, the low axial ratio keeps the polarisation purity, which is important for keeping link margins when pointing isn't perfect.

Comparison with Dipole and Patch Configurations

Dipole antennas have problems with linear polarisation and a small bandwidth. Helix shapes, on the other hand, naturally produce broadband circular polarisation without the need for complicated feeding networks. Patch antennas are small, but they usually get circular polarisation through dual-feed setups or structural changes, which are more expensive and cause possible phase mismatch. The useful bandwidth for these older methods is also smaller—usually only 5–10% compared to the 20% bandwidth that can be reached with well-designed helical antennas. Helical designs are better at directing signals than omnidirectional dipoles and don't have the mechanical complexity of phased arrays. This makes them the best choice for satellite ground terminals and communication systems on spacecraft.

Why Are Helical Antennas Preferred for Satellite Communications?

Overcoming Traditional Antenna Limitations

Even though parabolic dish antennas have a high gain, they are hard to place in mobile and marine settings because they are big, heavy, and need to be tracked very precisely. Yagi antennas can point in a certain direction, but they have problems with polarisation mismatch when the satellite's position changes compared to the ground station. This happens a lot when spaceships tumble or move around in orbit. These old methods also have trouble with multipath interference in complicated settings where signals that are reflected arrive with different polarisation states.

Because they have circular polarisation, helical antennas don't have these problems because they automatically accept signals no matter which way the transmitter is facing. This feature is very useful for LEO satellite systems, where spaceships pass quickly overhead and their angles are always changing. Maritime communication systems benefit the most because antenna-facing angles are always changing as ships move through rough seas, but the spiral form keeps the receiving quality the same throughout the pass.

Technical Advantages in Satellite Link Performance

Helical antennas have a stable radiation pattern that makes coverage zones reliable. This makes it easier to figure out link budgets during the system design process. A single helical element gives the same gain across its operational sector, while phased arrays need complicated beam-forming networks. This makes it more reliable and requires less upkeep, which is important for sites that are far away, like those on ocean bases, Arctic research stations, or robotic flying vehicles.

Another important problem that wide bandwidth can help with is Doppler frequency changes that can happen during satellite passes and be higher than 10 kHz for LEO systems. Traditional narrowband antennas lose their effectiveness as the signal moves away from the centre frequency of the design. But helical designs' 20% fractional bandwidth can easily handle these changes without affecting performance. This feature also lets a single antenna serve more than one frequency reservation, which makes it easier for system designers to manage platforms with various missions.

Real-World Performance in Operational Deployments

Helical antennas are useful in real life, as shown by ground stations that support polar-orbiting weather satellites. The satellite's elevation angle changes from sky to zenith and back again during a normal 15-minute pass. Its direction with respect to the ground station also changes all the time. During these changes, linear polarisation schemes would have a lot of signal loss, which would require expensive diversity systems. With a single set placement, helical antennas keep the link quality the same throughout the whole pass, which lowers both capital and operating costs.

Getting telemetry from deep-space probes is another example of proof. Helical feeds for parabolic mirrors and quadrifilar helix antennas are used by NASA's Deep Space Network to talk to ships beyond Mars orbit. Ionospheric Faraday rotation can change linear polarisation by 100° or more at VHF frequencies, but circular polarisation can't be changed by this much. This keeps the signal strong over the 300 million-kilometre path. Helical antenna systems must be reliable for these missions because they can't handle link failures.

Comparing Helical Antennas with Other Popular Antenna Technologies

Performance Factor Analysis

When buying teams, look at antenna choices; they have to consider a lot of different performance factors at the same time. Gain controls how much power is actually sent out and how sensitive the receiver is, which has a direct effect on the link margin and allowable path loss. Beamwidth changes the accuracy of aiming needed for communication to work. Narrower beams offer higher gain but need more precise tracking systems. Frequency agility and modulation schemes' ability to adapt are controlled by bandwidth, while polarisation purity affects signal recovery when multipath and cross-polarisation interference are present.

Table 2: Comparative Performance Matrix Across Antenna Technologies

Technology	Gain Range	3dB Beamwidth	Bandwidth	CP Purity	Size Factor
Helical (Axial Mode)	8-15 dB	30-60°	15-25%	AR < 2 dB	Moderate
Yagi Array	10-18 dB	20-40°	3-8%	Linear only	Large
Microstrip Patch	5-9 dB	70-90°	2-5%	AR > 4 dB	Compact
Parabolic Dish	20-40 dB	1-10°	10-40%	Feed-dependent	Very Large

This comparison reveals why helical antennas occupy a strategic performance zone. They deliver sufficient gain for most satellite applications without requiring the mechanical infrastructure of dish systems. Their beamwidth provides forgiving pointing requirements compared to high-gain dishes, yet maintains better directivity than omnidirectional or broad-beam patch antennas. The inherent circular polarization eliminates the need for the dual-feed networks and hybrid couplers required to achieve CP with patch arrays, reducing system complexity and potential failure points.

Cost and Maintenance Considerations

Beyond the initial purchase price, the total cost of ownership encompasses installation labor, mechanical support structures, tracking systems, and long-term reliability. Parabolic systems require substantial mounting hardware and often motor-driven tracking mechanisms, adding thousands of dollars to deployment costs. Yagi arrays achieve high gain through multiple elements and precise phasing, but environmental factors like ice loading, wind stress, and connector corrosion can degrade performance over time.

Helical antennas strike a practical balance. Their self-supporting structure minimizes mounting requirements, while the absence of complex feed networks reduces maintenance intervention. The continuous conductor design—without the multiple joints characteristic of Yagi elements—enhances mechanical robustness in harsh environments. When system integrators calculate lifecycle costs for multi-year deployments on offshore platforms or polar installations, the durability advantage of helical designs often outweighs their slightly higher unit price compared to simple patches.

Mode Selection: Axial versus Normal Operation

Axial mode serves applications requiring directional coverage along the helix axis—typical for satellite ground terminals, base station links to GEO spacecraft, and directional telemetry systems. The cardioid-shaped pattern provides maximum gain at boresight while maintaining usable sensitivity 40-50° off-axis, accommodating the ±5-10° pointing errors common with manually aimed installations.

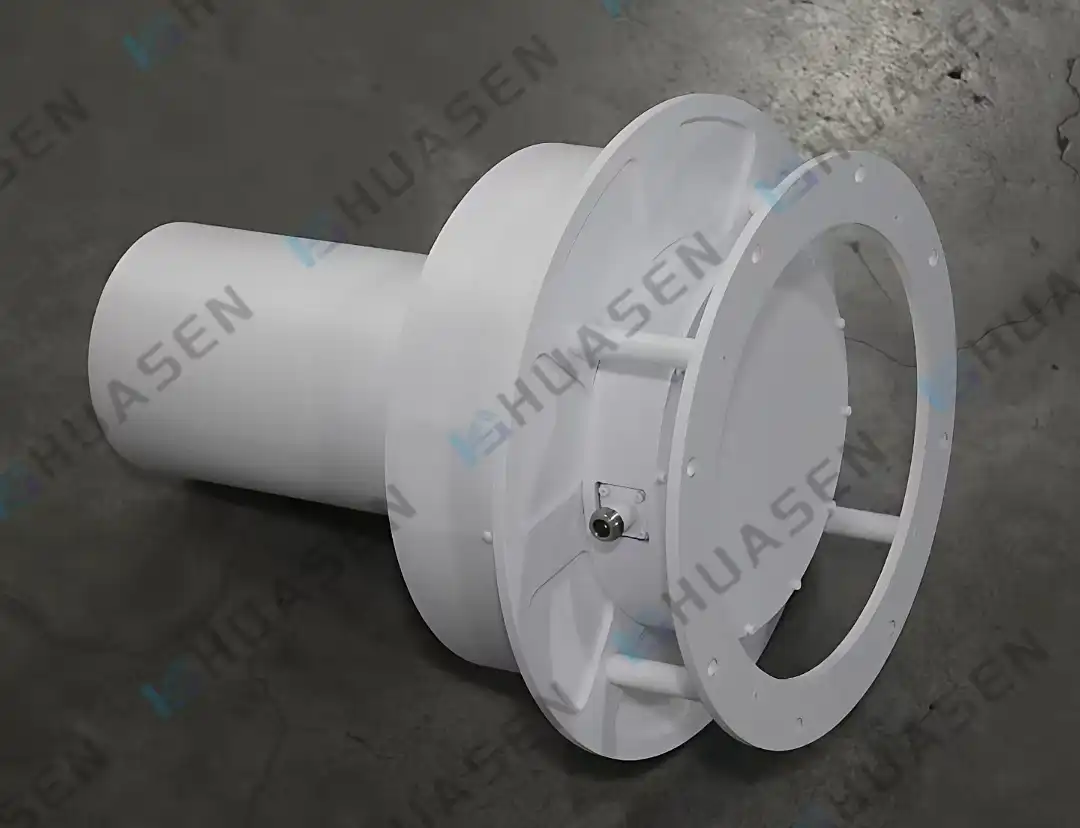

Normal mode operation of a quadrifilar helix antenna suits scenarios demanding hemispherical coverage without nulls, such as mobile receivers on vehicles or aircraft. The toroidal radiation pattern provides consistent gain around the horizon, ensuring reliable reception regardless of vehicle heading. UAV command links particularly benefit from this characteristic, maintaining connectivity during banking maneuvers and spiral descents where directional antennas would experience signal dropouts.

Conclusion

Helical antennas have established their dominance in satellite communication through technical merits that directly solve operational challenges. Their inherent circular polarization eliminates orientation-dependent signal loss, while a wide bandwidth accommodates frequency shifts and multi-band operation. The combination of moderate gain, manageable size, and mechanical simplicity positions them optimally between omnidirectional and high-gain dish systems. Procurement decisions should prioritize suppliers demonstrating engineering depth, manufacturing consistency, and responsive technical support. Huasen Microwave's three-decade track record in RF component manufacturing, combined with helical antenna specifications covering 200-5000 MHz with axial ratios below 3 dB, represents the convergence of experience and capability that satellite communication systems demand for reliable long-term operation.

FAQ

1. What frequency ranges do helical antennas typically cover for satellite applications?

Helical antennas designed for satellite communication commonly operate across VHF through C-band allocations, spanning approximately 100 MHz to 6 GHz. Huasen Microwave's standard product line covers 200-5000 MHz, supporting meteorological satellite reception at 137 MHz, L-band mobile satellite services near 1.5 GHz, S-band telemetry around 2.2 GHz, and C-band downlinks at 4 GHz. Custom designs extend into X-band (8-12 GHz) for military and high-data-rate applications, though dimensional constraints become more challenging at shorter wavelengths.

2. How do I choose between axial mode and normal mode operation?

Axial mode suits applications requiring directional coverage along the helix axis, providing 8-15 dB gain for satellite ground terminals and point-to-point links. Normal mode serves scenarios demanding hemispherical coverage without nulls, such as mobile receivers on vehicles or aircraft. The choice depends on whether your platform maintains predictable pointing toward the satellite (axial mode) or requires omnidirectional reception during maneuvers (normal mode). Most satellite ground stations employ the axial mode for its superior gain and efficiency.

3. Can helical antennas be customized for specific industrial satellite systems?

Manufacturers like Huasen Microwave regularly customize helical designs to match unique system requirements. Adjustable parameters include operating frequency, gain (controlled by turn count), polarization handedness (RHCP or LHCP), connector type (SMA, N-type, or waveguide interfaces), and environmental specifications. Custom ground planes, mounting brackets, and radome configurations adapt antennas to specific installation constraints. Procurement teams should provide detailed specifications, including frequency range, minimum gain, maximum VSWR, axial ratio requirements, and environmental conditions, to receive optimized proposals.

Partner with Huasen Microwave for Superior Helical Antenna Solutions

Huasen Microwave Technology, established in 1993 as a specialized RF component manufacturer, delivers Helical Antennas engineered for demanding satellite communication applications. Our product line spans 200-5000 MHz with typical gains of 3-12 dB, axial ratios below 2 dB, and 20% fractional bandwidth at VSWR ≤ 1.5—specifications directly addressing the reliability and performance requirements of system integrators and equipment manufacturers. Whether you need circularly polarized radiators for ground terminals or precision feeds for parabolic reflector systems, our engineering team provides application-specific consultation backed by three decades of microwave expertise. Global logistics capabilities ensure efficient delivery to North American procurement teams, while competitive pricing structures reward volume commitments. Contact our technical sales team at sales@huasenmicrowave.com to discuss your satellite communication requirements with a trusted Helical Antenna supplier committed to advancing your mission success through proven RF solutions.
