What is the Difference Between Circularly Polarized and Linear Polarized Horn Antennas?

The main difference between horn antennas and circular polarization that are circularly polarized and those that are linearly polarized is how electromagnetic waves move through space. The circular polarization of a horn antenna makes waves that move in a helical pattern. This makes the signal more stable and less likely to get messed up in complex settings. Linearly polarized antennas send waves that oscillate in a single plane, which makes them easy to use for directed information. This difference has an effect on everything from signal quality to application fit. This is why choosing the right polarization is so important for getting the best system performance in radar, satellite communications, and telecommunications.

Understanding Polarization in Horn Antennas

Polarization represents one of the most crucial characteristics determining horn antenna performance across diverse industrial applications. The electromagnetic field behavior fundamentally shapes how signals are transmitted, received, and interact with environmental factors throughout the communication link.

The Physics Behind Electromagnetic Wave Polarization

Electromagnetic waves consist of electric and magnetic field components oscillating perpendicular to each other and the direction of propagation. In linear polarization, the electric field vector maintains a consistent orientation plane, creating predictable wave characteristics ideal for point-to-point communications. The wave amplitude varies along this fixed plane, resulting in stable, directional transmission patterns that engineers can precisely calculate and optimize. Circular polarization presents a more complex electromagnetic behavior where the electric field vector rotates continuously around the propagation axis. This rotation occurs at the same frequency as the transmitted signal, creating either right-hand circular polarization (RHCP) or left-hand circular polarization (LHCP), depending on the rotation direction. The constant magnitude field vector traces a helical path through space, maintaining consistent power density regardless of receiving antenna orientation.

Horn Antenna Design Principles

Horn antennas achieve different polarization characteristics through specific internal structure modifications. Linear polarized designs utilize straightforward waveguide-to-horn transitions that preserve the input waveguide's fundamental mode characteristics. The aperture dimensions and flare angle determine radiation patterns while maintaining the original polarization state throughout the transmission path. Achieving horn antenna circular polarization requires sophisticated internal components such as septum polarizers, dielectric vanes, or orthogonal feed networks. These elements convert linear polarization into circular polarization by introducing precise phase relationships between orthogonal field components. The conversion process demands careful engineering to maintain signal quality and minimize axial ratio degradation across the operating bandwidth.

Circular Polarization vs Linear Polarization: Technical Comparison

Understanding the technical differences between polarization types enables informed decision-making for specific application requirements. Each polarization method offers distinct advantages that align with particular operational scenarios and performance objectives.

Design Implementation and Manufacturing Considerations

Linear polarized horn antennas utilize relatively simple construction methods that maintain manufacturing cost efficiency while delivering reliable performance. The straightforward waveguide-to-horn transition preserves the input signal characteristics without requiring additional polarization conversion components. This simplicity translates to enhanced reliability and reduced potential failure points in demanding industrial environments. Horn antenna circular polarization implementation demands more sophisticated manufacturing techniques and precision components. Septum polarizers require precise machining tolerances to achieve optimal axial ratio performance across the specified bandwidth. Dielectric vane polarizers need careful material selection and positioning to maintain temperature stability and power handling capabilities. These complexity factors contribute to higher manufacturing costsfor antennas and circular polarizationbut deliver superior performance in challenging signal environments.

Performance Metrics and Measurement Standards

For circularly polarized antennas, the axial ratio is the mostimportant quality measure of circular polarizationbecause it shows how close the antenna is to having ideal circular polarization. Axial ratios of high-quality circularly polarized horn antennas are less than 1.5 dB, and the best ones get to 0.5 dB or better. This measure has a direct effect on the ability to tell the difference between cross-polarization and multipath interference. Linear polarized antennas measure unwanted signal reception from orthogonal polarization orientations and use cross-polarization discrimination as the main performance measurement. Cross-polarization levels 20–30 dB below the main polarization response are reached by high-quality linear antennas. This makes sure that there is little interference in situations where frequencies are reused and where there are a lot of signals.

Bandwidth and Frequency Response Characteristics

Because of how they are designed, the different types of polarization have very different bandwidth possibilities. With ridged or corrugated designs, linearly polarized horn antennas can work over a very wide bandwidth, often covering multiple octaves while keeping the same radiation patterns. Since there are no polarization conversion parts, there are no bandwidth-limiting factors that come with phase-matching needs. Polarization translation parts put bandwidth limits on designs that are circularly polarized. When the bandwidth is between 10 and 20%, septum polarizers usually give great axial ratio performance. Broadband designs that use dual-linear synthesis can get higher bandwidth but lose axial ratio quality. This trade-off needs to be carefully thought through based on the needs and goals of the application.

Benefits and Limitations of Circularly and Linearly Polarized Horn Antennas

Selecting appropriate polarization requires understanding both the advantages and constraints associated with each technology. Real-world deployment success depends on matching antenna characteristics with environmental conditions and system requirements.

Circular Polarization Advantages in Complex Signal Environments

Circular polarization provides exceptional immunity to polarization-mismatch losses caused by antenna misalignment or platform rotation. This characteristic proves invaluable in mobile communications, satellite tracking, and airborne applications where maintaining precise antenna alignment presents significant challenges. The 3 dB maximum polarization loss occurs only under worst-case orthogonal circular polarization conditions, compared to potentially complete signal loss with misaligned linear antennas. Multipath interference rejection represents another significant advantage of horn antenna circular polarization in reflective environments. Reflected signals undergo polarization sense reversal (RHCP becomes LHCP), enabling receiving antennas to discriminate against single-bounce reflections. This capability dramatically improves signal quality in urban environments, industrial facilities, and maritime applications where multipath propagation degrades communication reliability. The inherent immunity to Faraday rotation effects makes circular polarization essential for trans-ionospheric communications. Satellite links, space communications, and GPS applications rely on circular polarization to maintain signal integrity despite ionospheric disturbances that would severely impact linear polarized signals.

Linear Polarization Benefits and Cost Considerations

Linear polarized horn antennas offer significant cost advantages through simplified manufacturing processes and reduced component complexity. The straightforward design eliminates expensive polarization conversion components while providing excellent electrical performance for appropriate applications. This cost efficiency becomes particularly important in large-scale deployments where budget constraints influence technology selection. Mechanical simplicity translates to enhanced reliability in harsh environmental conditions. Linear antennas contain fewer precision components subject to thermal expansion, vibration damage, or aging effects. The reduced complexity simplifies quality control processes and minimizes manufacturing variations that could impact field performance. Linear polarization excels in controlled environments where antenna alignment can be maintained, and multipath effects are minimal. Point-to-point microwave links, radar applications, and terrestrial broadcasting benefit from linear polarization's predictable characteristics and cost-effective implementation.

Operational Limitations and Design Constraints

Circular polarization complexity introduces potential failure modes not present in linear designs. Polarizer component degradation can increase axial ratio over time, gradually reducing circular polarization quality and interference rejection capabilities. Temperature variations affect dielectric polarizers differently than metallic components, potentially causing performance drift in extreme environments. Linear polarized systems face significant challenges in dynamic environments where antenna orientation cannot be controlled. Mobile platforms, rotating structures, and multi-path rich environments can cause severe signal degradation or complete communication loss. The fixed polarization orientation requires careful system planning to ensure compatible transmitter and receiver alignment.

Applications and Industry Use Cases for Both Polarizations

Real-world deployment scenarios demonstrate how polarization horn antenna circular polarizationselection impacts system performance across diverse industrial sectors. Understanding application-specific requirements guides optimal technology choices for maximum operational effectiveness.

Satellite Communications and Space Applications

Satellite communication systems predominantly utilize circular polarization due to the inherent challenges of maintaining precise antenna pointing between ground stations and orbiting platforms. Satellite attitude variations, atmospheric effects, and ground station tracking errors would cause severe signal fading with linear polarization. Circular polarization maintains a consistent link quality regardless of these alignment variations. Telemetry, tracking, and command (TTC) applications demand the highest reliability levels, making circular polarization essential for mission-critical space operations. Launch vehicle tracking, spacecraft monitoring, and deep space communications rely on circular polarization's immunity to polarization mismatch and atmospheric disturbances.GPS and navigation satellite systems utilize circular polarization to ensure consistent signal reception regardless of receiver orientation. Mobile GPS units, aviation navigation systems, and maritime positioning applications benefit from circular polarization's orientation independence and multipath rejection capabilities.

Terrestrial Communications and Radar Systems

Fixed microwave communication links typically employ linear polarization due to cost considerations and controlled deployment environments. Point-to-point backhaul links, cellular base station interconnections, and private network communications operate in relatively stable conditions where antenna alignment can be maintained throughout the link lifetime. Radar applications often utilize linear polarization for weather monitoring and target classification capabilities. Meteorological radars analyze precipitation characteristics by comparing different linear polarization responses, enabling rainfall intensity measurements and storm analysis. Air traffic control radars benefit from linear polarization's predictable reflection characteristics for aircraft tracking and identification. Broadcasting and television transmission systems predominantly use linear polarization due to established standards and cost-effective receiver implementation. Terrestrial television, radio broadcasting, and point-to-multipoint distribution services rely on linear polarization's compatibility with existing infrastructure and equipment.

Testing and Measurement Applications

Antenna test ranges and anechoic chambers utilize both polarization types depending on specific measurement requirements. Over-the-air (OTA) testing of mobile devices benefits from circular polarization's ability to measure total radiated power without requiring mechanical rotation for different polarization orientations. This capability reduces test time and improves measurement accuracy for complex antenna systems.RF compatibility testing often requires both polarization types to evaluate equipment performance under various signal conditions. Electromagnetic interference (EMI) measurements, antenna pattern verification, and system integration testing benefit from having both linear and circular polarization capabilities available. Research and development applications frequently require polarization flexibility to investigate new technologies and communication techniques. Advanced antenna concepts, adaptive systems, and experimental protocols benefit from configurable polarization capabilities during development and validation phases.

How to Choose Between Circularly and Linearly Polarized Horn Antennas for Your Procurement Needs

Successful antenna procurement requires a systematic evaluation of technical requirements, environmental conditions, and cost considerations. The selection process involves balancing performance objectives with practical constraints to achieve optimal system effectiveness.

Technical Requirements Analysis

Application-specific performance requirements drive initial polarization selection decisions. Satellite communications, mobile platforms, and multipath-rich environments strongly favor circular polarization despite higher costs. The immunity to orientation mismatch and interference rejection capabilities often justify the additional investment for mission-critical applications. Fixed installations with controlled environments can often utilize linear polarization cost-effectively while meeting performance objectives. Point-to-point links, radar systems, and terrestrial broadcasting applications benefit from linear polarization's simplicity and predictable characteristics when environmental conditions permit stable operation. Bandwidth requirements influence both polarization choice and specific antenna design selection. Wide bandwidth applications may favor linear polarization due to reduced design constraints, while applications requiring moderate bandwidth with superior interference rejection benefit from circular polarization technologies.

Environmental and Operational Considerations

The operating setting has a big effect on how well and reliably polarization works. The weather, changes in temperature, and possible mechanical stress can all affect antenna performance in different ways depending on the type of polarization and construction method used. Because antennas can't be kept in a fixed position, circular polarization is almost always better for mobile and portable applications. For reliable operation, vehicle-mounted systems, maritime communications, and aerospace uses need circular polarization's orientation independence. Long-term operational costs go beyond the initial purchase costs because of installation and upkeep costs. When it comes to alignment and troubleshooting, linear antennas usually don't need as much knowledge. This could lower the cost of installation and upkeep over the system's lifetime.

Supplier Evaluation and Customization Options

When it comes to polarization knowledge, customization choices,horn antenna circular polarization,and quality standards, antenna manufacturers have a lot of different skills. Checking a supplier's past work, certifications, and technical support skills is important for making sure a project is completed successfully and that the product will last for a long time. Customization needs are often what determine which supplier is best, since many applications need specific frequency ranges, gain levels, or mechanical configurations that aren't available in standard product lines. Manufacturers like Huasen Microwave let you make a lot of changes to their products. They can be customized for frequency ranges from 0.5 GHz to 110 GHz, with different gain options and different bandwidth configurations. Quality certifications, compliance standards, and reliability testing show that manufacturers are dedicated to providing consistent performance. Compliance with MIL-STD standards, testing in harsh environments, and quality management systems give users faith in the performance of antennas in difficult working conditions.

Conclusion

When picking between circularly and linearly polarized horn antennas, the main things that matter are the needs of the application, the surroundings, and the cost. Circular polarization works great in changing environments that need to be able to reject multiple paths. This is why it is so important for satellite communications, mobile platforms, and applications that need to avoid interference. In controlled environments where alignment can be kept and conditions stay stable, linear polarization can be a cost-effective option. In each polarization group, the choice of antenna is based on technical factors like axial ratio, cross-polarization discrimination, and bandwidth capabilities. By understanding these trade-offs, you can make smart choices about what to buy that improve system performance while keeping costs low.

FAQ

1. What is the main advantage of circular polarization over linear polarization?

Circular polarization provides immunity to antenna orientation mismatch and multipath interference rejection. This makes it ideal for applications where maintaining precise antenna alignment is challenging, such as satellite communications and mobile platforms.

2. Can I use a circularly polarized antenna to receive linearly polarized signals?

Yes, circularly polarized antennas can receive linearly polarized signals, but with a fixed 3 dB polarization mismatch loss. This trade-off is often acceptable in exchange for the orientation independence benefits.

3. How do I verify the axial ratio quality of a circularly polarized horn antenna?

Axial ratio measurements require specialized test equipment and anechoic chamber facilities. Quality antennas should provide measured axial ratio data across the operating bandwidth, with values below 1.5 dB indicating good performance.

4. What factors affect the bandwidth of circularly polarized horn antennas?

Bandwidth limitations primarily result from polarization conversion components such as septum polarizers or dielectric vanes. Broadband designs using dual-linear synthesis can achieve wider bandwidth but may compromise axial ratio performance.

Partner with Huasen Microwave for Advanced Horn Antenna Solutions

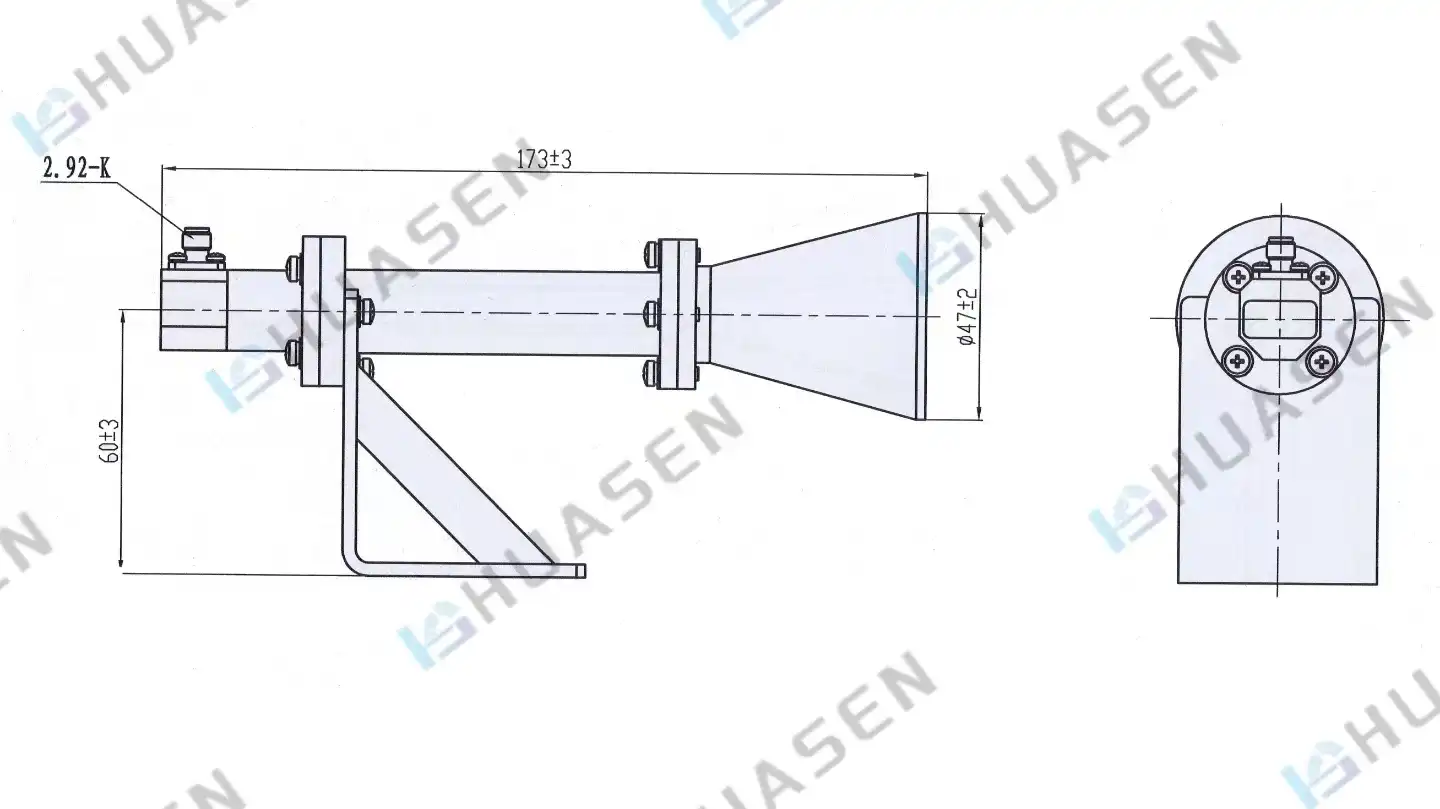

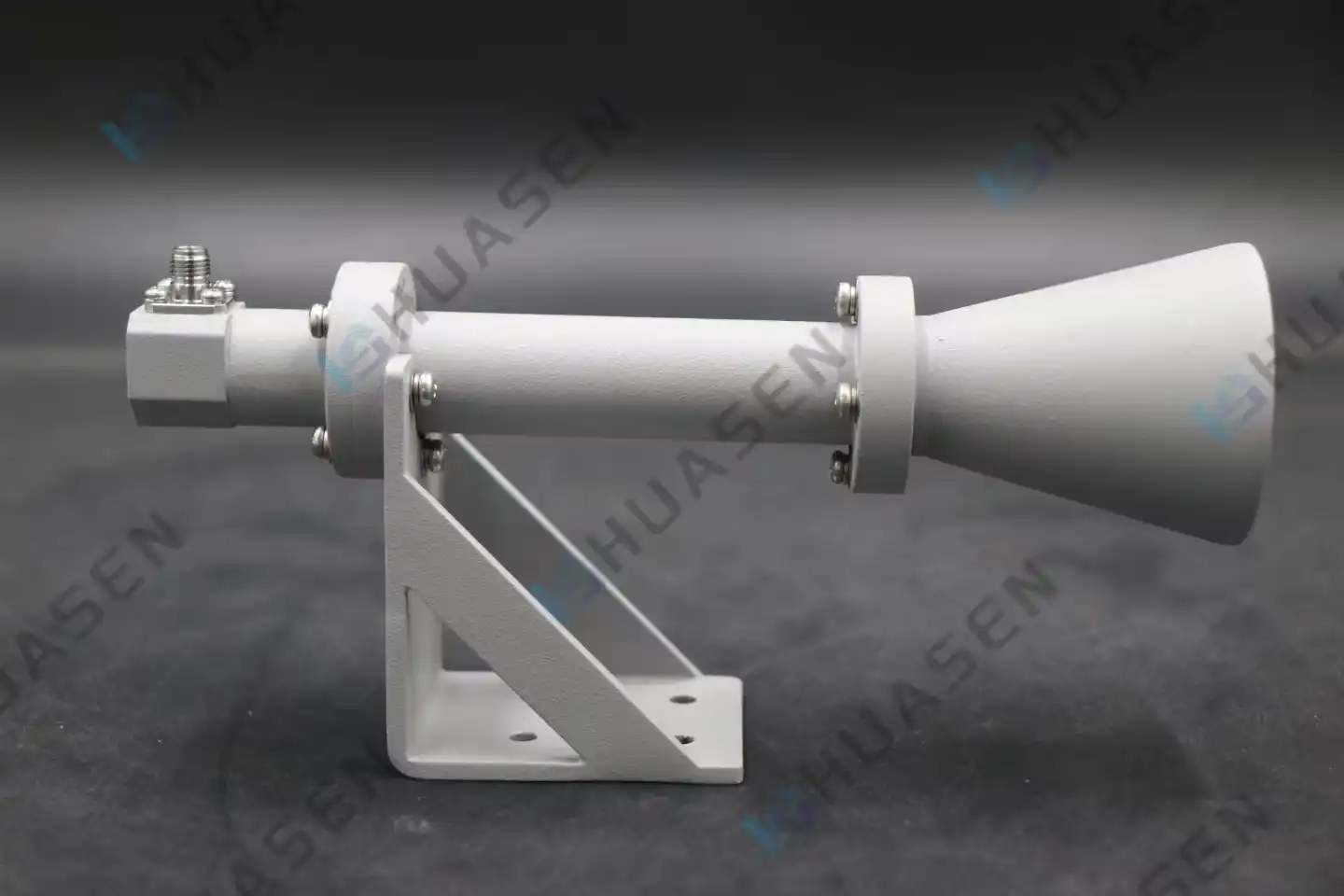

Huasen Microwave stands as your trusted horn antenna circular polarization manufacturer, delivering precision-engineered solutions for demanding industrial applications. Our circularly polarized horn antennas (CPHA) utilize advanced linear-to-circular polarization converters and dual linear polarization orthogonal excitation to achieve exceptional performance. With axial ratios achieving ≤ 0.5dB across frequency ranges from 0.5-110GHz and customizable gain options of 10-25dB, our antennas meet the most stringent technical requirements. Our engineering team provides comprehensive customization support, including bandwidth optimization from narrowband ≤ 5% to broadband ≤ 67%, custom gain specifications, and connector type selection. Contact our technical specialists at sales@huasenmicrowave.com or visit huasenmicrowave.com to discuss your specific requirements and discover how our three decades of microwave expertise can enhance your system performance.
