Waveguide Screw Compatibility Explained

Waveguide screw compatibility ensures mechanical connection and electromagnetic performance by matching fastening hardware with waveguide assemblies. Every screw must match the waveguide flange or cover plate's thread standards, material composition, and dimensional tolerances. Screws that meet these characteristics avoid signal leakage, preserve impedance, and ensure structural integrity under high-power transmission situations. Improper fasteners can cause insertion loss, return loss, and system dependability issues in radar, satellite, and 5G equipment.

Understanding Waveguide Screw Compatibility

Waveguide systems use special screws to hold flanges, covers, and joints in place at bands from microwaves to millimetre waves. These screws are strong enough to withstand shaking, temperature changes, and weather stress. They also have an electromagnetic seal that stops radiation and signal loss.

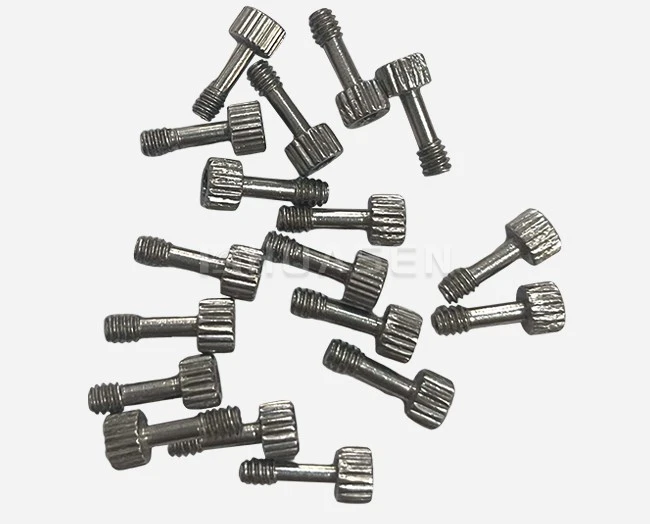

What Are Waveguide Screws?

Precision-engineered waveguide screws hold metal waveguide pieces together while keeping the electromagnetic flow going. Unlike most tools, these parts have strict standards for electrical connection and physical accuracy. They use reactive metals like stainless steel, brass, or aluminium alloys that don't rust when they are mixed with waveguide housing metals.

Why Compatibility Matters?

Concerns about compatibility could lead to operational problems. If you don't screw the bolt in properly, the seal could come off and let RF energy escape. Mismatched dimensions can lead to impedance gaps that lower VSWR and raise insertion loss. In outside sites like base stations, naval platforms, and aeroplane systems, these risks are raised by changes in temperature, moisture entry, and mechanical shaking.

Standards Governing Fastener Specifications

To figure out what is suitable, international rules are used. In Asia and Europe, ISO metric threads are used. In North America, ANSI regular inch threads are used for guns and planes. The MIL-SPEC standards, like MIL-STD-1919, tell us what waveguide flanges and gear must meet so that military and civilian systems can work together. If the buying teams don't match the bolt specs to these standards, they could end up with problems and fixes that cost a lot of money.

Key Factors Affecting Waveguide Screw Compatibility

Multiple technical aspects must be considered for compatibility. Each factor affects mechanical and electromagnetic performance; thus, detailed specification is necessary.

Thread Type and Dimensional Precision

Metric and imperial thread profiles differ in fundamental ways. Compared to unified threads, metric threads have a 60-degree flank angle and millimetre pitch. Cross-threading deforms threads and reduces clamping force when incompatible profiles contact. Even within the same system, tolerance classes matter: a Class 2A exterior thread and a Class 2B internal thread give different clearance than a Class 3A/3B precise fit.

Dimensional precision goes beyond thread geometry. Screw length must consider flange thickness and gasket compression. Large heads can interfere with adjacent components in dense assemblies, whereas small heads may not distribute clamping pressure evenly across sealing surfaces.

Material Selection and Galvanic Compatibility

Galvanic corrosion, which occurs when dissimilar metals touch in electrolytes, is prevented by material matching. Aluminium waveguides need fasteners with equal electrochemical potential, usually aluminium alloys or stainless steel with surface treatment. Brass screws complement copper-alloy waveguides. ASM International corrosion engineering guidelines state that galvanic series potential differences over 0.25 volts increase corrosion risk.

Beyond corrosion resistance, material qualities impact electrical performance. Magnetic materials like certain stainless steel grades can introduce losses in high-frequency applications beyond 40 GHz, whereas high-conductivity copper alloys limit resistive losses at contact surfaces and screw connections.

Mechanical Strength and Torque Requirements

Fasteners must resist installation torque and heat cycling and vibration while maintaining clamping force. Metric property class 8.8 screws have 800 MPa tensile strength, but SAE grade 5 fasteners perform similarly in imperial size. Proper torque application compresses gaskets for RF sealing without overstressing threads or galling stainless steel fasteners.

Electrical Conductivity and Shielding

Fastener conductivity affects system performance, a frequently underestimated factor. Contact resistance between screw and flange causes tiny impedance discontinuities. Even micro-ohm adjustments can reduce millimetre-wave return loss. Precision test equipment and low-noise receiver applications where signal-to-noise ratio dictates design decisions benefit from contact resistance reduction via silver plating or electroless nickel.

Common Compatibility Issues and How to Solve Them？

Insufficient compatibility during procurement and assembly causes reoccurring issues in real-world deployments. Understanding failure mechanisms allows proactive mitigation.

Fastener Loosening and Mechanical Wear

Fasteners can loosen in vibration situations, including aircraft fuselages, vehicle-mounted radar, and tower-top base station antennas. Spring washers retain preload, while thread-locking chemicals chemically prevent vibration. In high-cycle applications, thread inserts or helicoils are needed because soft aluminium threads deteriorate quickly with tougher stainless steel screws.

Corrosion and Environmental Degradation

Salt spray increases corrosion of ostensibly resistant materials in maritime facilities. Temperature cycling brings corrosive electrolytes to fastener surfaces through condensation. Standard stainless steel screws develop crevice corrosion after eighteen months in coastal areas, whereas marine-grade 316 stainless steel fasteners last longer under the same conditions.

Signal Quality Degradation

Vector network analyser tests show electromagnetic discontinuities from incompatible fasteners. Unspecified fasteners with impedance fluctuations increased backhaul insertion loss by 0.8 dB for a telecommunications client. Hardware replacement brought performance within 0.1 dB of design specs.

Root Causes and Prevention Strategies

Batch consistency is important due to supplier manufacturing tolerances. Incoming inspection processes should validate thread gauges, material certificates, and dimensional conformity. Supplier qualification should include ISO 9001 certification and production control audits. Procurement checklists must include thread specification, material grade, coating requirements, and length restrictions, which purchasing teams sometimes neglect while concentrating on cost.

Case Studies: Successful Waveguide Screw Compatibility in B2B Applications

Practical examples show how systematic compatibility care creates supply chain business value.

OEM Manufacturing Efficiency Enhancement

A prominent base station equipment manufacturer had 4% assembly line rejections owing to fastener difficulties. Rework caused production delays and higher labour costs due to cross-threaded installations and dimensional incompatibilities. Three steps were taken: standardising fastener (screw) standards across product lines, consolidating suppliers to two certified manufacturers, and calibrating installation torque verification instruments.

Results came in two quarters. Rejection rates declined to 0.3%, assembly time cut by 12 minutes per unit, and loose connection warranty claims plummeted 67%. Investment in compatibility controls yielded 340% through decreased scrap, quicker throughput, and enhanced field dependability, according to the manufacturer.

Distribution Channel Quality Assurance

Customer returns for "wrong parts"—often valid part numbers with small specification variations—hampered a national RF components reseller. A supplier audit programme verified that stated MIL-SPEC compliance matched test results, dimensional tolerances met drawing requirements, and material certificates matched mill test reports.

This effort reduced return rates from 8% to 2% in six months. More significantly, system integrators developed trust that components would work as intended, improving customer satisfaction. Larger contracts with dependability criteria allowed the distributor to charge more because of its excellent reputation.

Choosing the Right Waveguide Screws: A Buying Guide

Multiple criteria must be balanced against application needs and budget restrictions in procurement choices. Structured approaches decrease risk and optimise TCO.

Matching Specifications to Operating Conditions

Environment influences material choice. Laboratory equipment may use conventional materials, but outdoor telecommunications infrastructure needs corrosion-resistant ones. Due to unequal expansion coefficients, aluminium screws in steel flanges might loosen during temperature cycling.

Power management affects contact pressure. Low-power test equipment promotes dimensional precision above strength, whereas kilowatt radar transmitters need fasteners that preserve the RF seal under temperature stress.

Evaluating Supplier Quality and Certifications

Quality is shown by established systems, not assertions, from reliable vendors. ISO 9001 certification signifies process controls, but quality records give more confidence. For aerospace and defence applications that need material pedigree, material traceability from final fasteners to source material certificates assures composition fulfils criteria.

Manufacturing competence counts. Precision millimetre-wave applications benefit from CNC-machined fasteners' finer tolerances than rolled threads. Passivation, plating, and coating impact corrosion resistance and electrical performance.

Huasen Microwave's Waveguide Hardware Solutions

Microwave and millimetre-wave component manufacturing has been our speciality since 1993. Precision-engineered waveguide fasteners for standard flange connections from WR-430 to WR-10 frequency bands are available. Dimensional verification, material certification, and application-specific surface treatment are performed on each fastener.

ISO 9001:2015 accreditation and defined process controls ensure batch-to-batch consistency at our production plant. Material traceability begins with raw material inspection and finishes with product shipping. NIST-calibrated thread gauges check dimensional conformity, while salt spray testing verifies marine and outdoor corrosion resistance claims.

The advantages extend beyond component quality to include technical help during procurement, which is beneficial. Our engineers verify compatibility, compare system requirements to fastener specifications, and advise on installation and screw use. Customer sample programmes reduce qualification risk by validating compatibility before production.

Building Long-Term Supplier Relationships

Successful procurement involves strategic collaborations, not transactional buying. Suppliers who understand your application needs can suggest changes, warn you of obsolescence, and buffer inventories to alleviate supply chain disturbances. Regular communication about prospective projects helps suppliers plan capacity and acquire raw supplies, reducing urgent lead times.

Conclusion

Waveguide screw compatibility is crucial to RF system design and procurement but sometimes overlooked. Proper fastener selection reduces expensive field failures in telecommunications, radar, aerospace, and test equipment applications by maintaining mechanical integrity and electromagnetic performance. Procurement specialists may specify long-lasting components by knowing thread standards, material requirements, and environmental considerations. Fastener procurement becomes a strategic dependability enabler through supplier certification, quality assurance, and international standards. Compatibility testing decreases maintenance costs, extends system life, and improves operational effectiveness.

FAQ

1. How Do I Verify Screw Compatibility with My Waveguide System?

Use technical datasheets to verify compatibility. Compare metric or imperial thread profile, pitch, and tolerance class to waveguide flange designs. Check material composition for housing metal galvanic compatibility. Compare length, flange thickness, and gasket compression. Physical gauging ensures thread engagement: screws should spin easily without resistance until flange seating.

2. What Materials Work Best for Corrosion-Resistant Applications?

Marine-grade 316 stainless steel resists salt spray corrosion. Protective anodised metal fasteners fit waveguides. Brass with copper alloys performs well in mild humidity. Passivation improves stainless steel, and electroless nickel plating protects substrate metals against corrosion.

3. Can Incompatible Screws Actually Affect Signal Quality?

Absolutely. Poorly seated fasteners cause signal leakage across the RF seal, increasing insertion loss and decreasing VSWR. Impedance at flange interfaces changes due to dimensions, causing return loss reflections. Even sub-decibel deterioration affects measurement accuracy and reproducibility in precision test equipment near noise floors.

Partner with Huasen Microwave for Reliable Waveguide Fastener Solutions

Optimal waveguide system performance requires more than generic hardware. Huasen Microwave offers custom waveguide screw solutions based on 30 years of RF component production. Our technical team works with system integrators, equipment manufacturers, and research organizations to find the best fastener combinations for specific applications. As a leading waveguide component supplier, we have certified hardware that meets worldwide standards, allowing us to meet tight project deadlines. Contact sales@huasenmicrowave.com to explore compatibility issues and learn how our precision-manufactured fasteners speed up installation, improve system dependability, and preserve your essential communications infrastructure investment.
