Waveguide Calibration Kit Usage Guide for 5G RF Laboratories

Understanding proper waveguide calibration kit implementation proves essential for achieving measurement accuracy in modern 5G RF laboratories. These precision instruments eliminate systematic errors in vector network analyzers operating across millimeter-wave frequencies, ensuring reliable characterization of next-generation communication components. Laboratory engineers rely on these calibration standards to establish accurate reference planes, correct directivity errors, and maintain signal integrity throughout complex measurement procedures. The transition to higher frequency bands in 5G applications demands sophisticated calibration techniques that waveguide systems uniquely provide.

Understanding Waveguide Calibration Fundamentals

Modern RF laboratories face unprecedented challenges when measuring 5G components operating in millimeter-wave spectrum regions. Traditional coaxial calibration methods encounter significant limitations above 40 GHz, where connector repeatability degrades, and insertion losses become prohibitive. Waveguide calibration standards address these challenges through precision-machined components that maintain electromagnetic field distribution consistency. Unlike coaxial systems, waveguides propagate energy in TE10 mode, eliminating the higher-order modes that plague connector-based measurements at elevated frequencies. The calibration process establishes mathematical relationships between actual device characteristics and measurement system responses. Vector network analyzers require accurate error term determination to separate device under test performance from test fixture influences. This separation becomes increasingly critical as 5G base stations demand components with extremely tight specifications. Measurement accuracy directly impacts component qualification procedures in 5G development programs. Engineers must verify antenna performance, filter characteristics, and amplifier behavior with confidence levels exceeding traditional communication standards. Waveguide calibration enables these stringent requirements through superior mechanical stability and electrical repeatability.

Essential Components for Comprehensive Error Correction

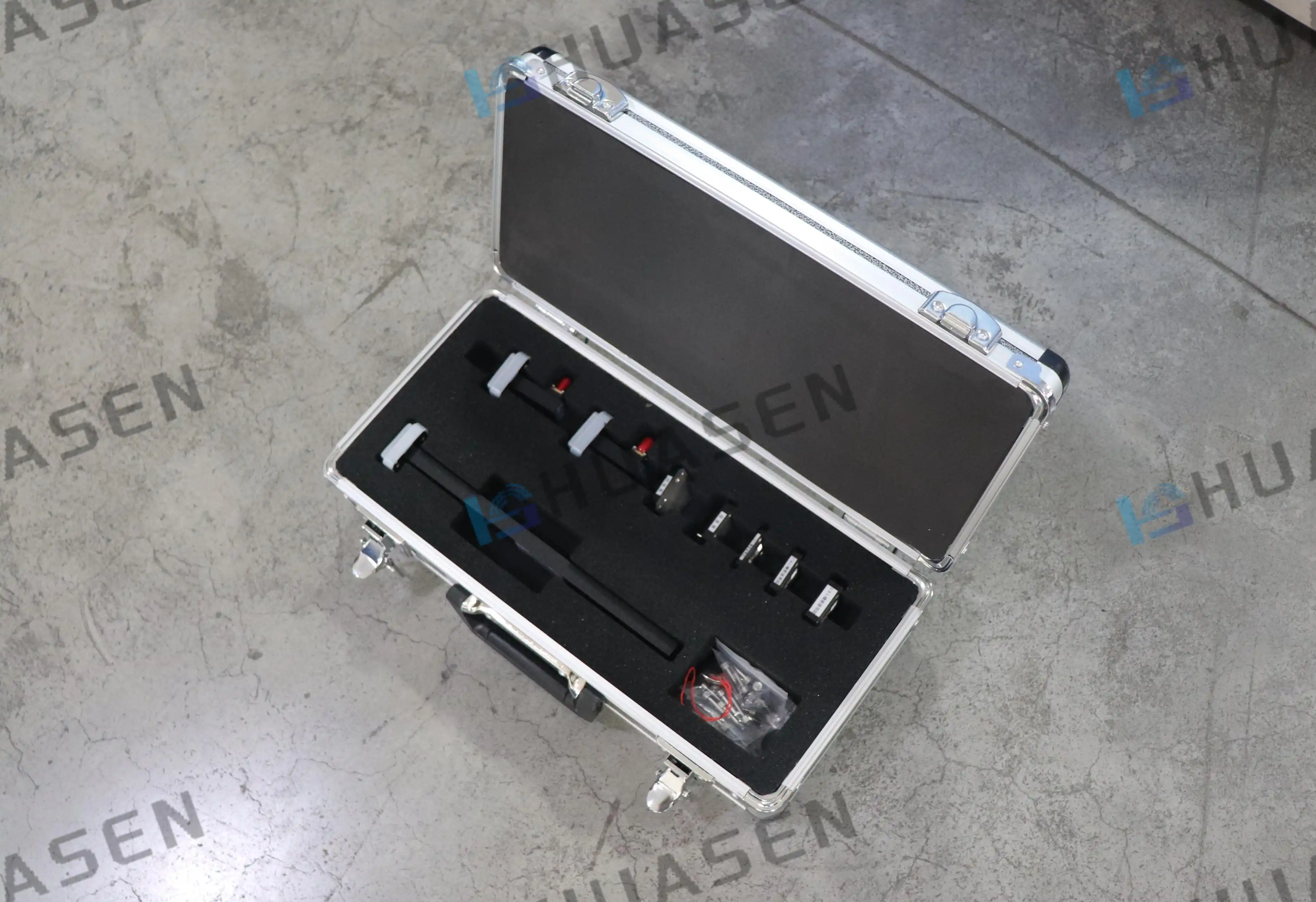

Professional waveguide calibration kits include precisely manufactured standards that enable 12-term error correction algorithms. These components work together to characterize and eliminate systematic measurement errors inherent in test equipment configurations. Waveguide to coaxial adapters serve as critical transition elements, typically available in J-type and K-type configurations. These adapters maintain impedance continuity while providing interface compatibility between waveguide test fixtures and coaxial instrumentation. Manufacturing tolerances on adapter dimensions directly influence calibration accuracy. The waveguide matching load represents perhaps the most critical calibration standard, exhibiting VSWR performance better than 1.03 across operational frequency ranges. This component establishes the reference impedance baseline against which all other measurements compare. Load construction utilizes absorptive materials carefully positioned to minimize reflections while maintaining thermal stability. Fixed waveguide short plates provide high-reflection references with VSWR exceeding 60 dB. These components create nearly perfect reflection boundaries, enabling accurate determination of reflection tracking errors within the measurement system. Short circuit repeatability becomes paramount for maintaining calibration validity over extended periods. Precision waveguide sections in quarter-wave, eighth-wave, and three-eighth-wave lengths enable through-reflect-line calibration procedures. These transmission standards establish phase reference relationships essential for accurate S-parameter measurements. Manufacturing precision requirements for these components exceed conventional mechanical tolerances.

Step-by-Step Calibration Procedures

Successful waveguide calibration requires a systematic approach that accounts for environmental factors and equipment limitations. Laboratory conditions significantly influence measurement repeatability, particularly temperature stability and mechanical vibration isolation. Initial setup involves connecting the vector network analyzer to waveguide test fixtures through appropriate adapters. Equipment warm-up periods typically extend 30 minutes minimum to achieve thermal equilibrium. Frequency span selection should encompass the complete waveguide band to ensure adequate error term characterization. The calibration sequence begins with reflection measurements using the matching load standard. This establishes directivity and source match error terms across the frequency range. Load connection requires careful flange alignment to prevent measurement errors from mechanical discontinuities. Reflection tracking determination utilizes the fixed short circuit standard, providinga high-reflection reference for gain and phase accuracy verification. Multiple connection cycles help identify repeatability issues that could compromise measurement confidence. Transmission tracking measurements employ the precision waveguide sections to characterize forward and reverse transmission error terms. These standards enable isolation error determination and transmission tracking correction. Proper torque application during flange connections prevents deformation that could affect electrical performance. Network calibration completion requires mathematical processing within the vector network analyzer to generate error correction coefficients. These coefficients remain valid until equipment configuration changes or recalibration intervals expire.

Optimizing Measurement Accuracy in Millimeter-Wave Applications

Millimeter-wave frequency ranges present unique challenges that demand specialized calibration approaches. Atmospheric absorption effects become measurable above 60 GHz, waveguide calibration kit requires environmental compensation techniques during precision measurements. Surface roughness considerations gain importance as skin depth decreases with increasing frequency. Waveguide calibration standards require surface finishes that maintain conductivity while preventing passive intermodulation effects. Gold plating thickness optimization balances durability with electrical performance requirements. Mechanical tolerance accumulation affects measurement uncertainty budgets significantly at millimeter-wave frequencies. Flange flatness specifications tighten to maintain electrical contact integrity. Alignment pin precision becomes critical for achieving repeatable connections between calibration cycles. Temperature coefficient effects influence both mechanical dimensions and material properties across operational frequency ranges. Calibration procedures must account for thermal expansion in waveguide dimensions and conductivity variations in plating materials. Laboratory temperature control systems help minimize these influences during critical measurements. Phase stability requirements exceed lower frequency applications by several orders of magnitude. Mechanical vibration isolation prevents phase noise introduction during measurement sequences. Reference oscillator stability specifications must align with measurement accuracy requirements for meaningful results.

Troubleshooting Common Calibration Issues

Laboratory technicians encounter various challenges when implementing waveguide calibration procedures. Systematic troubleshooting approaches help identify root causes and implement corrective actions efficiently. Flange contamination represents one of the most frequent calibration problems. Foreign material between mating surfaces creates electrical discontinuities that compromise measurement accuracy. Regular cleaning procedures using appropriate solvents maintain surface integrity without damaging plating materials. Connector wear manifests as gradually degrading measurement repeatability over extended usage periods. Visual inspection techniques identify wear patterns before they significantly impact calibration validity. Replacement schedules based on connection cycle counts help maintain measurement confidence. Impedance mismatch symptoms appear as calibration verification failures or unrealistic device measurements. These issues often originate from damaged standards or incorrect adapter selections. Verification measurements using known reference devices help isolate problematic calibration components. Environmental influences create measurement drift that appears as time-dependent calibration errors. Temperature variations, humidity changes, and mechanical vibration all contribute to measurement uncertainty. Environmental monitoring systems provide data for correlation with measurement anomalies. Equipment drift manifests as gradual calibration degradation between verification cycles. Internal reference stability, cable flexibility, and connector reliability all influence long-term measurement accuracy. Regular verification procedures using check standards help identify equipment-related issues before they affect critical measurements.

Advanced Applications in 5G Component Characterization

Next-generation wireless systems demand component performance verification across unprecedented frequency ranges and power levels. Waveguide calibration enables accurate characterization of devices operating in these challenging environments. Antenna array measurements require precise phase relationship determination between individual elements. Calibration accuracy directly impacts beamforming performance, waveguide calibration kit, and array optimization procedures. Multi-port calibration techniques extend single-port methods to complex antenna configurations. Filter characterization in 5G applications demands exceptional dynamic range and frequency resolution capabilities. Waveguide calibration enables measurement of high-Q filters with narrow passbands and deep rejection levels. Time domain analysis techniques benefit from accurate calibration for filter impulse response characterization. Power amplifier testing at millimeter-wave frequencies requires calibration procedures that account for device nonlinearities. Large signal measurements introduce harmonic content that must be accurately characterized for system design verification. Calibration validity across wide power ranges becomes essential for meaningful results. Material characterization applications utilize calibration accuracy for precise permittivity and permeability determination. Free space measurement techniques rely on calibrated reference planes for accurate material parameter extraction. These measurements support 5G infrastructure development through advanced material optimization.

Conclusion

Waveguide calibration kit implementation remains fundamental to achieving reliable measurements in modern 5G RF laboratories. These precision instruments enable accurate characterization of millimeter-wave components through systematic error correction procedures. Proper calibration techniques ensure measurement confidence while supporting the demanding performance requirements of next-generation wireless systems. Laboratory success depends on understanding calibration fundamentals, maintaining equipment properly, and following systematic procedures that account for environmental influences. Investment in quality calibration standards pays dividends through improved measurement accuracy and reduced development time for critical 5G infrastructure components.

Partner with Huasen Microwave for Superior Calibration Solutions

Huasen Microwave delivers industry-leading waveguide calibration kit solutions designed specifically for demanding 5G RF laboratory applications. Our comprehensive product portfolio includes precision-manufactured standards that meet the stringent accuracy requirements of next-generation wireless development programs. As a trusted waveguide calibration kit manufacturer with over three decades of experience, we understand the critical importance of measurement accuracy in advancing 5G technology. Contact our technical team at sales@huasenmicrowave.com to discuss your specific calibration requirements and discover how our solutions enhance your laboratory capabilities.
