Top Applications of Coaxial Load in Transmitter Testing

Testing RF transmitters without proper termination creates a cascade of problems: equipment damage from reflected power, signal interference disrupting nearby systems, and unreliable measurements that compromise development timelines. Engineers face these challenges daily when validating transmitter performance, adjusting output parameters, or troubleshooting system failures. A Coaxial Load provides the critical solution by absorbing transmitted power safely while enabling accurate performance evaluation. This comprehensive guide explores how Coaxial Load components serve as indispensable tools across telecommunications, aerospace, radar development, and broadcasting applications, ensuring reliable transmitter testing without risking equipment damage or regulatory violations from unintended signal radiation.

Understanding Coaxial Load Technology in RF Testing Environments

The foundation of effective transmitter testing lies in understanding how Coaxial Load components function within RF measurement systems. These precision-engineered devices serve as artificial loads that absorb radio frequency energy without reflecting it back to the transmitter, a capability essential for protecting sensitive equipment during testing procedures. Engineers working with high-power transmitters, broadcast stations, and radar systems rely on Coaxial Load technology to create controlled testing environments where performance parameters can be measured accurately without external interference or unintended signal propagation.

Core Working Principles of Coaxial Load Systems

Modern Coaxial Load designs incorporate three fundamental working principles that determine their effectiveness in transmitter testing applications. Resistive Coaxial Load configurations utilize precision resistive elements to dissipate RF energy as heat, offering compact dimensions and excellent low-frequency performance with minimal reflection characteristics. These designs typically provide frequency ranges starting from DC up to several gigahertz, making them ideal for wideband transmitter testing where consistent impedance matching across diverse frequency bands is critical. The resistive approach ensures that reflected power remains minimal, typically achieving VSWR values of 1.05 or better, which translates to less than one percent of transmitted power being reflected back toward the transmitter output stage.

Absorptive Coaxial Load technology represents an advanced approach particularly suited for high-frequency and millimeter-wave testing applications. These sophisticated devices incorporate specialized microwave absorbing materials, often based on carbonyl iron compounds or ceramic composites, which convert electromagnetic energy into thermal energy through dielectric and magnetic loss mechanisms. The absorptive design excels in applications requiring ultra-low reflection coefficients at frequencies extending beyond 40 GHz, where traditional resistive approaches may exhibit performance degradation. High-power Coaxial Load variants address the demanding requirements of broadcast transmitter testing and radar development, incorporating plate-type or water-cooled thermal management systems capable of dissipating average power levels up to 400 watts and peak power bursts reaching 5000 watts without performance degradation or thermal damage.

Technical Specifications Critical for Transmitter Testing

Engineers selecting Coaxial Load components for transmitter testing applications must evaluate several critical performance parameters that directly impact measurement accuracy and system reliability. Ultra-low reflection performance, characterized by VSWR values of 1.03 or lower, ensures that transmitted power is absorbed efficiently rather than reflected back toward the transmitter output stage. This specification becomes increasingly critical when testing high-power amplifiers or solid-state transmitters where reflected power can cause immediate damage to output transistors or vacuum tubes. The frequency coverage specification determines the range of transmitter types that can be tested with a single Coaxial Load unit, with premium models offering continuous operation from DC to 60 GHz, encompassing applications from low-frequency communications systems through millimeter-wave radar and 5G infrastructure.

Power handling capability represents perhaps the most critical specification for transmitter testing applications, as inadequate power rating leads to thermal failure, measurement drift, or catastrophic component damage. Professional-grade Coaxial Load devices specify both average power handling, typically ranging from 5 watts for laboratory instruments to 400 watts for broadcast testing, and peak power capability for pulsed transmitter applications where instantaneous power levels may exceed 5000 watts despite modest average power requirements. Connector compatibility ensures seamless integration with existing test equipment, with industry-standard interfaces including N-type connectors designated N-J for male configurations, SMA connectors identified as SMA-J, precision 2.92mm connectors labeled K2.92-J for millimeter-wave applications, and specialized high-power connectors like 7/16 DIN or EIA flanges for broadcast transmitter testing environments.

Primary Applications in Broadcast Transmitter Development

Broadcast engineers conducting transmitter acceptance testing, maintenance procedures, or performance optimization rely extensively on Coaxial Load technology to ensure equipment operates within regulatory specifications without radiating test signals that could interfere with licensed services. During transmitter commissioning, engineers must verify output power accuracy, harmonic distortion levels, modulation characteristics, and spectral purity before connecting antenna systems that would radiate signals across wide geographic areas. High-power Coaxial Load devices enable these comprehensive tests to be conducted in controlled laboratory environments or during field installations, absorbing full transmitter output while instrumentation measures critical performance parameters that determine regulatory compliance and service quality.

Television and Radio Transmitter Testing Protocols

Television broadcast transmitters operating at power levels ranging from several hundred watts for low-power stations to tens of kilowatts for major market facilities require robust Coaxial Load solutions capable of sustained high-power dissipation during extended testing procedures. Engineers performing transmitter characterization must conduct tests spanning multiple hours to evaluate thermal stability, modulation linearity across the full dynamic range, and intermodulation distortion under complex multi-carrier operating conditions. Water-cooled Coaxial Load systems, incorporating precision matched terminations integrated with circulating coolant systems, enable continuous full-power testing without thermal drift that would compromise measurement accuracy. These sophisticated loads maintain stable impedance characteristics even as internal temperatures rise, ensuring that VSWR measurements, return loss evaluations, and power transfer efficiency tests reflect true transmitter performance rather than load parameter variations.

Radio transmitters serving AM broadcast, FM broadcast, and digital radio services present distinct testing challenges that high-performance Coaxial Load components address through specialized designs optimized for specific frequency ranges and modulation formats. FM broadcast transmitters operating in the VHF band from 88 to 108 MHz generate significant RF power with complex multiplex modulation containing stereo audio, subsidiary communications channels, and digital hybrid radio signals. Testing these transmitters requires Coaxial Load devices that maintain consistent impedance across the entire FM band while dissipating average power levels that may reach several kilowatts for major market stations. The Coaxial Load must exhibit minimal reactance variations across the 20 MHz bandwidth to ensure accurate modulation measurements and spectral analysis without introducing measurement artifacts from load impedance variations.

Telecommunications Infrastructure Testing Applications

Modern telecommunications infrastructure development demands rigorous transmitter testing protocols to ensure equipment meets stringent performance specifications for signal quality, spectral compliance, and power efficiency before deployment in commercial networks. Base station equipment for cellular networks, microwave backhaul transmitters for network connectivity, and satellite ground station uplink systems all require comprehensive testing using precision Coaxial Load components that simulate antenna impedances without radiating signals during development and quality assurance procedures. Engineers working in telecommunications equipment manufacturing and network deployment operations utilize Coaxial Load technology to validate transmitter performance under diverse operating conditions, including temperature extremes, supply voltage variations, and modulation formats spanning legacy 3G protocols through advanced 5G waveforms.

Cellular Base Station Transmitter Validation

Cellular base station transmitters incorporating massive MIMO antenna arrays, carrier aggregation capabilities, and dynamic spectrum sharing technologies present complex testing requirements that advanced Coaxial Load systems must address through multi-port configurations and wide instantaneous bandwidth coverage. Testing procedures for 5G base stations operating in frequency range 1 (FR1) from 410 MHz to 7125 MHz require Coaxial Load devices that maintain consistent impedance matching across this extremely wide frequency span while handling power levels that can exceed 100 watts per transmitter chain in high-capacity macro cell configurations. Engineers must verify transmitter performance parameters including error vector magnitude, adjacent channel leakage ratio, and spectral emission mask compliance across all supported frequency bands and channel bandwidths, tests that require stable Coaxial Load terminations to ensure measurement repeatability and accuracy.

The transition to frequency range 2 (FR2) millimeter-wave 5G systems operating from 24 GHz to 52 GHz introduces additional testing challenges that specialized Coaxial Load components address through precision millimeter-wave connector interfaces and enhanced thermal management capabilities. Millimeter-wave transmitter testing requires Coaxial Load devices with 2.92mm, 2.4mm, or 1.85mm precision connectors that maintain excellent VSWR performance at frequencies where connector interface quality becomes the dominant factor affecting measurement accuracy. Testing multi-element phased array transmitters demands multiple matched Coaxial Load units that present identical impedances to each array element, enabling accurate beam pattern characterization and transmit power calibration across the entire antenna aperture without the complexity and expense of far-field antenna range testing during development iterations.

Satellite Communications Ground Station Testing

Satellite uplink transmitters operating in C-band, Ku-band, and Ka-band frequency allocations require specialized Coaxial Load solutions capable of handling high average power levels while maintaining low VSWR across the wide bandwidths characteristic of modern satellite communications systems. Engineers testing satellite ground station transmitters must verify output power stability, modulation quality for DVB-S2X or other advanced waveforms, and spectral purity to ensure compliance with International Telecommunications Union regulations that prevent interference with adjacent satellite systems. High-power Coaxial Load devices rated for average power dissipation of 200 to 400 watts enable full-power transmitter characterization without requiring access to expensive antenna range facilities or risking interference with operational satellite services during testing procedures that may span hours or days as engineers optimize transmitter performance parameters.

Portable satellite communications terminals designed for military, maritime, or emergency response applications incorporate compact, high-efficiency transmitters that must be tested thoroughly despite field deployment constraints that limit available test equipment. These applications benefit from ruggedized Coaxial Load designs that combine precision RF performance with mechanical durability suitable for field testing environments where temperature extremes, humidity, and physical shock may compromise conventional laboratory-grade test equipment. Coaxial Load devices designed for portable applications incorporate precision N-type or SMA connectors rated for hundreds of mating cycles, ensuring long-term reliability in field testing scenarios where repeated connection and disconnection cycles occur during maintenance procedures, equipment upgrades, or troubleshooting operations that require transmitter isolation from antenna systems.

Radar System Development and Testing

Radar transmitter development encompasses applications ranging from automotive collision avoidance systems operating at 77 GHz through maritime navigation radars at X-band to long-range surveillance systems utilizing L-band frequencies, each presenting unique testing requirements that sophisticated Coaxial Load technology must address. Engineers developing pulsed radar transmitters face particular challenges during testing because peak power levels may reach tens of kilowatts despite modest average power levels, requiring Coaxial Load devices specifically rated for high peak-to-average power ratios without thermal or electrical damage. Testing procedures must verify pulse shape fidelity, rise time characteristics, spectral purity, and phase noise performance, measurements that demand ultra-stable Coaxial Load terminations exhibiting consistent impedance throughout each transmitted pulse to prevent waveform distortion that would compromise measurement accuracy.

Military Radar Transmitter Testing Requirements

Defense radar systems operate under demanding specifications for reliability, performance consistency across environmental extremes, and electromagnetic compatibility with other systems deployed in complex battlespace environments. Testing military radar transmitters requires Coaxial Load components that meet stringent military specifications for temperature range, shock and vibration resistance, and altitude operation while maintaining precision RF performance characteristics throughout operational extremes. High-power pulsed radar transmitters generating peak power levels exceeding one megawatt present extraordinary testing challenges that specialized plate-type Coaxial Load configurations address through massive thermal mass and advanced cooling systems capable of absorbing enormous instantaneous power while maintaining impedance stability throughout the pulse duration. These extreme-duty Coaxial Load systems incorporate precision directional couplers that sample transmitted power for measurement purposes while directing the bulk of transmitted energy into resistive terminations designed for peak power dissipation far exceeding continuous wave ratings.

Phased array radar systems incorporating hundreds or thousands of individual transmit/receive modules require testing approaches that verify both individual module performance and collective array operation without the complexity of full antenna integration during development phases. Testing protocols utilize matched sets of Coaxial Load terminations that replace antenna elements during module-level characterization, enabling engineers to measure gain, phase linearity, and power output for each channel independently. The Coaxial Load devices must present identical impedances across all test ports to prevent measurement variations that would mask actual performance differences between transmitter modules, a requirement that demands careful manufacturing control and post-production matching procedures to ensure that large quantities of Coaxial Load units exhibit impedance uniformity within tight tolerances.

Automotive Radar Transmitter Development

Automotive radar systems operating at 77 GHz for adaptive cruise control, collision warning, and autonomous driving functions represent a rapidly growing application area where Coaxial Load technology enables efficient transmitter development without requiring expensive millimeter-wave antenna range facilities. Testing 77 GHz radar transmitters demands Coaxial Load devices with precision 1.85mm or 1.0mm coaxial connectors that maintain excellent VSWR performance at these extremely high frequencies where connector interface dimensions approach wavelength scales. Engineers developing frequency-modulated continuous wave (FMCW) radar transmitters must verify linearity of frequency sweeps spanning several gigahertz, phase noise performance that determines range resolution, and output power stability across temperature ranges from -40°C to +125°C that automotive applications demand. These measurements require Coaxial Load terminations exhibiting minimal impedance variation with temperature, a specification that high-quality designs achieve through careful material selection and thermal compensation techniques.

Laboratory Instrumentation and Calibration Applications

Precision RF and microwave measurement equipment including vector network analyzers, spectrum analyzers, signal generators, and power meters all require periodic calibration procedures that utilize Coaxial Load components as reference standards for impedance, reflection coefficient, and power measurements. Metrology laboratories maintaining traceability to national standards institutes rely on precision Coaxial Load devices characterized with extremely low measurement uncertainty to establish reference planes for calibration procedures. These reference-grade Coaxial Load components undergo extensive characterization using automated network analyzers in temperature-controlled environments to determine their S-parameters across wide frequency ranges with uncertainty levels typically below 0.01 dB for magnitude and 0.5 degrees for phase measurements. The resulting calibration data enables these precision loads to serve as transfer standards that propagate measurement traceability from national laboratories to industrial calibration facilities and ultimately to field measurement equipment used throughout telecommunications, aerospace, and defense industries.

Vector Network Analyzer Calibration Procedures

Vector network analyzer (VNA) calibration represents perhaps the most demanding application for precision Coaxial Load technology because measurement accuracy for devices under test depends directly upon the quality of calibration standards used to characterize the VNA's systematic errors. The Short-Open-Load-Thru (SOLT) calibration procedure, universally employed for coaxial VNA measurements, requires a precision Coaxial Load standard that presents a nearly perfect 50-ohm impedance across the VNA's entire frequency range. Any deviation from ideal load impedance introduces calibration errors that propagate through subsequent device measurements, potentially masking small performance variations in components under test or creating measurement artifacts that do not reflect actual device behavior. Premium-grade calibration Coaxial Load devices achieve VSWR specifications of 1.03 or better across frequency ranges extending to 67 GHz, translating to reflection coefficients below -35 dB that enable VNA calibration with residual directivity errors well below typical device measurement requirements.

Modern multiport VNA systems used for characterizing antenna arrays, multi-channel RF components, and MIMO wireless systems require sets of matched Coaxial Load standards that present identical impedances at all measurement ports to prevent errors in relative phase and amplitude measurements between channels. Manufacturers of precision calibration Coaxial Load sets employ advanced manufacturing techniques including CNC machining to submicron tolerances, precision resistor fabrication with tight tolerance specifications, and comprehensive final testing to ensure that impedance matching between multiple units remains within specified limits. Engineers performing multiport calibrations benefit from Coaxial Load sets where port-to-port impedance variations remain below 0.02 dB in magnitude and 1 degree in phase across the entire measurement frequency range, specifications that enable accurate characterization of complex multi-port devices including beamforming networks, hybrid matrices, and antenna feed systems.

Huasen Microwave Coaxial Load Solutions for Professional Testing

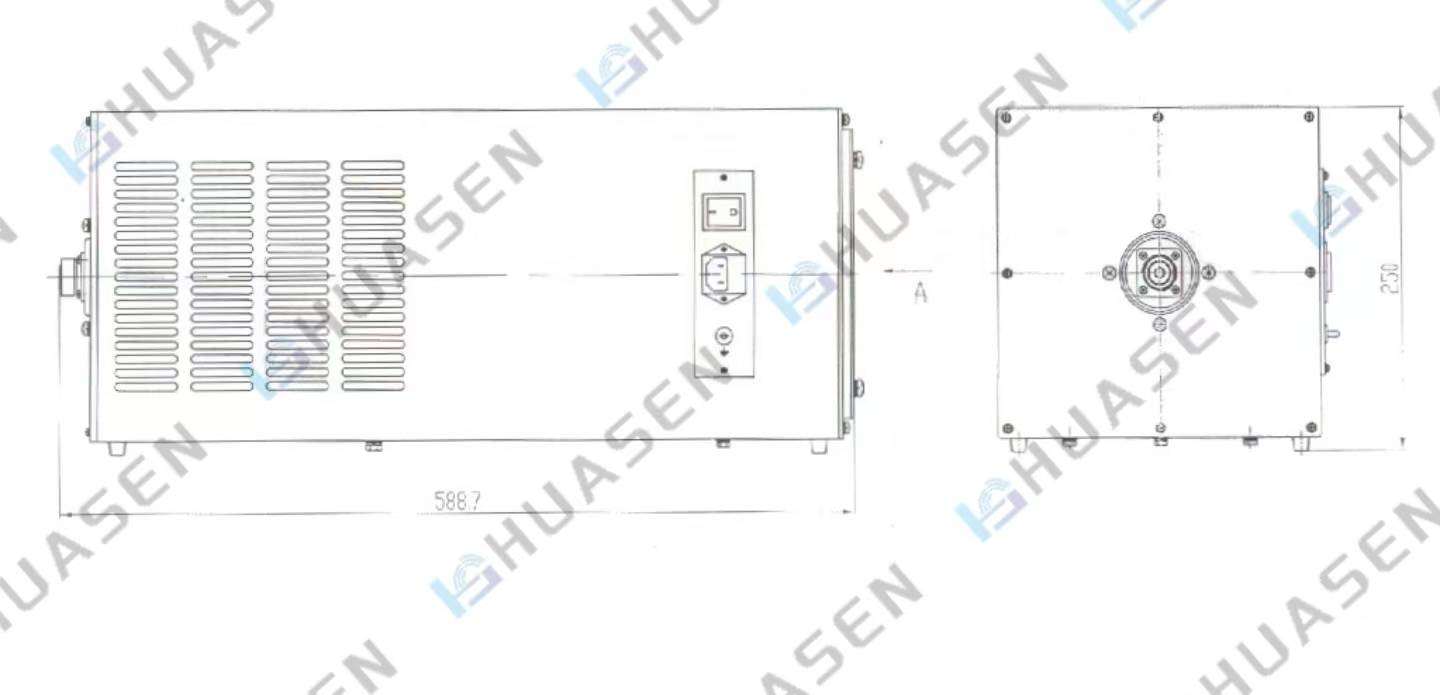

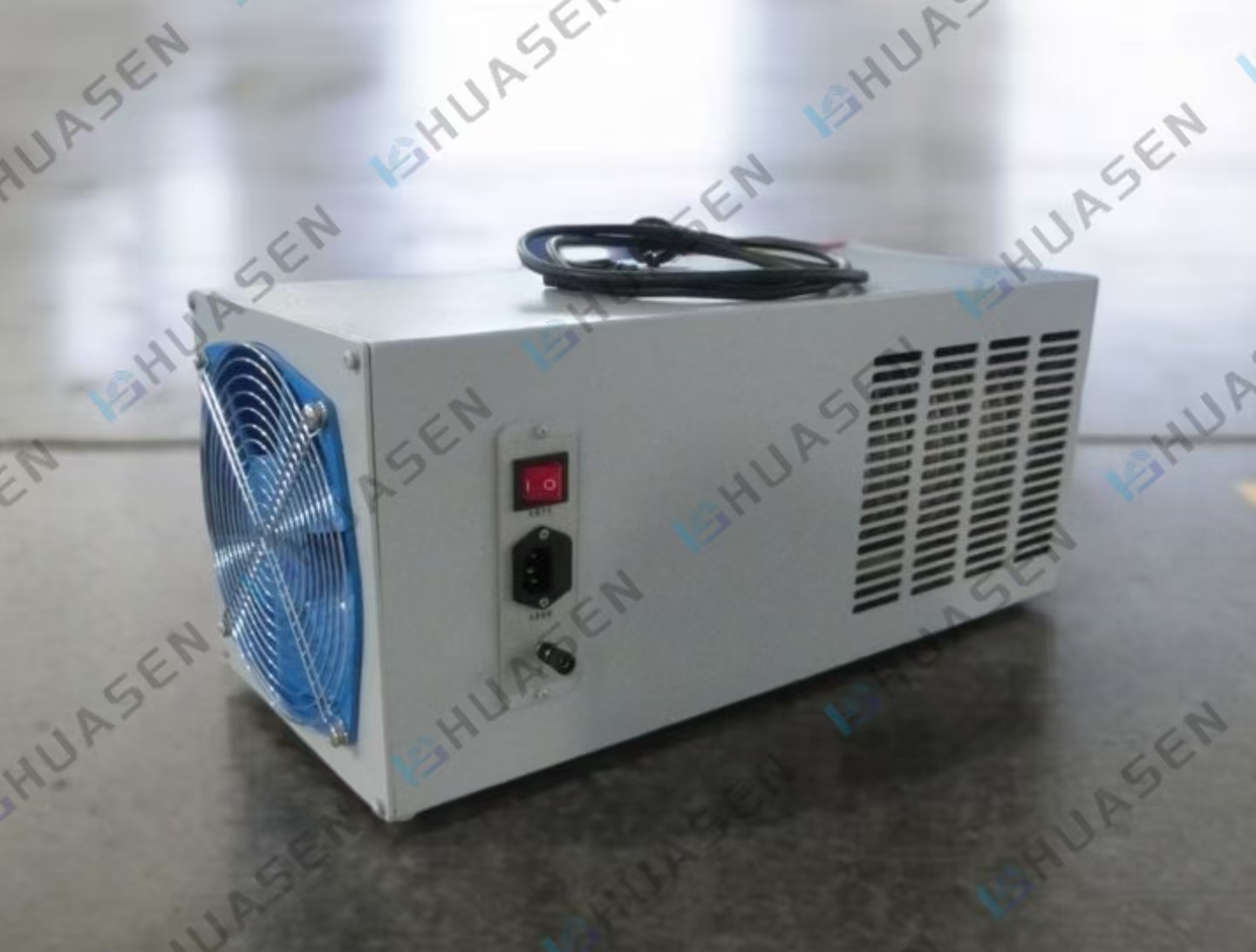

Huasen Microwave Technology's comprehensive Coaxial Load product portfolio addresses the full spectrum of transmitter testing requirements across telecommunications, radar, aerospace, and broadcast applications through three distinct product families optimized for specific performance requirements. The CL series Coaxial Matching Load devices provide precision 50-ohm terminations with VSWR specifications of 1.05 or better across frequency ranges from DC to 40 GHz, making them ideal for general-purpose transmitter testing, laboratory calibration procedures, and RF equipment development. High-power CHPL series Coaxial Matching Load products incorporate advanced thermal management systems including heat sink designs optimized for natural convection cooling or water-cooled configurations for extreme power applications, enabling continuous operation at average power levels reaching 400 watts while maintaining stable electrical performance. The specialized CUL series Coaxial Unmatched Load devices serve applications requiring deliberate impedance mismatches for testing transmitter protection circuits, evaluating amplifier stability under mismatched conditions, or simulating antenna detuning scenarios that occur in operational environments.

Huasen Microwave's precision manufacturing capabilities ensure that Coaxial Load products meet demanding specifications for VSWR, power handling, and thermal stability required for professional transmitter testing applications. Advanced CNC machining centers produce connector interfaces and internal structures with dimensional tolerances of ±0.01mm, ensuring consistent impedance characteristics and excellent connector repeatability across thousands of mating cycles. Gold-plated contact surfaces on all connector interfaces provide superior electrical conductivity and corrosion resistance compared to conventional plating materials, maintaining low-loss connections even in harsh environmental conditions. Comprehensive testing protocols including automated S-parameter measurements, high-power burn-in testing, and thermal cycling validation ensure that every Coaxial Load unit shipped from Huasen Microwave's facilities meets published specifications across the full operating temperature range from -40°C to +85°C.

Conclusion

Coaxial Load technology serves as the foundation for safe, accurate, and efficient transmitter testing across telecommunications, broadcast, radar, and aerospace applications. From broadcast station commissioning through 5G base station validation and automotive radar development, these precision-engineered components enable engineers to characterize transmitter performance without risking equipment damage or regulatory violations. Understanding Coaxial Load working principles, specifications, and application requirements empowers engineering teams to select appropriate solutions that ensure measurement accuracy while protecting valuable test equipment investments.

Cooperate with Huasen Microwave Technology Co., Ltd.

Founded in 1993, Huasen Microwave Technology Co., Ltd. stands as a China Coaxial Load manufacturer and China Coaxial Load supplier with over three decades of specialized expertise in high-frequency microwave and millimeter-wave component development. Our comprehensive product portfolio includes waveguide components, millimeter-wave/microwave antennas, coaxial devices, and active products serving telecommunications, radar, aerospace, and defense applications worldwide. As a certified National High-Tech Enterprise, we maintain ISO9001 quality management systems alongside Environmental and Occupational Health certifications, ensuring every High Quality Coaxial Load meets international standards. Our 3,000-square-meter R&D and production facility houses advanced CNC machining equipment, precision testing instrumentation including vector network analyzers operating to 110 GHz, and three calibrated microwave anechoic chambers supporting comprehensive product validation. Whether you require standard Coaxial Load configurations or custom solutions with specific Coaxial Load price considerations, our experienced engineering team provides comprehensive support from initial specification through delivery. Explore our China Coaxial Load wholesale opportunities and Coaxial Load for sale options by contacting sales@huasenmicrowave.com today. Save this resource for future reference when planning your next transmitter testing project requiring reliable, precision-engineered Coaxial Load solutions.

References

1. Pozar, David M. (2012). "Microwave Engineering, Fourth Edition." John Wiley & Sons, Inc. Chapter 2: Transmission Line Theory.

2. Kaplan, Elliott D. and Christopher J. Hegarty, editors (2017). "Understanding GPS/GNSS: Principles and Applications, Third Edition." Artech House Publishers.

3. Skolnik, Merrill I. (2008). "Radar Handbook, Third Edition." McGraw-Hill Education. Chapter 12: Transmitters.

4. White, Joseph F. (2004). "High Frequency Techniques: An Introduction to RF and Microwave Engineering." John Wiley & Sons, Inc.

5. Anritsu Corporation Technical Note (2020). "RF and Microwave Power Measurement Fundamentals." Application Note Number 11410-00702.
