When choosing a standard gain horn antenna for tough RF tasks, the main question isn't just about performance specs; it's also about what makes that performance stable over years of constant use. The accuracy of these reference antennas depends only on how they are built. Material selection, grinding tolerances, and surface processes have a direct effect on how accurate the gain is, how stable the VSWR is, and how well it works in harsh environments. When buying teams know how structural composition affects electromagnetic behavior, they can choose parts that give consistent testing results, can handle rough field conditions, and can still be traced back to national measurement standards like NIST or NPL.
Understanding Standard Gain Horn Antenna Fundamentals

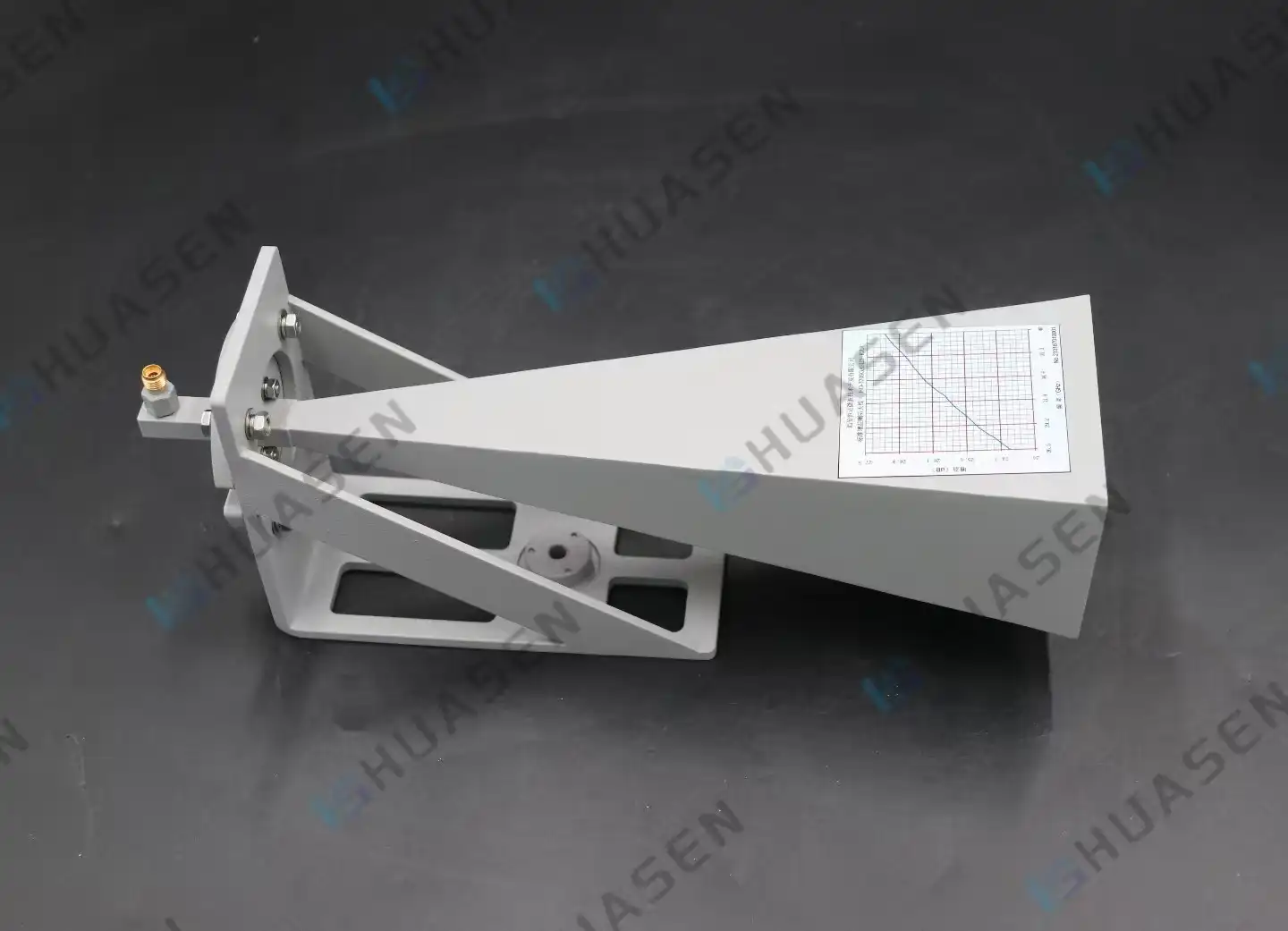

What Defines a Standard Gain Horn Antenna?
In RF and microwave tests, a standard gain horn antenna, which is also sometimes called a reference gain horn, is used as the main measuring tool. These devices don't work with broadband or dual-ridged horns that are made for wide frequency sweeps. Instead, they work with specific waveguide bands like X-band (8.2–12.4 GHz) or K-band (18–26.5 GHz). The exact sizes of their pyramidal or conical apertures are estimated using well-known design methods, such as those in NRL Report 4433, so the gain should be theoretically predicted. Because they are so reliable, they can't be used without them for calibrating antennas, checking for electromagnetic compatibility, and measuring radar cross-sections where the error in the readings must be less than 0.3 dB.
The Role of Geometry in Performance
Radiation properties are determined by the opening width, flare angle, and throat length. Because electromagnetic gain goes up as frequency goes up in the working band (the electrical aperture grows in relation to wavelength), building flaws as small as a micron can change performance too far from what is accepted. This means that during production, material stability and precise cutting can't be compromised.
Material Selection and Signal Integrity
Metals that are used to make horns need to be able to transfer electricity well, not rust, and keep their shape at high and low temperatures. Skin-effect losses are changed by surface roughness, especially at millimeter-wave frequencies, where the current entry depth decreases. When you choose the wrong materials, you end up with gain drift, higher insertion loss, and worse VSWR. These are all major problems in lab reference situations where precision is very important.

Materials Used in Standard Gain Horn Antenna Construction
Selecting appropriate materials balances electrical performance, mechanical durability, and cost efficiency. Each material offers distinct advantages tailored to specific operational demands for the standard gain horn antenna.
Primary Metal Choices
- Aluminum Alloys: Most industrial horn antennas are made from aerospace-grade aluminum (usually 6061-T6). Aluminum is naturally resistant to corrosion and is light and strong. It can also be machined cleanly to tight standards. Its conductivity, which is about 60% of pure copper, is good enough for most radio uses below 40 GHz. Getting rid of extra weight is very important for aircraft and drone-mounted systems that have strict loading limits.
- Copper and Brass: Oxygen-free high-conductivity (OFHC) copper is the best choice when maximum conductivity is very important. Copper's better electron mobility reduces resistance losses, which is very important for high-frequency uses that get close to mmWave bands. Copper and zinc are mixed to make brass, a metal that is easy to work with and still conducts electricity well. Most of the time, these materials are used in lab-grade reference horns that need the lowest insertion loss possible.
- Stainless Steel: Corrosion protection that goes beyond what aluminum can offer is needed in harsh naval or industrial settings. Grades of stainless steel like 316L can handle being exposed to chemicals, salt spray, and high and low temperatures. The trade-off is that the materials are more expensive, heavier, and have slightly higher resistance losses because they are less conductive. A stainless steel building is often required for maritime communications and radar sites in the ocean.
Surface Treatments and Coatings
Over time, the surfaces of raw metal rust, which lowers their conductivity and causes measurement shifts. Surface treatments make shields that keep things safe while keeping or improving their electrical properties. When you anodize aluminum, you make a thin, hard metal layer that stops rust without having a big effect on the RF performance. The method is cheap and is widely used in industrial production. Silver or gold finishing is the best way to keep conductivity, which is especially useful for precision testing standards that need to stay stable for ten years. Chemical conversion coats, such as Alodine, protect things while they are being stored or moved.
Non-Metallic Components
The horn's base is made of metal, but other parts are very important. In coaxial-to-waveguide changes, dielectric materials need to have a low loss slope and stable permittivity even when temperature and humidity change. Most people choose PTFE (Teflon) or polypropylene foams. Connector surfaces, like N-type, SMA, or straight waveguide flanges, need to be carefully made and mechanically attached so that RF doesn't leak out and VSWR stays below 1.5:1.
Construction Methods and Quality Control in Production
Manufacturing precision directly translates to electromagnetic reliability for a standard gain horn antenna. The tightest material specifications mean nothing without exacting fabrication processes.
Precision Machining Techniques
Micron-level precision in dimensions is possible with computer-controlled machining for horn antenna openings and waveguide throats. Five-axis CNC mills can handle complicated pyramidal shapes in a single setup, which cuts down on the spec mistakes that come from doing many processes at once. To stop radiation losses, finishes on the inside of surfaces must have Ra values below 1.6 μm.
Metal Forming and Assembly
For flare sections on bigger horns, made of sheet metal may be bonded or brazed to machined waveguide feeds. TIG welding makes clean joints that don't have any holes or other surface flaws that would stop the flow of current. When you braze with silver-containing metals, you make hermetic rings that are necessary for designs that need to be pressurized or waterproof.
Dimensional Verification
Coordinate measuring tools (CMMs) that can scan with a laser check the correctness of the aperture sizes, flare angles, and internal profiles. Manufacturers keep tolerances on key measurements within ±0.05 mm because gain calculations rely on the physical shape matching the theory models. If the antenna deviates from what was specified, it loses its position as a reference standard.
Calibration and Electrical Testing
Traceability is important to professional buyers. Vector network testers that are set to national norms are used to do full-band VSWR sweeps on each antenna. Gain verification is done in anechoic chambers or open-area test areas by comparing actual results with estimates based on the physical measurements. Standards like ANSI C63.5 or SAE ARP 958 must be used on the calibration papers that show these values. Inspections of the surface finish find rust, pitting, or debris inside waveguide sections. Even small flaws can spread energy and cause resonances that show up as VSWR spikes or gain ripple. Internal surfaces that look like mirrors make sure that current flows smoothly and far-field patterns are reliable.
Real-World Quality Impact
A company that makes telecom equipment got a bunch of X-band reference horns that had 0.5 dB gain changes across frequency. A study of the root cause showed that the surface wasn't treated properly, which led to early rusting that increased resistance losses. The drift was stopped by using gold plating and tighter inspection methods for arriving goods, which restored trust in the measurements. This case shows how the quality of building has a direct effect on the accuracy of calibration and the stability of a system over time.
Comparing Standard Gain Horn Antenna Construction with Other Horn Types
Different antenna categories demand distinct materials and construction approaches. Understanding these differences helps buyers match products to applications involving the standard gain horn antenna.
Standard Gain vs. Wideband Double-Ridged Horns
By adding internal ridges that change the resistance properties, double-ridged designs greatly increase bandwidth, sometimes covering frequency ratios of 2:1 or more. Because it's so complicated, the ridge spacing and angle control have to be very exact, which makes production harder. These antennas give up gain flatness and cross-polarization purity, but they are good for internet monitoring. They usually have more than ±1 dB of uncertainty, which means they can't be used as exact standards. The materials needed are still the same—aluminum or brass with careful interior finishing—but the production process has more complicated parts and tighter tolerances.
High-Gain Parabolic Dishes vs. Horn Structures
Larger openings in parabolic mirrors make them more direct. The building process changes to methods for shaping reflector surfaces and making precise attachment hardware. Surface precision needs to keep its shape to within a few wavelengths, which calls for strong materials like solid machined pieces or honeycomb composites made of aluminum. With no moving parts or changeable feeds, horns such as the standard gain horn antenna are built in a way that is easier and more durable. This means that they are cheaper to make and more reliable in the field.
Conical vs. Pyramidal Horn Geometry
Conical horns have circular openings and symmetrical designs, making them perfect for systems that need regularity in the azimuthal direction. Lathe spinning is used instead of grinding in manufacturing, which can make production easier. Pyramidal horns with rectangular openings fit waveguide sizes better and let you control the E-plane and H-plane beamwidths separately. The amount of material and finishing needed stays the same, but the cost of tools and setting changes depending on the shape.
Procurement Considerations for Materials and Construction
Strategic procurement balances the performance requirements of the standard gain horn antenna against budget constraints and delivery schedules.
Evaluating Vendor Expertise
Manufacturers that have been around for a while can show that they are good at what they do by having certifications like ISO 9001 for quality control, ISO 17025 for testing, and compliance with standards like MIL-STD-461 or RoHS. Ask for sample testing certificates that prove they can be tracked back to national labs. Ask if the company has its own metrology facilities; sellers that have their own anechoic chambers and properly adjusted measuring tools show that they have put a lot of money into their technology. When normal catalog goods don't meet system needs, the ability to customize them is important. Companies like Huasen Microwave Technology, with more than 30 years of experience, offer both stock goods and custom solutions.
Material Cost vs. Performance Trade-offs
The cost-effectiveness of aluminum structures is great for most uses. It costs 20–40% more per unit to upgrade to copper or valuable metal plating, but it may be necessary for ultra-stable lab standards or mmWave frequencies above 30 GHz. Stainless steel is more expensive and heavier, and it should only be used when the climate calls for maximum corrosion protection. Material requirements should be asked for in great depth by procurement managers. When you know what affects price, you can make smart choices about when high-end materials really do improve system performance.
Logistics and Lead Time Considerations
Precision horn antennas, including standard gain horn antennas, aren't something you can just buy. Custom machining, testing, and paperwork are all parts of manufacturing. Depending on how much tailoring is done, wait times are usually between 4 and 8 weeks. There may be fees for speeding orders. When shipping, things need to be protected because bumps can change the shape of holes or break connections, which lowers the electrical performance. Import taxes, delays at customs, and coordinating quality inspections are some of the things that can go wrong in global supply lines.
Conclusion
The efficiency of a standard gain horn antenna depends on the materials used and the quality of the build. Aluminum, copper, and stainless steel are all useful for different tasks, and surface processes make sure they will stay stable over time. Precision machining and strict testing make sure that the precision of the dimensions leads to expected electromagnetic behavior. To be successful in procurement, you need to understand these basic technical issues and work with makers who show they have engineering knowledge and a commitment to quality. Buyers get parts that give accurate reference readings for years of tough use by putting tracking, customization, and proven reliability at the top of their list of priorities.
FAQ
1. What materials best balance durability and electrical performance?
For most RF uses, aerospace-grade aluminum metals like 6061-T6 are the best choice. They are easy to machine, don't rust, and carry electricity well enough up to 40 GHz while keeping the weight and cost low. OFHC copper with silver or gold plating is needed when maximum conductivity is important, like in precision laboratory standards or mmWave frequencies, even though it costs more. Stainless steel works well in tough naval or industrial settings where resistance to corrosion is more important than conductivity for the standard gain horn antenna.
2. How does construction quality affect calibration accuracy?
Gain prediction is directly controlled by how precise the dimensions are. Even a difference of 0.1 mm in aperture size can change the gain by 0.2 to 0.5 dB, which means that the standard is no longer acceptable. When the inside of a surface is rough, it causes scattering losses that show up as VSWR decline and pattern confusion. Thorough quality control, including CMM checks, full-band VSWR sweeps, and anechoic chamber gain measures, makes sure that produced antennas match their theoretical performance within certain error limits, usually ±0.3 dB.
3. Can materials and coatings be customized for specialized environments?
Reliable makers offer customization to meet the specific needs of each business. You can choose from conformal coats that protect against humidity, special anodizing colors that control heat, and fully sealed designs that can be used in vacuum or pressurized environments. You can choose from more connectors than just N-type or SMA. For example, you can use K-connectors for mmWave or ruggedized military-spec connections. Talking to suppliers about specific external factors, like high or low temperatures, vibration patterns, and chemical exposure, lets you get custom material and coating solutions.
Partner with Huasen Microwave for Precision-Built Horn Antenna Solutions
When you choose the right standard gain horn antenna provider, you'll be working with someone who knows that precise construction isn't an option—it's necessary for accurate measurements. Huasen Microwave Technology uses advanced CNC machining, strict testing procedures, and careful material selection to make every product. They have more than 30 years of experience making RF components. Our engineering team works directly with your purchasing and technical staff to make sure you get the stock goods that cover standard waveguide bands and the custom solutions that you need for specific frequencies and environmental conditions. You can talk about your project needs at sales@huasenmicrowave.com, ask for full specs, or get prices from a reliable manufacturer. We give you calibration documents that can be tracked, customizable options, and reliable delivery times that keep your projects on track.
