Selecting Circular Straight Waveguide Materials

Choosing a Circular Straight Waveguide material depends on how well it conducts electricity, lasts mechanically, and manages the environment. Circular Straight Waveguides with thin metal tubes that are exactly circular convey electromagnetic waves with negligible loss in high-frequency applications. The most frequent materials are copper, aluminium, or stainless steel. Material affects signal loss, temperature stability, power management, and long-term reliability. These material facts enable procurement managers and RF engineers to choose wisely, balancing system demands with budgets.

Understanding Circular Straight Waveguides and Their Material Requirements

Circular Straight Waveguides transmit microwave and millimetre-wave data via hollow tubular conductors using electromagnetic field confinement in metal walls. Rotational symmetry is possible with circular straight waveguides, unlike rectangular ones. This enables two polarisations to flow through and simplifies radar and satellite tracking with rotating joint assemblies.

Fundamental Structure and Electromagnetic Properties

The circular cross-section is used in TE11, TM01, and TE21 transmission modes. The primary TE11 mode has the lowest cutoff frequency, making it broadband-capable. The unique TE01 mode decreases attenuation as frequency climbs. This makes it ideal for long-distance millimetre wave transmission. This mode activity is unmatched by coaxial cables and rectangular waveguides, particularly above 10 GHz, when transmission lines lose power.

How Material Selection Impacts Performance

Electrical conductivity controls signal attenuation, thermal conductivity controls heat dissipation during high-power operation, mechanical strength keeps the structure intact during vibration and thermal cycling, and corrosion resistance ensures long life in harsh environments. Copper conducts electricity better (5.96 × 10^7 S/m), reducing insertion loss but increasing cable weight. Aluminium is ideal for aircraft and mobile platforms because of its high conductivity-to-weight ratio (3.77 × 10^7 S/m) and one-third density compared to copper. Despite being less conductive (1.45 × 10^6 S/m), stainless steel is sturdy and rust-resistant, making it ideal for maritime and industrial applications.

Common Materials and Surface Treatments

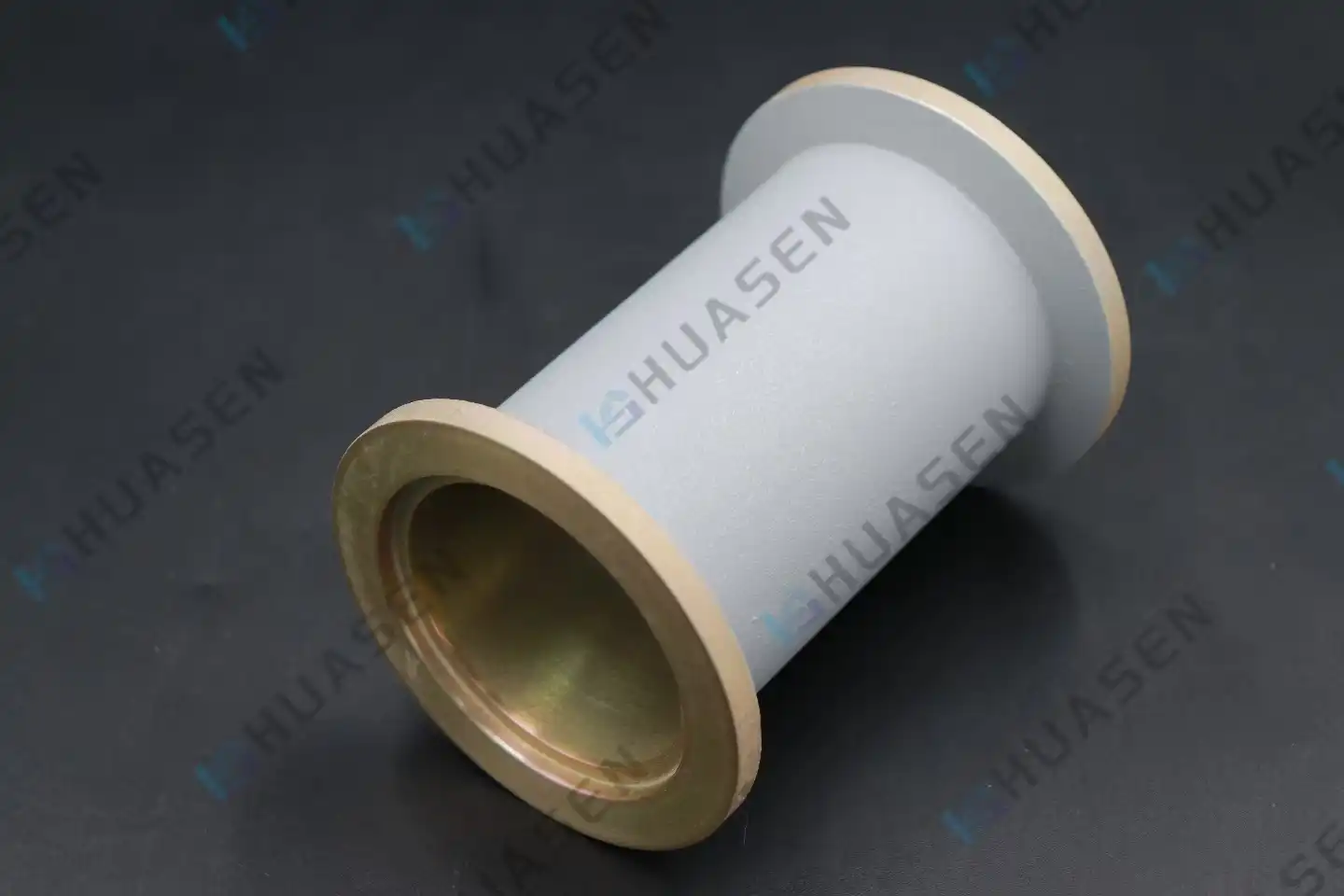

Huasen Microwave's CWAL Circular Straight Waveguides demonstrate material versatility. The copper variant (designation C) is excellent for laboratories and stable installations where efficiency trumps weight. Aluminium models (A name) are used in aeroplanes, drones, and portable communication devices to reduce weight, which affects fuel consumption and deployment. Chemical facilities and offshore locations employ "S"-marked stainless steel because salt spray and corrosive air rapidly degrade copper or aluminium.

Surface treatments enhance a material's fundamental properties. Silver plating decreases X-band surface resistance below bare copper, reducing loss by 15-20%. This technique is crucial for low-noise sensor front-ends for deep space radio research and communications. Gold plating doesn't conduct electricity as well as silver, but it prevents connections from rusting and maintains resistance in military equipment that must be durable and endure for decades. Passivation techniques on stainless steel create oxide layers that prevent pitting rust without thickening the steel, which might impact fit.

Critical Criteria for Selecting Circular Straight Waveguide Materials

When making a purchase choice, you have to look at a lot of different factors that are all important for different parts of the system's performance and its total cost of ownership for a Circular Straight Waveguide.

Electrical Performance Considerations

Signal loss per length remains the electrical norm. Copper losses for WR-90 rectangular waveguides are 0.034 dB/m at 10 GHz, whereas TE11 Circular Straight Waveguides are 0.028. This value drops further to 0.012 dB/m at higher frequencies when the Circular Straight Waveguide is in TE01 mode. This demonstrates why particle accelerators and fusion reactor monitoring need circular form for extended gearbox runs.

The voltage standing wave ratio (VSWR) relies on part quality and surface smoothness. Limits depend on the material. Aluminium is simpler to produce than stainless steel, allowing for more exact diameter control (±0.005 mm vs. ±0.010 mm). This precision affects mode purity and cross-polarisation detection. This is crucial in dual-polarised satellite earth station feeds that need 30 dB orthogonal polarisation separation.

Mechanical Durability and Thermal Management

Base stations and radar pedestals vibrate and heat/cool waveguide elements. Copper has a thermal expansion coefficient of 16.5 × 10^-6 /°C, whereas aluminium has 23.1 × 10^-6 /°C. The junction must be carefully engineered to eliminate leak pathways and impedance fluctuations from -40°C to +85°C. Stainless steel is ideal for shock loads and mounting stress because of its lower expansion coefficient (17.3 × 10^-6 /°C) and greater yield strength (205 MPa vs. 70 MPa for aluminium).

Thermal conductivity is crucial for high-power emitters. Copper waveguides dissipate heat 25 times better than stainless steel and 60% better than aluminium. Its power capacity depends on this differential. Acircular-sectionstraight waveguidecomposed of copper rated for 5 kW of continuous power may only manage 3.5 kW in aluminium or 2 kW in stainless steel of the same size if it cools naturally via convection.

Environmental Resistance and Coating Options

Air that is heavy in salt speeds up the degradation of marine and seashore structures. Aluminium naturally develops protective oxide layers, but it rusts when mixed with other metals. Anodising makes oxide layers stronger and tougher to resist wear and maintain electrical flow. Copper requires frequent maintenance or protective coverings in moist spots because copper oxide deposits increase surface resistance and degrade electrical performance. 304-grade stainless steel is corrosion-resistant due to its 18% chromium content. Although maintenance is unnecessary, the steel will lose more over time.

Cost-Effectiveness and Supply Chain Factors

Material prices fluctuate with commodity markets. Aluminium stock is 40% more expensive than copper stock of the same quantity. Machining costs offset raw material savings. Compared to aluminium, cutting stainless steel requires carbide tools and slower speeds, which increases production time by 30 to 50%. Standard aluminium and copper Circular Straight Waveguides ship in 4–6 weeks, while bespoke stainless steel ones take 10–12 weeks. This may disrupt system designers' delivery of contract projects.

Comparing Circular Straight Waveguide Materials: Performance and Application Scenarios

The final decision about which material to use for a Circular Straight Waveguide is based on application-specific priorities that balance different performance needs.

Copper: Maximum Conductivity Applications

Metrology and lab reference standards employ copper waveguides for precise measurements due to minimal loss. NIST uses copper waveguide calibration standards with silver-plated innards to monitor network analyser data. Despite their weight and necessity for stronger mounting frames, copper circular straight waveguides in VHF and UHF broadcast stations can absorb multi-kilowatt continuous power with adequate heat.

Aluminium: Weight-Critical Systems

Aluminium is 8 times stronger than copper, making it important in aircraft and the military. Airborne early warning radar systems employ 50–100 metres of aluminium waveguides instead of copper ones, which add 200–300 kg and reduce fuel economy and range. Aluminium waveguide-equipped UAVs may carry 15-20% more, allowing longer flights or more sensors. Aluminium is simple to produce, allowing speedy prototyping during system development, when design changes are common.

Stainless Steel: Harsh Environment Solutions

Military ships and offshore oil rigs require stainless steel waveguide systems that can withstand salt spray, severe temperatures, and mechanical damage. The USS Gerald R. Ford features stainless steel Circular Straight Waveguides for dual-band radar. The greater beginning price and small electrical performance losses are offset by their 30-year service life. Stainless steel's chemical inertness allows industrial microwave heating systems that use hazardous chemicals to withstand 40% more loss than copper.

Application-Specific Material Selection

Sending and receiving satellite ground stations employ copper waveguides in fixed low-noise receiver chains. Less loss makes the system more responsive. Rotating antenna units are connected to aluminium waveguides by precision rotary joints. Joints need less motor power and bearing stresses due to their smaller bulk. Weather radars employ many materials wisely. Stainless steel is used for visible antenna-mounted pieces, aluminium for pedestal runs, and copper for sensitive reception front-ends. In this manner, each portion performs best in its own context.

5G millimetre-wave backup lines employ aluminium Circular Straight Waveguides in TE01 mode to establish point-to-point connections 500 to 1000 metres from cell towers at 28 and 39 GHz. The same systems employ copper rectangular waveguides for shorter, higher-power transmitter connections when mechanical comfort is more essential than weight.

Procurement Insights: How to Source and Evaluate Circular Straight Waveguide Materials

To be a good buyer, you need to look at more than just price when comparing suppliers for a Circular Straight Waveguide. You also need to look at their technical skills and help systems.

Identifying Qualified Manufacturers

Well-known firms have ISO 9001 and AS9100-approved quality management systems. This ensures a consistent production process and product traceability. Huasen Microwave Technology, founded in 1993, specialises in waveguide components. This institutional expertise solves real-world customisation issues and guarantees complicated requirements are delivered reliably.

Leading vendors give testing records including VSWR values, insertion loss descriptions throughout operating bands, and mechanical dimension data that may be connected to calibrated measuring equipment. This data is crucial for system setup and troubleshooting.

Customisation Capabilities and Technical Support

System requirements seldom match standard catalogue items. Suppliers with engineering teams may support design by offering flange arrangements for mounting restrictions or mode suppression features for multi-mode usage. Huasen Microwave's CWAL series offers length and radius options to meet diverse installation forms without bespoke tools.

You may test anything before complete production using sample assessment programs. Ask for lab-characterised samples to determine how well the product is created and how well it performs with other aspects of the system. This process is particularly important when assembling waveguides using equipment from many sources, where varied dimensional tolerances might make the contact challenging.

Quality Certifications and Compliance Standards

MIL-STD-348 (waveguide and flange specifications) and MIL-STD-810 (shock, vibration, and temperature cycling) apply to military and aviation. The ITU specifies passive intermodulation (PIM) performance requirements for commercial communications equipment. Quality third-order PIM devices are normally required to exceed -150 dBc. All European products must comply with RoHS (Restriction of Hazardous Substances), and this is becoming more crucial for global products.

These certificates demonstrate that vendors value quality above ISO registration. This reduces risk for purchasing managers on regulated projects.

Pricing Strategies and Lead Time Management

Quotes should include unit pricing, tooling costs for specific setups, minimum order quantities, and material-dependent wait times. Aluminium and copper waveguides ship more quickly due to additional vendors. During peak oil and gas demand, stainless steel may ship more slowly.

A firm producing more than 100 units may utilise bulk pricing discussions to acquire the best material and production schedule bargains. Framework agreements with suppliers enable uniform pricing and priority manufacturing slots, which help system designers working on several projects.

Best Practices and Material Selection Tips for Procurement Managers and Engineers

Using organised choice processes leads to better Circular Straight Waveguide material selection and fewer expensive redesigns.

Aligning Material Properties with System Requirements

A weighted scoring matrix should weight electrical performance 40% for receive-only systems, mechanical durability 40% for transportable installations, and cost 20% for all purposes. This mathematical strategy prevents emotional judgments and stores rationale for later use.

Thermal modelling determines if passive or forced air cooling is required during planning. Natural airflow may allow copper waveguides that dissipate 100W over a one-meter length to withstand a typical temperature increase. However, aluminium waveguides may need heat sinks or active cooling, which would complicate and cost more than the material savings.

Leveraging Supplier Expertise

Involve providers early in design by offering them generic requirements, not standards. Before building anything, experienced manufacturers check for potential issues like mode shift at discontinuities, flange compatibility throughout environmental extremes, or growing stress concentrations. This collaborative approach reduces prototype versions and speeds time to market.

Request case studies with related usage. After supplying parts for 5G infrastructure, satellite communications, and radar systems, Huasen Microwave has developed proven technological solutions. These methods reduce technological risk compared to untested concepts.

Documentation and Traceability

Maintain thorough material approval records for manufacturing lots. When electrical performance doesn't match predictions, traceability is crucial for diagnosing a system. Determining if issues are caused by material variances, manufacturing errors, or design constraints helps determine how to remedy them.

Technical designs should include material grade (6061-T6 aluminium vs. 6063-T5), surface finish requirements (Ra values), and finishing thickness ranges. When specifications are unclear, suppliers will interpret them differently, making part interchange between manufacturing batches difficult.

Emerging Materials and Advanced Coatings

Hybrid materials with aluminium cores and copper or silver covering are being studied. Copper-like electrical performance at aluminium weight is the target. The two-metal frameworks make manufacturing harder, but they may be cost-effective for high-volume aircraft. Nanotechnology-based coatings resist corrosion and electrical flow better than standard treatments, although long-term dependability data are limited.

Procurement professionals may keep up with these developments by reading technical periodicals and attending industry courses. They may embrace mature developments, which improve component performance and offer them a competitive advantage.

Conclusion

Circular Straight Waveguide materials must be considered for their electrical, mechanical, environmental, and cost properties. Fixed systems that value signal quality conduct best with copper. Aluminium is excellent for lightweight aircraft and transportable platforms, and stainless steel for tough industrial and marine settings. Know these fundamental trade-offs, interact with competent makers early in the planning process, and retain records that support the system's long-term reliability to be excellent at procurement. Engineers and procurement managers use systematic assessment criteria and suppliers' expertise to choose the best system parts to satisfy performance requirements throughout their operational lifetimes while lowering acquisition costs.

FAQ

1. What determines the best material choice for circular straight waveguides?

The best material for your purpose relies on what's most important to you. Copper has the least amount of signal loss, which makes it perfect for high-sensitivity sensors and lab standards that don't have to worry about weight. Aluminium has the best strength-to-weight ratio for mobile and flying platforms, where reducing mass has a direct effect on how well they work. Stainless steel can handle harsh environments and mechanical stress in industry and marine settings. Look at the budget, working surroundings, mechanical limitations, and electrical performance needs of your system to find the best mix between these different factors for a Circular Straight Waveguide.

2. How does surface plating affect waveguide performance?

Silver plating lowers the surface resistance below that of bare copper. This lowers loss by 15–20% in microwave bands, which is important for radio astronomy and deep space transmissions where system sensitivity needs to be maximised. Gold plating stops oxidation and keeps contact resistance fixed over many years. This is very important for defence systems that need to be reliable for a long time without any upkeep. These treatments cost more, but they improve efficiency in difficult situations where the basic qualities of the material are not enough.

3. Can different materials be combined in a single waveguide assembly?

Yes, hybrid systems use materials that are specifically designed to meet the needs of each part. Stainless steel is often used for antenna parts that are open to the weather, aluminium for pedestal runs that rotate, and copper for receiver links that need to be very secure. To keep echoes and mode conversion from happening, the flanges and impedances of transitions between different materials need to be carefully designed and matched. Galvanic corrosion at surfaces needs the right seals and finishes to protect them, especially when aluminium is mixed with copper or stainless steel in damp places.

Partner with a Trusted Circular Straight Waveguide Manufacturer

Huasen Microwave Technology has been making high-frequency waveguide components for more than 30 years and works with companies all over the world in the defence, aircraft, communications, and radar industries. For your specific needs, our CWAL series Circular Straight Waveguides are available in copper, aluminium, and stainless steel. They can handle various electromagnetic modes (TE11, TM01, and TE21). We offer flexible length and radius configurations, thorough test paperwork, and quick expert help throughout the whole procurement process. Our ISO 9001-certified manufacturing makes sure that the quality is always the same and that we can deliver on time for both prototypes and full production runs. Get in touch with our engineering team at sales@huasenmicrowave.com to talk about the waveguide material you need and find out how our customisation options can help you make your next RF system design better.

References

1. Montgomery, C.G., Dicke, R.H., & Purcell, E.M. (1948). Principles of Microwave Circuits. McGraw-Hill Book Company, New York.

2. Marcuvitz, N. (1986). Waveguide Handbook. Institution of Engineering and Technology, London.

3. Saad, T.S. (1971). Microwave Engineers' Handbook, Volume 1. Artech House, Dedham, Massachusetts.

4. IEEE Standard 1785-2012. (2012). IEEE Standard for Rectangular Metallic Waveguides and Their Interfaces for Frequencies of 110 GHz and Above. Institute of Electrical and Electronics Engineers.

5. Pozar, D.M. (2011). Microwave Engineering, 4th Edition. John Wiley & Sons, Hoboken, New Jersey.

6. Collin, R.E. (1991). Field Theory of Guided Waves, 2nd Edition. IEEE Press, Piscataway, New Jersey.
