Performance Tips for Double Ridged Waveguide Bend

When your radar system experiences unexpected signal degradation or your telecommunications equipment shows inconsistent performance across frequency bands, the culprit might be poorly optimized waveguide bends. Double Ridged Waveguide Bend components are critical elements in high-frequency RF systems, and understanding how to maximize their performance can mean the difference between system success and costly failures. This comprehensive guide addresses the most common challenges engineers face when implementing Double Ridged Waveguide Bend solutions, providing actionable tips to ensure optimal signal transmission, minimize losses, and achieve reliable operation across demanding applications in aerospace, defense, and telecommunications industries.

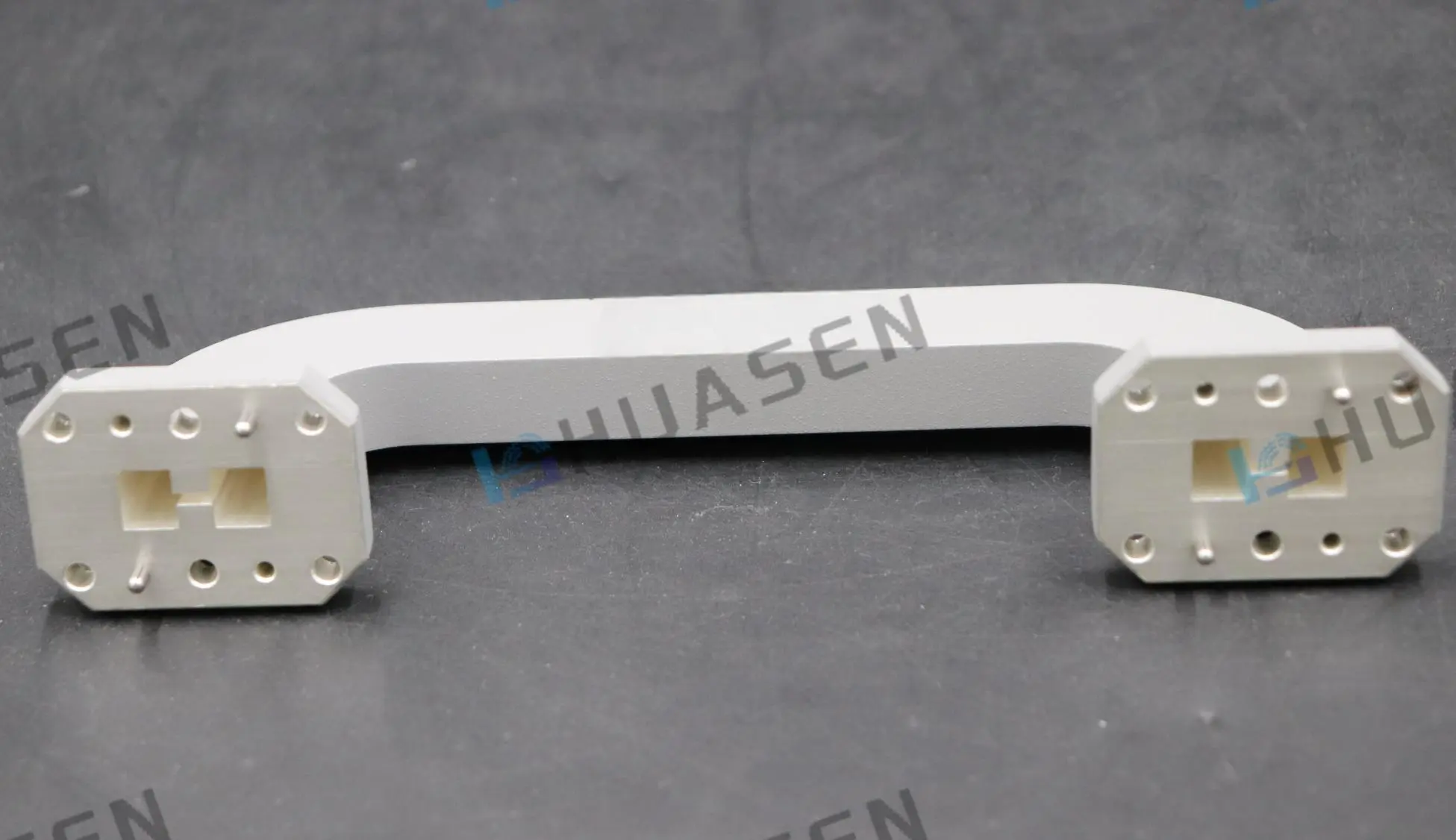

Understanding Double Ridged Waveguide Bend Performance Characteristics

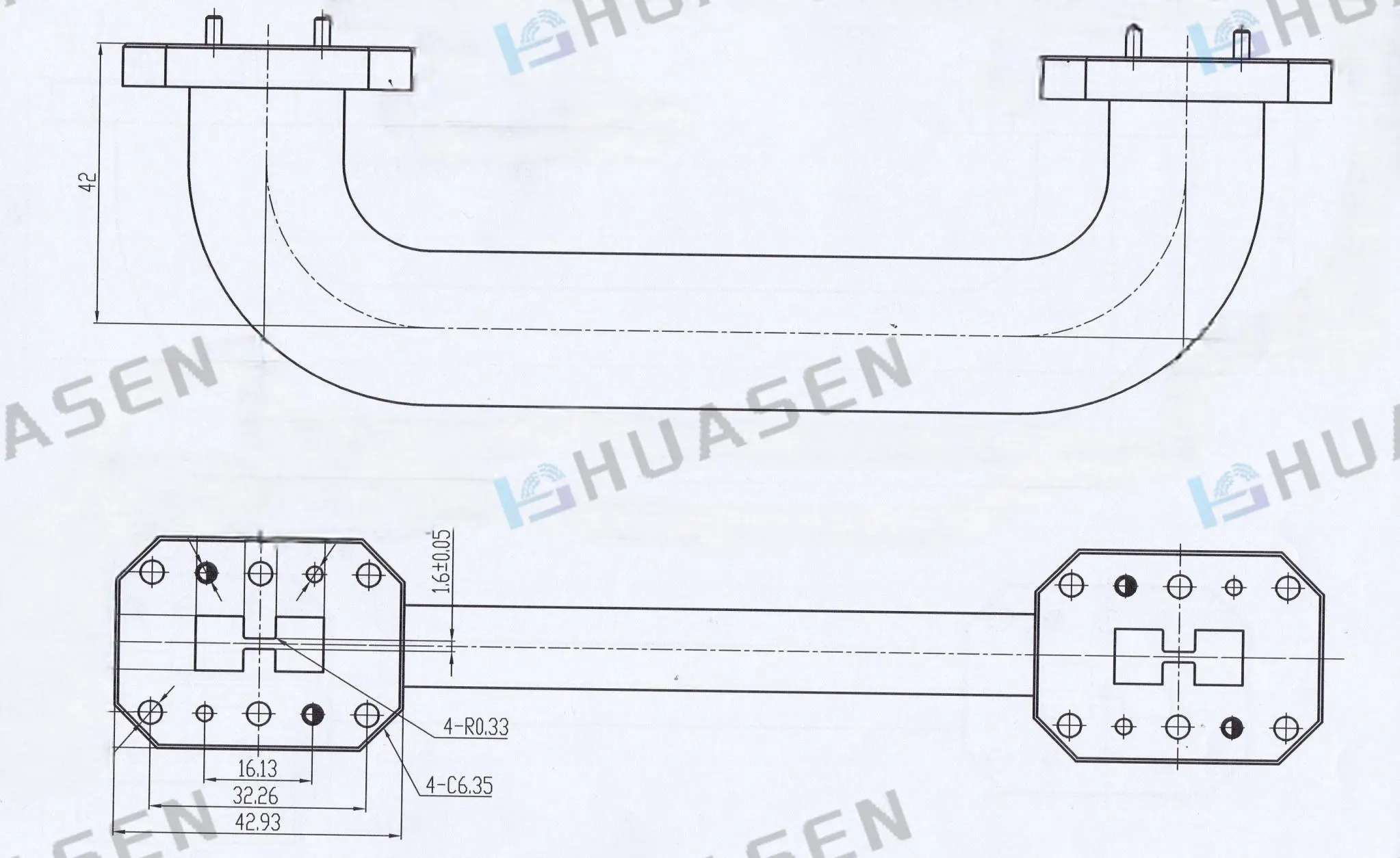

The performance of a Double Ridged Waveguide Bend fundamentally depends on its ability to maintain signal integrity while changing transmission direction. Unlike standard rectangular waveguides, double ridged designs incorporate two symmetrical ridges that extend into the waveguide cavity, creating a modified electromagnetic field distribution. This unique geometry enables the Double Ridged Waveguide Bend to operate across extraordinarily wide frequency ranges, typically from 0.84 GHz to 40 GHz, making them indispensable for broadband applications. The dual-ridge structure reduces the cutoff frequency while maintaining single-mode operation, effectively expanding the usable bandwidth by a factor of up to ten compared to conventional waveguide bends. However, achieving optimal performance requires careful attention to several critical parameters including VSWR characteristics, insertion loss, and power handling capabilities.

Critical VSWR Specifications and Their Impact

Voltage Standing Wave Ratio represents one of the most important performance indicators for any Double Ridged Waveguide Bend installation. A well-designed bend should maintain VSWR values at or below 1.25 across the lower frequency ranges, with slightly higher tolerances of 1.3 acceptable at higher frequencies where manufacturing precision becomes more challenging. These specifications directly translate to reflected power percentages, with a VSWR of 1.25 corresponding to approximately 1.1% reflected power and 98.9% transmitted power. Engineers must understand that every tenth of a point increase in VSWR represents measurable system degradation, particularly in cascaded systems where multiple bends and components compound reflection losses. When selecting a Double Ridged Waveguide Bend for critical applications, always verify VSWR performance across the entire operating bandwidth, not just at center frequencies, as edge-band performance often reveals manufacturing quality issues that specifications sheets may obscure.

Material Selection for Optimal Performance

The choice between aluminum and copper construction in a Double Ridged Waveguide Bend significantly influences both electrical performance and long-term reliability. Aluminum bends with oxidized coatings offer excellent performance for lower frequency applications while providing substantial weight savings, a critical consideration for aerospace and mobile installations where every gram matters. The oxidation coating protects against corrosion while maintaining good electrical conductivity at the surface where RF currents concentrate due to skin effect. Copper construction with silver plating represents the premium choice for high-frequency applications, particularly above 20 GHz, where the superior conductivity of silver-plated surfaces minimizes insertion loss to levels below 0.15 dB per bend. The silver plating also provides exceptional corrosion resistance in harsh environmental conditions, ensuring consistent performance over decades of operation. Material selection for your Double Ridged Waveguide Bend should consider not only immediate electrical performance but also the operational environment, with factors such as temperature cycling, humidity exposure, and potential chemical contamination influencing long-term reliability.

Installation and Integration Best Practices for Double Ridged Waveguide Bend Systems

Proper installation techniques are absolutely critical for realizing the full performance potential of any Double Ridged Waveguide Bend component. Many engineers underestimate how significantly installation errors can degrade system performance, with issues ranging from increased VSWR and insertion loss to complete mode conversion that renders the system inoperable. The flange interface represents the most critical connection point, where microscopic gaps or misalignments can create discontinuities that generate reflections and higher-order modes. Standard FP and FM flanges used on quality Double Ridged Waveguide Bend products provide proven reliability when properly torqued according to manufacturer specifications, typically ranging from 15 to 25 inch-pounds depending on flange size and material. Surface preparation before assembly cannot be overlooked, as even minor oxidation or contamination on flange surfaces can increase contact resistance and create hotspots that may lead to passive intermodulation products in high-power applications.

E-Plane versus H-Plane Bend Selection

Understanding the fundamental difference between E-plane and H-plane Double Ridged Waveguide Bend configurations is essential for system designers. E-plane bends, designated as DRWEB, curve in the direction of the electric field, while H-plane bends (DRWHB) curve in the magnetic field direction. This distinction has profound implications for system performance and integration. E-plane bends typically exhibit slightly higher insertion loss but offer superior isolation characteristics and reduced susceptibility to multipaction in high-power applications. H-plane bends generally provide lower insertion loss and more compact routing solutions, making them preferred for space-constrained installations. When your waveguide system requires multiple direction changes, careful planning of E-plane and H-plane bend combinations can minimize overall insertion loss while avoiding geometries that might excite unwanted modes. Many experienced RF engineers develop routing schemes that alternate between E-plane and H-plane bends strategically, maintaining balanced field distributions throughout the transmission path and preventing cumulative mode conversion effects.

Precision Alignment and Tolerance Management

The mechanical tolerances maintained during Double Ridged Waveguide Bend installation directly impact electrical performance. Manufacturing specifications typically call for mechanical tolerances of ±0.05 mm on critical dimensions, but installation practices must maintain comparable precision to avoid degrading these carefully controlled parameters. Misalignment between connected waveguide sections can introduce step discontinuities that generate reflections and increase VSWR, with the severity increasing proportionally to frequency. At 40 GHz, a misalignment of just 0.1 mm can cause measurable performance degradation. Professional installations utilize precision alignment fixtures and calibrated torque wrenches to ensure flange faces mate perfectly parallel with uniform pressure distribution across all fasteners. The internal surface finish of a Double Ridged Waveguide Bend, typically specified at Ra values below 0.8 micrometers, must be protected during handling and installation to prevent scratches or contamination that would increase insertion loss and potentially create multipaction sites in high-power systems.

Optimizing Double Ridged Waveguide Bend Performance Through Testing and Validation

Comprehensive testing protocols are essential for validating Double Ridged Waveguide Bend performance and identifying potential issues before system deployment. Vector network analyzer measurements provide the most complete characterization, revealing not only basic parameters like VSWR and insertion loss but also subtle performance indicators such as phase linearity and group delay variations that can impact wideband system performance. Professional testing facilities employ calibrated measurement systems with precision test fixtures that eliminate reference plane uncertainties and provide accurate absolute measurements. A properly characterized Double Ridged Waveguide Bend should demonstrate insertion loss below 0.2 dB across its operating bandwidth, with smooth frequency response free of resonances or ripples that might indicate internal discontinuities or mode conversion issues. Return loss measurements should exceed 20 dB across the full bandwidth, corresponding to VSWR values of 1.22 or better, confirming excellent impedance matching at both bend interfaces.

Advanced Measurement Techniques

Beyond basic S-parameter measurements, advanced characterization of Double Ridged Waveguide Bend performance requires specialized test equipment and methodologies. Time domain reflectometry provides unique insights into internal bend structure, revealing reflections from discrete discontinuities and helping identify manufacturing defects or damage that frequency domain measurements might obscure. For high-power applications, multipaction testing becomes critical, requiring specialized vacuum test chambers and high-power RF sources to verify that the bend design and surface treatments will prevent electron resonance discharge that could cause catastrophic component failure. Phase stability measurements across temperature cycling verify that thermal expansion coefficients and mechanical design properly maintain electrical length stability, essential for phased array and interferometry applications where phase coherence between multiple signal paths determines system performance. Environmental testing including humidity cycling, salt spray exposure, and vibration stress screening validates long-term reliability under operational conditions that laboratory bench testing cannot replicate.

Troubleshooting Common Double Ridged Waveguide Bend Performance Issues

When a Double Ridged Waveguide Bend system exhibits unexpected performance degradation, systematic troubleshooting can quickly identify and resolve the underlying causes. High VSWR measurements often indicate flange interface problems, with solutions ranging from retorquing fasteners to replacing damaged gaskets or O-rings. Excessive insertion loss typically points to internal contamination, surface oxidation, or damage to the plating or coating, conditions that may require component replacement if cleaning procedures prove ineffective. Intermittent performance variations suggest mechanical instability, potentially from loose fasteners or thermal cycling effects that cause differential expansion between connected components. Mode conversion issues manifest as frequency-dependent nulls or peaks in transmission characteristics, usually resulting from misalignment, internal obstacles, or excitation of higher-order modes at discontinuities. Experienced engineers maintain detailed performance baselines for critical waveguide assemblies, enabling rapid identification of degradation trends before they cause system failures.

Preventive Maintenance Strategies

Implementing proactive maintenance protocols extends Double Ridged Waveguide Bend service life and maintains optimal performance throughout years of operation. Regular visual inspection of flange interfaces identifies early signs of corrosion, mechanical damage, or gasket degradation before they impact electrical performance. Scheduled retorquing of flange fasteners compensates for stress relaxation in gasket materials and thermal cycling effects that can reduce contact pressure over time. Periodic low-power swept frequency measurements detect subtle performance changes that might indicate developing problems, allowing corrective action before system downtime becomes necessary. Environmental protection measures including desiccant breathing systems, conformal coatings, and protective covers shield waveguide components from humidity, contamination, and physical damage in harsh operational environments. Documentation of all maintenance activities, performance measurements, and configuration changes creates valuable historical records that support troubleshooting efforts and inform lifecycle management decisions.

Conclusion

Optimizing Double Ridged Waveguide Bend performance requires comprehensive understanding of electromagnetic principles, mechanical precision, and systematic validation. By following these performance tips, engineers can achieve superior system reliability and signal integrity across demanding RF applications.
