Dual Polarized Horn Antennas in MIMO and Radar Applications

Why dual polarization matters for MIMO and radar systems?

Dual polarization technology plays a pivotal role in advancing MIMO and radar systems, offering a multitude of benefits that significantly enhance performance and capabilities. The importance of dual polarization in these applications cannot be overstated, as it addresses several critical aspects of signal processing and data acquisition.

Enhanced Channel Capacity

By reducing the effects of multipath fading and crosstalk, dual polarization makes a big difference in signal quality. MIMO systems can better separate and process wanted signals in complex environments where signals can bounce off of different surfaces because they can tell the difference between polarizations. This is where Dual Polarized Horn Antenna comes in, enabling the system to leverage both vertical and horizontal polarizations for improved performance. This leads to better signal reception, lower error rates, and, in the end, more reliable communication lines.

Improved Signal Quality

By reducing the effects of multipath fading and crosstalk, dual polarization makes a big difference in signal quality. MIMO systems can better separate and process wanted signals in complex environments where signals can bounce off of different surfaces because they can tell the difference between polarizations. This leads to better signal reception, lower error rates, and, in the end, more reliable communication lines.

Advanced Target Characterization in Radar

For radar uses, dual polarization makes it easier to describe and group targets in new ways. Electromagnetic waves with different polarizations affect different things and materials in unique ways. Radar systems can learn more about a target's shape, direction, and make-up by looking at the polarimetric signature of signals that are reflected back at them. This higher level of information is very useful for many things, from weather radar to finding military targets.

Spatial Diversity and Beamforming

With dual-polarized antennas, you can use more advanced beamforming and spatial diversity techniques. This means that more fine control can be used in MIMO systems to change the way data is sent and received. This makes it possible to talk to certain places or gadgets. Being able to automatically steer beams and adjust to changing conditions in the environment is what it means for radar systems. This makes the range and accuracy of detecting better.

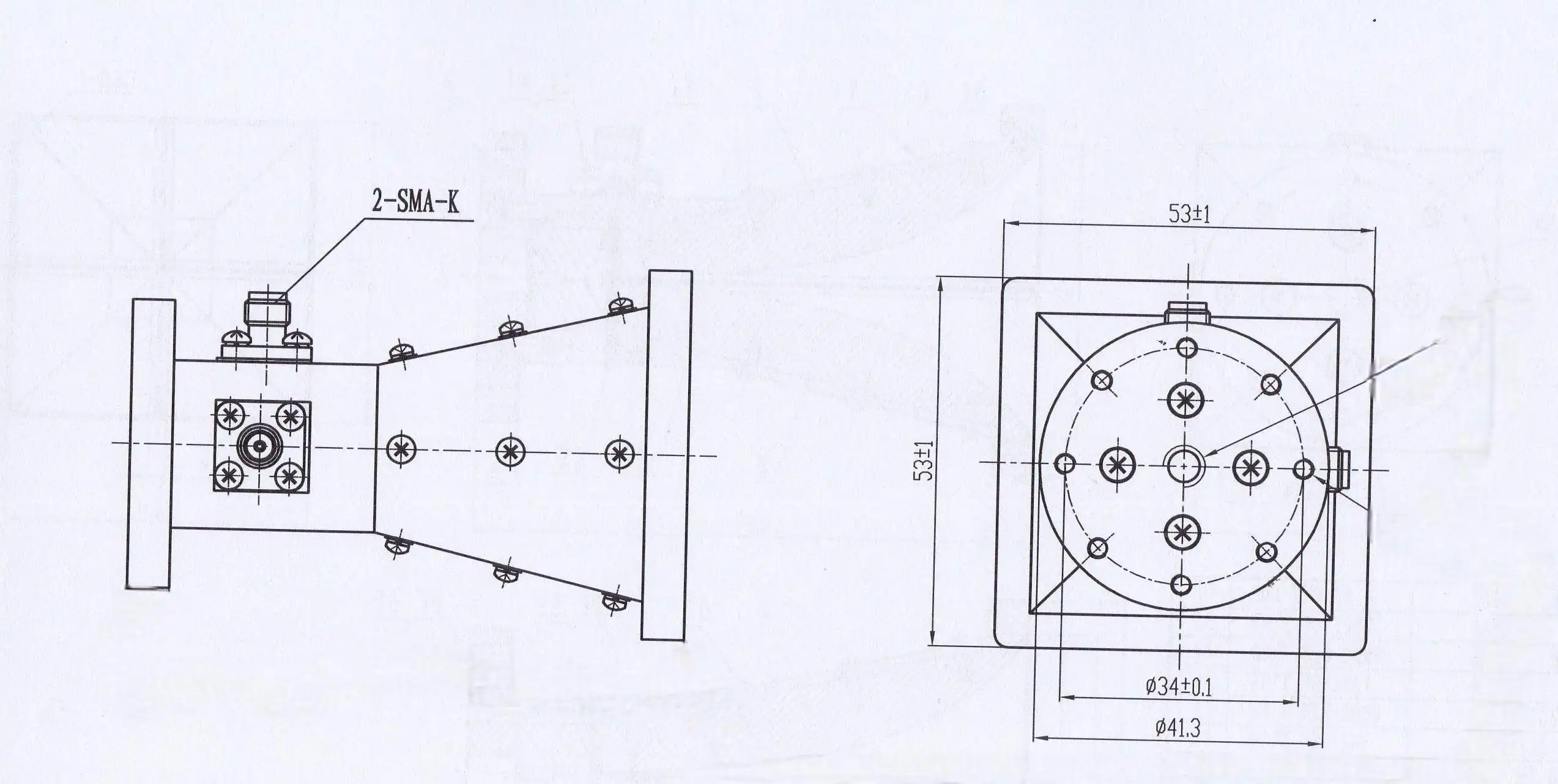

The design of dual polarized horn antennas requires careful consideration of various techniques to effectively feed orthogonal polarizations. These design approaches are crucial in achieving high performance, maintaining polarization purity, and ensuring optimal signal isolation between the two polarization channels.

Orthomode Transducer (OMT) Integration

One of the most effective methods for feeding orthogonal polarizations in horn antennas is through the integration of an Orthomode Transducer (OMT). The OMT is a sophisticated component that allows for the separation or combination of two orthogonal polarizations within a single waveguide structure. In the context of dual polarized horn antennas, OMTs play a crucial role in maintaining high polarization isolation and low cross-polarization levels.

There are two primary types of OMT designs commonly used in dual polarized horn antennas:

• Conventional OMT: This design offers simplicity in both design and manufacturing processes. However, it typically provides a relatively narrow bandwidth, usually around 5% or less. Despite its limitations, conventional OMTs can be highly effective in applications where broadband operation is not a primary requirement.
• Symmetrical Feed OMT: This more advanced design offers superior performance characteristics, albeit with increased complexity in design and manufacturing. Symmetrical feed OMTs can achieve impressive bandwidth capabilities of up to 40%, along with excellent polarization isolation exceeding 30dB. This makes them ideal for applications demanding high performance across a wide frequency range.

Septum Polarizer Design

Another innovative approach to feeding orthogonal polarizations is the septum polarizer design. This technique involves inserting a carefully shaped metal septum into the waveguide structure of the horn antenna. The septum acts as a polarization transformer, converting a single-mode input into two orthogonal polarizations.

The key advantages of the septum polarizer design include:

• Compact size and integration capability
• Excellent polarization purity
• Potential for wide bandwidth operation
• Reduced complexity compared to some OMT designs

Quad-Ridged Horn Configuration

The quad-ridged horn configuration is another sophisticated approach to achieving dual polarization in horn antennas. This design incorporates four ridges within the horn structure, arranged in orthogonal pairs. Each pair of opposite ridges is responsible for exciting one polarization.

Quad-ridged horns offer several benefits:

• Ultra-wideband operation, often spanning multiple octaves
• Good polarization isolation across a wide frequency range
• Flexibility in feed network design
• Potential for compact form factors

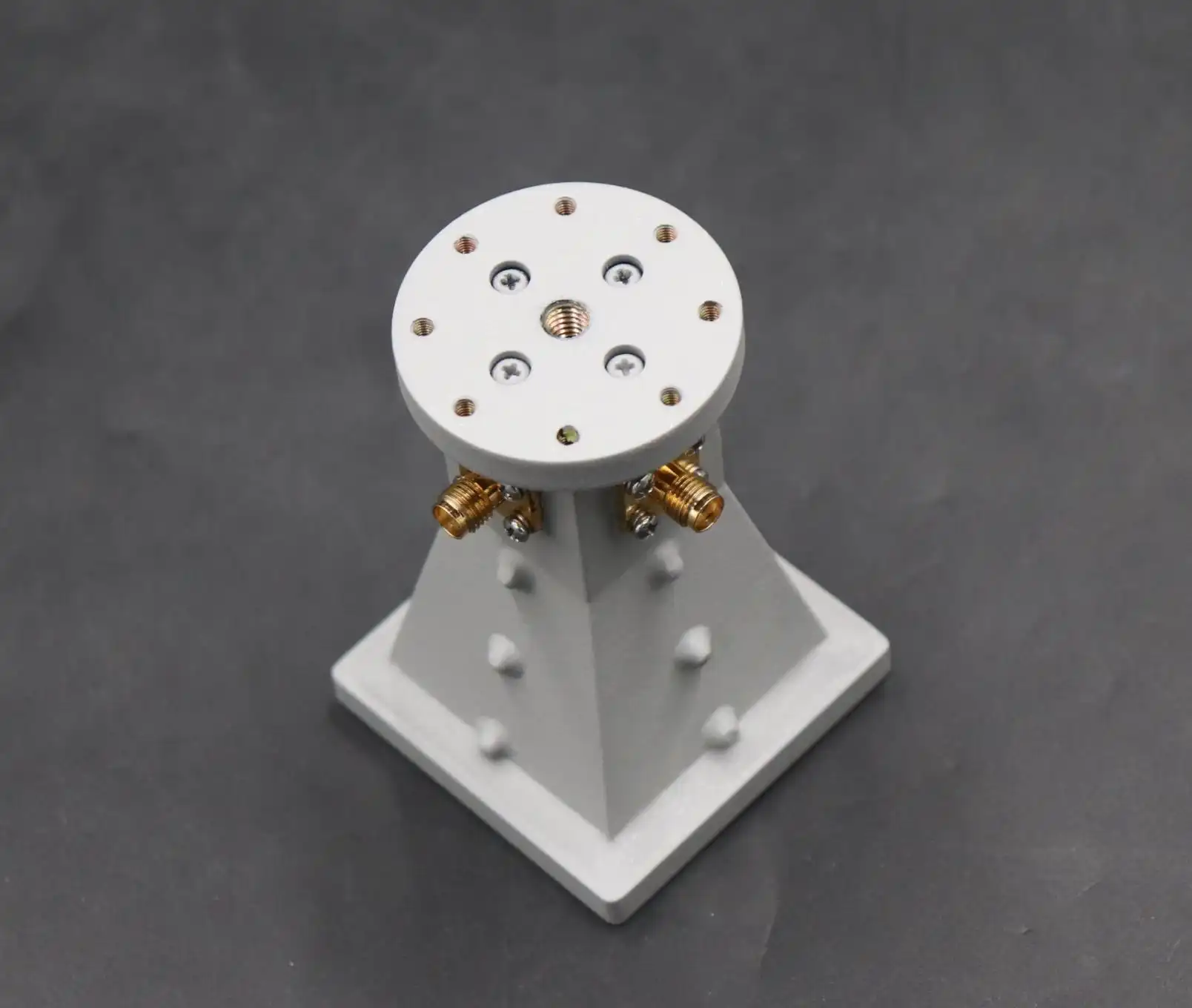

Use cases: beamforming, polarization diversity, and spatial multiplexing

Dual polarized horn antennas are widely used in sophisticated communication and radar systems because they can do beamforming, polarization diversity, and spatial multiplexing. These examples show how flexible and useful dual polarized horn antennas are for solving tough problems in today's wireless technologies.

Beamforming in 5G and Beyond

Beamforming is very important for improving network capacity and coverage in 5G and future 6G networks. Dual polarized horn antennas are very important for using advanced beamforming methods:

• Massive MIMO Systems: Base stations can practically double the number of independent channels without adding more antennas by using dual polarization. This makes beamforming more accurate, which lets the network serve many users at once with very focused beams.
• Adaptive Beamforming: The ability to change both polarizations independently lets the system react to changes in the channel and user movement. This makes connections stronger and makes better use of the spectrum.
• Communications in the millimeter wave range: Dual-polarized horn antennas make highly directed beams with better link budgets possible at higher frequencies, when path loss is worse. This is important for overcoming the problems of millimeter-wave propagation.

Dual polarized horn antennas greatly improve the performance of current radar systems by allowing for polarization diversity:

• Weather Radar: Weather radars can tell the difference between different types of precipitation (rain, snow, hail) and even see things that aren't weather-related, such birds or insects, by looking at the changes in reflectivity between horizontal and vertical polarizations.
• Radar for the military and for spying: Polarization diversity helps with identifying and classifying targets. Different types of targets, such planes, ships, or ground vehicles, have different polarimetric fingerprints. This makes it easier to identify them and cuts down on false alarms.
• Automotive Radar: Dual polarization radar can give additional information about the area around a car, which can help with object recognition and categorization in different weather situations. This is especially useful in advanced driver assistance systems (ADAS) and self-driving cars.

High-Capacity Links using Spatial Multiplexing

Dual polarization horn antennas are especially useful when a lot of data needs to be sent at once since they may send data in different directions at the same time.

• Backhaul Links: Dual polarized horn antennas make it possible for base stations and the core network to connect with each other over high-capacity point-to-point links in cellular network infrastructure. These networks can essentially double their data-carrying capacity without needing more spectrum by using both polarizations.
• Satellite Communications: Dual polarization techniques let satellite systems use the same frequency band for two separate data streams, which effectively doubles the capacity of each transponder. This is very important for getting the most out of the few orbital slots and frequency allocations that are available.
• interior Wireless Systems: Dual-polarized antennas may employ multipath propagation to make numerous spatial streams in complicated interior spaces like stadiums or convention halls. This greatly improves the system's capacity and the user's experience.

In complicated interior spaces like stadiums or convention halls, dual polarized antennas can leverage multipath propagation to produce numerous spatial streams. This greatly improves the system's capacity and the user experience.

Conclusion

In order for MIMO and radar technologies to move forward, dual-polarized horn antennas have been essential parts. They are an important part of current wireless communication and sensing systems because they make good use of the electromagnetic spectrum, improve signal quality, and give accurate information about targets. Dual polarization horn antennas will definitely play a bigger role as we keep pushing the limits of what's possible in these areas. They will allow for new uses and better performance in many different fields.

If a company wants to use dual polarized horn antennas in their systems, they need to work with a maker that is both experienced and creative. Huasen Microwave Technology Co., Ltd. is at the cutting edge of this technology because it has a lot of experience with high-frequency microwave and millimeter-wave parts. We are able to provide cutting-edge solutions for the most demanding uses in the defense, aerospace, telecommunications, and radar sectors because we are dedicated to research and development and have decades of experience in the field.

Whether you're developing advanced 5G base stations, state-of-the-art radar systems, or high-capacity satellite links, Huasen Microwave has the expertise and product range to meet your specific needs. Our dual polarized horn antennas, featuring both conventional and symmetrical feed OMT designs, offer superior performance with polarization isolation up to ≥30dB and VSWR ≤1.5, supporting both narrowband and broadband applications with bandwidths up to 40%.

To explore how our dual polarized horn antennas can enhance your system's performance and capabilities, we invite you to reach out to our team of experts. Let's collaborate to push the boundaries of what's possible in wireless technology and radar systems.

FAQ

1. What is the primary advantage of using dual polarized horn antennas in MIMO systems?

The primary advantage is the significant increase in channel capacity. Dual polarized horn antennas allow MIMO systems to effectively double the amount of data transmitted within the same frequency band by utilizing both vertical and horizontal polarizations.

2. How do dual polarized horn antennas improve radar performance?

Dual polarized horn antennas enhance radar performance by enabling advanced target characterization and classification. They allow radar systems to analyze the polarimetric signature of reflected signals, gathering more detailed information about target properties such as shape, orientation, and composition.

3. What are the main design techniques for feeding orthogonal polarizations in horn antennas?

The main design techniques include Orthomode Transducer (OMT) integration, septum polarizer design, and quad-ridged horn configuration. Each technique offers unique advantages in terms of performance, bandwidth, and complexity.

4. In what applications are dual polarized horn antennas particularly useful?

Dual polarized horn antennas are particularly useful in 5G and future 6G networks for beamforming, weather and military radar systems for polarization diversity, and high-capacity communication links such as satellite and backhaul communications for spatial multiplexing.
