Lens Horn Antenna Applications in Microwave and 5G Testing

Lens horn antennas are a high-tech group of microwave parts that combine precise dielectric lens elements with regular horn radiators to provide excellent beam control and signal clarity. Engineers can get very exact readings across millimetre-wave and sub-terahertz frequencies with these antennas when testing 5G and microwave technologies. Because they can make flat wavefronts with little phase distortion, they are essential for calibrating base stations, analysing antenna patterns, and making sure that high-frequency communication links work. When test accuracy and repeatability have a direct effect on when a product can be certified and put into use, it is very important to pick the right antenna setup.

Understanding Lens Horn Antennas in Microwave and 5G Testing

A lens horn antenna is made up of a waveguide feed (which can be cone-shaped or pyramidal) and a shaped dielectric lens placed at the opening. When the horn makes a spherical phase front, this lens fixes it and turns it into a flat wavefront at the exit. This correction greatly lowers phase mistakes across the aperture, which makes it possible for higher gain and better directivity in a smaller space than regular gain horns.

Core Construction and Material Selection

To make these devices, strict standards for materials and construction must be met. Polymers with low loss, like polytetrafluoroethylene (PTFE) or cross-linked polystyrene (Rexolite), are often used in the dielectric lens because they have stable dielectric constants and low dissipation factors at microwave frequencies. The horn body is made from aluminium or brass and is carefully machined. It is often plated with gold or silver to reduce ohmic losses and make it more resistant to corrosion in harsh test conditions. With more than 30 years of experience designing high-frequency parts, Huasen Microwave Technology uses advanced CNC cutting and material testing methods to make sure that each lens is lined up within ±0.01mm of accuracy. This level of accuracy makes sure that the phase centre stays stable, which is very important for antenna range applications and calibration settings.

Frequency Ranges and Performance Metrics

From gigahertz frequencies up to millimetre waves, these antennas work well in bands like Ka-band (26.5-40 GHz), V-band (50-75 GHz), E-band (60-90 GHz), and W-band (75-110 GHz). Some specialised types go down to the sub-terahertz range. Depending on the aperture width and operating frequency, typical gain values range from 20 dBi to more than 45 dBi.In most cases, the Voltage Standing Wave Ratio (VSWR) stays below 1.5:1, and the best models get it to less than 1.3:1. This low VSWR directly means low reflected losses, which makes measurements more accurate and signals work better. Side lobe suppression is usually higher than -20 dB, and some systems can reach -26 dB in the H-plane. This lowers interference and multipath errors in test chambers.

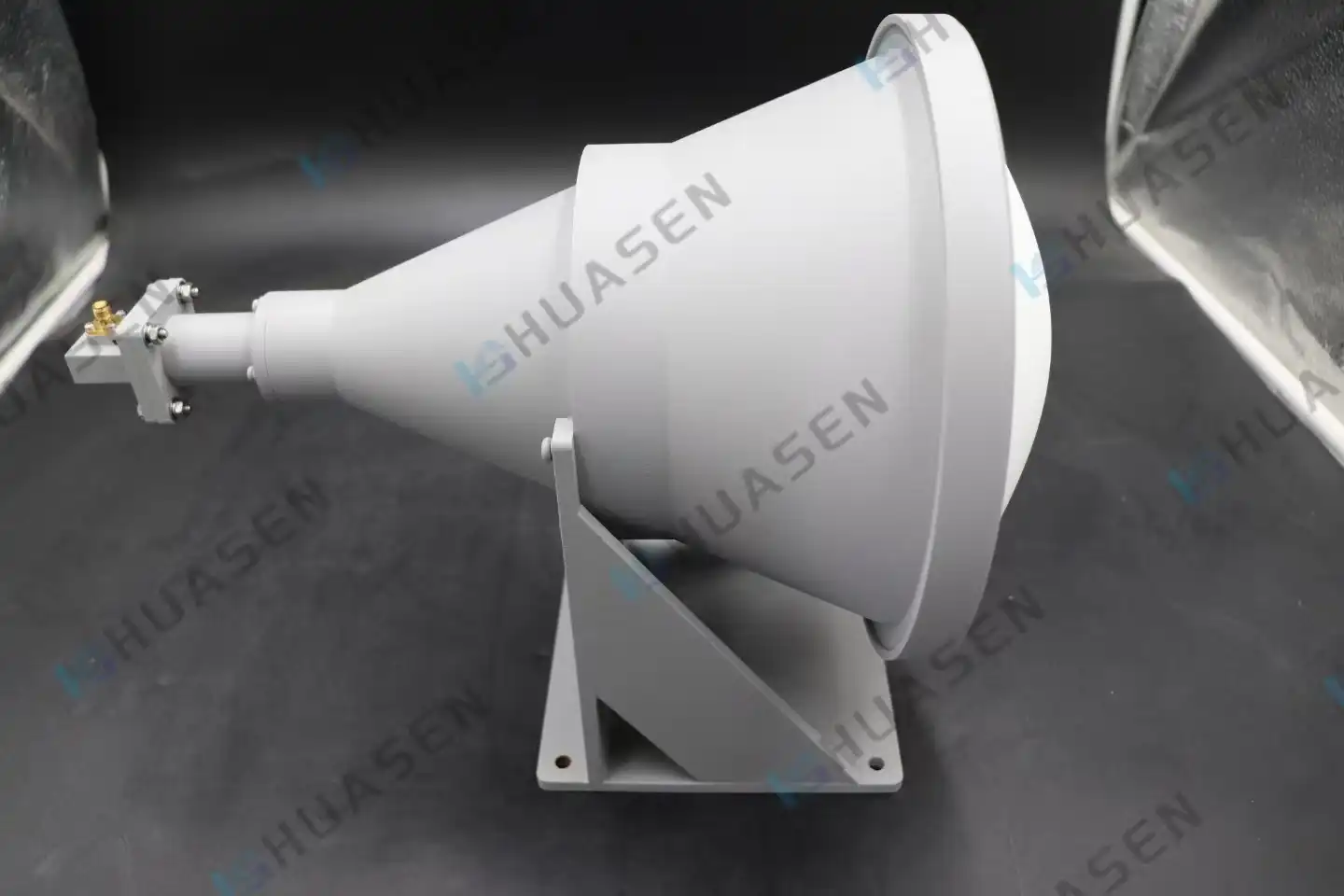

Lens Horn Antenna-9

Key Applications of Lens Horn Antennas in Microwave and 5G Testing

These antennas serve multiple critical roles across diverse testing scenarios, addressing the unique demands of next-generation wireless systems and legacy microwave infrastructure.

5G Antenna Testing and Calibration

In 5G research, reference antennas with known Lens Antenna radiation properties are needed to test antenna performance across multiple bands, such as FR2 millimetre-wave frequencies from 24 GHz to 52 GHz. In order to adjust compact antenna test ranges (CATR) and over-the-air (OTA) test systems, lens horn antennas must have stable, well-defined patterns. These antennas are used as gain standards or reference sources during tests of the front end of the base station. Their narrow beamwidth makes sure that readings only show how well the main lobe works, without side lobes or back radiation getting in the way. When testing beamforming arrays or massive MIMO systems, this amount of isolation is very important because even small errors in phase or amplitude can throw off the results.

Microwave Communication System Testing

Before they can be used, point-to-point and point-to-multipoint wireless backhaul lines that work in licensed spectrum bands need to be thoroughly tested. Lens horn antennas let engineers model how signals travel in the real world in controlled indoor settings. Test setups can correctly measure interference thresholds, link budgets, and modulation quality by making beams that are clean and focused. When testing maritime and satellite communications, where signal lines have to go through rough weather, these antennas help figure out how well the system works in situations like rain fade or multipath. Their ability to withstand harsh environments—the lens acts as a natural radome—keeps internal parts safe from dust and moisture, so they can work reliably during long test runs.

Wireless and High-Frequency WiFi Test Environments

New WiFi standards like WiFi 6E and WiFi 7 push wireless networking to frequencies above 6 GHz. This means that test equipment needs to be able to accurately handle higher frequencies. Lens horn antennas help with these validation efforts by giving uniform reference patterns for testing throughput, measuring latency, and mapping coverage. In anechoic chambers used for testing consumer electronics, these antennas provide light that makes the conditions of far-field conditions seem like they are in a smaller area. Because they are thin along the axes, they work well in small test areas where longer horns or parabolic reflectors would take up too much room.

Lens Horn Antenna vs. Other Antenna Types: Making Informed Choices

Selecting the optimal antenna for a specific test application requires understanding the trade-offs among available technologies. Each antenna type brings distinct advantages and limitations that influence performance, cost, and integration complexity.

Comparison with Parabolic Antennas

Because of their reflector shape, which can be scaled up to very big apertures, parabolic dish antennas have a high gain. They do, however, take up a lot of room and need to be perfectly aligned to avoid beam squint or focal point errors. Lens horn antennas have about the same gain as other types, but they are smaller and more durable. Since there is no reflector, there are no blockage losses from the feed structure. This makes the radiation patterns smoother and lowers the side lobes. Cost factors are different for each application. At lower frequencies, big parabolic devices can be cost-effective. But when the frequencies go up into millimetre-wave bands, the manufacturing tolerances for reflector surfaces get too small to be practical. Lens horn antennas work well over a wide range of frequencies and don't need any extra surface perfection on top of the lens's dielectric machining.

Horn Reflector and Dielectric Lens Antennas

Horn reflector antennas have a horn feed and a parabolic reflector part. They are very good at blocking sidelobes and have low cross-polarisation. They take up more space than lens horn types and usually cost more because the reflectors have to be machined in a more complicated way. When a dielectric lens antenna doesn't have a horn feed, it only uses lens shaping to control radiation. This can lead to higher insertion loss and a smaller bandwidth than hybrid lens horn designs.

Microstrip Patch Antennas

Microstrip patch antennas are small, light, and easy to make using methods for printed circuit boards. They work well in situations where conformal or low-profile placements are needed. However, their gain rarely goes above 10 dBi per element when not arrayed, and their narrow bandwidth makes it hard to use them across a range of test frequencies. Lens horn antennas are better for precise measurements where multiple frequency points need to be checked without having to reconfigure because they have a wider bandwidth, higher single-element gain, and more stable patterns.

Procurement Guide: How to Buy the Right Lens Horn Antenna

Securing the right antenna involves more than comparing datasheets. Effective procurement balances technical specifications, supplier capabilities, quality assurance, and logistical considerations.

Supplier Evaluation and Certifications

When getting antennas for mission-critical testing, it's very important to check the credentials of the seller. Look for manufacturers that have ISO 9001 quality control certification. This makes sure that the production process is always the same. Following the rules for RoHS and REACH shows that you care about the environment and lets buyers in Europe and North America buy your products. Huasen Microwave has many industry certifications and has been supplying parts to the defence, aerospace, and telecoms industries since 1993. This history shows that the company is technically skilled and has a reliable supply chain, which are two important qualities for long-term relationships and repeat business.

Assessing Product Specifications and Datasheets

Measured radiation patterns, VSWR plots, and gain curves across the given frequency range should be included on datasheets. To confirm the performance claims made, ask for test results or calibration certificates from a third party. Cross-polarisation levels need to be closely watched, especially if your test setup has dual-polarised systems or needs strong separation between orthogonal channels. The mechanical details, like the types of connectors (SMA, N-type, and WR waveguide flanges), how they are mounted, and their environmental ratings, must match the needs of your test fixture or room. For non-standard frequencies or beamwidths, it may be necessary to make your own setups. Huasen Microwave lets you make a lot of changes to the focal length, aperture width, and polarisation type. You can even use optional waveguide phase shifters to support both linear and circular polarisation.

Pricing, Minimum Order Quantities, and Lead Times

Prices change based on the number of items ordered, how complicated the customisation is, and the materials chosen. Standard catalogue items usually ship within a few weeks, but fully custom designs may need to be reviewed by engineers, and prototypes must be tested, which can add several months to the wait time. Before placing a big order, talk about the chance to test samples. This is especially important when adding new antenna models to existing test protocols. Budget overruns can be avoided by being clear about minimum order numbers. Some suppliers ask a minimum order quantity (MOQ) for custom configurations to cover the cost of making the tools. When it comes to bulk purchases or multi-year agreements, dealing directly with makers often gives you more price options than dealing through distributors.

Online Purchasing vs. Direct Manufacturer Engagement

Online markets are convenient and have a lot of options, but they might not have enough technical help or ways to make things your own. Directly interacting with the manufacturer gives you access to engineering knowledge, custom solutions, and help after the sale, all of which are very important for fixing problems or improving performance. When the accuracy of tests directly affects compliance or product launch schedules, quick expert support is worth more than the small amount of money saved by buying Lenshorn antennas' generic products.

Advantages and Future Trends of Lens Horn Antennas in 5G and Microwave Testing

The technical strengths of lens horn antennas position them favourably within evolving test and measurement landscapes. Their combination of high gain, compact form factor, and pattern stability addresses multiple pain points faced by procurement professionals and test engineers.

Technical and Operational Advantages

Short axial measurements make it easier to fit into test labs or mobile test vans that are already full. Lens horn designs can be half the length of standard horns with the same gain. This frees up valuable chamber space that can be used for other equipment or multi-antenna setups. Low side lobe levels make sure that measurements only pick up the signal path that is wanted. This cuts down on mistakes caused by reflections or interference from channels next to it. These antennas can handle demanding measurement situations with a dynamic range of more than 60 dB thanks to their E-plane side lobe level of -15 dB or better and their H-plane suppression level of more than -26 dB. Polarisation freedom lets it be changed to meet different test needs. Standard models can handle linear polarisation, and circular polarisation is possible with waveguide phase shifters that are built in. This modularity makes managing inventory easier and lets you quickly change how things are set up between test runs. Focus length, aperture size, and beamwidth can all be customised, which lets engineers make the antenna work best for certain room shapes or measurement standards. This level of customisation directly addresses problems caused by one-size-fits-all methods that don't work well.

Emerging Technologies and Future Trends

As 5G moves into the FR2 bands and 6G devices that work above 100 GHz are made, there is a greater need for antennas that can handle higher frequencies more accurately. Lens horn antennas are a good choice to meet these needs because they can be made to fit different sizes and have been shown to work well at millimetre-wave frequencies. It's becoming commonplace to connect to automated test systems and remote calibration tools. Antennas with built-in sensors or RFID tags make it easier to keep track of assets and run tests automatically, which cuts down on setup time and mistakes made by people. These improvements fit in with larger Industry 4.0 plans that put an emphasis on quality control based on data and repair that can be planned ahead of time. As the number of IoT devices grows and private 5G networks become more popular, new testing needs to be done across a wider range of frequency bands and power levels. Flexible lens horn antennas that can work on multiple bands in a single unit make test setups easier and save money on buying extra tools.

Conclusion

Lens horn antennas are perfect for current microwave and 5G testing environments because they are accurate, reliable, and flexible. Their special mix of small axial dimensions, low side lobe levels, and performance factors that can be changed solves the main problems that test engineers, procurement professionals, and system integrators have. These antennas provide the accuracy and repeatability needed for successful product development and rollout, whether they are used to test base station front-ends, calibrate compact antenna test ranges, or characterise high-frequency wireless links. As wireless technologies keep getting better at millimetre-wave and sub-terahertz frequencies, buying good lens horn antennas will keep your test equipment up to date, ready for the future, and in line with industry standards.

FAQ

1. What frequency ranges do lens horn antennas support?

Lens horn antennas typically operate from several gigahertz up to millimetre-wave bands, including Ka-band (26.5-40 GHz), V-band (50-75 GHz), E-band (60-90 GHz), and W-band (75-110 GHz). Specialised models extend into sub-terahertz regions, making them suitable for 5G FR2 testing, satellite communications, and advanced radar applications. The broad frequency coverage simplifies test setups by reducing the number of antenna changes required across multi-band validation campaigns.

2. How do radiation pattern characteristics impact test accuracy?

Radiation patterns define how energy is distributed in space. Clean patterns with low side lobes and minimal back radiation ensure measurements capture only the intended signal path, reducing errors from reflections or multipath interference. Lens horn antennas achieve superior side lobe suppression, often better than -20 dB, which enhances dynamic range and measurement repeatability. This precision is critical in compact antenna test ranges and over-the-air test systems where environmental reflections can distort results.

3. How do lens horn antennas compare to parabolic antennas?

Lens horn antennas offer higher gain per unit length, making them more compact than parabolic dishes of equivalent performance. They eliminate blockage losses associated with parabolic feed structures, resulting in cleaner radiation patterns. Parabolic antennas excel in very high gain applications at lower frequencies, but manufacturing tolerances become challenging at millimetre-wave bands. Lens horn designs maintain consistent performance across broad bandwidths, offering better cost-effectiveness and integration flexibility for modern test environments.
