How to Compare Pyramidal Horn Antenna Specifications

When considering horn antenna specs, pay attention to the frequency range, gain performance, VSWR traits, and the amount of power they can handle. Because it is flanged, a pyramidal horn antenna changes waveguide impedance to free-space impedance. This makes it necessary for calibration, high-power transfer, and accurate RF tests. When you compare these factors to the needs of your application, like testing 5G infrastructure, calibrating radar, or setting up satellite communication systems, you can be sure that the parts you choose will improve performance while staying within your budget and meeting delivery dates.

Understanding the Core Specifications of Pyramidal Horn Antennas

Operating Frequency and Bandwidth Coverage

When it comes to performance, horn antenna designs work best in certain frequency bands that are set by the waveguide measurements. The lower cutoff frequency is set by the rectangular tunnel that feeds the horn. Below this frequency, electromagnetic energy disappears and cannot travel. Knowing this connection helps you avoid design errors that slow down your system.

Bandwidth possibilities change a lot between systems. Broadband models that support 2:1 frequency ratios make it possible to combine systems, which lowers the number of parts needed and makes network design simpler. Narrowband versions that focus on certain frequencies provide better pattern control and gain stability. Which one you choose will rely on whether your application needs flexible frequency settings or the best performance at set working points.

Gain and Directivity Characteristics

Compared to an isotropic reflector, antenna gain shows how well the gadget focuses the energy it sends out. Horn antennas can usually reach 10 to 25 dBi, though this depends on the size and shape of the opening and flare. Bigger openings produce more gain, but they also take up more space and weigh more, which are important things to think about for projects that don't have much room or platforms that are in the air.

There are clear patterns in the link between aperture size and gain, but how well it works in real life rests on how well phase errors are handled across the aperture plane. When the flare length is smaller than the opening size, phase distortions happen that lower the gain and change the radiation patterns. Through electromagnetic modeling and real-world testing, good makers find the best ways to connect these dimensions.

VSWR and Return Loss Performance

The voltage standing wave ratio measures how well the receiver and the transmission line that feeds it fit in terms of impedance. Values higher than 1.5:1 mean that a lot of power is being reflected back toward the source. This lowers the efficiency of transfer and could damage high-power amps. Premium horn designs keep VSWR below 1.3:1 over certain frequency ranges by carefully adjusting the flare angle and making sure they are manufactured with great care.

One other way to describe the same thing is through return loss. Values below -15 dB mean good performance. To test these factors, you need to use the Vector Network Analyzer to take readings across the whole working bandwidth. We check these specs on every output unit on a regular basis and give you testing data that can be traced back to national standards.

Radiation Pattern and Beam Characteristics

The main lobe direction, half-power beam width, and sidelobe levels make up the radiation pattern, which shows how energy is spread out in space. Horn antennas make patterns that are easy to predict and have well-defined beamwidths, which are usually between 30 and 60 degrees based on the frequency and opening size. This directivity is useful in places where disturbance is common and spatial selection is important.

How much energy leaks into the orthogonal polarization plane is shown by cross-polarization efficiency. Cross-polarization must be kept below -25 dB compared to the main polarization in order for high-purity signal testing and transmission systems that use polarization variety to work. To measure patterns, you need an anechoic chamber that blocks out echoes from the surroundings.

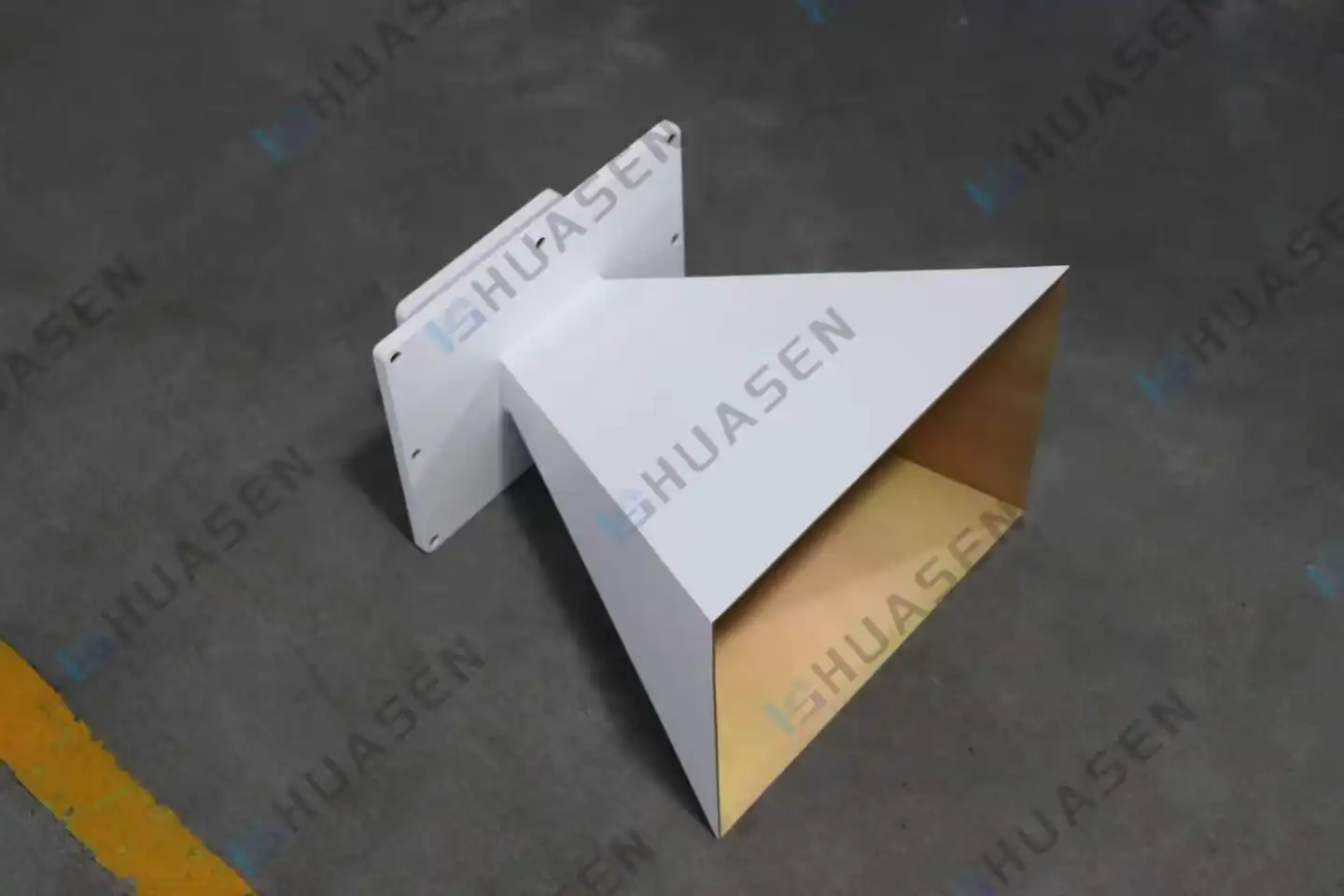

Pyramidal Horn Antenna-y1

Systematic Approach to Comparing Pyramidal Horn Antenna Specifications

Defining Application-Specific Requirements

The architecture of your system and your speed goals should directly affect your technical needs. For testing purposes, you need a measured gain and a way to track down measurement error. Communication lines put working power and reliability in harsh environments first. For radar feed uses, spillover must be managed, and the phase center must be stable.

Before you contact suppliers, write down your frequency bands, needed gain ranges, accepted VSWR limits, and any physical restrictions. This planning speeds up the quality of seller responses and makes sure that quotes are based on real needs instead of standard catalog items. If you choose slightly broader specs now, you may not have to go through expensive requalification processes later.

Evaluating Material Quality and Construction Standards

The choice of material has a direct effect on how well it conducts electricity and how long it lasts. For a pyramidal horn antenna, aluminum is a good choice for movable uses because it is light and conducts electricity well. For lab reference measures, copper is the best conductor of electricity. Brass is easy to work with when the shapes are complicated. Gold or silver plating on the surface reduces performance drift caused by rust in harsh settings.

Through skin-effect interactions, the internal surface finish changes the amount of entry loss. Precision cutting can meet surface roughness standards that are measured in microinches, so performance stays the same from one production lot to the next. When welding seams, it's important to pay close attention to RF continuity, and when flanged interfaces are used, they need to be perfectly flat to stop leaking at working frequencies.

Comparing Leading Manufacturer Specifications

Standard makers in the industry, such as ETS-Lindgren, Pasternack, and ARRA, have a lot of products with clear specs. ETS-Lindgren is the best at making measured gain standards that can be traced back to NIST. These standards are used in measurement. Pasternack offers fast delivery of catalog things that are a good mix of price and function. Specialized makers make products that are unique to each customer's needs.

When comparing specs, make sure that the conditions of testing are the same as those used in your application. If you measure gain in empty space vs. close to reflective objects, the results will be different. The VSWR specs should include the whole frequency range, not just the center frequency. When installing things outside that change with the seasons, temperature factors are important.

Comparing Pyramidal Horn Antennas with Other Antenna Types

Performance Against Parabolic Reflector Systems

Parabolic mirrors have higher gains because their openings are bigger, but they need to be precisely placed and have a smooth surface. Horn antennas are easier to build mechanically, have a wider spread, and can handle more power. Reflector systems work well for long-distance communication lines where the highest return is worth the extra work. Horns work great in testing settings, short-range links, and situations where frequency agility is needed.

Advantages Over Sector and Panel Antennas

When used in base stations, sector antennas offer better azimuthal coverage, but they lose gain when compared to horn types. Panel antennas come in small sizes that make them good for mounting on buildings. Horns offer better pattern control, lower VSWR, and better high-power handling, which is very important for test ranges, EMC facilities, and precision measurement tasks where repeated performance is more important than coverage.

Comparison With Helical and Patch Configurations

Helical antennas make circular polarization, which is useful for tracking satellites. Patch antennas are good for integrated uses because they have thin profiles. Neither can handle as much power, have the same frequency range, or be as stable in their tuning as horn types. The best balance between size, speed, and specialty features like frequency scanning or polarization diversity depends on your application.

Procurement Considerations for Pyramidal Horn Antennas

Price Structures and Volume Opportunities

The price range for catalog horn antennas and pyramidal antennas is $500 to $5,000, based on the frequency band, strength, and level of approval. Millimeter-wave models are more expensive because they have to be made with a lot of accuracy. When you buy in bulk, you can get discounts of 15 to 30 percent. On the other hand, unique plans need investments in tools that are spread out over many production runs. Lead times are very different between suppliers. Items from the catalog are shipped within days, but unique designs need 6 to 12 weeks for engineering, development, and approval. Setting up a framework deals with chosen providers guarantees priority scheduling during times of high demand and locks in prices for budget planning.

Certification and Compliance Verification

Applications in the military and aircraft need to meet MIL-STD standards, which can only be done after being tested in different environments, such as changing temperatures, vibrations, and humidity. For business projects, ISO 9001 quality methods or RoHS environmental compliance may be needed. By asking for certification documents during the vendor qualification process, you can avoid shocks at the last minute that can throw off project plans. Calibration papers make it possible to connect measurements back to national measurement centers, which is important for metrology and regulatory testing. These papers describe measurement uncertainty budgets, which let you look at errors at the system level. We keep approved calibration sites that meet our customers' ongoing needs without relying on outside sources.

Supplier Evaluation and Partnership Development

Choosing a supplier is more than just comparing prices. How well companies help with antenna selection, integration problems, and fixing depends on how well they offer technical support. When project deadlines get tight, responsive contact is important. Stable manufacturing capacity and a stable supply chain guarantee continuation for projects that last more than one year and need similar replacement units. Ask for references from customers who have used similar products to check the claims about performance and dependability. When you visit a factory, you can learn about how they control quality, how they measure things, and how deep their engineering is. These efforts to certify suppliers pay off by lowering technical risk and making the project run more smoothly.

Best Practices for Evaluating and Selecting Pyramidal Horn Antennas

Application-Matched Specification Weighting

Different uses put more weight on different requirements. Gaining accuracy and pattern stability are the most important things in EMC tests. Satellite ground sites need to be able to handle a lot of power and work in harsh environments. Lab standards need to be stable over time and be able to be calibrated and tracked. Make sure that the factors you use for review are based on real, practical goals, not just generic checklists. Create decision matrices that rate each prospect based on a set of weighted factors. This organized method finds the best options and writes down the reasons for them for stakeholders. Lifecycle costs go beyond the initial purchase price. Things like the need for calibration, the frequency of upkeep, and the availability of new parts all affect the total cost of ownership.

Pre-Purchase Verification Methods

When funds allow, ask for sample units to be tested for validity. Use your network monitor to check how well VSWR is working. Find out the gain in your own lab or through labs that are not owned by you. Pattern readings need special equipment but prove important claims about directivity. Costly disagreements over specifications after delivery can be avoided with these purchases. Carefully look over the technical drawings and make sure that the fixing holes match the ones on your mechanical connections. Check that the types of connectors work with the cables you already have, or plan for adapters that will add more loss and VSWR decline. Compare the power ratings to the levels you're sending, including peak powers that may be much higher than the average ratings.

Comprehensive Pre-Purchase Checklist

Before you buy an antenna, make sure of these important details:

The frequency range fits the operating bands with enough room for error.
The gain standards meet the budget needs of the link across the whole band.
VSWR boundaries meet goals for speed and transmitter safety
The physical measurements allow mounting in places that are easy to reach for upkeep.
Different types of connectors work with current systems.
The environmental scores are higher than the deployment settings.
Calibration papers make it possible to track measurements as needed.
Schedules for deliveries match up with project goals
The warranty terms cover expected working stresses.
Technical help is available where you are and at the right time for you, including pyramidal antennas.

Conclusion

To choose horn antennas, you have to weigh a lot of different specs against the needs of the application and the budget. We have looked at how frequency range, gain, VSWR, and the quality of the building affect how well something works in the real world. Systematic comparison methods help you sort through the different manufacturers' choices, and knowing the pros and cons of different antenna types makes it easier to find the best solutions. The choice framework is finished with procurement factors like price, certification, and sourcing abilities. By following these best practices, you can confidently choose an antenna that will improve performance while staying on plan and within your budget.

FAQ

1. What kinds of frequency bands do horn antennas usually work with?

The frequency range of a horn antenna goes from L-band (1–2 GHz) to millimeter-wave W-band (75–110 GHz) and even below terahertz. Some types are made to work with common waveguide bands like C-band, X-band, Ku-band, and Ka-band. These bands usually have bandwidth ratios between 1.5:1 and 2:1. The lower limit frequency, below which transmission stops, is set by the feeding waveguide. Broader bandwidth designs use curved transitions and better flare shapes, but they might lose some peak gain compared to narrowband options.

2. How does antenna gain affect system performance?

Higher gain focuses the power that is sent into smaller lines, which can increase the range of communication or make radar tracking more sensitive. For every 3 dB gain increase, the effective radiated power doubles, or the needed emitter output is cut in half. In the same way, reception gains by increasing signal-to-noise ratios in places with little disturbance. Narrow beamwidths, on the other hand, need accurate motorized pointing and can't cover as much area. Applications that need to scan large areas or cover a lot of ground may choose modest-gain designs that give up directivity in exchange for rotational freedom.

3. Can horn antennas be customized for specific applications?

Customization can be used for frequency bands that aren't available in a catalog, specific polarization needs, or technical limitations in setups with limited room. Some of the changes that have been made are changes to the aperture size that affect gain and beamwidth, changes to the connection interface to meet current infrastructure, and weather treatments for use in harsh conditions. Custom designs need technical analysis, sample testing, and usually a minimum order quantity that spreads out the cost of the tools over time. Lead times are longer than for catalog items, but they offer the best options when regular goods don't meet important needs.
