How does aperture size affect Pyramidal Horn Antenna performance?

2026-03-14 22:48:19

The performance of pyramidal horn antennas is largely determined by the size of the opening, which controls the electromagnetic field distribution at the antenna opening. When it comes to pyramidal antennas, bigger aperture sizes directly lead to more directed gain, less beamwidth, and better signal focusing. In important areas like telecommunications, radar systems, and precision measurement equipment, the actual aperture is like a window through which radio waves pass. The size of the aperture determines how well it matches impedances, how efficiently it sends waves, and how well the system works overall.

Understanding Pyramidal Horn Antennas and Aperture Size

Pyramidal horn antennas are an important part of radar sites, 5G infrastructure, satellite communications, and accurate measurement systems. They are a key part of high-frequency wireless communication systems. As electromagnetic impedance transformers, these high-tech devices slowly change the energy from being confined within a rectangular waveguide to propagating in free space thanks to their unique curved shape.

Basic Structure and Operating Principles

An antenna called a pyramidal horn is made up of a rectangular waveguide that gets bigger in both the electric (E-plane) and magnetic (H-plane) directions, giving it its unique pyramid shape. This shape solves a very important problem in microwave engineering: the impedance mismatch that happens when electromagnetic energy moves from a waveguide environment with an impedance of about 377 ohms (adjusted for waveguide mode) to the impedance of free space (377 ohms). The horn structure's gradual flare makes sure that power is transferred efficiently while reducing reflections that would otherwise hurt system performance. Instead of abrupt changes like in open-ended waveguides, the controlled aperture expansion lowers the Voltage Standing Wave Ratio (VSWR) and greatly enhances the directional characteristics. This makes these antennas essential for uses that need precise beam control and high signal integrity.

The Critical Role of Aperture Size

The aperture size tells you the exact size of the hole in the horn where electromagnetic energy leaves the device and goes into space. Three important antenna parameters—gain, beamwidth, and radiation efficiency—are directly affected by these measurements. The aperture is the electromagnetic window that all RF energy must pass through, so its size is one of the most important factors that determine how well an antenna works overall. Procurement professionals who have to choose antennas that meet specific operational requirements need to understand how aperture size relationships work. The antenna's electromagnetic impact is determined by the aperture's size, which affects everything from signal strength and coverage patterns to how the antenna is mounted and how much it costs. This information helps people make smart choices during the planning stages of a system, making sure that the best performance matches the needs of industrial applications.

Critical Parameters Influenced by Aperture Dimensions

The size of the aperture determines a number of performance factors that work together to show how well an antenna works in different situations. Following well-known electromagnetic rules for energy concentration and directional focusing, gain traits grow in a way that is proportional to aperture area. Beamwidth parameters have inverse relationships with aperture dimensions, which means that bigger openings produce more focused radiation patterns that are good for point-to-point communication links. Better radiation efficiency comes from better field distribution across bigger apertures, which lowers edge effects in pyramidal horn antenna designs that can hurt performance in smaller designs. When it comes to multi-band systems, these relationships are especially important because the aperture sizes have to be able to handle different frequency needs while keeping performance stable across operating bandwidths.

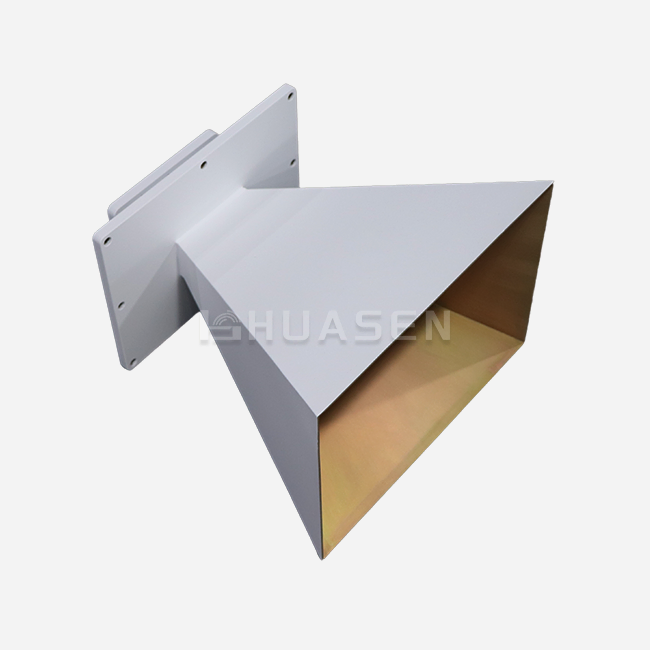

Pyramidal Horn Antenna

How Aperture Size Influences Antenna Performance — A Dimensional Analysis Approach

The relationship between aperture size and pyramidal horn antenna performance follows well-established electromagnetic principles that directly impact system effectiveness across diverse industrial applications. Understanding these relationships enables engineers and procurement professionals to optimize antenna selection based on specific operational requirements and performance objectives.

Gain and Beamwidth Relationships

According to the basic equation G = 4πA/λ², where G is the antenna gain, A is the aperture area, and λ is the wavelength, the aperture area is directly related to the antenna gain. This relationship shows why bigger apertures always give higher gain values, usually between 10 dBi and 25 dBi for small designs and extended aperture configurations. Beamwidth characteristics have opposite relationships with aperture sizes, so bigger apertures make beam patterns that are narrower and more focused. For the E-plane and H-plane dimensions, the half-power beamwidth (HPBW) is about θ = 70λ/D degrees, where D is the aperture size in each plane. This focusing effect is very important for applications that need to target signals precisely, like point-to-point microwave links and radar systems that need to keep interference to a minimum. System builders have to think carefully about how to balance gain and beamwidth when designing systems. Higher-gain antennas with bigger holes provide strong signals, but they need to be aligned more precisely and may not cover as much ground. On the other hand, smaller apertures offer wider coverage patterns with less gain. This makes them good for situations where signal strength needs aren't as strict, but coverage freedom is still important.

Frequency Range and Bandwidth Considerations

The frequency range and bandwidth of pyramidal horn antennas are greatly affected by the size of the aperture. The lower frequency limit is usually set by the feeding waveguide's cutoff frequency. The upper frequency limit is set by making sure that the phase error across the aperture measurements is acceptable. Larger apertures can handle wider bandwidths while keeping performance constant across the operational spectrum. Multi-band and wideband applications, especially those supporting 5G and new 6G technologies, need to be careful about aperture size to get the best performance across all frequency ranges. It's important that the aperture sizes combine the need for bandwidth with the limitations of the hardware. This keeps phase error within acceptable limits (usually less than 90 degrees in the E-plane and 180 degrees in the H-plane) throughout the entire operational bandwidth.

Practical Case Study: Optimizing Connectivity in B2B Environments

As part of a project to improve communications infrastructure, a 15-kilometer point-to-point microwave link working in the 18–26 GHz frequency range had to provide a seamless connection. The application needed a lot of gain to make up for path loss and enough bandwidth to support multiple communication channels. An engineering analysis showed that a pyramidal horn antenna with a 12-inch x 9-inch aperture worked best, giving 22 dBi gain and a 3-degree beamwidth in the E-plane and a 4-degree beamwidth in the H-plane. This setup met the link budget requirements and focused the beam well enough to keep disturbance from nearby systems to a minimum. The bigger aperture size made operation reliable across the whole frequency range while keeping VSWR below 1.5:1. This made sure that power transfer was efficient and that the signal was intact. The experiment showed that the right aperture size has a direct effect on system performance and reliability. The optimised dimensions cut down on the signal fade margins needed for safe operation while still providing enough bandwidth to support future capacity growth. This shows how important it is to choose an antenna based on its aperture characteristics for the long term.

Comparative Insights — Aperture Size Effects in Pyramidal Horn Antennas vs Other Antenna Types

Understanding how aperture size affects different antenna pyramidal horn antenna designs and technologies provides a valuable perspective for procurement professionals evaluating optimal solutions for specific applications. Pyramidal horn antennas exhibit unique aperture-related characteristics that distinguish them from other common antenna designs, offering distinct advantages in particular operational scenarios.

Pyramidal Horns vs Parabolic Reflector Antennas

Parabolic reflector antennas achieve high gain through curved surface geometry that focuses electromagnetic energy, while pyramidal horns utilize controlled aperture expansion from a waveguide source. The aperture size in parabolic systems refers to the reflector diameter, which directly correlates with gain following similar mathematical relationships as horn antennas. However, parabolic systems require precise surface accuracy (typically λ/16 RMS) across the entire reflector surface, making them more sensitive to mechanical tolerances and environmental effects. Pyramidal horn antennas offer superior mechanical robustness because their performance depends primarily on aperture dimensions rather than surface precision across large areas. The solid construction and absence of complex feed systems make pyramidal horns more suitable for applications requiring high reliability in harsh environments. Additionally, pyramidal horns maintain consistent performance characteristics across wider bandwidths because they avoid the frequency-dependent focusing effects that can limit parabolic reflector systems. The aperture efficiency of pyramidal horns typically exceeds 80%, while parabolic reflectors achieve 60-70% efficiency due to spillover losses and feed blockage effects. This efficiency advantage becomes particularly significant in applications where power consumption and thermal management are critical considerations.

Aperture Considerations: Horn Antennas vs Microstrip Patch Arrays

Microstrip patch arrays create effective apertures through multiple discrete radiating elements, allowing electronic beam steering and pattern shaping capabilities that fixed-aperture horn antennas cannot achieve. However, the distributed aperture in patch arrays introduces feed network losses and complexity that reduce overall system efficiency, particularly at millimeter-wave frequencies where conductor losses become significant. Pyramidal horn antennas with equivalent effective aperture areas consistently deliver higher gain and better cross-polarization performance compared to patch arrays. The continuous aperture of horn antennas eliminates the grating lobes that can appear in patch arrays when element spacing exceeds specific wavelength ratios. This characteristic makes horn antennas preferable for applications requiring clean radiation patterns and precise polarization control. Power handling capabilities strongly favor pyramidal horn designs due to their air-dielectric construction and absence of substrate materials that limit patch arrays. Horn antennas can handle kilowatt-level power without degradation, while patch arrays are typically limited to much lower power levels due to substrate heating and metallization current density limitations.

High-Gain vs Standard Aperture Horn Configurations

Standard pyramidal horn antennas typically feature aperture dimensions optimized for specific frequency bands, providing balanced performance between gain, beamwidth, and physical size. High-gain configurations employ extended apertures that significantly increase directional characteristics while requiring larger mechanical structures and more precise installation alignment. The distinction between standard and high-gain pyramidal horns relates directly to aperture size optimization for specific applications. Standard configurations might utilize 6-inch x 4-inch apertures for X-band applications, delivering 15-18 dBi gain suitable for general-purpose directional requirements. High-gain variants with 12-inch x 8-inch apertures achieve 22-25 dBi gain but require more substantial mounting structures and careful environmental protection. Procurement decisions between standard and high-gain configurations should consider system link budgets, mechanical constraints, and long-term operational requirements. High-gain pyramidal horns excel in applications where signal strength is paramount, while standard configurations offer better cost-effectiveness and installation flexibility for applications with moderate gain requirements.

Procurement Considerations: Selecting the Right Aperture Size for Your Needs

Successful procurement of pyramidal horn antennas requires systematic evaluation of aperture size requirements aligned with specific operational demands, technical specifications, and budgetary constraints. Understanding the relationship between aperture dimensions and performance characteristics enables informed decision-making that optimizes both immediate functionality and long-term system effectiveness.

Defining Application Requirements and Frequency Specifications

Establishing precise application requirements forms the foundation for aperture size selection. Engineers must evaluate operational frequency ranges, required gain levels, acceptable beamwidth parameters, and physical installation constraints. These requirements directly influence optimal aperture dimensions through established electromagnetic relationships that govern horn antenna performance. Frequency specifications determine the fundamental aperture size constraints, as dimensions must maintain acceptable phase error across the operational bandwidth. Applications spanning wide frequency ranges, such as multi-band radar systems or broadband communication links, require aperture sizing that accommodates the entire spectrum while optimizing performance at critical operational frequencies. Environmental considerations significantly impact aperture size selection, particularly for outdoor installations where larger pyramidal horn antenna ​​​​​apertures may require additional structural support and weather protection. Indoor laboratory applications often permit larger apertures that would be impractical for mobile or aerospace applications, where size and weight constraints are paramount.

Custom vs Standard Aperture Solutions

The choice between custom and standard aperture configurations depends on specific application requirements and procurement constraints. Standard aperture sizes offer several advantages, including reduced costs, shorter delivery times, and proven performance characteristics validated through extensive field deployment. These configurations typically align with common frequency bands and application requirements, making them suitable for mainstream applications. Custom aperture solutions become necessary when standard configurations cannot meet specific performance requirements or physical constraints. Applications requiring unusual gain/beamwidth combinations, operation at non-standard frequencies, or integration with existing mechanical systems may benefit from custom aperture designs. However, custom solutions typically involve higher costs, extended delivery schedules, and additional engineering validation requirements. The evaluation process should include a detailed analysis of whether standard configurations can meet application requirements with acceptable performance margins. Often, slight system design modifications can accommodate standard aperture antennas, resulting in significant cost savings and reduced project risk compared to custom solutions.

Technical Specifications and Performance Evaluation

Critical technical specifications related to aperture size include gain characteristics, beamwidth parameters, cross-polarization levels, and VSWR performance across operational frequencies. These specifications should be evaluated in context with system requirements, ensuring adequate performance margins for reliable operation under various environmental conditions.VSWR specifications become particularly important for high-power applications where reflected energy can damage transmitter equipment or create measurement uncertainty in precision applications. Pyramidal horn antennas typically achieve VSWR values below 1.5:1 across their operational bandwidth, but specific values depend on aperture dimensions and frequency range. Cross-polarization performance relates directly to aperture quality and manufacturing precision, with typical values ranging from -20 dB to -30 dB for well-designed horn antennas. Applications requiring precise polarization purity, such as radar cross-section measurements or satellite communications, may require enhanced specifications that influence aperture design and manufacturing requirements.

Supplier Evaluation and Best Practices

Effective supplier evaluation involves assessment of technical capabilities, manufacturing quality, and support services relevant to aperture size optimization. Leading suppliers maintain extensive databases of standard aperture configurations while offering custom design services for specialized applications. Technical consultation services help match aperture requirements with optimal standard configurations or guide custom design processes. Quality evaluation should include a review of manufacturing processes, test procedures, and certification standards relevant to specific applications. Suppliers specializing in precision horn antennas typically maintain rigorous quality control processes that ensure aperture dimensional accuracy and surface finish requirements necessary for optimal performance. Sample evaluation programs allow performance validation under actual operating conditions, providing confidence in supplier capabilities and product quality. Requesting sample units with test data enables direct performance comparison and validates theoretical predictions based on aperture size relationships.

Optimizing Performance: Best Practices for Using Pyramidal Horn Antennas with Various Aperture Sizes

Achieving optimal performance from pyramidal horn antennas extends beyond aperture size selection to encompass proper installation techniques, environmental considerations, and maintenance practices. These factors collectively determine whether theoretical performance capabilities translate into reliable operational effectiveness in real-world applications.

Installation and Orientation Techniques

The performance benefits of the right aperture size are maximised by using the right fitting methods. When it comes to bigger aperture antennas, mounting height becomes more important because ground reflections can cause interference patterns that weaken the radiation characteristics. The mounting structure needs to be rigid enough to keep the opening aligned even when it is loaded with wind and heated up or cooled down. The level of accuracy needed for alignment increases with the aperture size and gain. For example, high-gain configurations with bigger apertures need more precise angular positioning to keep working at their best. For mechanical alignment systems to work, the adjustment precision needs to be good enough for the antenna's beamwidth. Usually, positioning accuracy needs to be within 10% of the half-power beamwidth. Environmental shielding concerns change based on aperture size. For example, bigger holes might need radome protection to keep water out or stop trash from getting in the way. The design of the radome has to keep electromagnetic waves from getting through while also protecting the surroundings well enough to keep the aperture's performance characteristics the same when it's in use.

Maintenance and Long-Term Performance

As part of routine care, the focus is on keeping the aperture clean and the structure strong so that the best performance is maintained. To get rid of dust, moisture, and other things that can affect electromagnetic performance, larger openings need to be cleaned in more detail. It is important to keep the inside areas clean and free of oxidation, which can lower conductivity and raise insertion loss. As part of the inspection process, the stability of the aperture's dimensions should be checked. This is especially important for antennas that are exposed to thermal cycling or mechanical stress. Changing the shape of the aperture due to structural deformation can have a big effect on the gain and radiation pattern characteristics. This is why frequent dimensional verification is so important for keeping the system working well. To make sure proper RF sealing and less VSWR degradation, connection integrity at waveguide surfaces needs to be checked on a regular basis. To make sure the electrical connections work properly, the flange connections should be torqued to the manufacturer's specs and checked for signs of corrosion or mechanical damage.

Future-Proofing for Emerging Technologies

Aperture size selection should consider future technology requirements, particularly the horn antenna for 5G and emerging 6G applications, where frequency allocations and performance requirements continue evolving. Scalable antenna systems that accommodate aperture modifications or replacements provide flexibility for adapting to changing operational requirements. Modular mounting systems enable aperture size upgrades without complete infrastructure replacement, providing cost-effective paths for performance enhancement as requirements evolve. The initial installation should include adequate structural capacity and positioning flexibility to accommodate larger apertures if future applications demand enhanced performance characteristics. Integration planning for Internet of Things (IoT) and smart infrastructure applications may require consideration of multiple antenna systems with varying aperture requirements. Coordinated planning ensures optimal placement and minimal interference between different antenna systems while maintaining individual performance objectives.

Conclusion

Aperture size represents the fundamental parameter controlling pyramidal horn antenna performance, directly influencing gain, beamwidth, efficiency, and overall system effectiveness. Larger apertures consistently deliver higher gain and more focused radiation patterns, while smaller configurations offer broader coverage and reduced mechanical complexity. The optimization process requires a careful balance between performance requirements, physical constraints, and cost considerations. Understanding these relationships enables informed procurement decisions that align antenna characteristics with specific application demands. Proper installation, maintenance, and future-planning considerations ensure that aperture size benefits translate into reliable long-term performance across diverse industrial applications, from telecommunications infrastructure to precision measurement systems.

FAQ

1. What is the relationship between aperture size and gain in pyramidal horn antennas?

Gain increases proportionally with aperture area following the relationship G = 4πA/λ², where larger apertures provide higher gain values. Doubling the aperture area approximately doubles the gain (adds 3 dB), making aperture size the primary factor controlling directional characteristics and signal strength in horn antenna designs.

2. How does aperture size affect the operational bandwidth of pyramidal horn antennas?

Larger apertures can accommodate broader bandwidths while maintaining acceptable phase error across the operational frequency range. The aperture dimensions must ensure phase error remains below 90 degrees in the E-plane and 180 degrees in the H-plane across the entire bandwidth for optimal performance.

3. Can aperture size be modified after antenna manufacture?

Aperture size is typically fixed during manufacturing due to the precise flare angle and dimensional requirements. Modifications would require complete reconstruction of the horn geometry, making it more practical to select appropriate aperture dimensions during initial procurement rather than attempting post-manufacture changes.

4. What aperture size considerations are important for high-power applications?

High-power applications require aperture sizing that prevents air breakdown and maintains adequate current density distribution. Larger apertures generally handle higher power levels more effectively due to reduced field intensity and better heat dissipation, with power handling typically limited by waveguide breakdown voltage rather than aperture constraints.

5. How do environmental conditions affect optimal aperture size selection?

Environmental factors influence aperture size selection through mechanical support requirements, wind loading considerations, and weather protection needs. Larger apertures may require substantial mounting structures and radome protection in outdoor installations, while indoor applications can accommodate larger sizes without environmental constraints.

5. What are the cost implications of different aperture sizes in pyramidal horn antennas?

Larger apertures generally increase manufacturing costs due to material requirements and precision machining needs. However, the cost per dB of gain often decreases with larger apertures, making high-gain configurations cost-effective for applications requiring maximum signal strength and directional control.
