How Does a Loop Antenna Improve Signal Reception?

Loop antennas improve signal reception by using magnetic field coupling instead of electric field capture. This makes them less vulnerable to near-field electromagnetic pollution that is common in cities and factories. A loop antenna works through electromagnetic induction, which creates voltage from changing magnetic flux. This is different from normal dipole antennas, which respond mainly to electric fields. This feature of the antenna's design lets it block vertically polarised noise from things like switching power supplies, LED lights, and digital electronics, which makes the signal-to-noise ratios much better. The directional null pattern that is perpendicular to the loop plane lets operators physically spin the antenna to block out certain sources of interference. This is especially useful in crowded RF spectrum situations where many signals are competing for receiving clarity.

Understanding Loop Antenna Basics

The way loop antennas are built makes them different from other receiving systems because they use magnetic induction. According to Faraday's law, when radio frequency energy goes through the loop's opening, the changing magnetic field makes the conductor conduct electricity. In real-world signal environments, this basic mechanism has a number of useful benefits.

Classification by Electrical Size

There are two main types of loop configurations based on how big their circumference is compared to their operating wavelength. Electrically small loops, which are also known as magnetic loops, keep their diameter below 0.1 wavelength at the frequency they're used in. These small designs work great in setups with limited room and block out noise very well. Resonant loops work with a circumference of about one full wavelength, giving them a wider bandwidth and higher radiation resistance that makes them good for transmission tasks. Medium-sized loops are in the middle, balancing how small they are with how well they work for multi-band reception.

How impedance behaves and how much tuning is needed are directly affected by the physical dimensions. Radiation resistance in small loops is measured in milliohms, so it's important to keep an eye on circuit losses and link quality. Larger loops get closer to 50–200 ohms impedance, which makes matching networks easier to use and less sensitive to small differences in construction.

Radiation Pattern Characteristics

One thing that makes loop antennas stand out is their figure-eight radiation pattern. Widest signal reception happens across from the loop plane, and deep nulls happen perpendicular to the loop surface. This two-way feature lets you precisely find the direction and block disturbance by rotating a simple mechanical element. In real life, engineers put loops on azimuth rotators so that the direction can be changed automatically for better transmission or to block out annoying signals.

A response to polarisation depends on the orientation of the loop. Loops that are mounted horizontally receive horizontally polarised waves better than loops that are mounted vertically, which receive vertically polarised signals better. Dual polarisation is needed in many industrial settings and can be achieved through crossed-loop configurations or electronically switched orientations.

Frequency Range Considerations

The operating frequency is very different for small and big loop systems. Electrically small loops have a high quality factor, which means they have a narrow instantaneous bandwidth that needs to be tuned when frequencies change. The presence of this trait naturally lowers intermodulation distortion caused by strong out-of-band sounds. Broadband ferrite-core loops increase the usable bandwidth by adding magnetic permeability. This works best from the very low frequency (VLF) to the high frequency (HF) range.

Small Loop Antenna magnetic loops have a naturally low output voltage, but active loops use preamplifiers to make up for this. The sensitivity of these devices is amazing across decades of frequency range, which makes them essential for broad tracking and spectrum analysis.

Key Advantages and Limitations of Loop Antennas

When procurement teams understand the performance trade-offs that come with loop antenna designs, they can make decisions that meet the needs of specific operations. The special electromagnetic qualities that give some benefits also put limits on the technology, which needs to be compared to other antenna technologies.

Noise Rejection Capabilities

When compared to electric field antennas, the magnetic field coupling mechanism is better at blocking local electrical noise. Electric field disturbance is mostly made by home products, industrial equipment, and digital gadgets. Small loops naturally filter out this type of noise because they respond mostly to magnetic field components. In urban settings, this can improve the signal-to-noise ratio by 10–20 dB. This performance advantage directly leads to longer communication ranges and more reliable data in areas with a lot of spectrum congestion.

Telecommunications research institutions have repeatedly shown that loop antenna magnetic loops have a higher signal-to-noise ratio (SNR) than dipoles when placed in electrically noisy areas. This trait is especially useful for base station front-end uses, where the coverage area is determined by sensitivity.

Directional Control Benefits

The sharp null pattern that is perpendicular to the loop plane lets the antenna be rotated to reduce active interference. By pointing the null towards the source of the interference, operators can cut down on unwanted signals by 20 to 40 dB. In many situations, this feature is a cheaper option to complex digital screening. Crossed-loop arrays can get bearing accuracy to within a few degrees, which is used by direction-finding systems to precisely locate sources.

Another useful benefit is that installation can be done in a variety of ways. Because small loops are so small, they can be mounted in places where full-sized antennas can't, like on mobile platforms, inside buildings, or in places that need to look good. This flexibility lowers the cost of installation and gives system designers more rollout choices.

Bandwidth and Sensitivity Constraints

Because small loops have a high Q, their working bandwidth is usually only 2 to 5 per cent of the centre frequency. For uses that need to cover a wide frequency range, either continuous retuning or multiple loop elements that are optimised for different frequency ranges are needed. Compared to broadband options like discone or log-periodic transmitters, this requirement makes the setup more complicated.

Small loops are also easily affected by resistive losses in wires and links because they have low radiation resistance in a magnetic loop antenna. Resistance of even a few ohms can cut performance by half or more, so you need to use high-quality materials and build it correctly. Copper tubing with silver plating or highly polished surfaces reduces skin effect losses, which are important for keeping performance at a good level.

Selecting and Procuring High-Quality Loop Antennas

Procurement decisions for loop antennas involve balancing technical specifications against budget constraints, delivery schedules, and long-term support requirements. B2B buyers benefit from systematic evaluation frameworks that align antenna characteristics with operational needs.

Active versus Passive Loop Technologies

Active loop antennas incorporate preamplification stages that boost output signal levels while maintaining wide frequency coverage. The Active Loop Antenna (AHA) configuration delivers exceptional sensitivity with built-in amplification, extending low-frequency response down to 1 kHz. These systems operate from 13.8VDC rechargeable batteries and provide 20 dB insertion loss with a flat frequency response, which is ideal for wideband monitoring and spectrum surveillance applications. The integrated saturation indicator warns of overload conditions protecting downstream receivers.

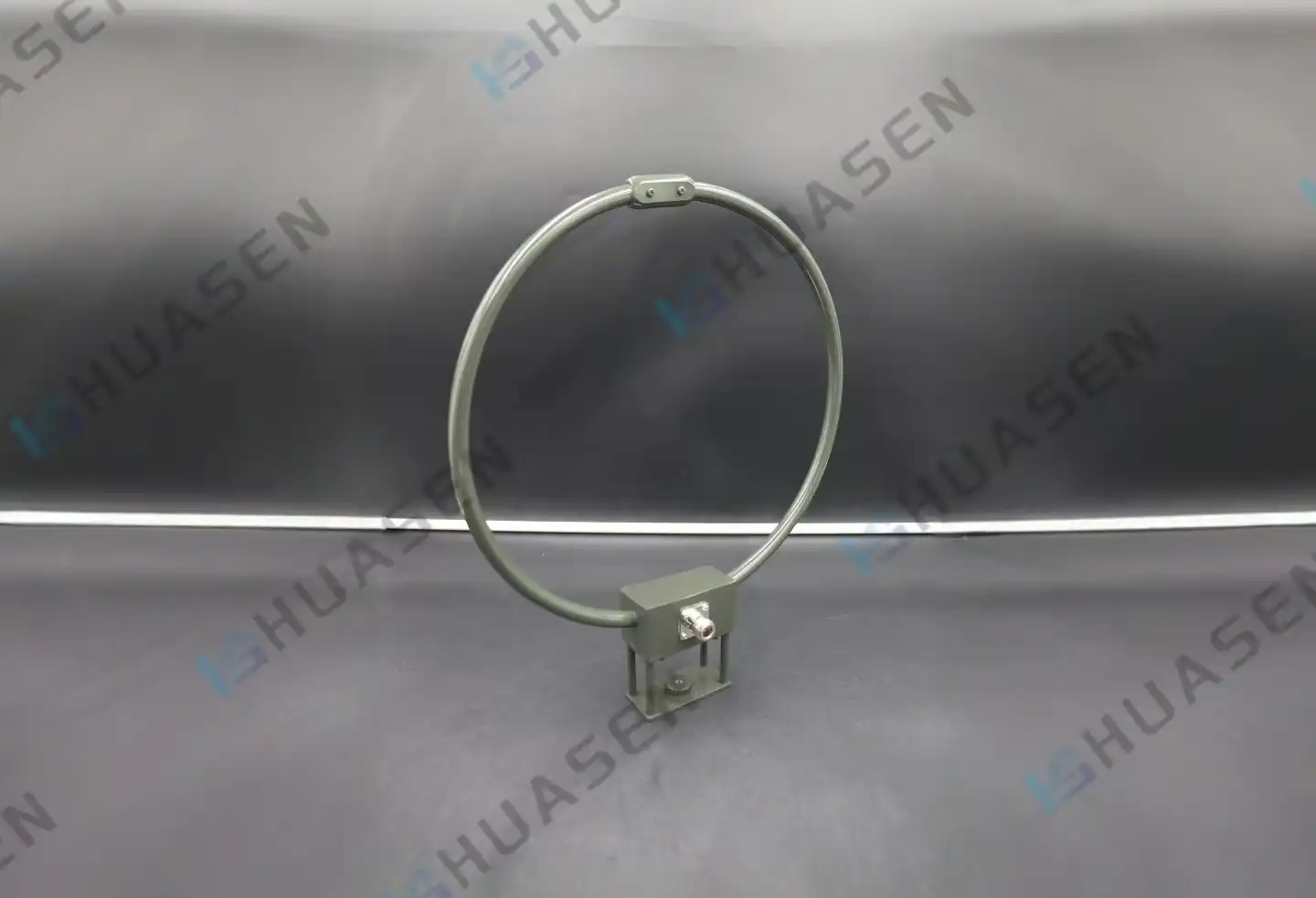

Passive loop designs eliminate active components, relying entirely on electromagnetic induction for signal generation. The passive loop antenna (KHA) supports bidirectional signal transceiving up to 30 MHz with an 80 dB isolation factor, valuable for applications requiring transmission capability or environments where battery maintenance poses logistical challenges. BNC-K and N-K connector options ensure compatibility with diverse equipment interfaces.

Parameter	Active Loop (AHA)	Passive Loop (KHA)
Frequency Range	1 kHz - 30 MHz	10 kHz - 30 MHz
IL Factor	20 dB (flat response)	80 dB (high isolation)
Power Requirement	13.8 VDC (rechargeable battery with saturation indicator)	None
Directionality	Receive-only	Bidirectional transceiving
Connector Type	BNC(F)	BNC-K / N-K
Typical Application	Wideband monitoring, EMC testing, spectrum analysis	Communication systems, radar testing, transceiver integration

The choice between active and passive configurations depends on specific application requirements. Test laboratories conducting EMC compliance verification often prefer passive loops for their high isolation and bidirectional capability. Communications monitoring stations benefit from active loops' enhanced sensitivity and extended low-frequency response. Budget considerations also influence selection, with passive designs offering lower initial cost and eliminating ongoing battery maintenance expenses.

Supplier Evaluation Criteria

Supply chain reliability directly impacts project schedules and long-term operational continuity. Buyers should verify manufacturer production capacity, component sourcing strategies, and inventory practices to assess delivery risk. Suppliers maintaining strategic component stocks and diverse sourcing channels demonstrate resilience against supply disruptions that have increasingly affected electronic component markets.

Technical support quality varies significantly across vendors. Responsive engineering assistance during specification development, sample evaluation support, and post-delivery troubleshooting access add substantial value beyond product cost. Manufacturers offering design consultation services help buyers optimize antenna selection for specific deployment scenarios, potentially avoiding costly specification errors.

Certification compliance provides assurance of quality and regulatory conformance for magnetic loop antennas. Antennas meeting MIL-STD-461 standards demonstrate suitability for defense applications, while ISO 9001 certification indicates robust manufacturing process controls. RoHS compliance ensures compatibility with environmental regulations in many markets. Requesting certification documentation during procurement qualification validates supplier claims.

Conclusion

Loop antennas provide proven solutions for signal reception challenges across telecommunications, defense, and industrial sectors through their unique magnetic field coupling mechanism. The inherent noise rejection, directional control, and compact form factor address specific pain points in spectrum-congested environments where conventional antennas struggle. Procurement teams must evaluate the trade-offs between active and passive designs, bandwidth limitations, and customization requirements against operational needs and budget constraints. Proper installation practices, routine maintenance, and supplier selection significantly influence long-term performance and reliability. As RF environments grow increasingly complex with 5G/6G deployment and expanding wireless services, loop antenna technology continues evolving through advanced materials and digital integration, ensuring relevance for demanding applications requiring superior signal integrity.

FAQ

1. How does loop antenna size affect reception quality?

Antenna circumference relative to operating wavelength determines fundamental characteristics, including impedance, bandwidth, and efficiency. Electrically small loops below 0.1 wavelength exhibit high Q factors, yielding narrow bandwidth but superior noise rejection. Larger loops approaching one wavelength provide broader bandwidth and higher radiation resistance, simplifying matching networks. Applications requiring wideband coverage benefit from larger designs, while space-constrained installations necessitate small loops accepting narrower instantaneous bandwidth and tuning requirements.

2. Are loop antennas effective in urban interference environments?

Urban environments present severe electrical noise from LED lighting, switching power supplies, and digital electronics. Loop antennas excel in these conditions through magnetic field coupling that inherently rejects electric field interference. Real-world deployments consistently demonstrate 10-20 dB signal-to-noise improvement compared to dipole antennas in electrically noisy locations. The directional null pattern enables physical rotation to cancel specific interference sources, providing additional interference mitigation without complex signal processing.

3. What distinguishes active from passive loop designs?

Active loops incorporate preamplifiers delivering enhanced sensitivity and extended frequency response down to VLF ranges, operating from external power sources with integrated overload protection. Passive designs rely entirely on electromagnetic induction, eliminating power requirements and supporting bidirectional operation suitable for transmit applications. Active configurations suit wideband monitoring and spectrum analysis, while passive loops serve communications systems and testing environments where transmission capability or power-free operation provides operational advantages.

Partner with Huasen Microwave for Premium Loop Antenna Solutions

Huasen Microwave Technology brings over three decades of RF engineering excellence to Loop Antenna development, manufacturing solutions that meet the rigorous demands of telecommunications infrastructure, aerospace systems, and defense applications. Our active and passive Loop Antenna configurations address frequency coverage from 1 kHz through 30 MHz with documented performance meeting MIL-STD and ISO compliance standards. Engineering teams receive comprehensive design consultation services, helping optimize antenna selection for specific deployment scenarios, including EMC testing, base station integration, and mobile platform installations. We maintain robust supply chain management, ensuring consistent delivery schedules critical for large-scale projects and system integration timelines.

Procurement managers benefit from our customization capabilities tailored to unique frequency requirements, connector specifications, and environmental protection needs. Whether you need a specialized Loop Antenna supplier for prototype quantities or volume production runs, our facility accommodates diverse order scales with consistent quality control. Technical documentation includes calibration data, radiation pattern measurements, and VSWR characterization supporting system-level performance validation. Contact our engineering team at sales@huasenmicrowave.com to discuss your signal reception requirements and receive detailed product specifications aligned with your operational parameters. Let Huasen Microwave's proven Loop Antenna solutions enhance your signal integrity and system reliability.
