Exploring the Functionality of Microstrip Antennas: How Do They Work?

Microstrip antennas, often called patch antennas, have changed the world of radio frequency (RF) systems with their small size and many uses. One side of these planar antennas has a metallic patch, and the other side has a ground plane. Microstrip antennas work because of the idea of resonant structures. The fringing fields at the margins of the metallic patch are what make emission happen. When an RF signal is sent to the metallic patch over a feed line, it sets off a resonant mode in the space between the patch and the ground plane. The fringing fields at the edges of the patch change over time and create electromagnetic waves that spread out into space in a certain way. This special design lets microstrip antennas easily turn guided electrical signals into electromagnetic waves in free space for sending systems and the other way around for reception devices. Because they are small, light, and easy to connect to other circuits, they are essential for modern RF applications such as wireless communication devices, satellite systems, and improved radar technology.

What is a microstrip antenna, and how does it function in RF systems?

A microstrip antenna is a type of planar antenna that is very popular in RF systems because it offers several benefits. These antennas have a thin, flat shape and are made up of a conductive patch element that is separated from a ground plane by a dielectric substrate. The patch is usually composed of copper or another material that conducts electricity well. It can be any shape, such as a rectangle, circle, or more complicated shape, depending on what the application needs.

Functionality in RF Systems

In RF systems, microstrip antennas serve as efficient radiators and receivers of electromagnetic waves. Their functionality is based on the following principles:

Resonance: The patch dimensions are chosen to create a resonant cavity, typically half a wavelength long at the operating frequency.
Fringing Fields: The electric fields at the edges of the patch "fringe" outwards, causing radiation.
Feed Mechanism: Different ways of feeding the patch (such a microstrip line or a coaxial probe) stimulate it, starting the resonance and radiation process.
Impedance Matching: Good design makes sure that power flows easily between the antenna and the RF circuitry that is attached to it.

Microstrip antennas are great for situations where you need low-profile, conformal antennas that can be quickly added to printed circuit boards (PCBs). They are used a lot in modern communication devices like cell phones, Wi-Fi routers, and satellite navigation gear. It is possible to make antenna arrays out of them, which boosts gain and lets you move beams, which is important for advanced radar and 5G systems.

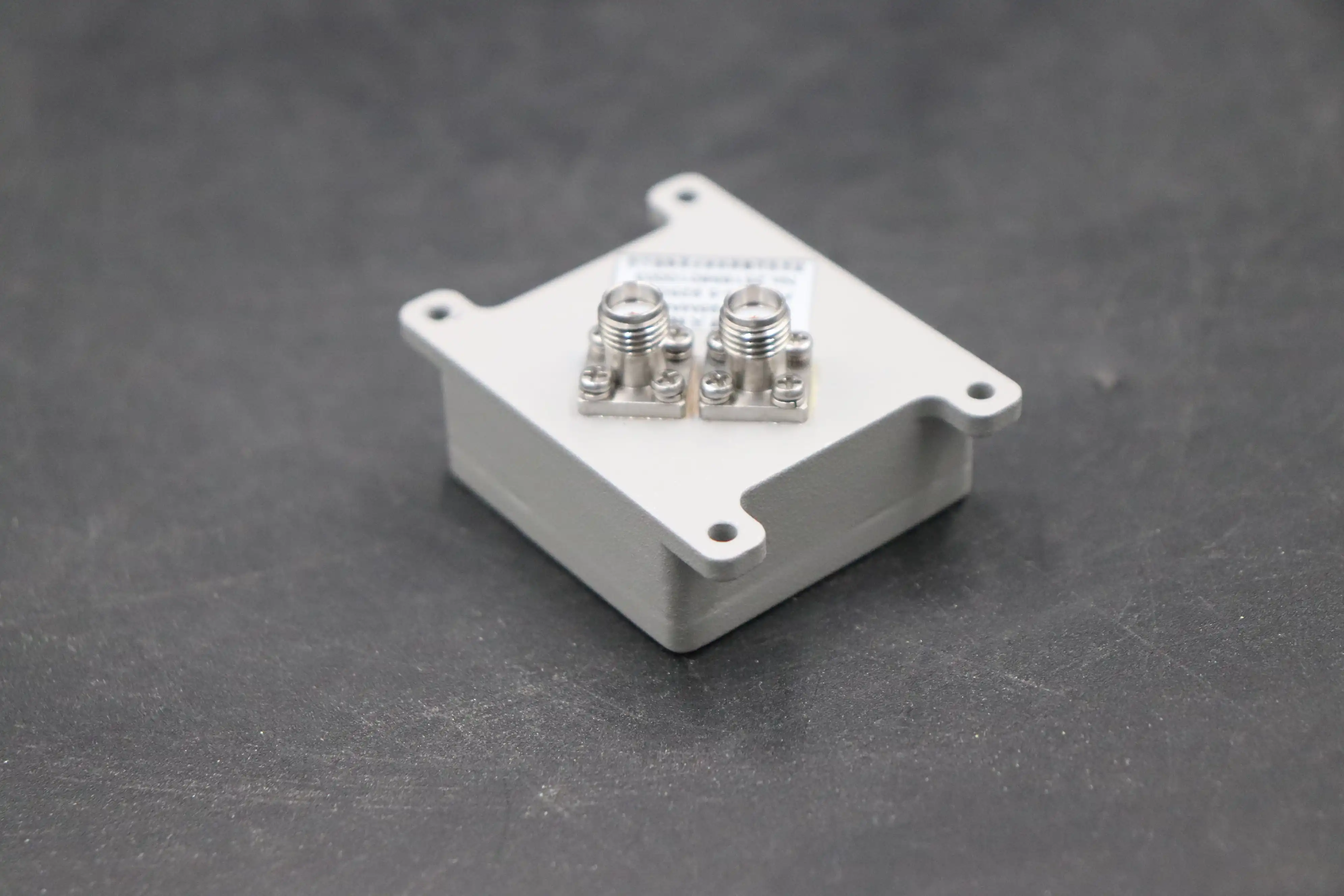

Microstrip antenna-blog-1-1

Microstrip antenna fundamentals: structure, radiation mechanism, and feed types

To understand what part microstrip antennas play in modern RF systems, you need to know how they work in basic terms. Let's look at their structure, how they work with radiation, and the different types of feeds.

Structure

Three main parts make up the general structure of a microstrip antenna:

Patch: A very thin shield of metal that sits on top of the base and lets radiation pass through.
When the patch doesn't touch the ground plane, it's called the substrate. The substrate changes how well the antenna works.
To finish off the resonant structure, there is a conductive layer below the base called the ground plane. This plane acts as a reflector.

The substrate material and how thick it is change the antenna's frequency, how well it works, and how much radiation it sends out. Substrate materials that are often used are FR-4, Rogers RT/Duroid, and ceramic-based metals.

Radiation Mechanism

The radiation mechanism of microstrip antennas is primarily attributed to the fringing fields at the edges of the patch. When the antenna is excited at its resonant frequency:

Electric fields are established between the patch edges and the ground plane.
These fields extend beyond the physical dimensions of the patch, creating fringing fields.
The fringing fields at opposite edges of the patch are out of phase, resulting in radiation normal to the patch surface.

The radiation pattern is typically broad and unidirectional, with maximum radiation perpendicular to the patch surface. The pattern can be modified by altering the patch shape, using multiple patches, or incorporating parasitic elements.

Feed Types

Several feeding techniques are employed to excite microstrip antennas, each with its own advantages and considerations:

Microstrip Line Feed: A strip of metal that goes directly from the edge of the patch to the edge of the patch. Easy to make and match, but can cause undesired radiation.
Coaxial Probe Feed: The inner conductor of a coaxial cable goes through the substrate and connects to the patch. The outer conductor connects to the ground plane. Has little spurious radiation, however it can be hard to model.
Aperture-Coupled Feed: This uses a slot in the ground plane to connect energy from a microstrip line on a different substrate layer. It separates the feed network and the radiating element well.
Electromagnetic coupling between the feed line and the patch, which are close together and separated by a thin dielectric layer. Has a wide bandwidth and low spurious radiation.

The choice of feed type depends on factors such as impedance matching requirements, bandwidth needs, and fabrication constraints. Each method presents a trade-off between ease of fabrication, bandwidth, and radiation performance.

How do microstrip antennas compare with conventional antennas in size and cost?

Before you decide which is better, you should think about a few things, mainly the size and cost of the microstrip antennas. These comparisons are what system designers and RF experts need to do to find the best antenna technology for their projects.

Size Comparison

Microstrip antennas generally offer significant size advantages over many conventional antenna types:

Profile: Microstrip antennas naturally have a low profile, with widths that range from a few micrometers to a fraction of a millimeter. Because of this, they are a lot smaller than common antennas like dipoles and horn antennas.
Planar Design: Microstrip antennas' flat structure makes it easy to connect them to printed circuit boards. This makes them perfect for applications with limited room, like mobile devices and wearable tech.
Conformality: Conformity: Microstrip antennas can be made to fit non-flat surfaces, which is hard to do with many other types of antennas. This trait is very useful in the automotive and aerospace industries.

However, it's important to note that the size reduction in microstrip antennas often comes at the cost of reduced bandwidth and efficiency compared to larger conventional antennas.

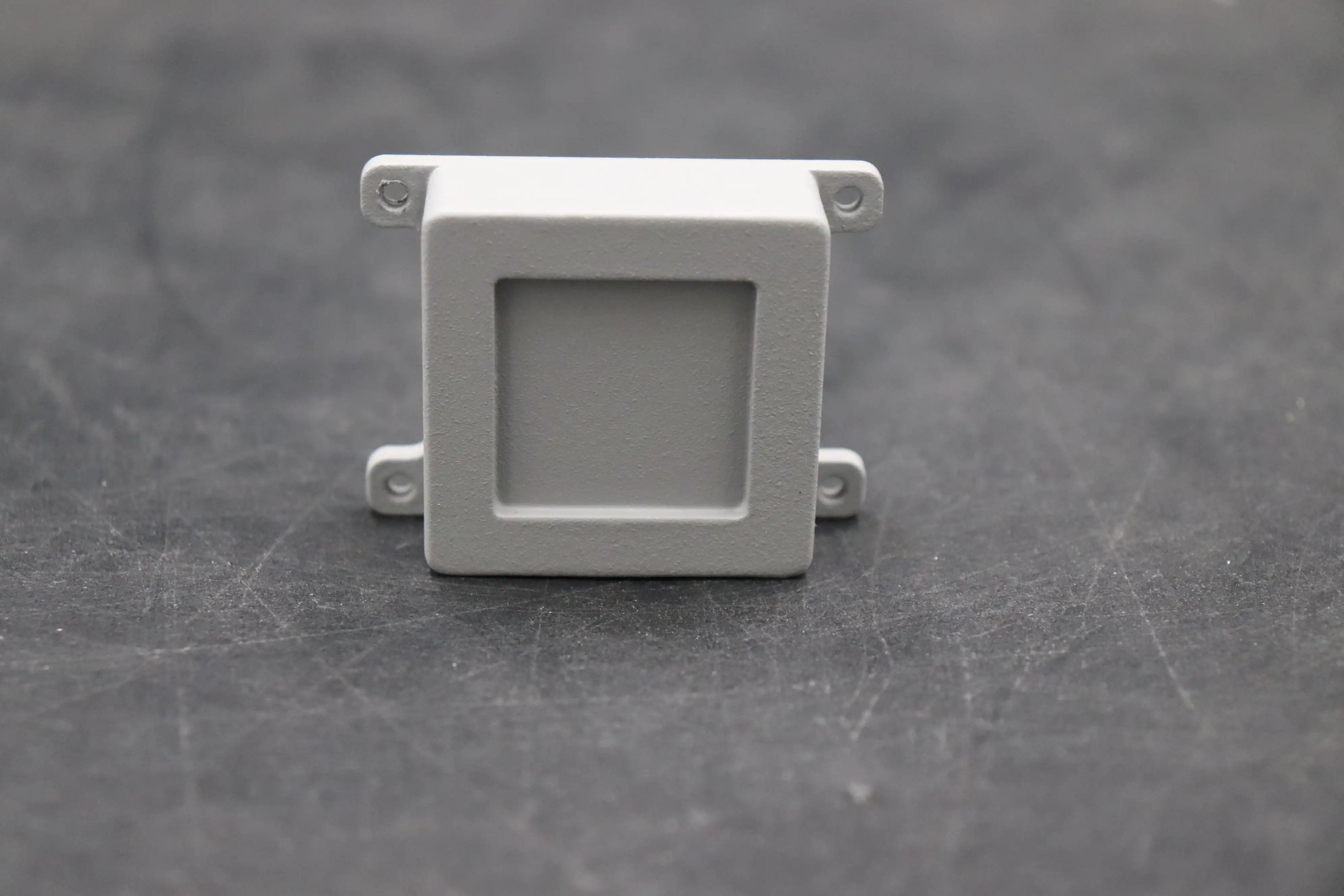

Microstrip antenna-blog-1-2

Cost Comparison

One big reason why microstrip antennas are used so often is that they are very cheap:

Process of Making: Standard printed circuit board techniques can be used to make microstrip antennas. These techniques are well-known and cost-effective for mass production.
Costs of Materials: The copper foil and dielectric base that are needed for microstrip antennas are usually less expensive than those used in some other types of antennas, especially when making a lot of them.
Integration Savings: Since microstrip antennas can be put directly on circuit boards, it is possible to save a lot of money on assembly and packing costs, especially for small electronics.

The cost of making the tools for making microstrip antennas can be higher at first than for making some simple wire antennas, but the cost per unit is usually cheaper when a lot of them are made. Because of this, microstrip antennas are great for high-volume and consumer electronics uses.

Performance vs. Cost Considerations

If you want to know how well microstrip antennas work for the money, compare them to other types:

Bandwidth: Most traditional antennas have a wider bandwidth, which may make up for their higher cost when they need to cover a lot of bands.
Allowance: Some popular antennas, like horn or dish antennas, have more allowance, which might be needed for long-distance calls even though they are bigger and cost more.
Handling Power: Most of the time, regular antennas can handle more power, which is very important for systems that send a lot of power.

Other types of antennas are bigger and more expensive than microstrip antennas. This makes them better for many modern RF systems, especially those with small, built-in devices. In some cases, though, normal antenna types may still be the best choice, even if they are bigger and cost more. This is because they can handle more power, bandwidth, or gain.

Conclusion

Because they are small, cheap, and easy to bend, microstrip antennas are now an important part of many RF devices. Right now, it's very important to make devices smaller and easier to combine. These are very helpful because they are easy to add to flat structures. They may not be able to handle as much data or power as other types of antennas, but because they are small, light, and cheap to make, they are the best choice for a lot of different applications, from home electronics to high-tech military gear.

The relevance of microstrip antennas is projected to grow as RF technology continues to change, especially with the arrival of 5G and beyond. Ongoing research in materials science and antenna design approaches promises to address some of the present constraints of microstrip antennas, potentially widening their application area even more.
