5 Common Mistakes to Avoid When Using RF Coaxial Adapters？

RF coaxial adapters play a crucial role in connecting various components within radio frequency (RF) systems. However, improper use of these adapters can lead to significant performance issues and even system failures. In this article, we'll explore five common mistakes to avoid when using RF coaxial adapters, helping you maintain optimal signal integrity and system reliability. By understanding these pitfalls, you'll be better equipped to select, install, and maintain your RF connections, ensuring smooth operation across a wide range of applications, from telecommunications and radar systems to aerospace and defense technologies.

Mismatching Connector Types and Impedances

One of the most critical aspects of using RF coaxial adapters is ensuring proper connector compatibility and impedance matching. Mismatching these elements can lead to signal reflections, power loss, and degraded system performance.

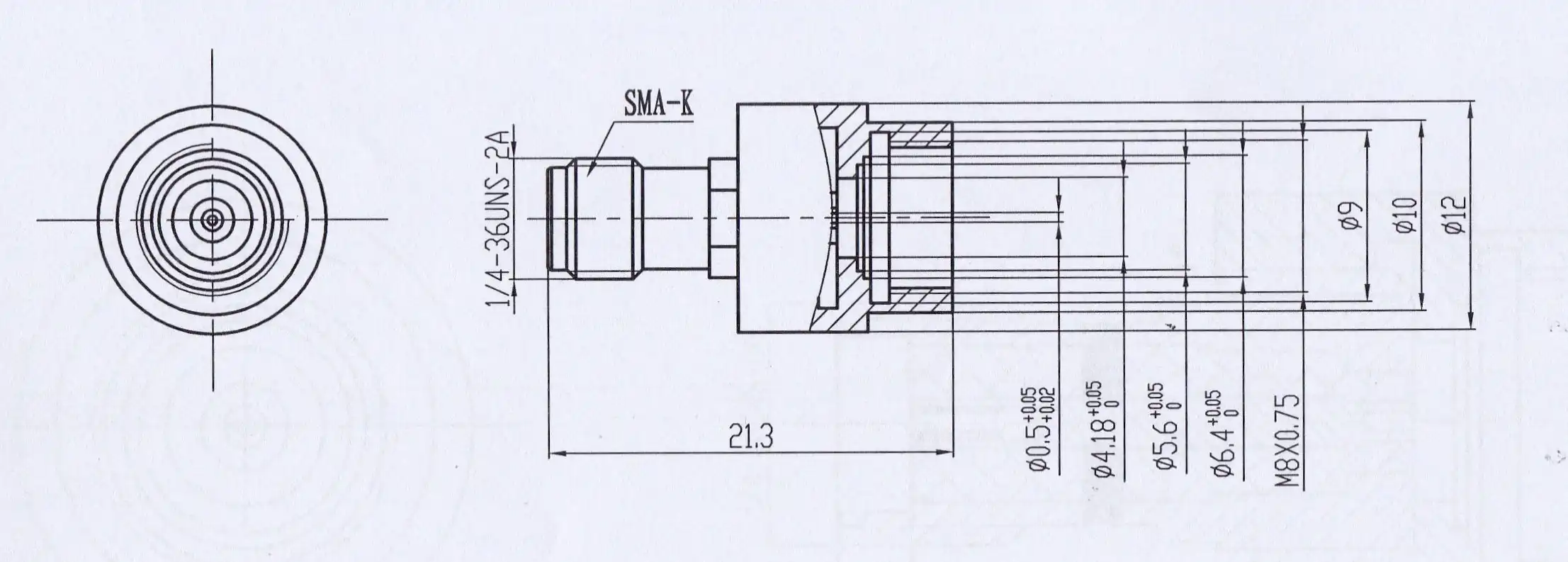

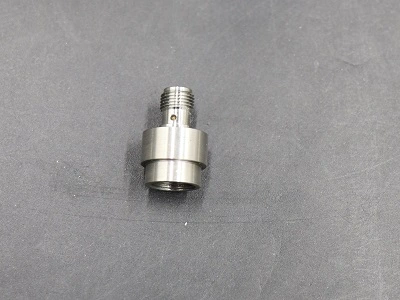

Connector Type Incompatibility

RF systems utilize various connector types, such as N-type, SMA, and 2.92mm. Each type has specific mechanical and electrical characteristics. Attempting to force incompatible connectors together can damage both the adapter and the connected components. Always verify that the adapter's connectors match those of your system's components.

Impedance Mismatch

RF systems typically operate at specific impedances, with 50 ohms and 75 ohms being the most common. Using an adapter with a different impedance than your system can cause signal reflections and power loss. This mismatch can significantly reduce the overall efficiency of your RF setup. Ensure that your RF coaxial adapter matches the impedance of your system components for optimal performance.

Neglecting Proper Torque and Installation Techniques

The way you install RF coaxial adapters can significantly impact their performance and longevity. Two common installation mistakes can lead to serious issues:

Over-tightening Connections

While it's crucial to secure connections, over-tightening can damage the adapter, connectors, or both. Excessive force can deform the connector interface, leading to poor electrical contact, increased insertion loss, and potential mechanical failure. Always use a calibrated torque wrench and follow the manufacturer's specifications for proper tightening.

Improper Alignment

Misalignment during connection can damage the center conductor or dielectric material of the adapter. This damage may not be immediately apparent but can lead to intermittent performance issues or complete failure over time. Take care to align connectors properly before applying any force, and never try to force a connection that doesn't engage smoothly.

Overlooking Environmental Factors and Durability Requirements

RF coaxial adapters often operate in challenging environments, and failing to account for these conditions can lead to premature failure or degraded performance.

Exposure to Harsh Elements

Outdoor installations or industrial settings can expose adapters to moisture, extreme temperatures, and corrosive substances. Using adapters not rated for these conditions can result in rapid deterioration. Select adapters with appropriate environmental ratings, such as those meeting MIL-STD-810 for ruggedness and durability.

Vibration and Mechanical Stress

In applications involving movement or vibration, such as aerospace or mobile communications, standard adapters may loosen or fail over time. Choose adapters designed to withstand mechanical stress, featuring features like captive center contacts or ruggedized construction to ensure reliable performance in dynamic environments.

Ignoring Frequency Range Limitations

Every RF coaxial adapter is designed to operate within a specific frequency range. Using an adapter outside its rated frequency can lead to increased insertion loss, higher VSWR (Voltage Standing Wave Ratio), and overall degraded performance. Always verify that the adapter's frequency range is compatible with your system's operating frequencies.

Neglecting Regular Maintenance and Inspection

RF coaxial adapters, like any other component, require periodic maintenance to ensure optimal performance. Neglecting this aspect can lead to gradual performance degradation or sudden failures.

Implement a regular inspection schedule to check for:

• Physical damage or wear
• Loose connections
• Corrosion or contamination
• Changes in electrical performance (using network analyzers or other test equipment)

Addressing issues early can prevent more serious problems and extend the life of your RF system.

Failing to Consider Future System Upgrades

When selecting RF coaxial adapters, it's important to consider not just current needs but potential future system upgrades. Choosing adapters with limited bandwidth or power handling capabilities may necessitate costly replacements when upgrading your RF system.

Consider factors such as:

• Potential increases in operating frequency
• Higher power requirements
• Compatibility with emerging connector standards

Investing in higher-quality, more versatile adapters initially can save time and resources in the long run, providing greater flexibility for system evolution.

Conclusion

Avoiding these common mistakes when using RF coaxial adapters is crucial for maintaining the integrity and performance of your RF systems. By paying attention to connector compatibility, proper installation techniques, environmental factors, frequency limitations, and ongoing maintenance, you can significantly enhance the reliability and longevity of your RF setups.

For those working in demanding industries such as telecommunications, radar systems, aerospace, or defense, selecting high-quality RF coaxial adapters is paramount. Huasen Microwave Technology Co., Ltd. specializes in providing premium RF and microwave solutions tailored to these exacting requirements. With our extensive experience and commitment to innovation, we offer adapters that not only meet but exceed industry standards for performance and reliability.

Don't let adapter-related issues compromise your critical RF systems. Contact our team of experts today to discuss your specific needs and discover how our advanced RF coaxial adapters can elevate your project's performance and reliability.

FAQ

1. What is the typical lifespan of an RF coaxial adapter?

The lifespan of an RF coaxial adapter can vary significantly depending on usage conditions, quality, and maintenance. High-quality adapters used in controlled environments can last for several years or even decades. However, in harsh conditions or with frequent use, they may need replacement more often. Regular inspection and proper care can extend their lifespan considerably.

2. Can I use an RF coaxial adapter to convert between different impedances?

While it's possible to find impedance-transforming adapters, it's generally not recommended to use adapters to convert between different impedances (e.g., from 50 ohms to 75 ohms). This can introduce significant signal reflections and losses. It's better to design your system with consistent impedance throughout or use purpose-built impedance transformers where necessary.

3. How do I choose the right RF coaxial adapter for my application?

Selecting the right adapter involves considering several factors: connector types, impedance, frequency range, power handling capability, environmental conditions, and mechanical requirements. It's crucial to match these specifications to your system's needs. When in doubt, consult with RF experts or the adapter manufacturer to ensure compatibility and optimal performance.

4. Are there any special storage considerations for RF coaxial adapters?

Yes, proper storage is important for maintaining adapter quality. Store adapters in a clean, dry environment, ideally in their original packaging or protective cases. Avoid exposure to extreme temperatures, humidity, or corrosive atmospheres. For gold-plated or precision adapters, consider using desiccant packs to prevent moisture accumulation. Always handle adapters carefully to prevent physical damage, especially to the connector interfaces.
