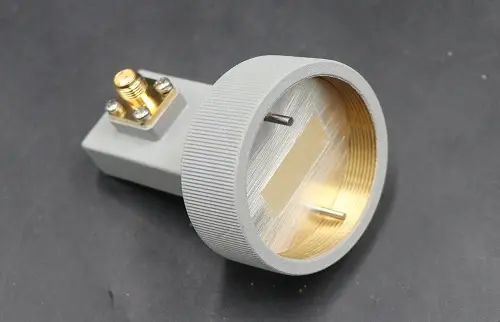

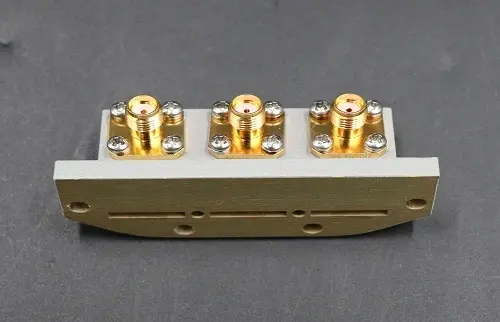

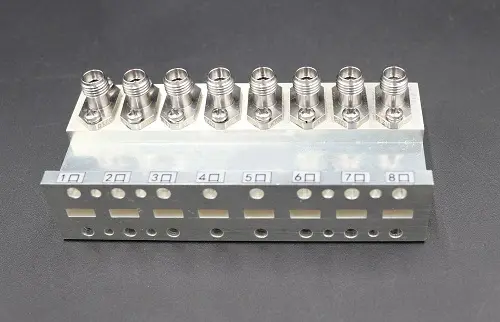

Custom Waveguide to Coaxial Adapter

Custom Waveguide to Coaxial Adapter - Precision RF Solutions

Huasen Microwave Technology Co., Ltd. is a leading manufacturer and supplier of Custom Waveguide to Coaxial Adapter. With over 30 years of experience, we specialize in high-performance RF and microwave solutions. Our custom adapters offer superior PIM performance, precise impedance matching, and rugged design for demanding aerospace and defense applications. Trust Huasen for reliable, tailored product solutions that meet your exact specifications.

Why Choose Our Custom Waveguide to Coaxial Adapter?

Our product solutions are designed to meet the most challenging requirements in high-frequency applications. We offer:

1. Ultra-low PIM performance (<-160 dBc) for interference-sensitive systems
2. Precision machining for excellent VSWR (typically <1.25:1) at 18-40 GHz
3. Customizable flange configurations (e.g., WR-28, WR-42) for seamless integration
4. Rapid prototyping and short lead times for custom designs
5. Space-qualified options with hermetic sealing for LEO/MEO environments​​​​​​​

Product Features & Process

• Corrosion-resistant materials (gold-plated brass, aluminum with MIL-DTL-5541 coatings)
• Precision CNC machining for tight tolerances
• Advanced plating techniques for optimal RF performance
• Rigorous testing and quality control at every stage of production
• Customizable flange designs to match non-standard system architecture

Core Performance Parameters

Applications

Our Custom Waveguide to Coaxial Adapter excels in various RF and microwave applications:

• Satellite communications systems
• Phased array antennas
• Radar systems
• Aerospace and defense equipment
• Test and measurement setups

Installation & Compatibility

Huasen's adapters are designed for easy integration and cross-compatibility:

• Compatible with major regional flange standards (MIL-spec, ESA)
• Detailed installation guides and technical support provided
• Optional alignment pins for precise mating
• Lightweight designs available for weight-sensitive applications

Quality Control & After-Sales

We ensure the highest quality and customer satisfaction:

• ISO9001 certified manufacturing processes
• RoHS and REACH compliant for global market access
• Rigorous testing including PIM, VSWR, and environmental stress screening
• 1-year warranty on all products
• Dedicated technical support team for post-sale assistance

Packaging and Shipping

• Individual foam-lined protective cases for each adapter
• Bulk packaging options for high-volume orders
• Global shipping with tracking and insurance available
• Express shipping for urgent requirements

FAQ

Q: Can the product be optimized for low-temperature environments?
A: Yes, we provide designs tested for stable performance in extreme cold.

Q: What is the typical lead time for a custom adapter design?
A: Lead times vary based on complexity, but we aim for 4-6 weeks for most custom designs.

Q: Are your adapters suitable for space applications?
A: Absolutely. We offer space-qualified adapters with hermetic sealing and materials optimized for the space environment.

Q: Can you match a specific VSWR requirement for my system?
A: Yes, we can optimize the adapter design to meet your specific VSWR needs across your operating frequency range.

Q: Do you offer any rapid prototyping options?
A: We provide 3D-printed prototypes for initial testing and validation before final production.

Contact Us

For inquiries or to discuss your Custom Waveguide to Coaxial Adapter needs, please contact our sales team at sales@huasenmicrowave.com. Our experts are ready to help you find the perfect solution for your RF and microwave challenges.
